Description
- Ideal for mobile use due to low weight
- Stable gear for uniform work piece feed

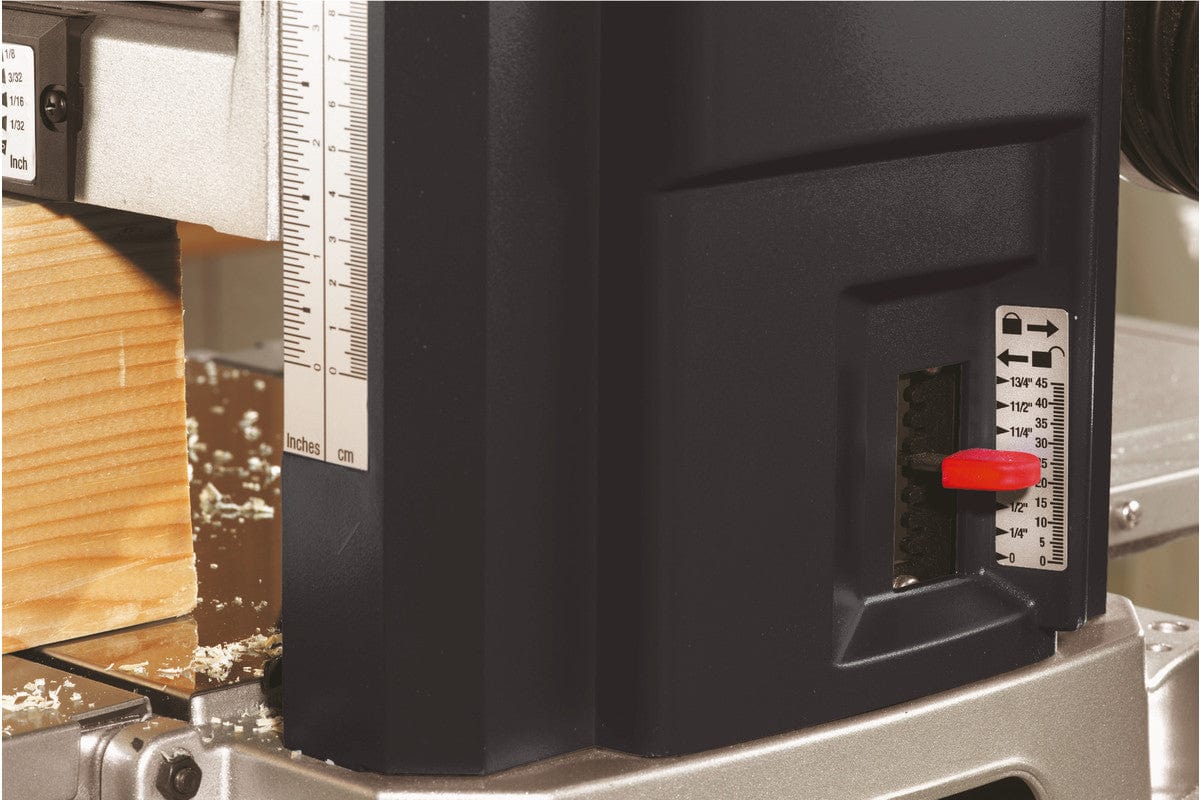

- Convenient height adjustment with crank handle
- Easy setting of common passage heights using stop points
- Powerful universal motor for powerful lugging drive and even planing result
- Restart protection: prevents unintentional start-up after power supply interruption
- Precise thickness adjustment for quick and exact planing
- Large feed and exit tables support the conveyance of long materials
- Planing locking mechanism prevents unintentional adjustment of the chip removal setting
- Dimensions: 579 x 857 x 574 mm / 1.9 x 2.9 x 1.9 ft
- Chip removal bench thicknesser: 0 - 3 mm // 0 - 1/8 "
- Material thickness table: Cast aluminium / special steel aluminium
- Thickness table L x W: 840 x 330 mm / 33 x 13 "
- Passage height/width: 152 / 330 mm // 6 / 13 "
- Feed rate: 7.51 m/min / 25 ft/min
- Diameter of blade shaft: 47 mm / 1 7/8 "
- Number of blades: 2
- Revolutions of blade shaft: 9800 rpm
- Rated input power: 1800 W
- Weight: 35 kg / 77.2 lbs
- Uncertainty of measurement K: 4 dB(A)
- 2 integrated HSS reversible planer blades
- Push stick
- Extraction Nozzles
