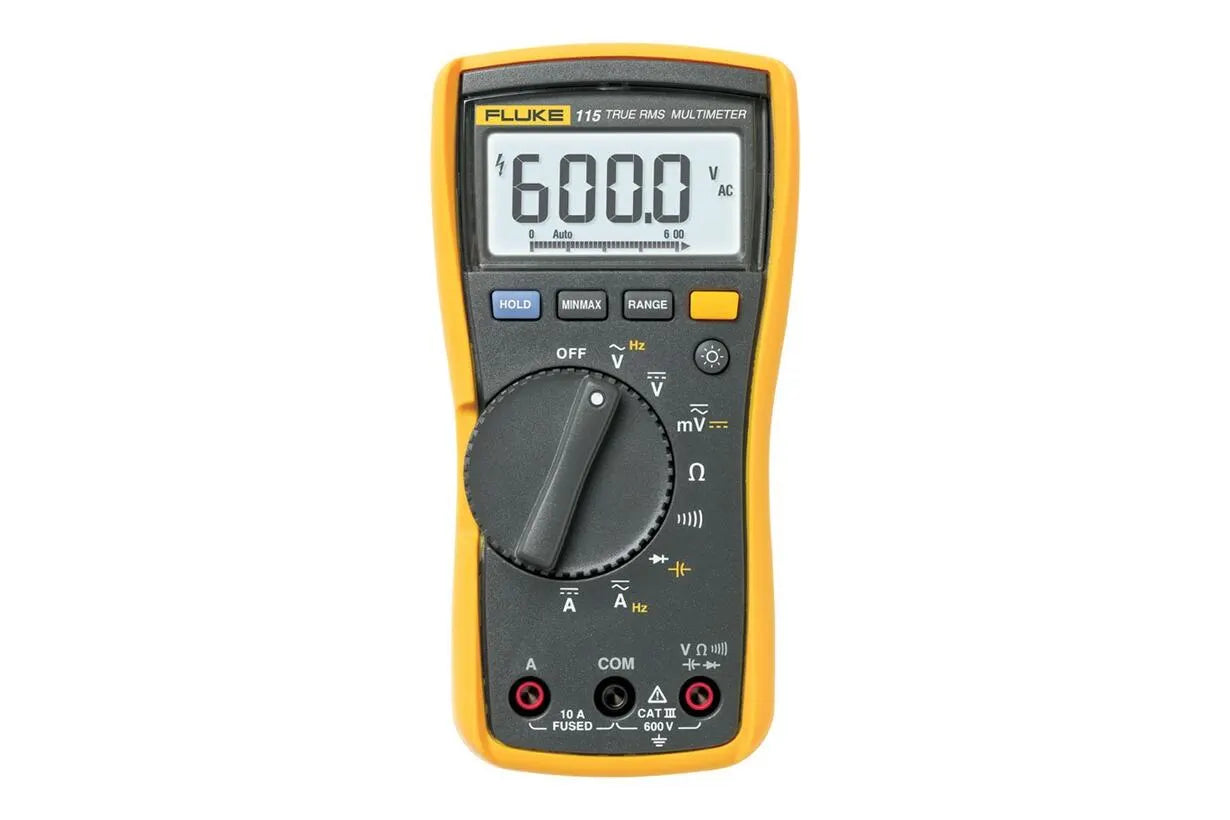

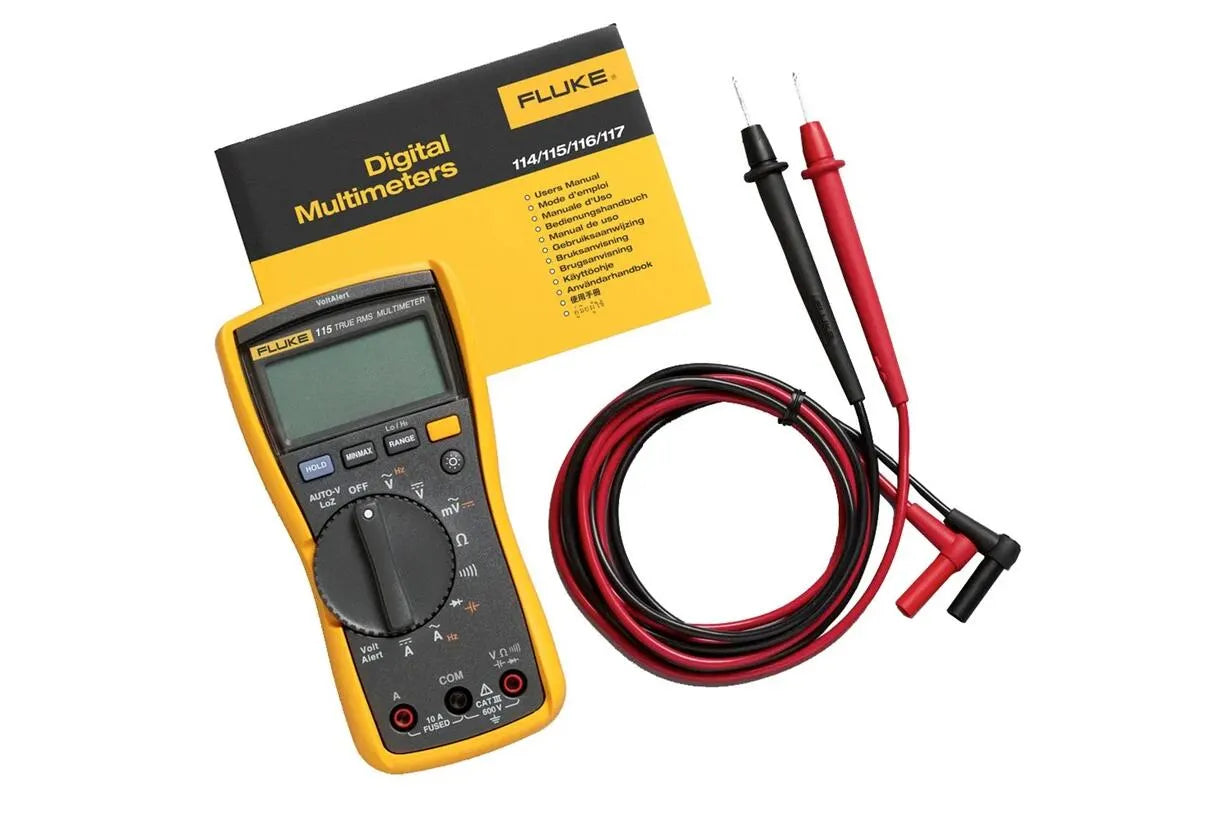

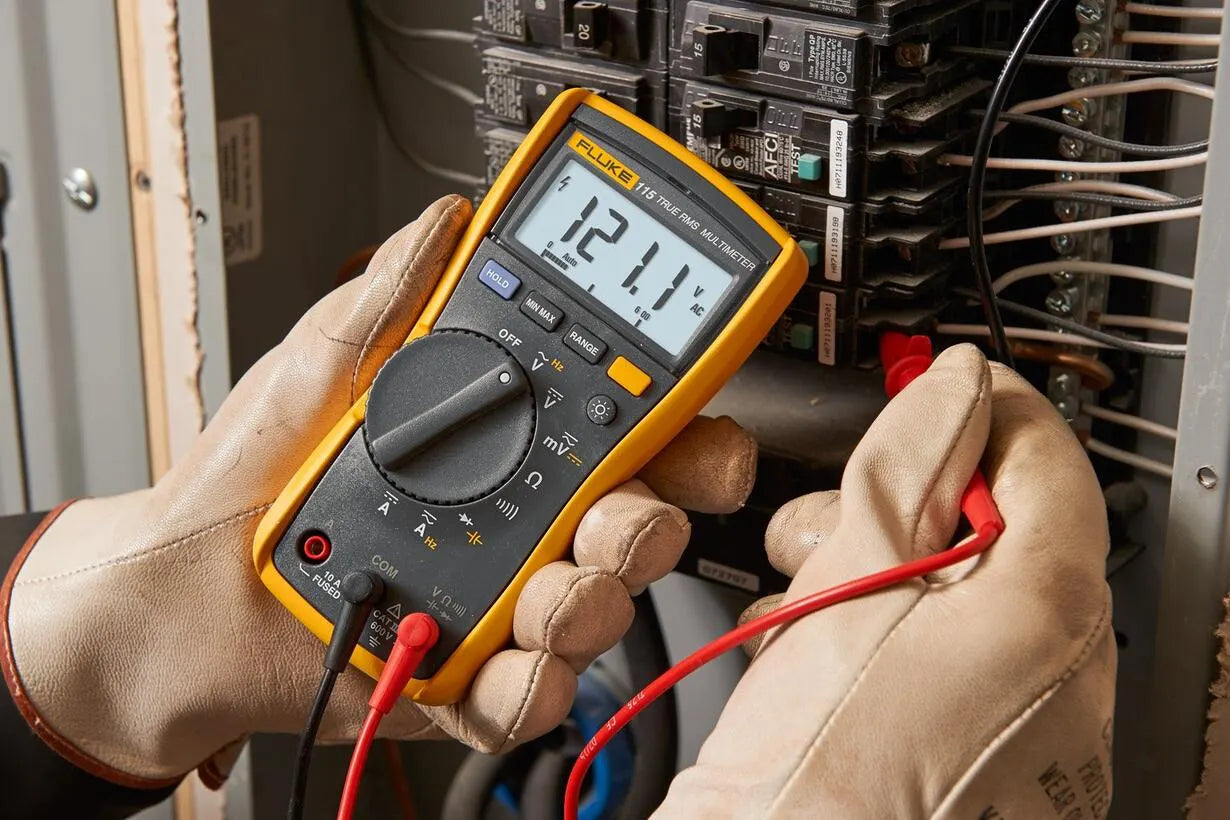

Fluke 115 Field Technicians Digital Multimeter FLU115

Roll over image to zoom in Click on image to zoom

Fluke 115 Field Technicians Digital Multimeter FLU115

Name: Fluke 115 Field Technicians Digital Multimeter FLU115
Brand: Fluke
SKU: 944708
Price: 394.00 CAD
Availability: InStock

FlukeSKU: 944708

Price:

$394.00

Stock:

Order In

Quantity:

Share this product

The Fluke 115 field technician’s digital multimeter measures True-rms voltage and current with plus resistance, continuity, frequency, and capacitance to meet the needs of a wide variety of field service technicians.

The 115 digital multimeter offers the users one-handed operation and a backlit display. The large, easy-to-read digits offer a 6000-count resolution. The 115 provides Min/Max/Average with elapsed time to record signal fluctuations. It also measures:

AC and DC voltage to 600V,
AC and DC current to 10 A (20 A overload for 30-seconds max).

Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	± ([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
DC volts	Accuracy	± ([% of reading] + [counts]): 0.5% + 2
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
AC millivolts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
AC volts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
Diode test	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
Lo-Z capacitance	Accuracy	10% + 2 typical
AC amps True RMS (45 Hz to 500Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
AC amps True RMS (45 Hz to 500Hz)	Accuracy	1.5% + 3 20 A overload for 30-seconds max
DC amps	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
DC amps	Accuracy	1.0% + 3 20 A overload for 30-seconds max
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.9 Hz / 0.01 Hz 9.999 kHz / 0.001 kHz 50.00 kHz / 0.01 kHz
Hz (V or A input)²	Accuracy	0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Frequency is AC coupled, 5Hz to 30 kHz for AC voltage. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature Range/Resolution: -40℉ to 752℉ / 0.2℉.

General Specifications
Maximum voltage between any terminal and earth ground	600 V
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10℃ to + 50℃
Storage temperature	-40℃ to + 60℃
Battery type	9 volt Alkaline, IEC 6LR61
Battery life	400 hours typical, without backlight
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years
