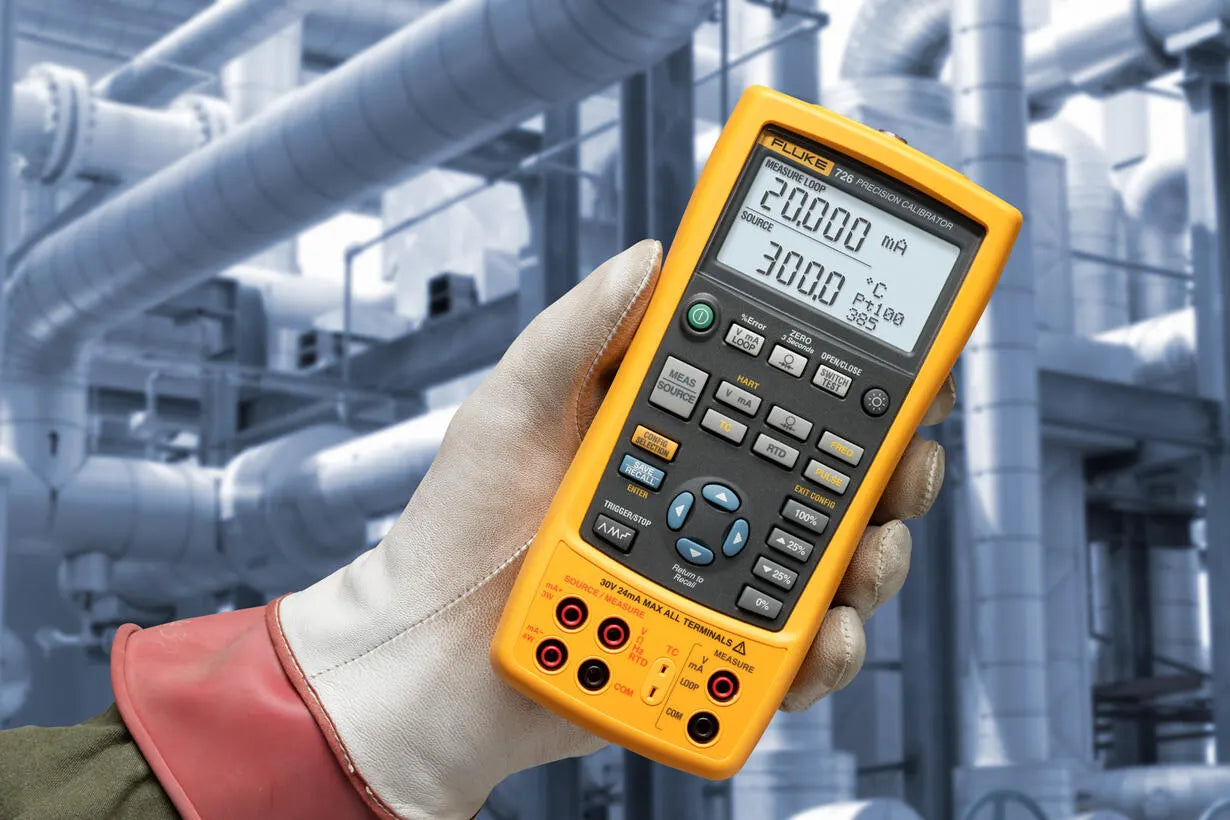

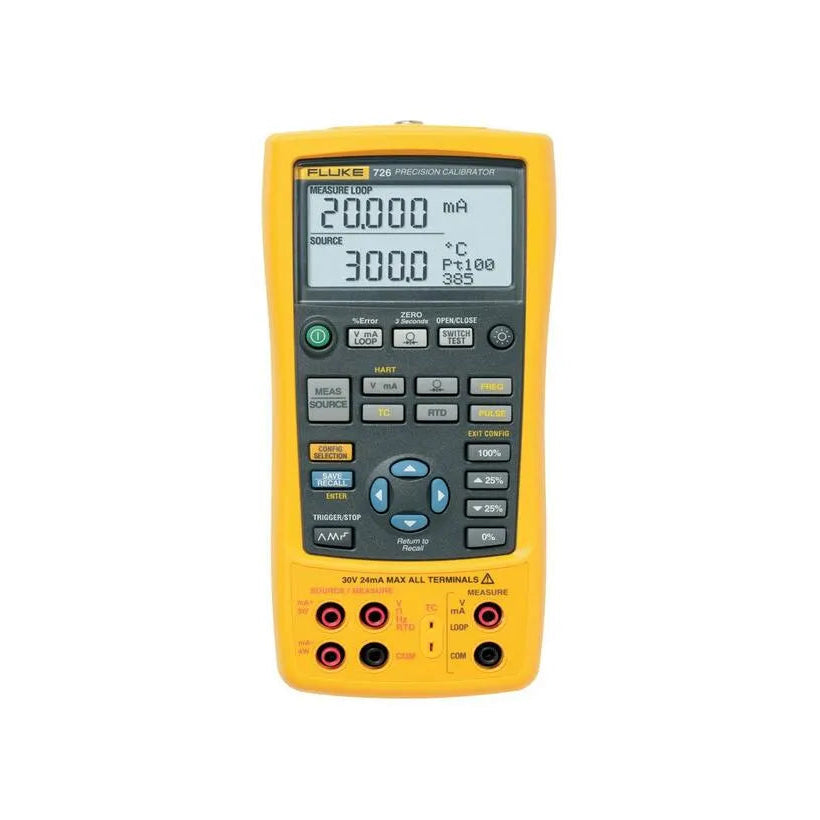

Fluke 726 Precision Multifunction Calibrator FLU726

Roll over image to zoom in Click on image to zoom

Fluke 726 Precision Multifunction Calibrator FLU726

Name: Fluke 726 Precision Multifunction Calibrator FLU726
Brand: Fluke
SKU: 1042806
Price: 10051.00 CAD
Availability: InStock

FlukeSKU: 1042806

No reviews

Price:

$10,051.00

Shipping calculated at checkout

Stock:

Re-stocking soon

Quantity:

Pickup available at Malaga, WA

Usually ready in 24 hours

Share this product

Process calibration designed specifically for process industries

The Fluke 726 is a precise and powerful, yet easy-to-use, field calibrator. It features broad workload coverage, calibration power, and unsurpassed accuracy needed by process professionals. It measures and sources almost all process parameters to calibrate almost anything. Use it to test sensors and valves, and to test and calibrate transmitters. The 726 interprets results without the help of a calculator and stores measurement data for later analysis.

Measurement capabilities

This precision multifunction calibrator measures volts, mA, pressure, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters. The 726 also sources and simulates volts, mA, thermocouples, RTDs, frequency to calibrate transmitters. Measures and/or sources pressure using when paired with any of the 50 Fluke 750P series Pressure Modules to test and calibrate pressure transmitters and other devices. The 726 can also:

Source mA with simultaneous pressure measurement to conduct valve and I/P test
Conduct enhanced flowmeter testing with frequency totalizer and frequency pulse train source mode

Designed for ease of use

The 726 has built-in features that make it easier to use in nearly any measurement situation. From its ability to store frequently used test setups, to programming custom RTD probe calibration constants for enhanced temperature measurement, or the integrated voltage input protection design that improves reliability, the 726 is built to perform. The use of two separate channels even allows you to measure, source, or view process signals simultaneously. The backlit display provides better visibility in low-light conditions, and the standard 3-year warranty provides extra confidence that the 726 will be there when you need it to be.

You can also use the 726 to:

Capture the set, reset, and deadband of a pressure switch with the integrated switch test
Calculate the transmitter error % to interpret calibration results without the use of a calculator
Perform fast linearity tests with the auto-step and auto-ramp features
Power a transmitter during test using 24 V loop supply and simultaneous mA measurement

If you want documenting and HART communication built into your calibrator, consider the Fluke 754 Documenting Process Calibrator with HART.

Measurement Accuracy
Voltage DC	30.000 V	0.01% + 2 mV (upper display)
	20.000 V	0.01% + 2 mV (lower display)
	90.00 mV	0.01% + 10 μV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.01%+ 2 mA
Resistance	0.0 to 4000.0 Ω	± 0.015%
Frequency	2.0 to 1000.0 CPM	0.05% + 0.1 cpm
	1.0 to 1000.0 Hz	0.05% + 0.1 Hz
	1.00 to 15.00 kHz	0.05% + 0.01 kHz
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of (50) 750P pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.01% + 10 μV
	20.000 V	0.01% + 2 mV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (Source)	0.01% + 2 μA
Current DC	24.000 mA (Simulate)	0.01% + 2 μA
Resistance	Range, accuracy (percent of reading + floor) and excitation current	5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
		5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 3 mA
		400 to 1500 Ω, 0.015% + 0.5 Ω, 0.05 to 0.8 mA
		1500 to 4000 Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1000.0 Hz	0.05%
	1.0 to 10.0 kHz	0.25%
	10.0 to 15.0 kHz	0.5%
	Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure and source accuracy	Cu10	1.8°C
	NI-120	0.15°C
	PT-100 (385)	0.45°C
	PT-100 (392)	0.35°C
	PT-100 (391-JIS)	0.35°C
	PT-200 (385)	0.95°C
	PT-500 (385)	0.55°C
	PT-1000 (385)	0.35°C
	RTD Resolution	0.01°C (0.01°F)
	Cu10.01 C	0.1°C (0.1°F)
	J	0.4°C
	K	0.5°C
	T	0.4°C
	E	0.4°C
	R	1.4°C
	S	1.4°C
	B	1.4°C
	L	0.45°C
	U	0.45°C
	N	0.6°C
	XK	0.4°C
	BP	1.1°C
	TC Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to +55°C
Storage temperature	-20°C to +71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in)
Weight	650 g (23 oz)
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessible without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming
