Dymaxion Diamond Core Drill Bits For Granite, Hard Porcelain, Polymer

Roll over image to zoom in Click on image to zoom

Features

Can be used for coring polymer concrete and plastic/glass cable joining pits. Avoid overheating by quenching in water.
Suitable for cutting hard porcelain and granite bench tops. Ensure plenty of water to cool and remove waste from the cut.
Diamond core drills and hole saws require the use of proper lubrication, correct drill speed and proper pressure.
Drilling methods and techniques vary significantly depending upon the material being drilled.
To achive optimum cutting performance and maximum core drill life use a slow to very slow drill speed, low drill pressure, and plenty of water for lubrication.
Variable speed drills work best since the correct speed can be selected.
Diamond core drills only drill out a portion of the resulting hole so they drill much faster than conventional blunt nose drills.
The life of any type of diamond drill depends upon the hardness, abrasiveness and thickness of the material being drilled and the specific drilling techniques used.
Using diamond core drills in hard materials is not difficult, however drilling the hole takes time.
You should consider that they aren't "drilling" a hole - they are "grinding" a hole.

Application

Suitable for Granite, Hard Porcelain and Polymer Concrete.

Specification

Brand:

Dymaxion

Pack Qty:

1

Pack Type:

Single

Packaging:

Telepak

Thread / Shank:

12mm HEX or 1/2" BSP Female + Hex Mandrel (depending on Core Drill Size - Refer Options Table)

Ideal For:

Granite, Hard Porcelain and Polymer Concrete.

Suits:

Variable speed hand drills work best since the correct speed can be selected.

Description:

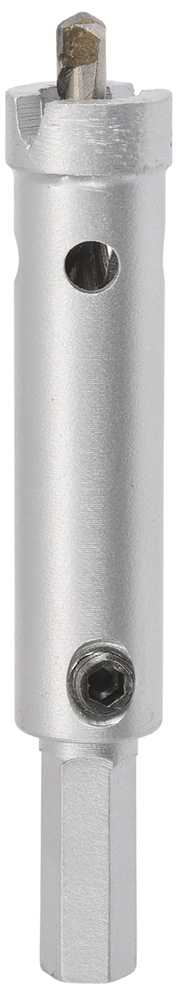

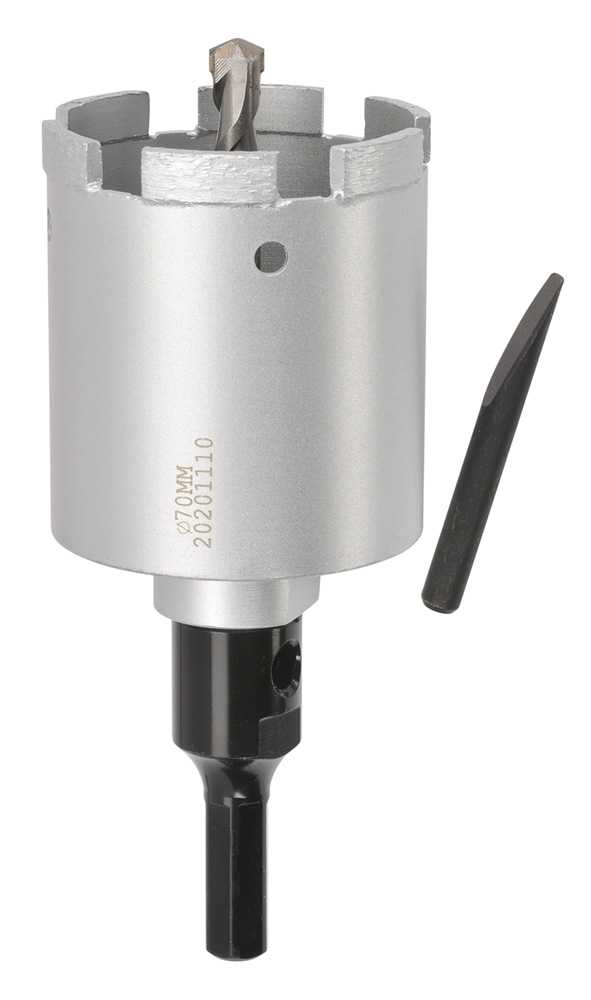

12mm HEX shank NO Pilot Drill required. or 12mm HEX Shank Mandrel with Taper TCT Pilot Drill and wedge key (refer options table for clarification)

Note:

Internal depth 50mm.

Options

Diameter	Overall Length	Max Core Depth	Connection	Part Number
6 mm	65 mm	50 mm	12 mm Hex Shank	CGS6-65
8 mm	65 mm	50 mm	12 mm Hex Shank	CGS8-65
10 mm	65 mm	50 mm	12 mm Hex Shank	CGS10-65
12 mm	65 mm	50 mm	12 mm Hex Shank	CGS12-65
16 mm	65 mm	50 mm	12 mm Hex Shank	CGS16-65
19 mm	65 mm	50 mm	12 mm Hex Shank	CGS19-65
22 mm	65 mm	50 mm	12 mm Hex Shank	CGS22-65
25 mm	65 mm	50 mm	12 mm Hex Shank	CGS25-65
29 mm	65 mm	50 mm	12 mm Hex Shank	CGS29-65
32 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS32-65
35 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS35-65
38 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS38-65
48 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS48-65
51 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS51-65
54 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS54-65
57 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS57-65
60 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS60-65
64 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS64-65
70 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS70-65
75 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS75-65
90 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS90-65
95 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS95-65
115 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS115-65
117 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS117-65
165 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS165-65
180 mm	65 mm	50 mm	1/2" BSP + Hex Mandrel	CGS180-65
