Description
BUNDLE INCLUDES:

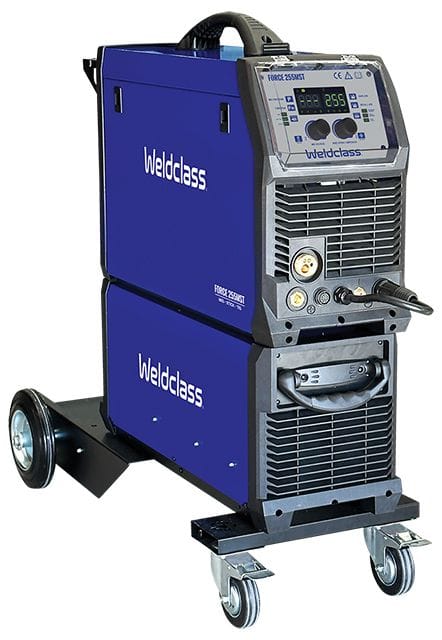

- WF-06167 - Welder - Weldforce WF-255MST MIG/STICK/TIG
- WC-05317 - Helmet Promax 500 Black Stealth
- WC-01775 - Gloves Welding PROMAX Blue - Pair
- 2-098FM - Wire-Gasless Platinum GL-11.09MM 4.5Kg
- WC-06235 - Welding Trolley T100
FUNCTIONS
- MIG (Gas / Gasless)
- Stick / MMA
- TIG (Lift-Arc)
- 250A max MIG output @ 35% duty cycle
- Weld up to 12mm Mild Steel (max MIG capacity)
- Fitted with 15A 240V plug
- Power Factor Correction (PFC) - reduced power draw, increased duty-cycle, ideal for long leads & generators
- Manual or Synergic (enter material type & thickness and machine will set parameters automatically)
- 20+ Pre-set Programs - for different materials
- Job Save - store custom settings for up to 20 jobs
- Geared 4-Roll Wire Drive System - for super reliable wirefeeding
- Takes 5kg (D200mm) or 15kg (D300mm)spools
- Spool Gun Ready
- Generator Compatible - min 13kva, ideal 15+kva
- Fan-on-Demand - reduces dust intake
- Stressed-Tested - to 440V & over-specified componentry for reliability
- 3 year warranty*
- Robust & Portable, weighs 26kg
- Optional Stick/MMA VRD function (Supplied as standard with VRD NOT active. VRD can be activated by an authorised agent/distributor if required)
- MIG functions & adjustments include: Inductance, Soft Start, Burnback, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
- Stick/MMA functions & adjustments include: Hot-Start %, Arc-Force
- TIG functions & adjustments include: Trigger & Remote Amperage Control on the the torch, Post-Gas Time, Slope-Down Time
- MIG Torch 4m BZL 25
- Earth Lead H/Duty 4m
- Stick Lead H/Duty 4m
- Gas Regulator
- Driver Roller for 0.6/0.8mm steel/solid wire
- Driver Roller for 0.9/1.2mm steel/solid wire
- Driver Roller for 0.8/0.9mm gasless wire
- Driver Roller for 1.0/1.2mm aluminium wire
- Cable Retaining Strap
- Long Power Input Lead 3m
- Spool Gun BZL 25 8m (part no WC-06203)
- TIG Torch #17 4m with Remote Control (part no WC-06234)
- T100 Welding Trolley (part no WC-06235)
- Warranty Registration
- What is an Inverter Welder (or plasma cutter)? About Inverter technology
- What is Duty Cycle & How is it Calculated?
- Using Generators to power inverter welders & plasma cutters
- What is MMA (stick) welding? About the MMA process
- MMA (Stick) Welding: What is Hot Start, Arc Force & Anti-Stick?
- MMA (Stick) Welding: What is Open Circuit Voltage (OCV)?
- What is TIG welding? About the TIG process
- TIG Welding: What is Scratch-Start, Lift-Arc and HF Ignition?*Standard warranty 2 years, with 1 year extension if registered at Weldclass.com.au/WeldforceWarranty **15 Amp plug fitted for commissioning purposes only. To obtain full output, 25A or 32A plug & 4.0mm input cable should be installed by the user.
Additional Information
Model
Type
MIG / Stick / TIG Welder
SKU
8728246
Part Number
WC-255MSTK3
Brand
Weldclass
Packaging + Shipping
Shipping Weight (Gross)
1.48kg
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
Product Specification Disclaimer
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
Comparable Products Disclaimer
What's Included
Mig + Stick + Tig Welder WF-255MST 250AMP Bundle #3 WF-255MSTK3 by Weldclass
$2,699.00
