Description
Australian Designed and Patented PAT No. ZL 2021 2 1993973.1
A range of heavy duty professional sash clamps for a wide range of wood working applications including gluing of large pieces of wood and furniture. The head and slide are guaranteed unbreakable, whilst the steel bar offers maximum tensile and yield strength. The slightly tapered jaws enable perfectly parallel clamping and the fast action rolled square thread applies pressure quickly and smoothly to the workpiece.
Features
- Manufactured from a strong steel bar fitted with a machined steel head
- Steel bar offers maximum tensile and yield strength to achieve powerful clamping force

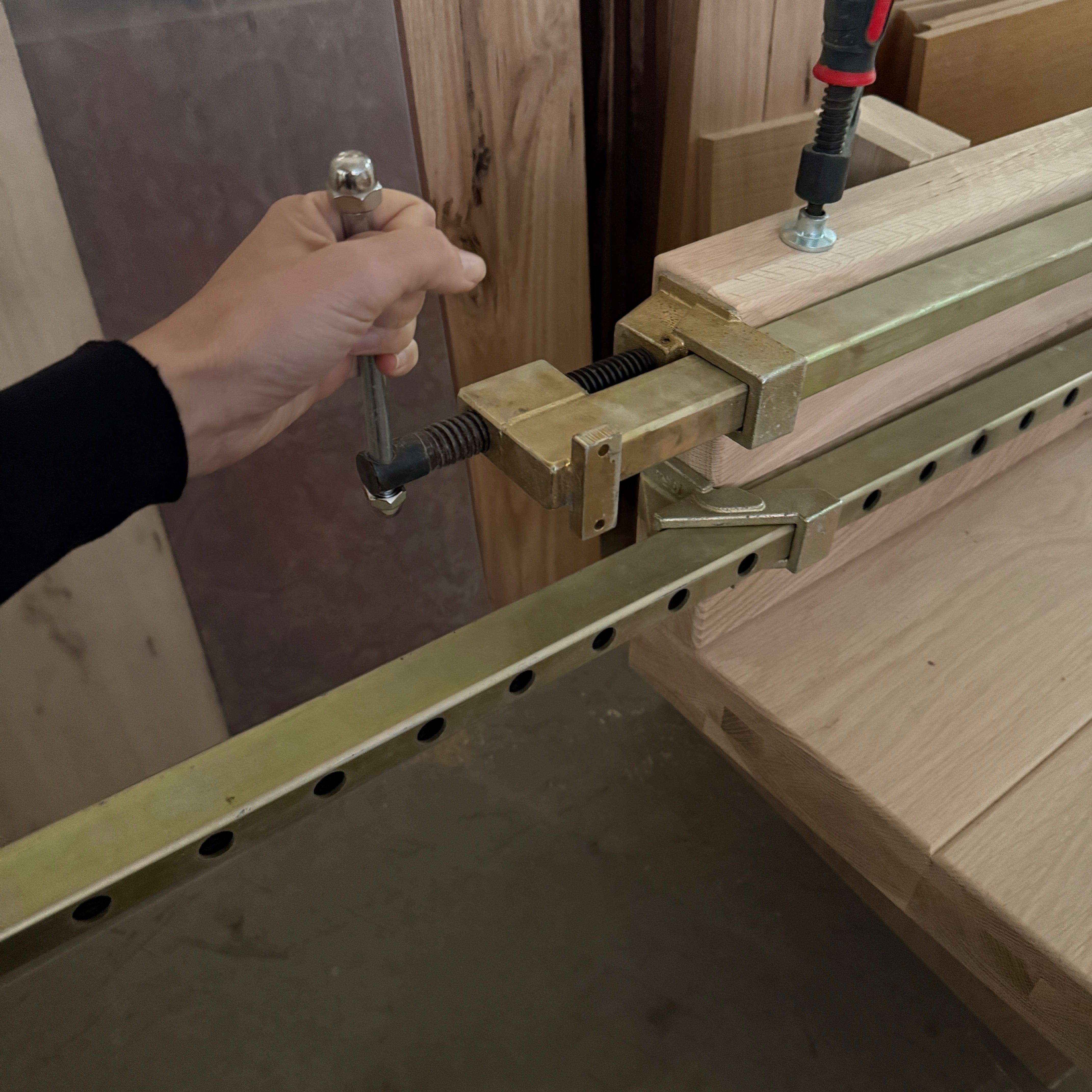

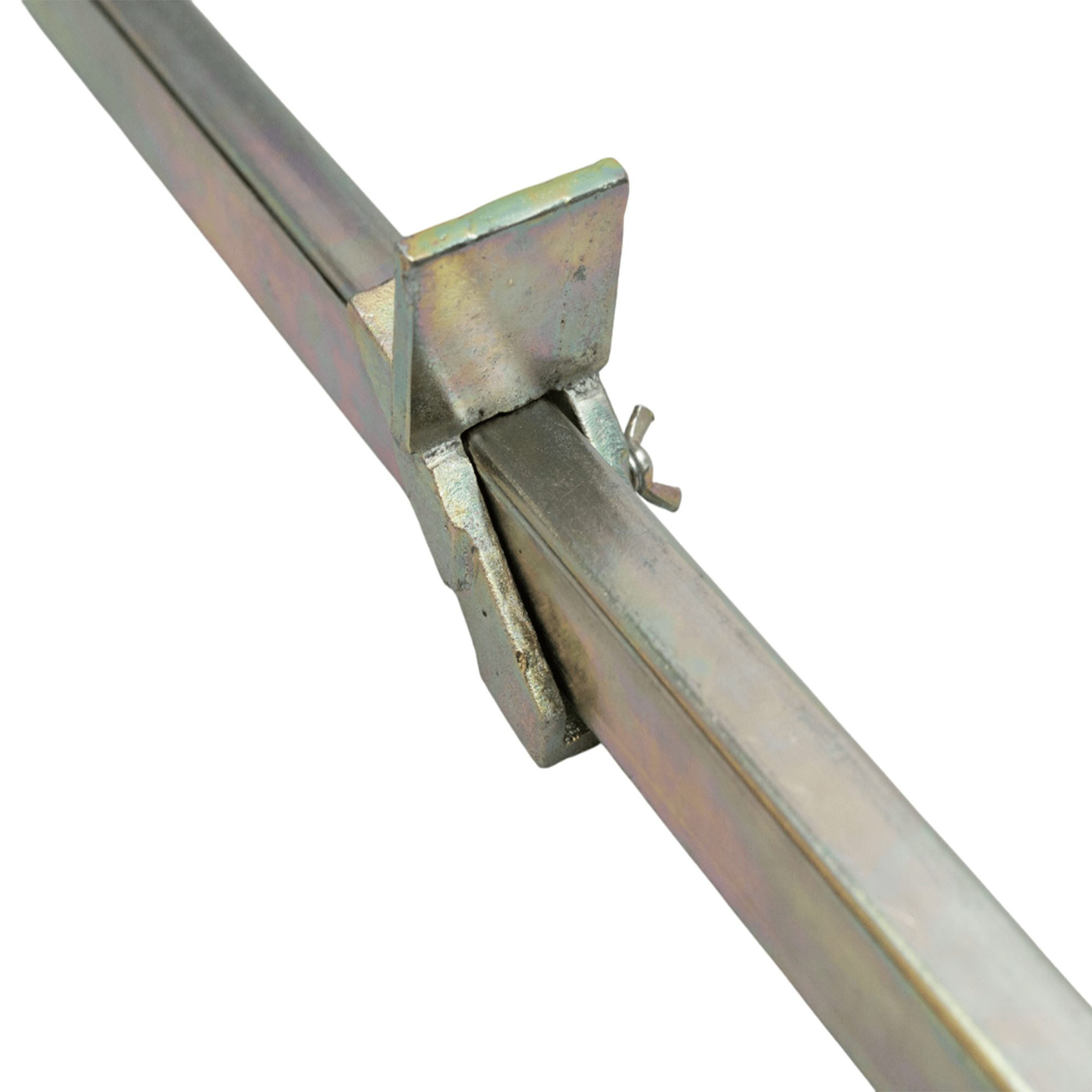

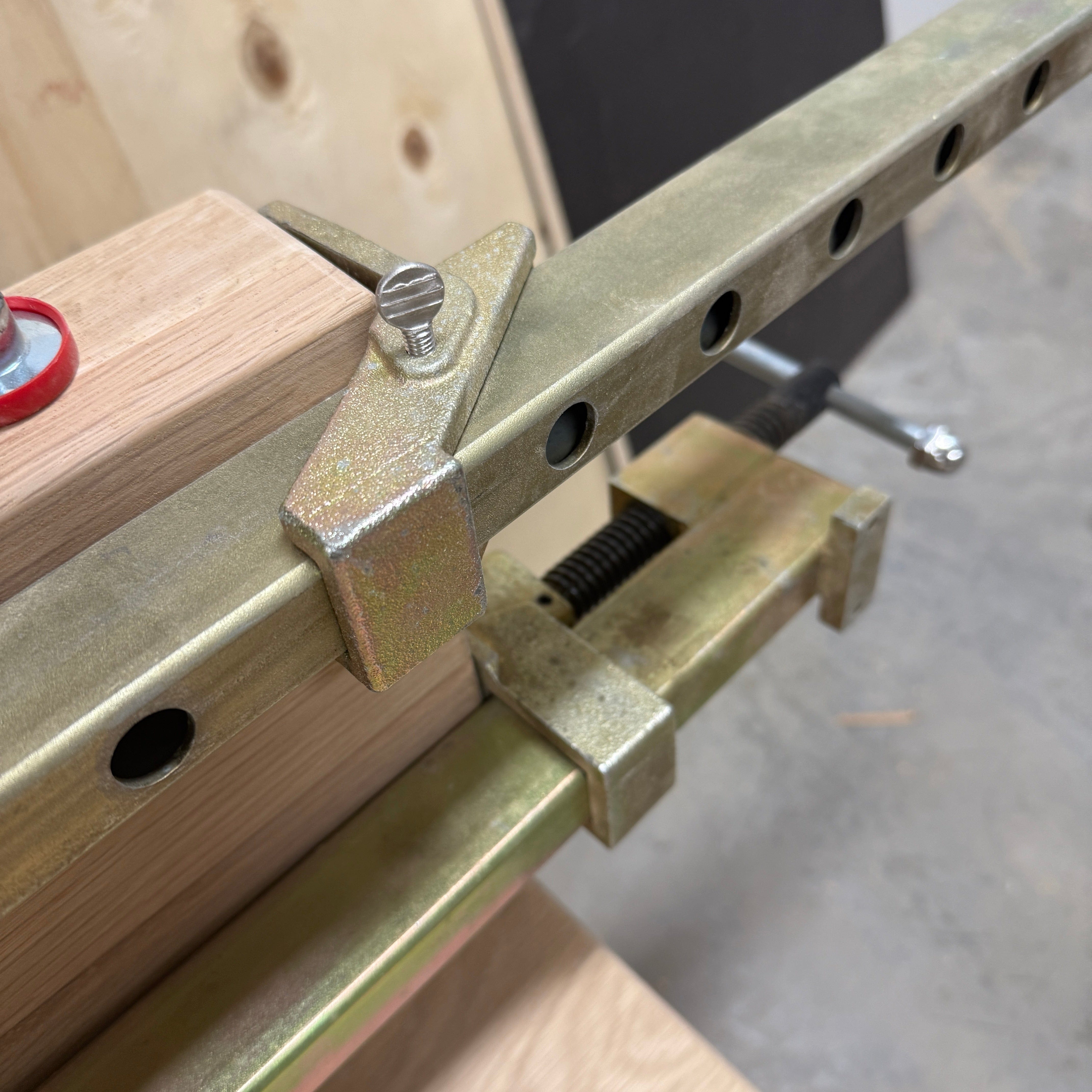

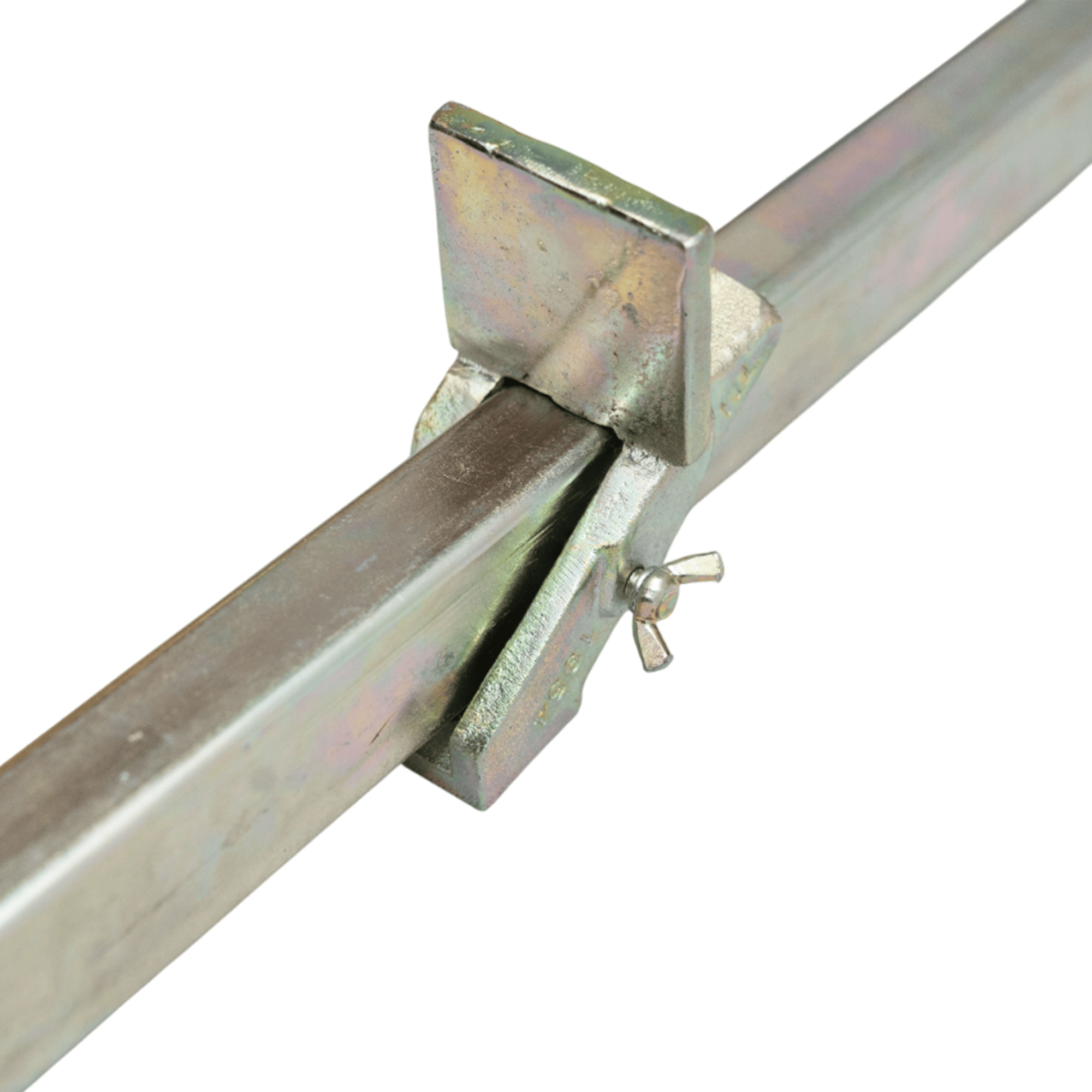

- Easy slide adjustment by loosening the wing nut - Never lose a pin again
- The all integrated locking pin for quick and smooth action
- Cast steel jaws are incredibly strong and robust (with machined faces)
- The slightly tapered jaws enable perfectly parallel clamping

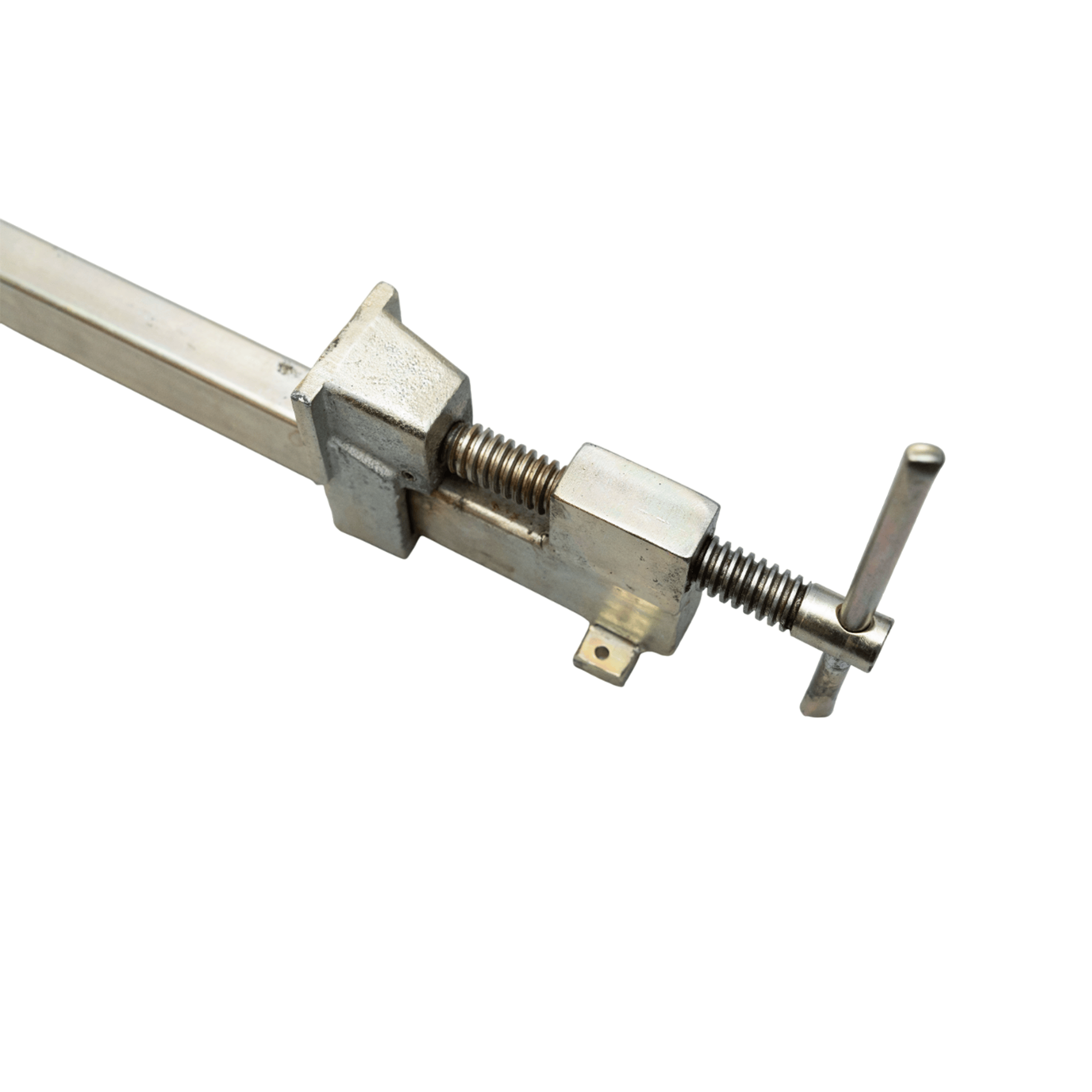

- Square thread design for maximum strength without overloading the clamp
- Yellow zinc plated to ensure the clamp is easy to clean and keep glue off
- The body of the clamp is manufactured from high tensile steel for incredible strength
- Screw tabs for screwing up to the wall or bench
- Available in 1225mm opening up until 2425mm
- Slide secured by a solid steel pin passing through one of the location holes spaced along the steel bar

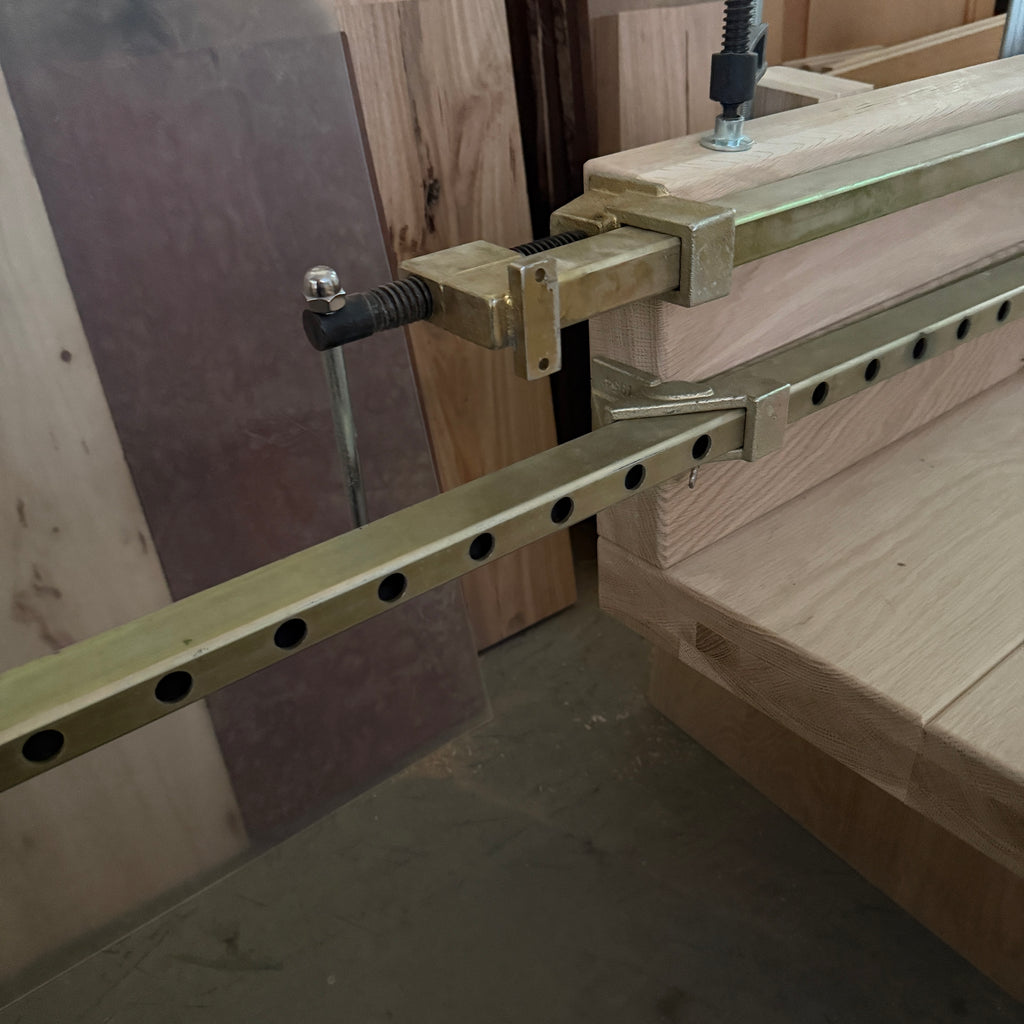

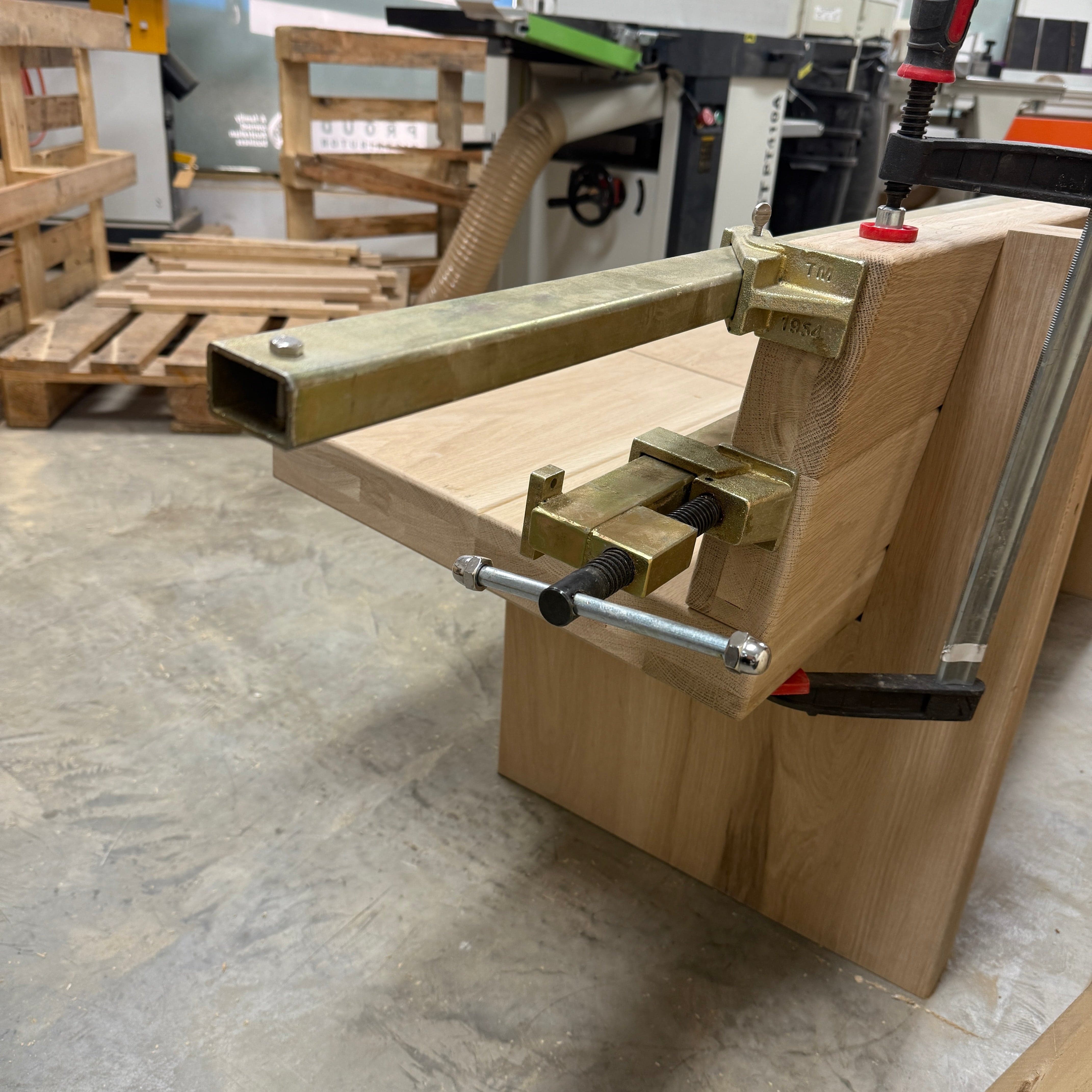

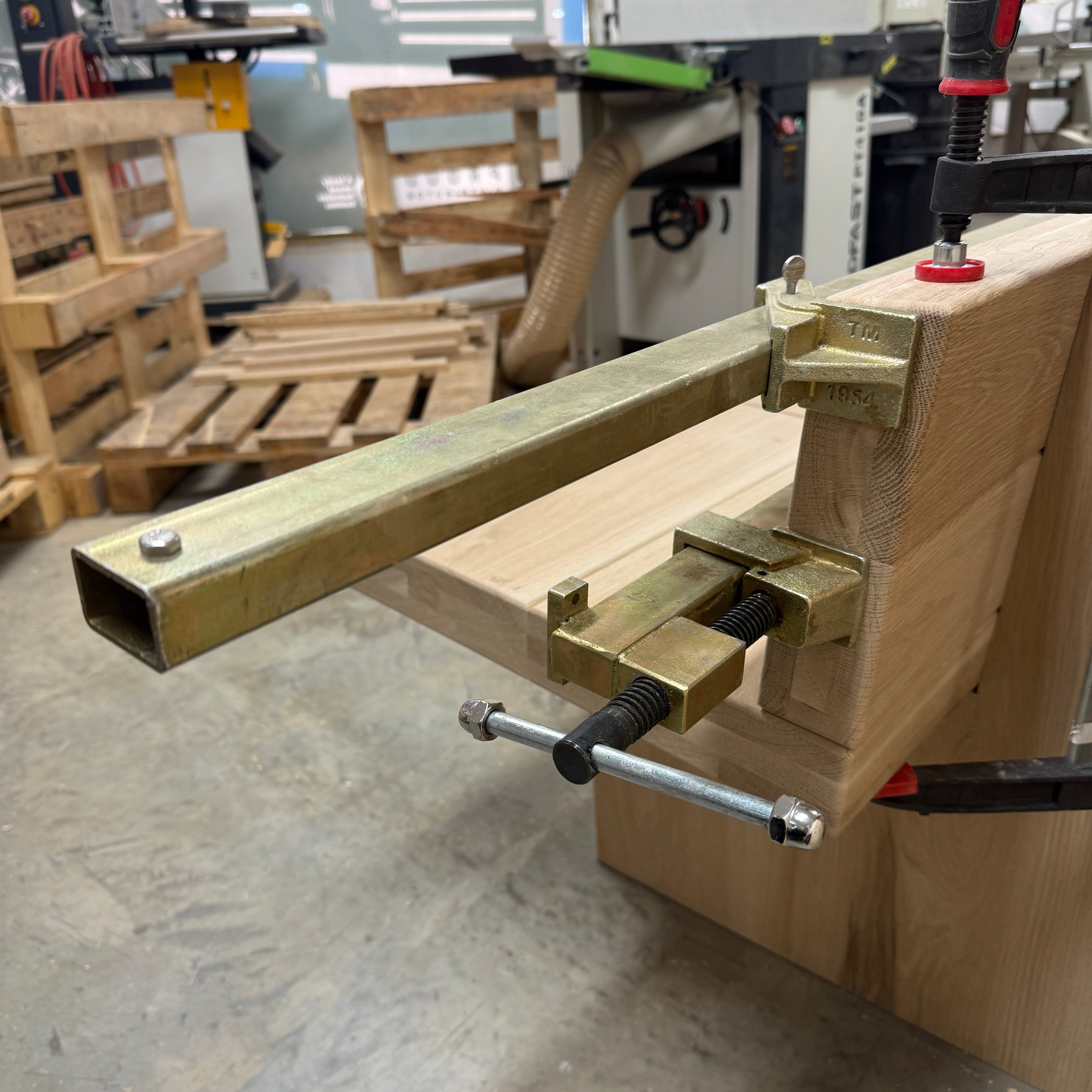

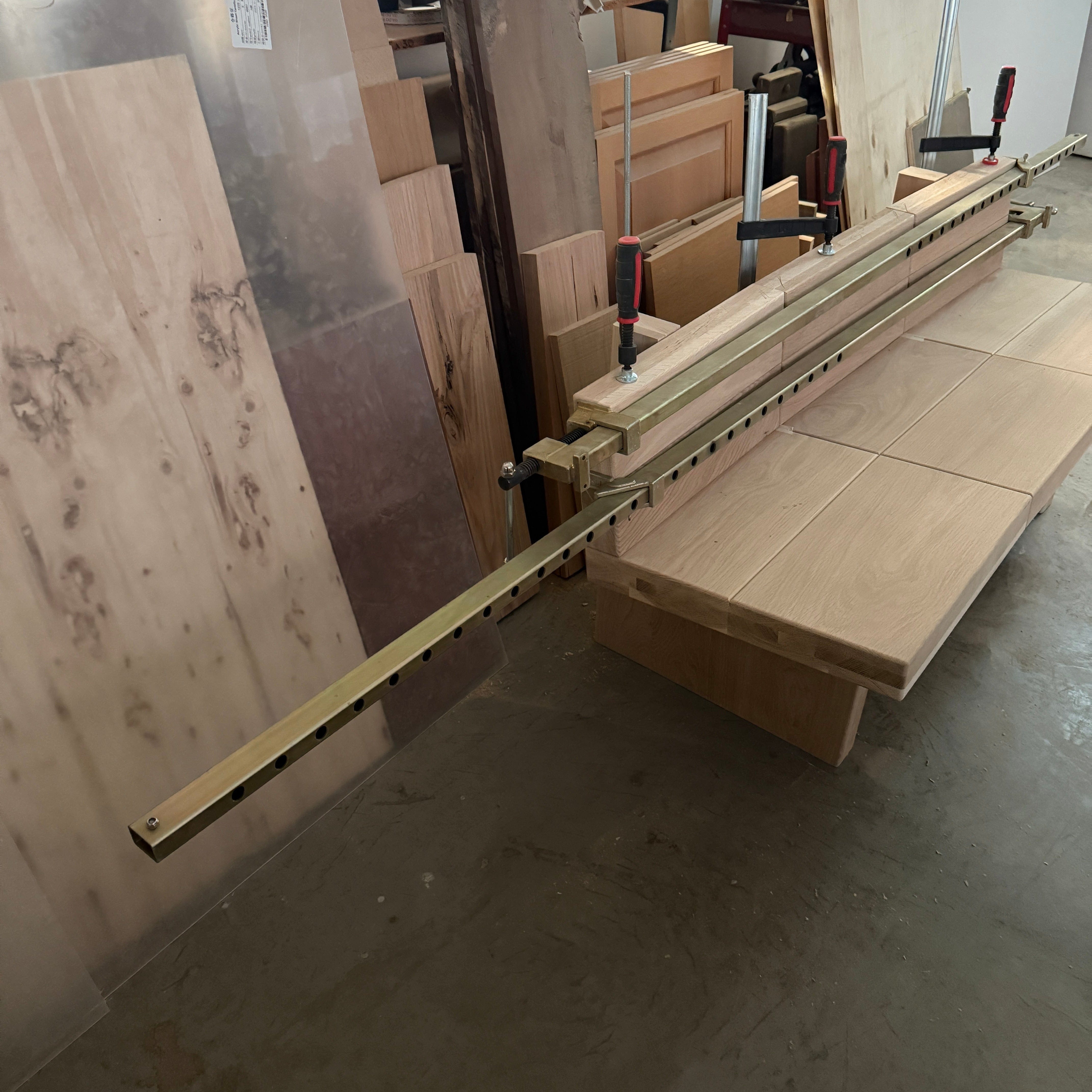

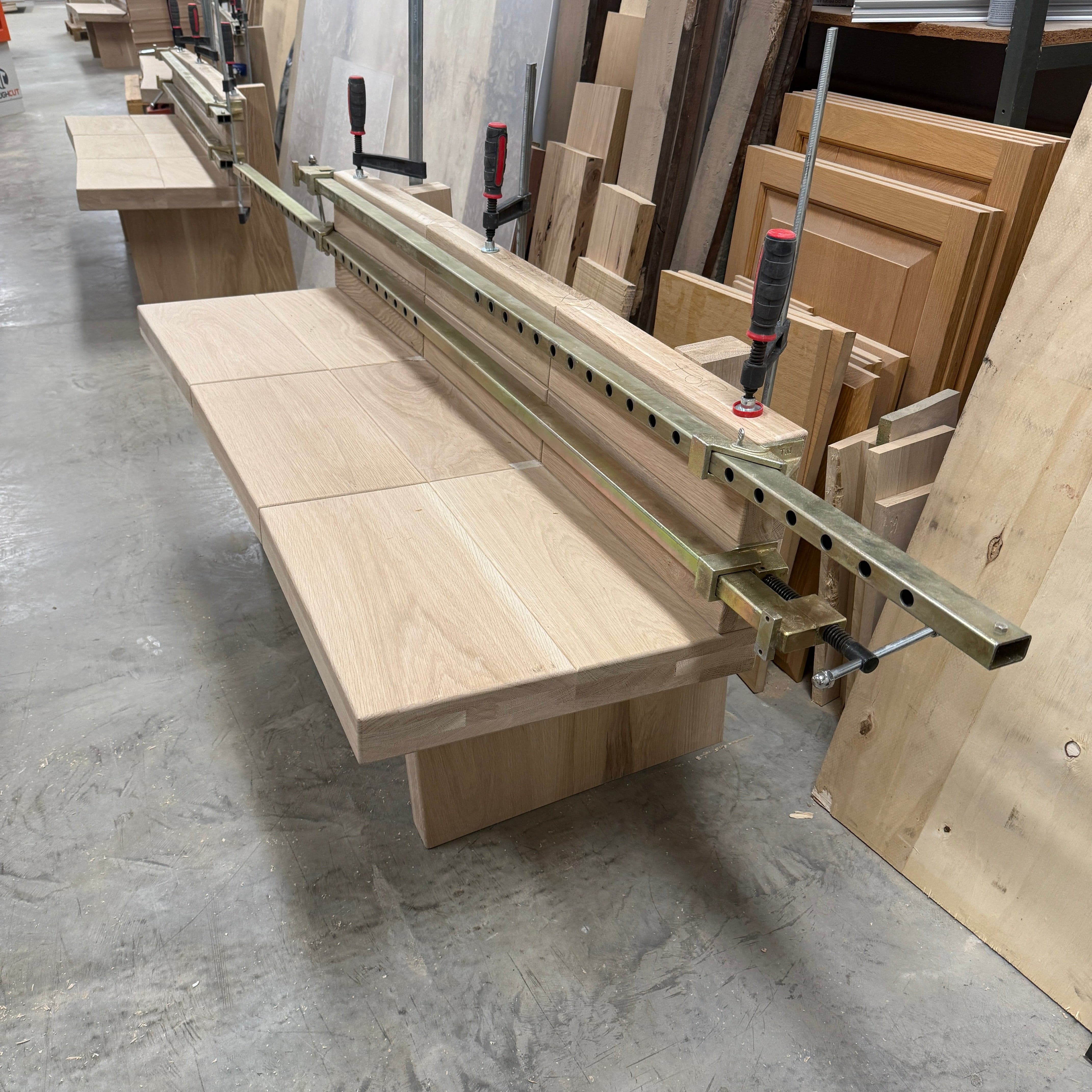

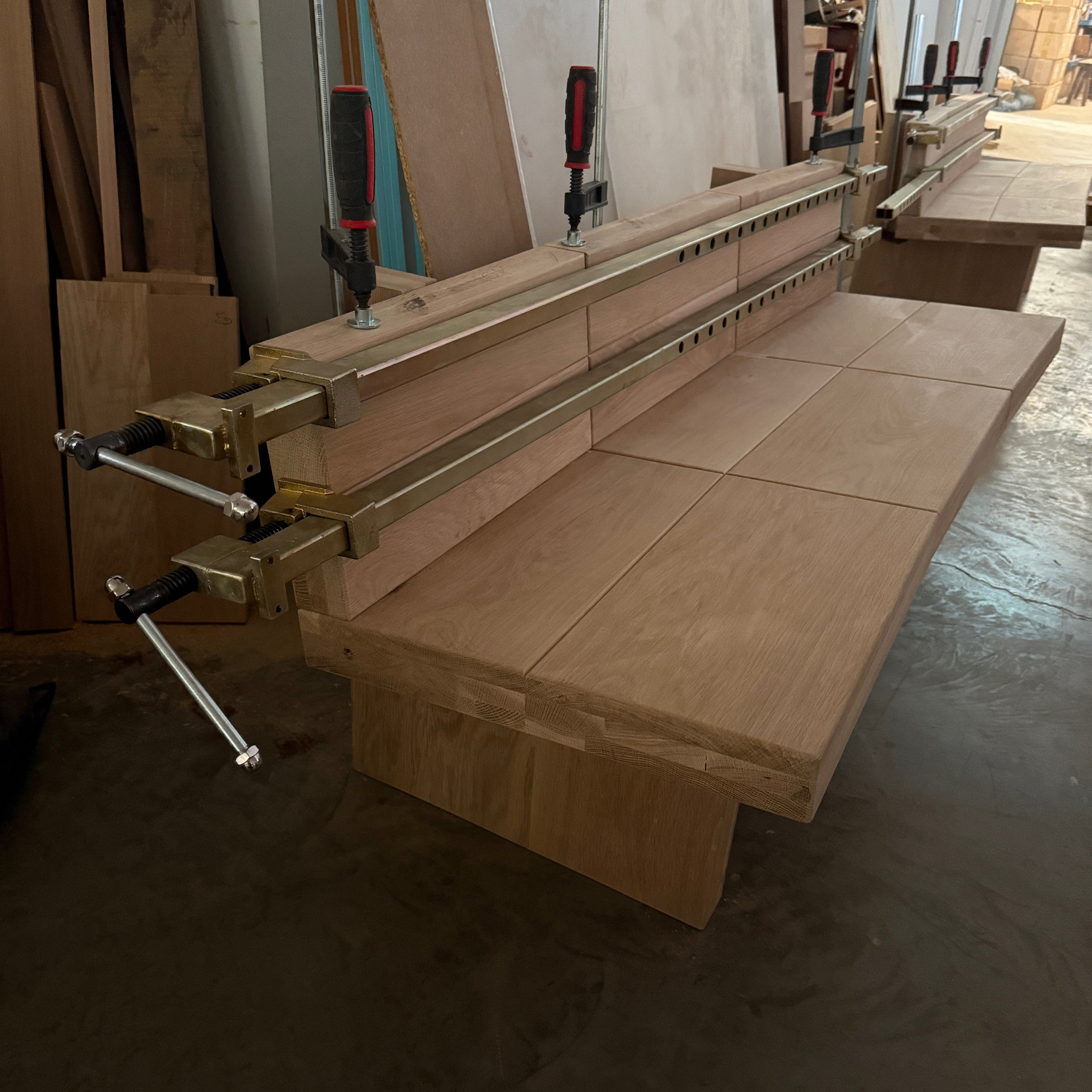

- Ideal for clamping large and heavy pieces of furniture and wood when gluing
Material Specification
- High Tensile Steel Tube
- Head & Tail Stock: Cast Steel
- Thread: Metric Square Thread 20 x 4mm
Standard Inclusions
- Price is Per Clamp (Out of a 2Pce Box) - ie. select 2 for a Box of 2 Clamps
Options
| Length | Part Number | Inner Carton Qty | Inner N.W. | Inner G.W. | Inner Dimensions (mm) | Outer Carton Qty | Outer N.W. | Outer G.W. | Outer Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1225mm | TC-SC-1225 | 2 | 10.30kg | 10.70kg | 1420 × 170 × 60 | 8 | 41.20kg | 44.50kg | 1460 × 400 × 150 |
| 1425mm | TC-SC-1425 | 2 | 11.20kg | 11.65kg | 1620 × 170 × 60 | 8 | 44.80kg | 48.50kg | 1660 × 400 × 150 |
| 1625mm | TC-SC-1625 | 2 | 12.40kg | 12.90kg | 1820 × 170 × 60 | 8 | 49.60kg | 53.70kg | 1860 × 400 × 150 |
| 1825mm | TC-SC-1825 | 2 | 13.00kg | 13.55kg | 2020 × 170 × 60 | 8 | 52.00kg | 56.50kg | 2060 × 400 × 150 |
| 2025mm | TC-SC-2025 | 2 | 14.00kg | 14.60kg | 2220 × 170 × 60 | 8 | 56.00kg | 60.90kg | 2260 × 400 × 150 |
| 2225mm | TC-SC-2225 | 2 | 14.80kg | 15.50kg | 2420 × 170 × 60 | 8 | 59.20kg | 64.70kg | 2460 × 400 × 150 |
| 2425mm | TC-SC-2425 | 2 | 15.60kg | 16.35kg | 2620 × 170 × 60 | 8 | 62.40kg | 68.30kg | 2660 × 400 × 150 |
Additional Information
Model
Type
Sash Clamp
SKU
8001847
Part Number
TC-SC-1225
Barcode
745240316725
Brand
ToughCut
Size
1225mm, 1425mm, 1625mm, 1825mm, 2025mm, 2225mm, 2425mm
Technical - Main
Material
High Tensile Steel, Tube Head & Tail Stock: Cast Steel, Yellow Zinc Plated Finish
Country of Origin
Manufactured in
China
Price Vs Quality
Quality
Commercial (Suitable for Professional / Trade Use)
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
10 Years
Use
Intended or designed for commercial use.
Packaging + Shipping
Shipping Weight (Gross)
20.6kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Packaging Box Qty
1
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
What's Included
ToughCut Heavy Duty Professional ToughClamp Sash Clamp
$139.00
