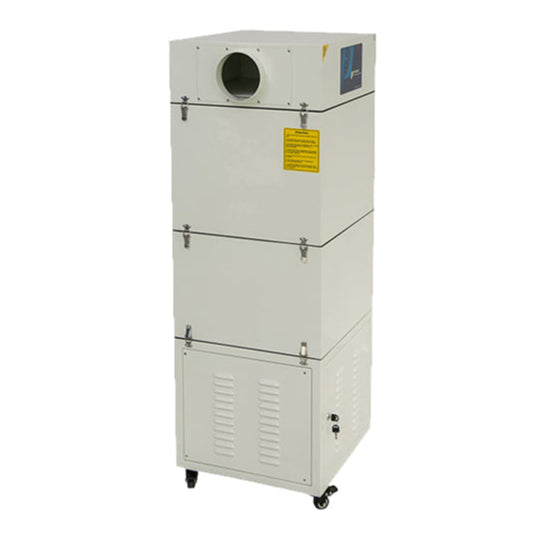

ToughCut Air Filtration System - Fume (& Odour) Extractor 1100W 240V TC-FE-1500FS

The ToughCut Air Filtration System - Fume (& Odour) Extractor TC-FE-1500FS is expertly engineered for efficient fume (and smell) filtration and dust collection, specifically tailored for CO2 laser machine cutting and engraving on non-metal materials such as plastic / PET / acrylic / paper / cardboard and for fume filtration for assembly line coding, multi-station soldering, circuit board processing and other industries for the purification of dust and odour.

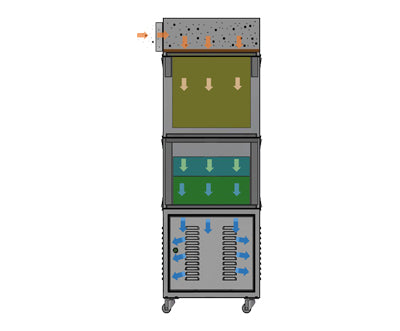

Featuring a robust four-stage filtration and purification process, this system effectively captures and neutralises harmful airborne particles and odours generated during operation. Its advanced filtration technology ensures a safer working environment by significantly reducing exposure to hazardous fumes. Durable and reliable, the ToughCut system is an essential tool for maintaining clean air quality in workshops and production spaces utilising laser cutting technology.

• Can be discharged indoors

• High Efficiency Odour Purification
• Four Stage Filter to ensure efficient purification of smoke, odour and harmful gases
• LCD Display for easy operation
  • Displays real time data such as fan speed, air volume, gear position etc.
  • Filter clogging detection

Features

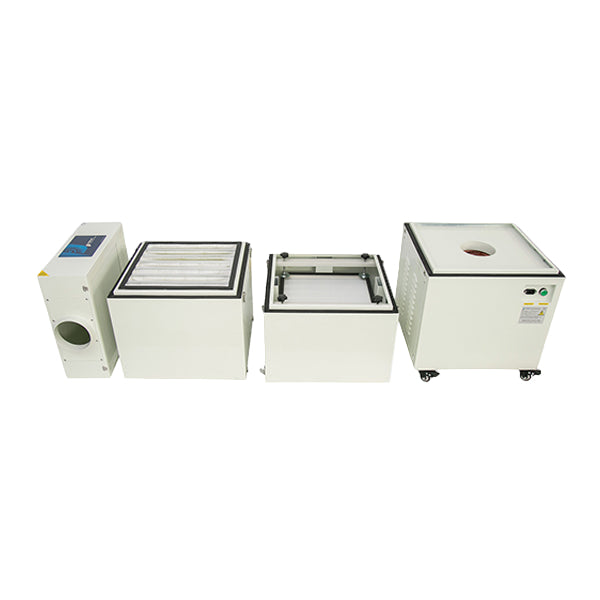

• Multi Stage Filtration - Primary filter, Medium Efficiency Filter, Main HEPA filter & Gas filter can be replaced individually to extend filter's life and reduce filter replacement cost
  • Layer 1 (PA1500-01) G3 Primary Filter
    • To remove large and heavy particles / smoke / dust (>=5Micron)
  • Layer 2 (PA1500-02) F8 Medium Efficiency Bag Filter
    • To remove large particles / smoke / dust (>=1Micron)
  • Layer 3 (PA1500-3) H13 Class HEPA Filter
    • To remove small particles (>=0.01Micron) and smoke.
  • Layer 4 (PA1500-04) Activated Carbon Filter
    • To absorb smells and toxic gas (>99.7%) (Oxidant & Active Carbon)
• Metal framework on moveable castors.
• Multi-stage dust filtration enables emissions directly into the room.

Specification

• Fresh Air outlet: 150mm (window shades)

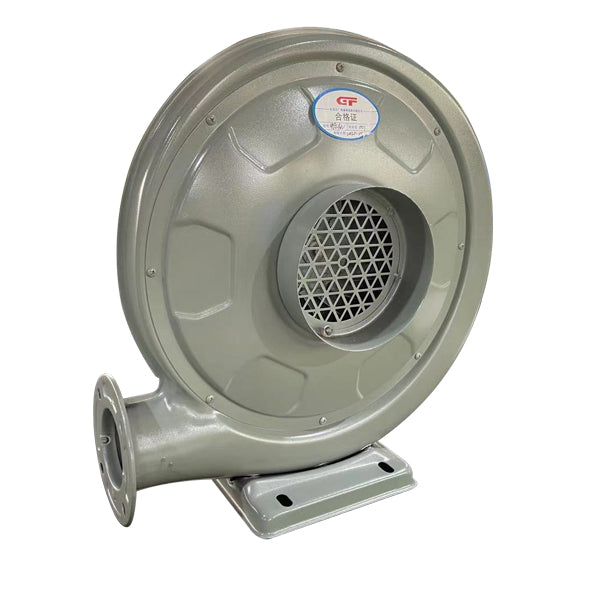

• Blower
  • Running Period: More than 10,000hours
  • Max. Air Flow: 1500m3/h
  • Input Capacity: 1100W
  • Air Pressure: 2300PA
  • Brushless

Suits

• ToughCut CNC CO2 Lasers
• Other similar approved Laser / Engravers

Comparable Products

• Redsail Pure Air Fume Extractor Filter System PA1500FS
