Description

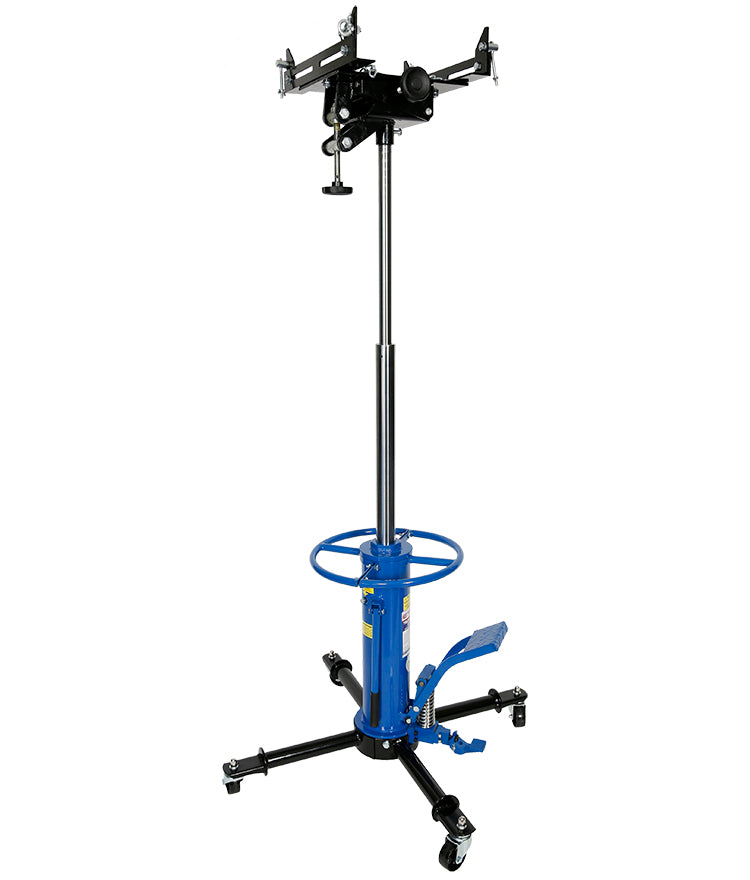

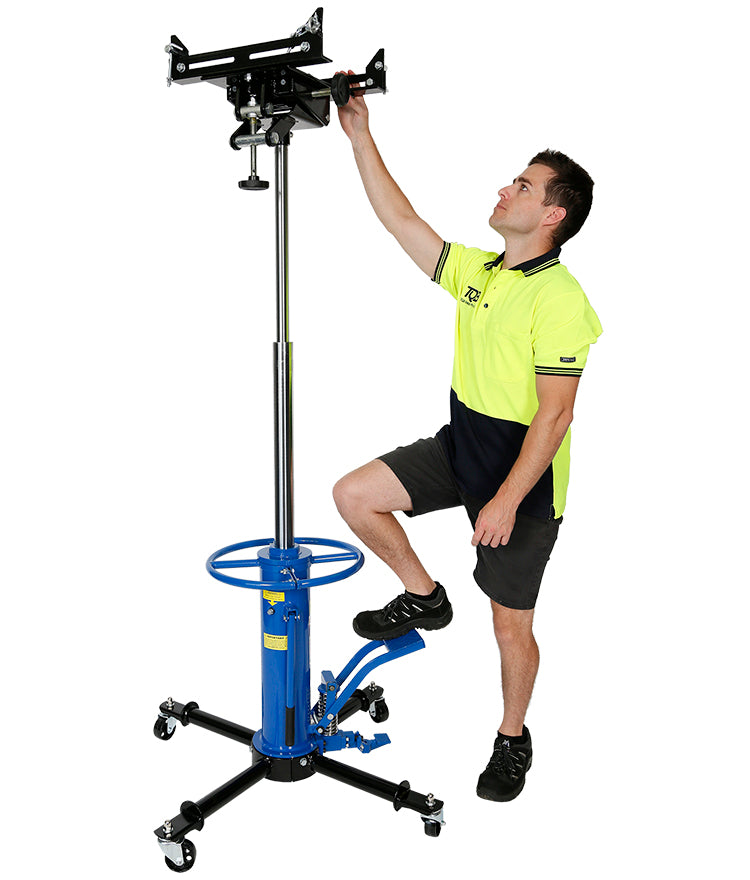

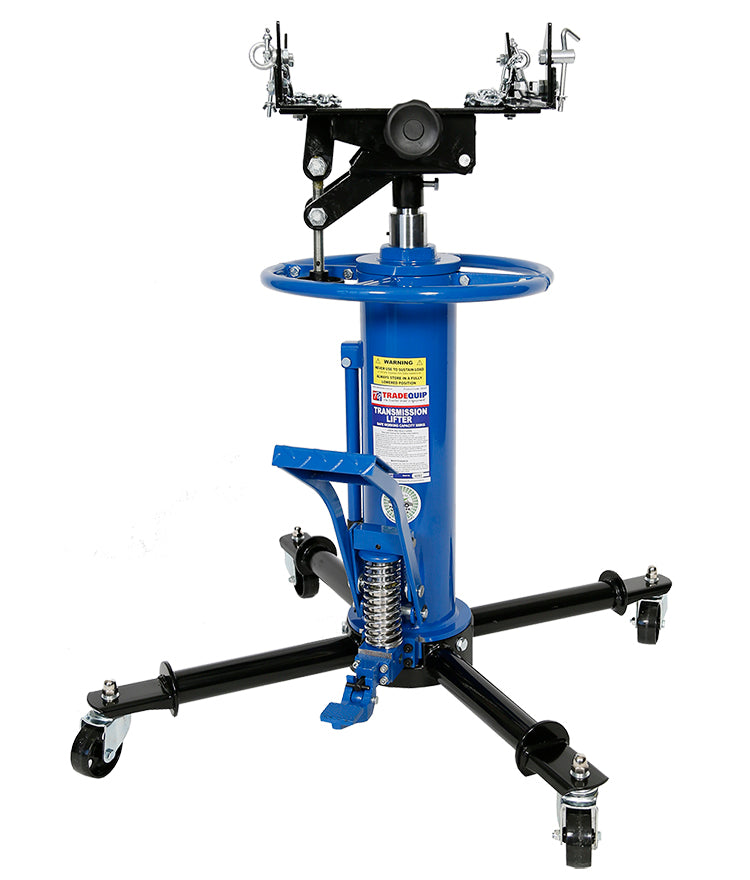

This TradeQuip "Made for the Trade" 500kg Transmission Lifter is designed for passenger Car transmissions. Features a universal mounting cradle that provides a 2 way tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.
Features
- Designed Designed for passenger car transmissions
- Base frame constructed of high-grade steel

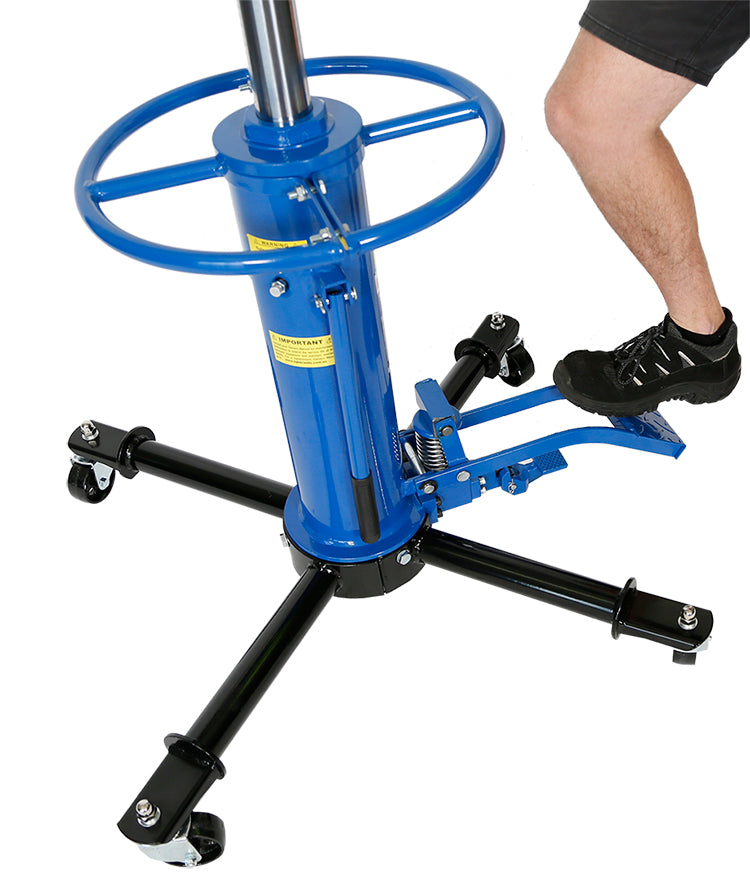

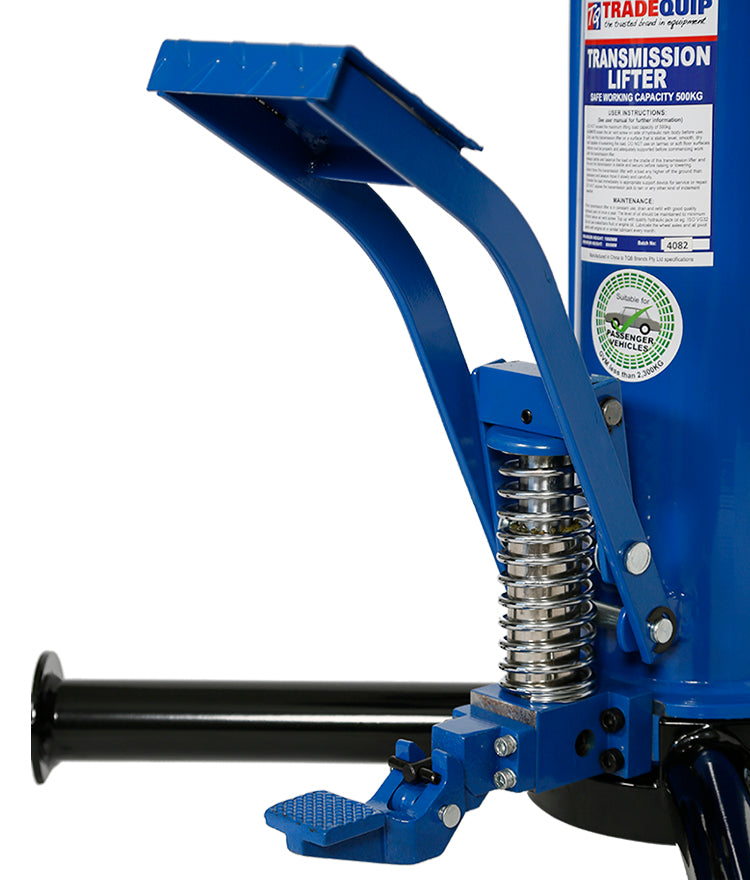

- 2-Stage hydraulic lift
- High quality large diameter hydraulic cylinder

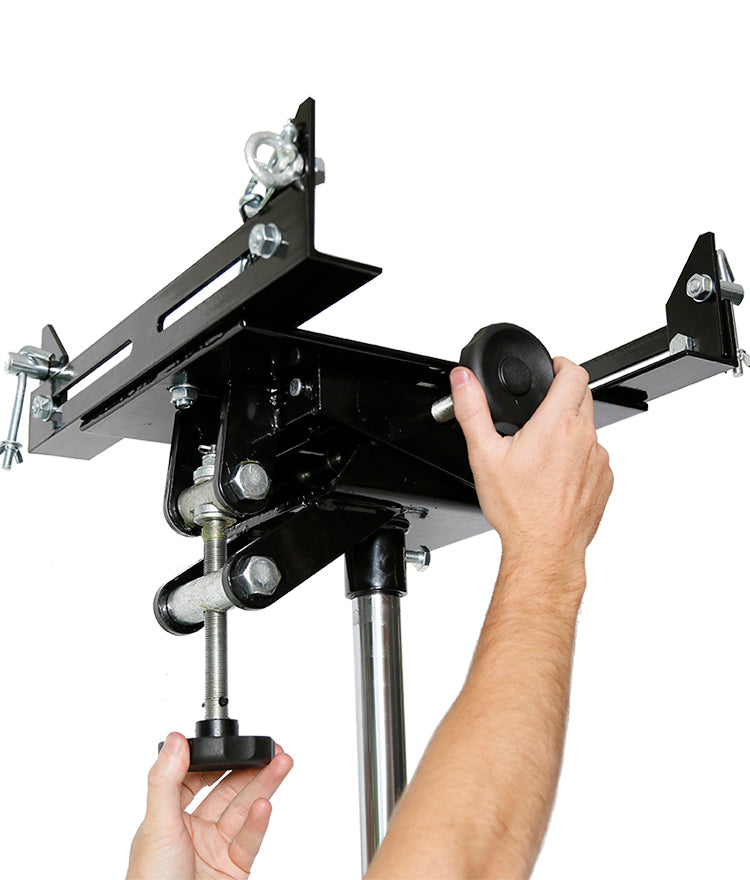

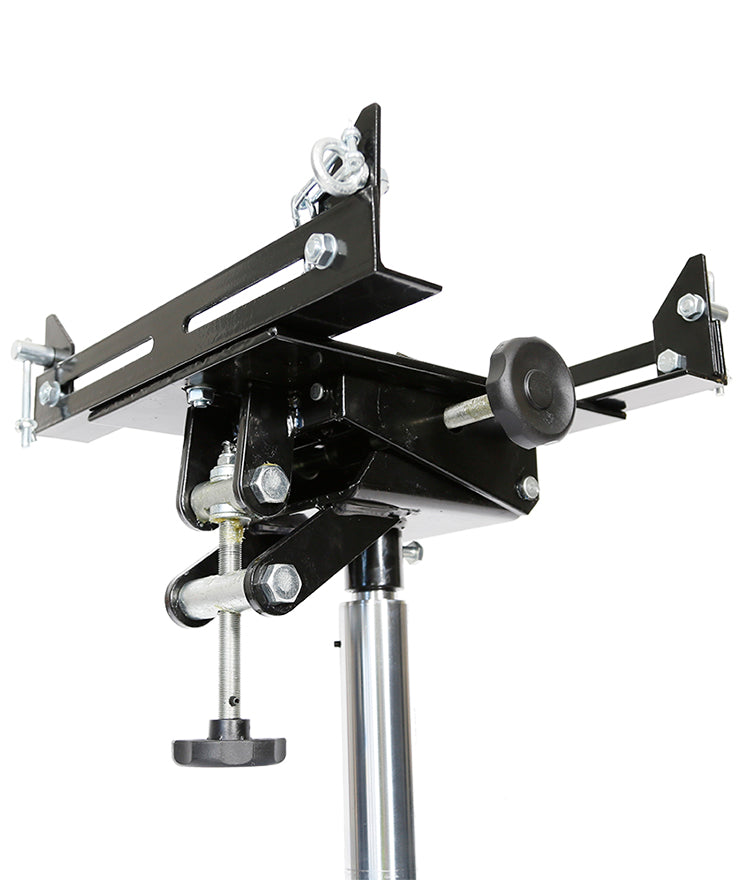

- Universal 2 way tilt cradle with safety chains
- Lead-free paint finish for a long-lasting finish
- Paint finish is oil, grease and dirt-resistant for easy cleanup

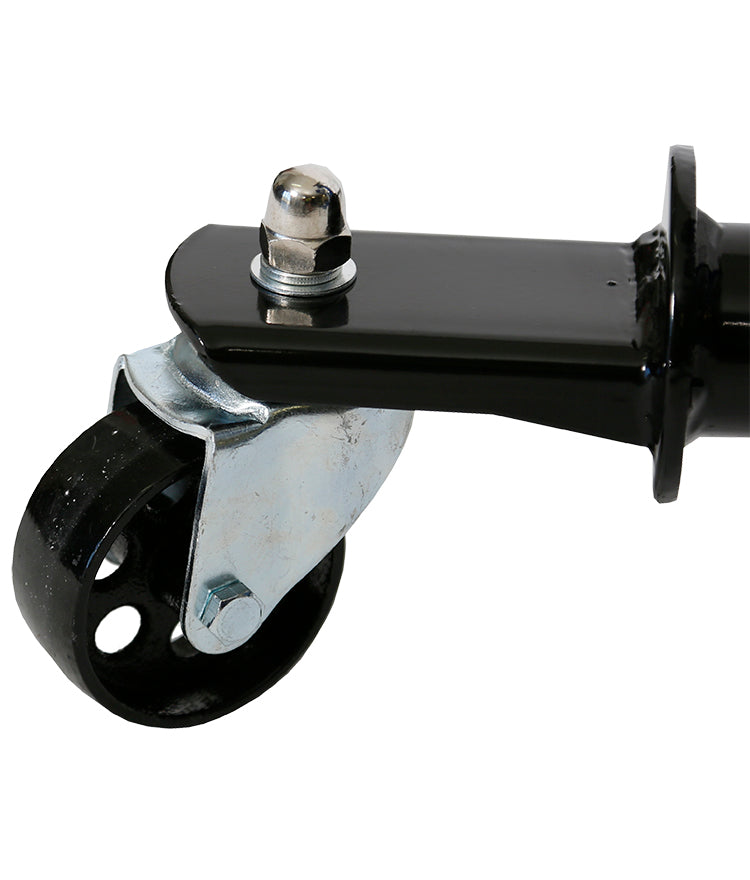

- Heavy-duty steel swivel castors
Specifications
- Safe Working Capacity: RWD/FWD/AWD GVM <2,300KG
- Rated Capacity: 500kg
- Working Height: 895mm - 1875mm
- Lifting Platform Size: 340mm x 240mm
- Lifting Platform Bracket Ranges ID: 420mm x 250mm to 420mm x 435mm
- Tilt Angle: Left 7°
- Tilt Angle: Right 15°
- Weight: 73kg
Intended Use
Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift.
Additional Information
Model
Type
Transmission Lifter
SKU
87436397
Part Number
2022T
Brand
TradeQuip
Size
500kg
Technical - Main
Working Load Capacity
500kg
Dimensions
Product Weight (Net Weight)
73kg
Warranty
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Weight (Gross)
73kg
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
What's Included
Tradequip Transmission Lifter Passenger Vehicle 2022T
$1,039.00
