Description
Features
-

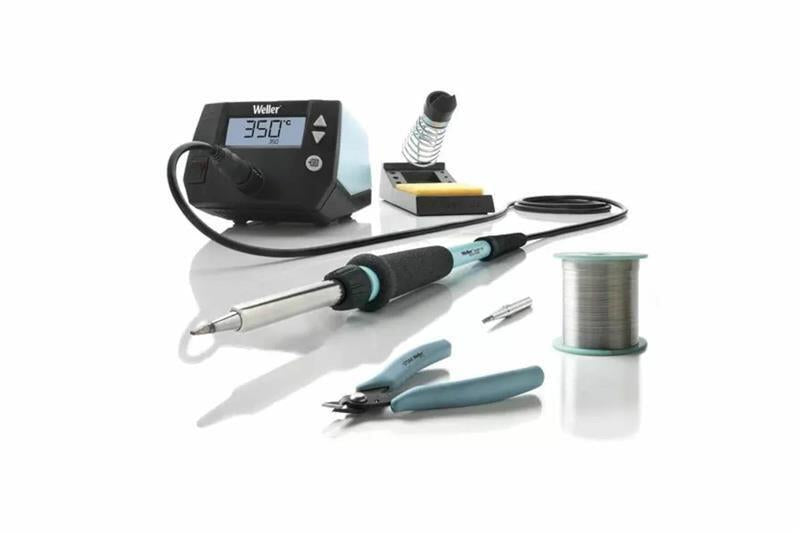

Power unit, 1 channel 70 W with soldering iron WEP 70 and safety rest PH 70; Shearcutter 170mn; WSW SCN M1 Solder Wire 100 g; Soldering Tips ETA 1,6 mm; ETB 2,4 mm
-
70W solder iron with ergonomic handle and providing toolless tip change
-
ESD safe station, iron and heat-resistant silicon cable for safe handling
-
Using ET soldering tips
-
Standby mode and auto setback conserves energy, protects equipment
-
Password-protected to preserve settings
-
170MN general purpose shearcutter, diagonal, flush. Greatly reduced mechanical shock delivered to the component, ESD safe
-
WSW solder wire; all purpose solder wire with excellent wetting properties
Specification
| Height | 98mm |
| Length | 150mm |
| Dimensions L x W x H | 150.0 x 120.0 x 98.0mm |
| Approximate Heating Time (50–350 °C/120–660 °F) | 28 sec |
| Number of Channels | 1 |
| Power | 85 W |
| Temperature Accuracy °C | ± 5°C |
| Temperature Accuracy °F | ± 9°F |
| Temperature Range °C | 100 - 450 °C |
| Temperature Range °F | 200 - 850 °F |
| Temperature Stability °C | ± 6°C |
| Temperature Stability °F | ± 10°F |
| Tip Type | ET |
| UPC | 9337103018214 |
| Voltage | 230V |
| Weight (Catalog) | 3.07 kg |
| Product Family | WE Line Soldering Stations |
Additional Information
Model
Type
Soldering Iron
SKU
8729440
Part Number
T0053298599
Barcode
4003019439997
Brand
Weller
Technical - Main
Colour Name
Black
Dimensions
Product Length
150mm
Product Width
120mm
Product Height
98mm
Product Weight (Net Weight)
1.4kg
Features
Standard Inclusions
WE1 station 120V, WEP70 soldering iron 70 W, 23 V, PH70 safety rest, Cleaning sponge for WEP 70 safety rest, ETA tip 0.062” / 1.6 MM screwdriver, You can use a range of tips in the ET series tips family for the WE 1010, including ETH, ETK and ETO tips in a variety of sizes. This range allows you to get the job done, and the long life of the tips helps to keep costs low. We recommend using genuine Weller ET series tips.
