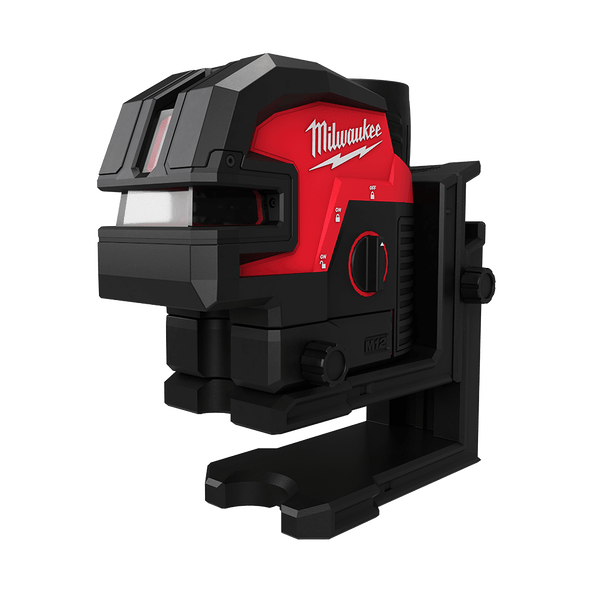

12V Cross + 4 Point Laser Kit M12C4PLA301C by Milwaukee

MilwaukeeSKU: 87434299

Price:
Sale price$843.00

Tax included Shipping calculated at checkout

Stock:
In stock (2 units), ready to be shipped

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

CLICK HERE to Shop our Sale!

Description

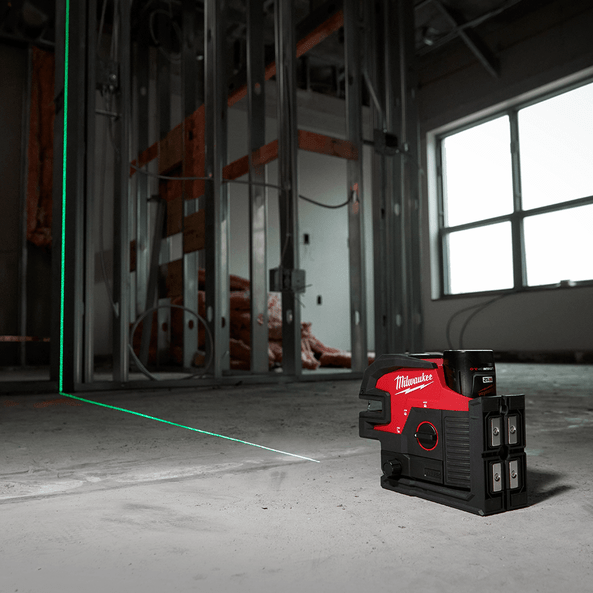

Our M12™ Green Cross Line & 4-Points Laser provides all-day runtime and the best visibility in its class. Using our M12™ REDLITHIUM™-ION 3.0Ah Compact Battery (M12B3 sold separately), users get 9+ hours of continuous runtime for ultimate productivity. The high-intensity green laser offers our users superior visibility up to 38 Meters for long-range applications. The vertical and horizontal lines make alignment and level applications easy for our users, while the additional 4-points allow for quick transfers from floor to ceiling and squaring applications. The integrated magnetic bracket features micro-control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a stronghold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As part of the industry-leading M12™ System, our laser is compatible with all M12™ Batteries.

Features

  • All Day Runtime - 9+ Hours
  • Brightest Green Laser Optimized for Distance
  • Micro Control - Pivots on Point
  • Vertical & horizontal lines plus 4-points to level, align, plumb and square.
  • 38 Meter Working Range
  • 50 Meters Range with Detector
  • Accuracy: ± 3.18 mm over 10 m​
  • Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
  • 210 Degree Horizontal Fan Angle, 165 Degree Vertical Fan Angle
  • 50mm Plumb Point Access
  • Self Leveling: +/- 4° Tilt
  • IP54 Rated: Water and Dust Resistant
  • 1m Impact Resistance
  • 1/4 - 20 & 5/8-11 Thread Mount
  • 3 Year Tool Warranty

Specifications

  • IP Ratings: IP54​
  • Number of Beams: Vertical & horizontal lines plus 4-points to level, align, plumb and square
  • Self-Levelling: ± 4° Tilt​
  • Accuracy: ± 3.18mm over 10m​
  • Impact Resistant: 1m
  • Working Range: 38m
  • Range with Detector: 50m
  • Thread Mount: 1/4"-20, 5/8"-11​

Includes

Additional Information

Warranty Information
Model
Type
Cross Line Laser
SKU
87434299
Part Number
M12C4PLA301C
Barcode
4892210240361
Brand
Milwaukee
Technical - Main
Accuracy
± 3.18 mm over 10 m​
Water Protection Rating
Water Protection Rating
IP (Ingress Protection) ratings ensure that the tools can withstand the conditions typically found in such environments. Here's a basic summary of IP ratings suitable for a tool shop:IP20: Minimal protection against solid objects and no protection against water. This rating is suitable for tools used in dry indoor environments where there is no risk of exposure to water or dust.IP54: Good protection against dust and debris, and splash-proof against water. This rating is suitable for tools used in indoor environments where water splashes may occur, but the tools will not be exposed to heavy water jets or immersion.IP55 or IP56: Excellent protection against dust and debris, and protected against water jets from all directions or temporary immersion. This rating is suitable for tools used in indoor and outdoor environments where they may be exposed to dust, debris, and occasional water splashes.IP65: Dust-tight and protected against water jets from all directions. This rating is suitable for tools used in environments where there may be significant dust or debris, and water jets are likely to be encountered during cleaning or maintenance.
IP54
Dimensions
Product Length
149mm
Product Width
81mm
Product Height
170mm
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
3 Years
Packaging + Shipping
Shipping Weight (Gross)
3.8kg
