Description
Suitable for cutting Wood, Plastic, Paper, Acrylic, Rubber, other non-metal items. Ideal for Industry cutting of Signage and Advertising components, Air Plane / Hobby Models plus more. 130W C02 Laser Tube. No CAD experience is necessary. Includes easy to use CAD Software, Exhaust Fan, Water Cooling System, and Air Pump.
This machine features an open frame configuration rather than a cabinet enclosure. Having this open frame setup, allows the machine to be easily unmounted from this frame allowing it to pass through narrows doors (This is not possible with the cabinet enclosure featured on the standard RS130 machine).
The Cutting Capacity / Thickness is dependent entirely on the material specification (ie. material composition) eg.:
- Material Country of Origin?
- Whether the material (MDF / Timber) is Dry / Wet?
- Whether the material is Old / New?
All materials should be trialled and tested, however, a guide is as follows:
- Acrylic 0-20mm
- MDF 0-12mm
- Ply 0-12mm
- Pine 0-16mm
Standard Accessories
- User Manual
- Water chiller Pump – CW5200 (Size 560mm x 285mm x 470mm) (plugs into the back of the laser)

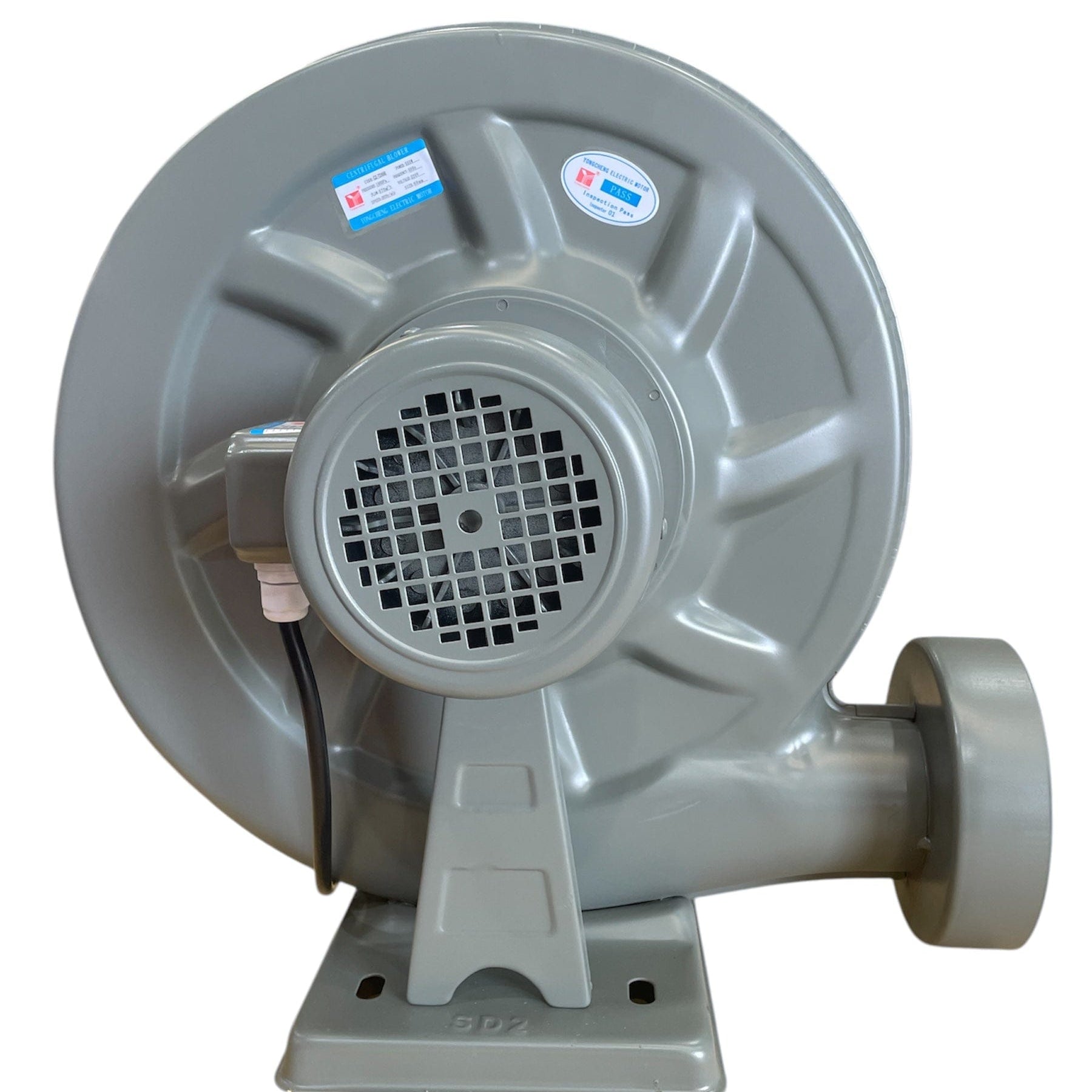

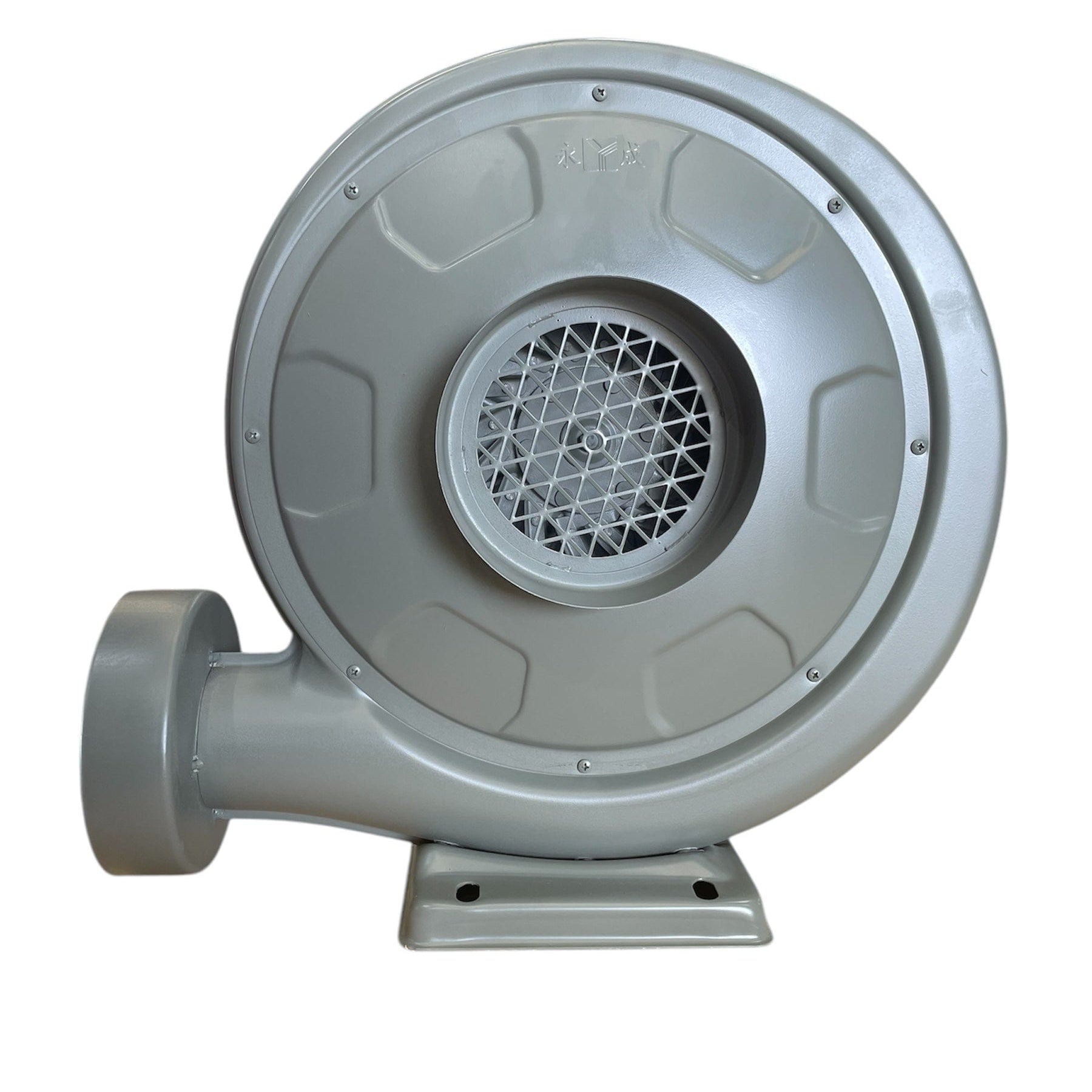

- Air exhaust fan CZ-TD550 (plugs into the back of the laser)
Specification
-
- Airflow: 570 CUBIC METERS PER HOUR
- Pressure: 1800PA,
- Speed: 2820R/MIN
- Power: 550W
- Frequency: 50HZ, 230VOLT
- Outlet Size: 150mm
- Inlet Size: 150mm
- Comes with lead approx. 1.5m and plug 10amp 230V
- Air Pump (plugs into the back of the laser)
- Communication cable
- 3 Reflect Optics (installed in the machine)
- 1 Focus Optics (installed in the machine)
- 1 Laser tube
- Rotary attachment for cylinder work
- Motorised up and down platform
- Honeycomb Table
- Laser Engraving Software Package: Lightworks Software
- 2 x 1.5m 150mm flexible hose (used to connect from machine to extraction fan, then from fan to vented extraction duct)
Workshop Requirements
- Power: 240V 10Amp 50Hz
- Odour & Fume Extractor
- Computer / Laptop
- Ventilation: External fume extraction requires somewhere to vent the fumes, needs to be 150mm round duct to connect flexible hose from machine to.
- Delivery, Installation, Commissioning
- A well ventilated room
Client Work
- Client User Video; Cut & Co. Perth, WA 1
- Client User Video; Cut & Co. Perth, WA 2
- Client User Video; Cut & Co. Perth, WA 3
- Client User Video; Sign_It_Studio, Perth, WA 4
Image Credits
Some user images courtesy of Cut & Co. Perth + Blu Builders, Perth
Comparable Products
- Redsail RSX130-1390 #8601391
Additional Information
Model
Type
CNC Laser
SKU
8043401
Part Number
TCL130-1390
Brand
ToughCut
Size
1300mm x 900mm
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Laser Class
Laser Class
Laser classes are categories assigned to lasers based on their potential to cause harm to humans, particularly to the eyes and skin. The classification system is designed to indicate the level of risk associated with the laser's power output and wavelength, guiding the necessary safety precautions for their use. The classes range from Class 1 (safest) to Class 4 (most hazardous).Class 1: Safe under all conditions of normal use. Used in CD/DVD players, laser printers, barcode scanners. No special precautions needed.Class 1M: Safe except when viewed with optical instruments. Used in fiber optic systems, measurement tools. Avoid using optical instruments to view the beam.Class 2: Safe for brief exposure due to blink reflex. Used in laser pointers, alignment lasers. Do not stare into the beam.Class 2M: Safe for brief exposure unless viewed with optical instruments. Used in alignment tools, rangefinders. Avoid using optical instruments to view the beam.Class 3R: Low risk of injury, up to 5 mW. Used in laser pointers, alignment lasers. Avoid direct eye exposure.Class 3B: Can cause eye and skin injuries, up to 500 mW. Used in research, some medical devices. Use safety goggles and avoid direct exposure.Class 4: High risk, can cause severe injuries and fire hazards, above 500 mW. Used in industrial cutting, welding, medical, research. Use protective equipment and follow strict safety measures.
Class 1 Laser Product using Class 4 Laser
Laser Style
Laser Style
Fiber LasersHigh-efficiency lasers using doped optical fibers; excellent beam quality, used in cutting, welding, and telecommunications.Continuous Wave (CW) LasersEmit steady, uninterrupted beams; used for continuous material processing and research, require robust cooling.Pulsed LasersEmit high-energy bursts; ideal for precision applications like micro-machining, engraving, and medical procedures.Fiber Pulsed LasersCombine fiber laser efficiency with pulsed operation; used for precise tasks in micro-machining, engraving, and medical fields.Gas LasersUse gases like CO2 or helium-neon; high beam quality, common in cutting, engraving, and scientific research.Solid-State LasersUse solid gain media like crystals or glass; versatile applications including medical procedures, material processing, and laser ranging.Dye LasersUse liquid dyes as the gain medium; tunable wavelengths, used in spectroscopy and medical treatments.Semiconductor Lasers (Diode Lasers)Compact, efficient lasers using semiconductor materials; common in communications, barcode scanning, and laser printing.
CO2 (Glass Sealed Laser Tube)
Laser Power
130W Agreed Power (150W Peak Power)
Resolution (Location Precision) (DPI)
Resolution (Location Precision) (DPI)
DPI, or dots per inch, is a measure of the resolution of a printed document or digital scan. The higher the dot density, the higher the resolution of the print or scan. Typically, DPI is the measure of the number of dots that can be placed in a line across one inch, or 2.54 centimeters.
2500
Travel - Z Axis
260mm
Maximum Travel Speed
1m / Min.
Dimensions
Product Length
1800mm
Product Width
1360mm
Product Height
1070mm
Product Weight (Net Weight)
320kg
Country of Origin
Designed, Researched & Developed in
Australia
Manufactured in
China
Features
Standard Inclusions
Laser Engraving Software Package, User Manual, Water chiller Pump – CW5200, Air exhaust fan - CZ-TD550, Air Pump, Communication cable, 3 Reflect Optics (installed in the machine), 1 Focus Optics (installed in the machine), 1 Laser tube, Rotary attachment for cylinder work, Motorised up and down platform, Honeycomb Table
Workshop (Site) Info
Other Requirements
Power: 240V 10Amp 50Hz Odour & Fume Extractor Computer / Laptop Delivery, Install, Commissioning
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
1700mm
Shipping Width
1000mm
Shipping Height
1200mm
Shipping Weight (Gross)
380kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
What's Included
ToughCut 1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390
$20,380.00
