Description
Hydrogen controlled ("low hydrogen") E7016 series stick welding electrodes with a special Twin Flux Coating for superior arc stability - in Foil-Sealed 2KG Vacuum Packs. Commonly used for mild or high strength steel, where the joint requires higher strength than regular "GP" electrodes, such as highly restrained joints or components subject to higher load stress. Also used as a buffer layer prior to hard facing. 16XT welding rods are All-Positional (except for vertical down), easy striking & smooth running, with low spatter & easy slag removal. Available in 2.5mm, 3.2mm & 4.0mm. AWS A5.1 E7016 H8 & AS/NZS 4855: B E4916 A U H10 classifications.
- User Friendly: Very Smooth & Stable Arc, Easy Striking, Low Spatter, Easy Slag Removal
- Hydrogen controlled, for welding mild & high-strength (carbon-manganese) steels up to 510MPa
- All-Positional (except for vertical down) & excellent weld appearance
- Vacuum foil sealed packs keeps moisture out, right up to the point of use
- Air contains moisture (humidity) and any electrode exposed to air will absorb moisture
- This inceases hydrogen levels in the electrode (water 'H2O' contains hydrogen 'H')
- Increased hydrogen compromises the strength & mechanical properties of the weld
- Moisture can also negatively affect the arc characteristics of the electrode
- Smaller pack size reduces waste & minimises exposure to atmospheric moisture
- Twin-coated
- Suitable for all DC or AC welding machines
- AWS A5.1 E7016 H10
- AS/NZS 1553.1 (old) E4946
- AS/NZS 4855: (new) B E4916 A U H10
- EN ISO 2560-A: E 38 2B H10
- Mining maintenance & fabrication
- Structural steel & site welding
- Rural maintenance
- Pipe construction
- Boilers & pressure vessels
- Build up or buffer layer prior to hard facing
- Single sided weld joints
- Yield Strength: 470 MPa
- Tensile Strength: 540 MPa
- Elongation: 26%
- Impact Strength (CVN): 70J @ -20c / 50J @ -30c
- Q: Does the vacuum foil seal avoid the need for pre-drying electrodes in an oven? A: This depends on the application. At the point of opening a sealed pack, 16XT electrodes will almost certainly contain less moisture than electrodes that are not vacuum sealed - however electrodes ovens should still be used in critical situations or when specified in the weld procedure.
- Q: How many rods per pack/KG ? 2.6mm = approx. 50 rods per KG / 125 rods per 2.5kg pkt 3.2mm = approx. 33 rods per KG / 83 rods per 2.5kg pkt
Additional Information
Model
Type
Welding Electrodes
SKU
5009569
Part Number
WC-03975
Barcode
9341562039758
Brand
Weldclass
Size
3.2mm
Size*
3.2mm
Technical - Main
Material
Platinum 16XT (Hydrogen Controlled, Twin-Coated)
Packaging + Shipping
Shipping Weight (Gross)
1.48kg

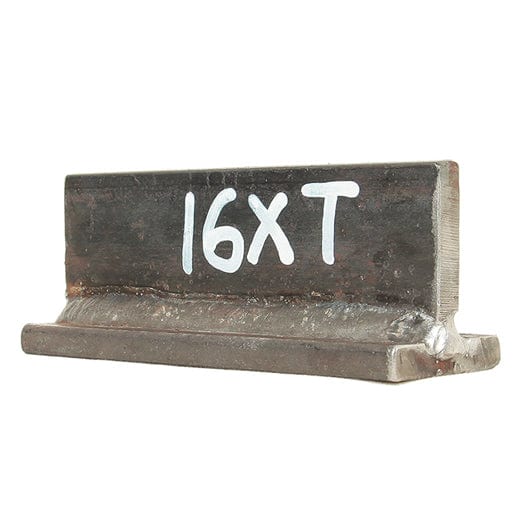

3.2mm x 2Kg Platinum 16XT Welding Electrodes WC-03975 by Weldclass
$33.00
