Description
Specifications
- Main Blade Diameter φ300 x φ30mm
- Main Blade Speed 4500 RPM
- Scoring Blade Diameter φ90 x φ22mm
- Scoring Blade Speed 7000mm
- Mαx Depth of Cut @ 45 ° 75mm
- Max Depth of Cut @ 90 ° 100mm
- Max Rip Capacity 1250mm
- Main Table Size 800x500mm
- Main extend Table Size 800x860mm
- Side extend Table Size 500x500mm
- Dust Extraction Outlet φ120mm
- 1PH Motor Output 3KW 4HP
- Net/Gross Weight 430/500KG
- Mαin Package 1750x1030x1100mm

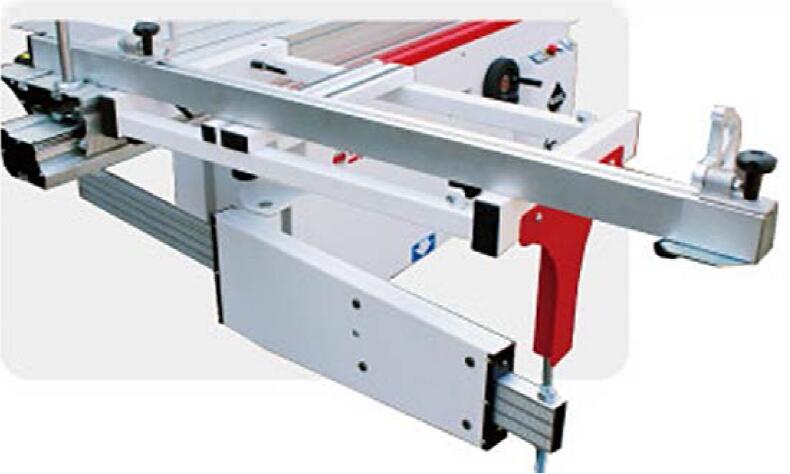

- Sliding Beam Size(W.x L.) 315x1600mm
- CE Style Overhead Guard Included
Additional Information
Model
Type
Panel Saw
SKU
8601446
Part Number
SEGA300/240V/1.6M
Brand
Sicar
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Blade - Electric Rise / Fall
No
Cut Max. Depth @ 45°
75mm
Cut Max. Depth @ 90°
100mm
Rip Capacity
1250mm
Technical - Saw
Sliding Table (Cross Cut) Size
1600x315mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
300mm
Blade (Main) - Speed
4,500RPM
Blade (Scoring) - Diameter (Max.)
90mm
Blade (Scoring) - Speed
7000
Blade Tilt
0-45°
Dimensions
Product Length
3800mm
Product Width
2885mm
Workshop (Site) Info
Electrical Connection
15Amp Lead & Plug
Packaging + Shipping
Shipping Weight (Gross)
700kg
300mm (12") 4HP 1.6m Sliding Table Italian Designed Panel Saw 240V SEGA300 by Sicar
$7,673.00
