Description
Specifications:
- Major Table Size: 380 x 800mm
- Extension Table, Cast Iron: 440 x 800mm
- Extension Table, Steel Plate: 440 x 800mm
- Rear Extension Table: 310 x 500mm
- Sliding Panel Size: 2600 x 270mm
- Cross Cut Table Size: 680 x 580mm
- Cross Cut Fence: 1200 - 2200mm
- Maximum Cut Depth: 100mm at 90 ° / 80mm at 45 °
- Maximum Distance, Blade to Rip Fence: 1220mm
- Maximum Cross Cut Length: 2600mm
- Maximum Cross Cut Width: 1350mm
- Saw Blades
- 100mm Dust Hose
- Hose Clamps + fittings etc
- Dust Extractor FM Series Dust Collector
- Optional Mobility Wheel Kit (MW-1)
- Full 12Month Manufacturer's Warranty
- $750 for assembly + delivery (Metro WA)
- Please contact us for other assembly options available throughout Australasia
Additional Information
Model
Type
Panel Saw
SKU
9504838
Part Number
OT-PS-1226A
Brand
Oltre
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP / 3000W
Cutting Capacity - Height
100mm
Technical - Saw
Sliding Table (Cross Cut) Size
2600mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
254mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
90mm
Blade (Scoring) - Bore Size
20mm
Blade (Scoring) - Speed
7500RPM
Blade Tilt
90° to 45°
Workshop (Site) Info
Electrical Connection
Lead & Plug
Packaging + Shipping
Shipping Length
1220mm
Shipping Width
765mm
Shipping Height
1040mm
Shipping Weight (Gross)
290kg

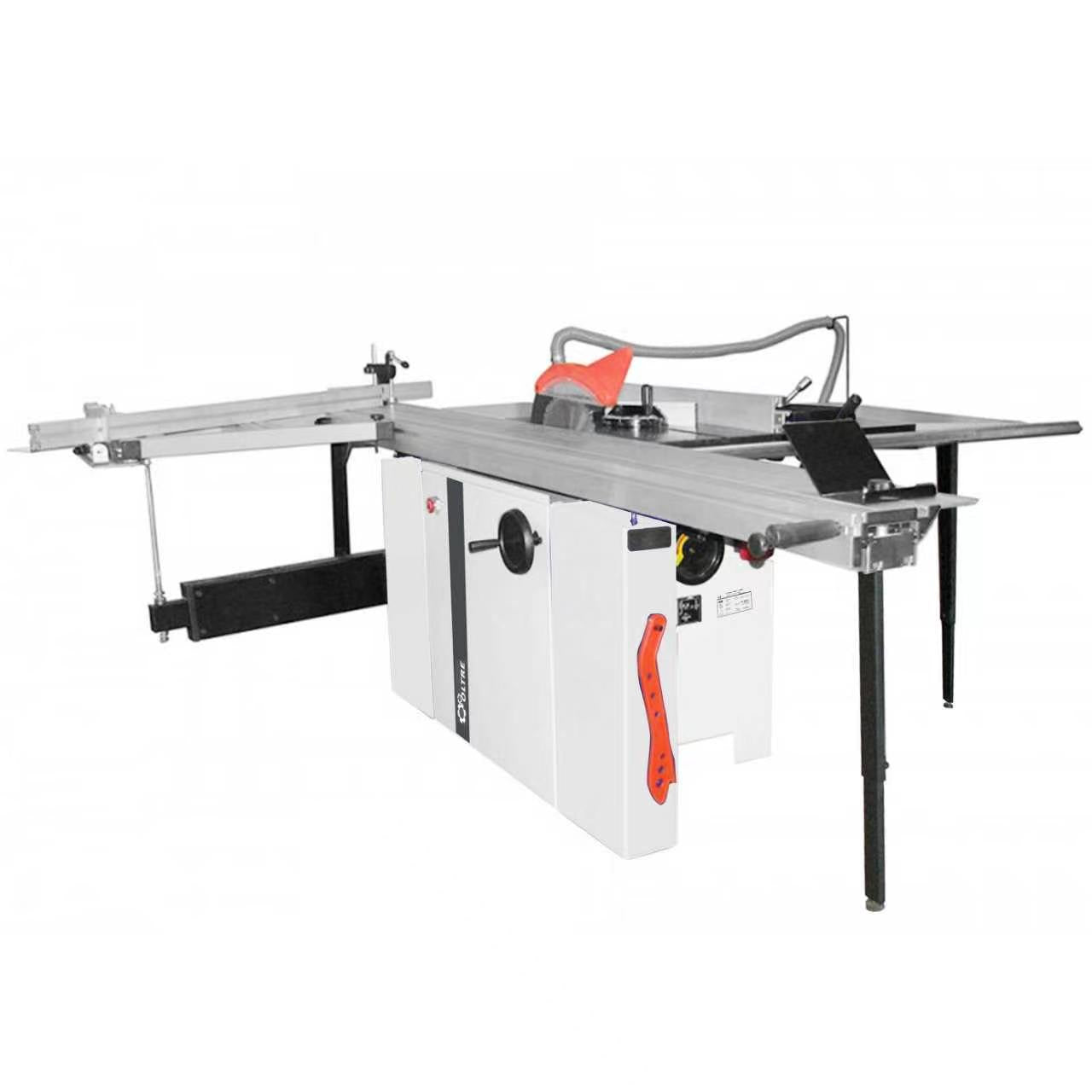

315mm (12") 4HP 2.6m Sliding Table Panel Saw 240V OT-PS-1226A by Oltre
$5,477.00
