350mm (14") Professional Bandsaw 3HP 240V BS350E by Woodfast *New Arrival*

WoodfastSKU: 8043030

Price:
Sale price$2,596.00

Tax included Shipping calculated at checkout

Stock:
In stock (12 units), ready to be shipped

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

CLICK HERE to Shop our Sale!

Description

The BS350E bandsaw features an impressive 3HP motor and the largest cutting capacity in this model range, which makes this saw ideal for use in re-sawing lumber, as well as handling normal shop work. Designed with extra user-friendly and safety features – Patent Pending tool-less blade guide system, quick-adjust fence system and quick-lock trunnion system for fast table angle setting, plus, a keyed power switch (great for unauthorized use & security), door activated emergency stop micro switch, conveniently located blade tension release lever with the tensioning wheel under the top frame, large work table with two mitre gauge ‘T’ slots, hinged blade guard, and clear sight windows for easier viewing when adjusting the blades. Includes 150mm (6”) rip fence with re-saw bar.

Features

  • Cast Iron Wheels – Factory Balanced
  • Emergency Stop Micro Switches – Fitted to Door + Blade
  • Spring Loaded Tool-less Lower Blade Guides – Easily Accessible, Easy & Fast setting of the guides without wrenches!
  • Extra Tall Rip Fence – With Resaw Bar, Increased fence and re-saw bar heights of 150mm (6”) give added support of lumber being ripped or re-sawn
  • Quick-Adjust Rip Fence Mount – Hi-Lo Solid Cast, adjusts for drift with the simple turning of a few knobs! No tools needed
  • Quick-Lock Trunnion System – Hi-Lo Solid Cast, handy lever and gear unlock, and set table angles in seconds!
  • Rack Adjustment – Heavy Duty for Table Angle
  • Foot Brake + Motor Brake

    Additional Information

    Model
    Type
    Bandsaw
    SKU
    8043030
    Part Number
    BS350E
    Barcode
    735745530825
    Brand
    Woodfast
    Size
    350mm (14")
    Size*
    350mm (14")

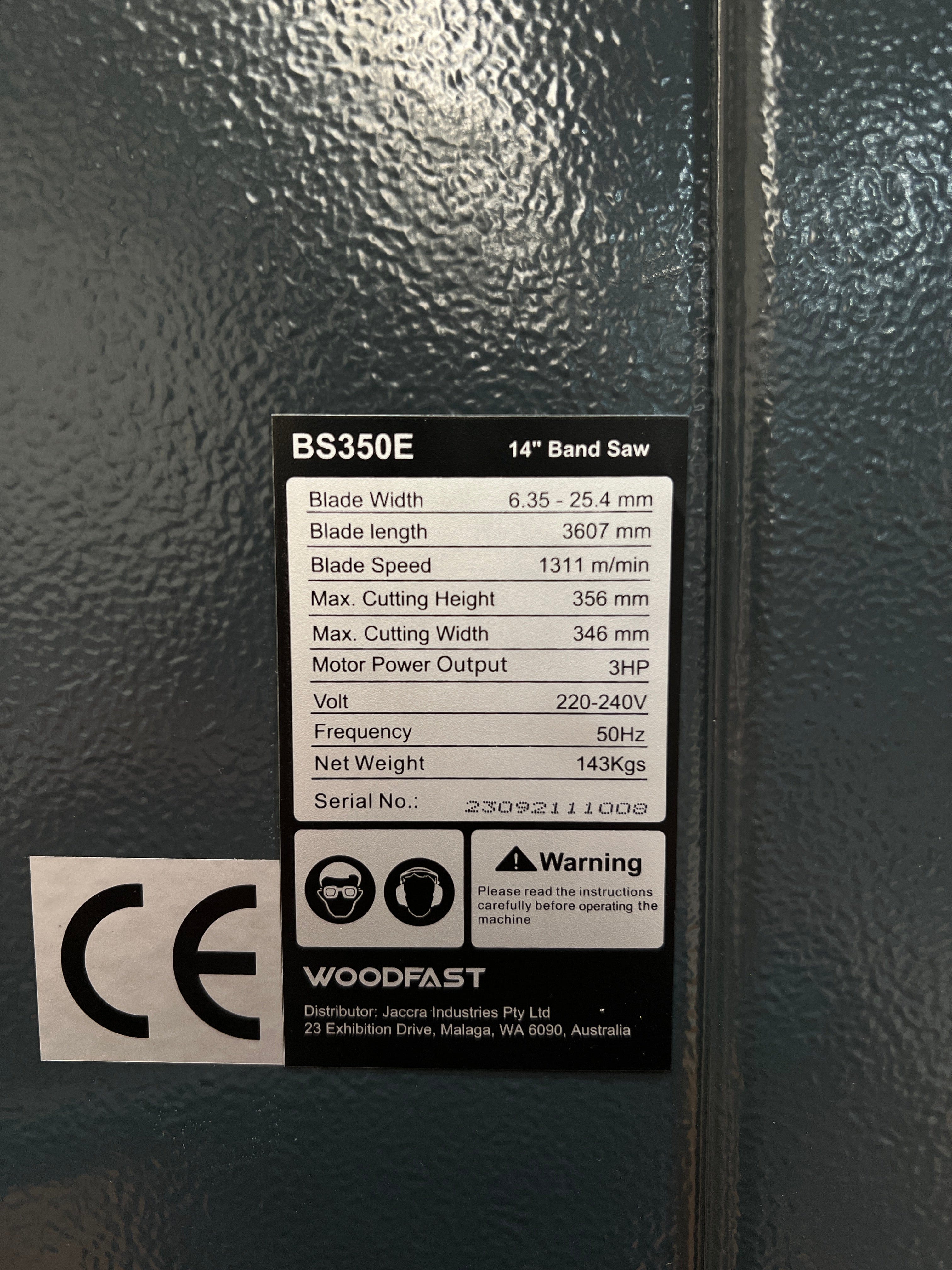

    Technical - Main
    Power Source
    Power Source
    Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
    230-240V 50Hz (Single Phase)
    Motor Power (Output)
    Motor Power (Output)
    Output power means the maximum power that the motor puts out under ideal conditions.
    3HP (2.2kW)
    Bandwheel Diameter
    350mm
    Blade Length
    3607mm
    Blade Width
    6.35-25.4mm
    Cutting Capacity - Height
    356mm
    Throat Capacity
    346mm
    Table Size
    546mm x 400mm
    Speed Range
    1311m/min.
    Country of Origin
    Designed, Researched & Developed in
    Australia
    Features
    Rack & Pinion
    Rack & Pinion
    A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
    Tool Less Blade Guide System
    Tool Less Blade Guide System
    Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.
    Blade Tensioning Quick Release Device
    Blade Tensioning Quick Release Device
    Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk. De-tensioning your blade will extend the life of your blade.
    Induction Motor
    Induction Motor
    This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
    Table Fence Construction
    150mm High Aluminium Rip Fence with Solid Round Bar Guide Rail and Solid Cast Locking Mechanism - Fence can be fitted to either side of the work table.
    Mitre Gauge Included
    Push Stick Included

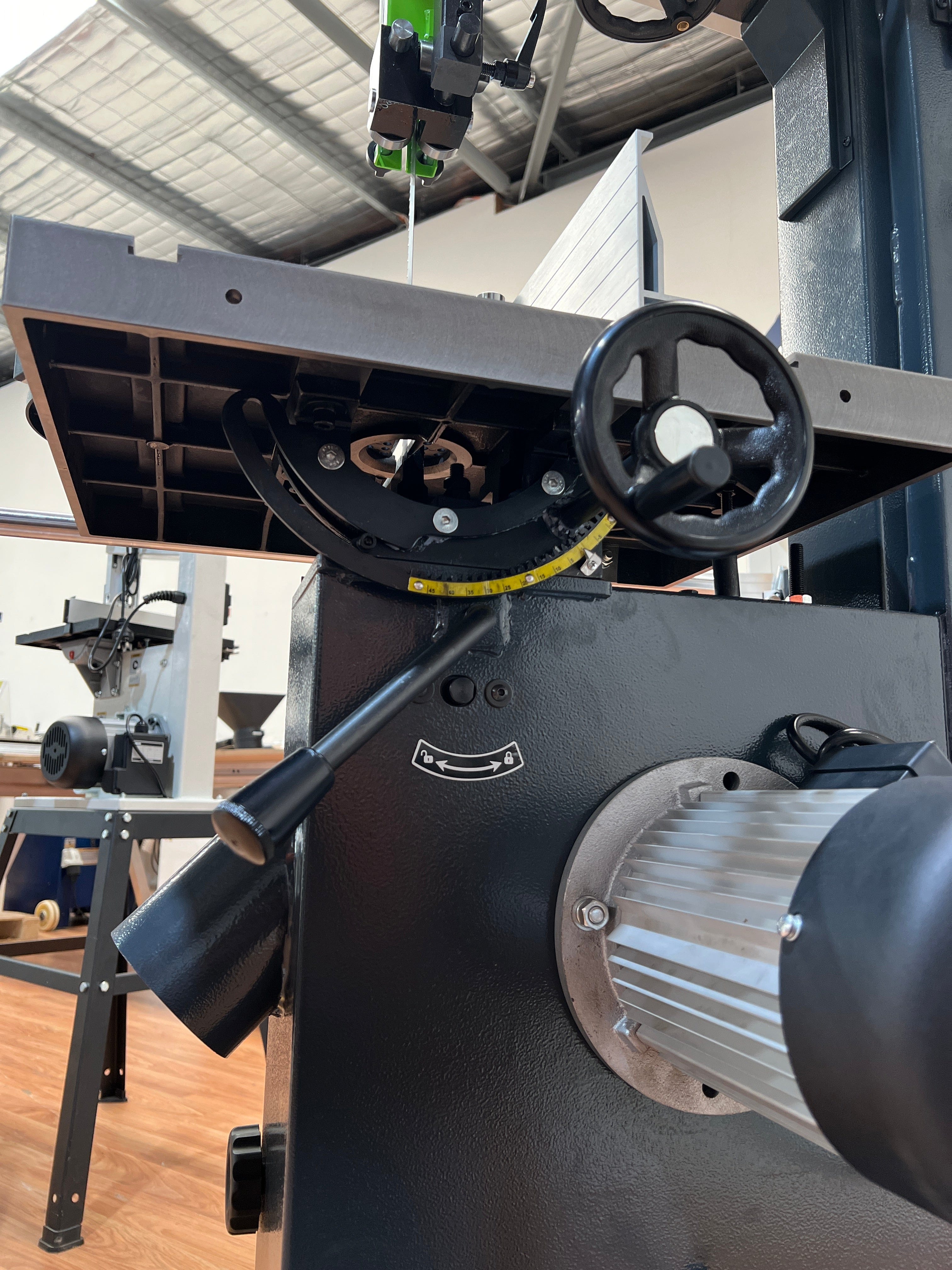

    Tilting Table
    Tilting Table
    A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
    Standard Inclusions
    3607mm x 6 TPI BladePush StickRip Fence AssemblyMitre GaugeWrenchManual
    Workshop (Site) Info
    Electrical Connection
    10Amp Lead & Plug
    Warranty
    Warranty
    Warranty
    All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
    3 Years (Home User) or 1 Year (Commercial User)
    Packaging + Shipping
    Shipping Length
    770mm
    Shipping Width
    550mm
    Shipping Height
    1920mm
    Shipping Weight (Gross)
    190kg
    Packaging
    Packaging
    Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
    Wooden Box / Crate with Skid
    Requires a Skid to Ship
    Requires a Skid to Ship
    Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
    Requires a Forklift / Tail Lift to Unload
    Requires a Forklift / Tail Lift to Unload
    If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
