5 in 1 Combination Machine C400 by Sicar

The C400 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own. Being a professional standard machine, the C400 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts. The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured. The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently. Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.

Features

• 5 in 1:
  • Table Saw

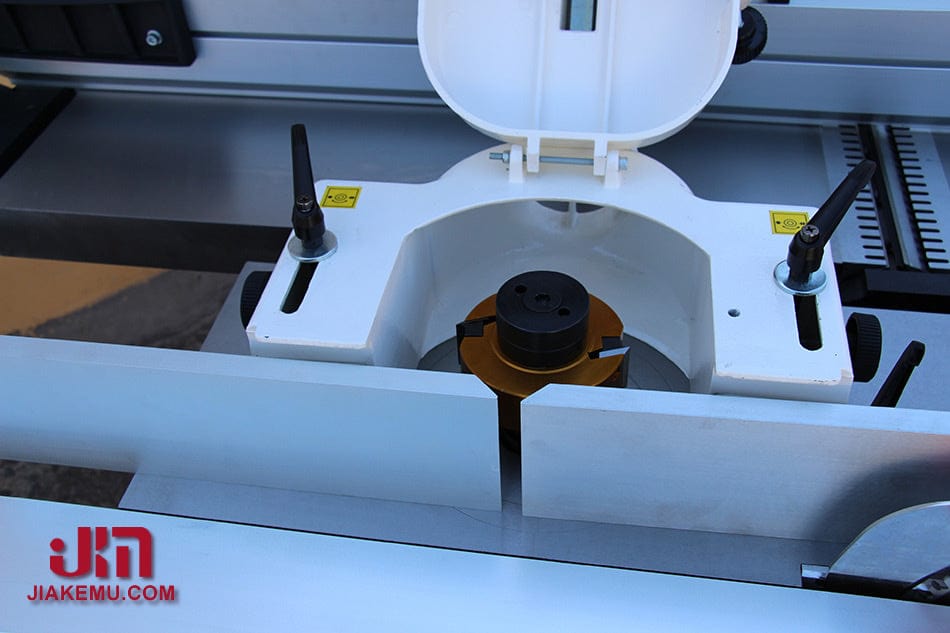

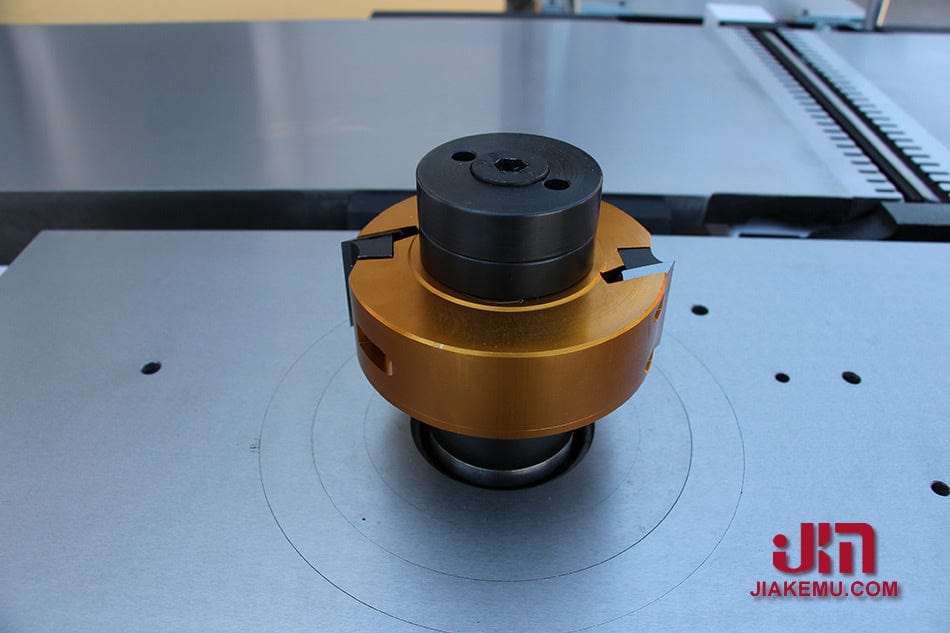

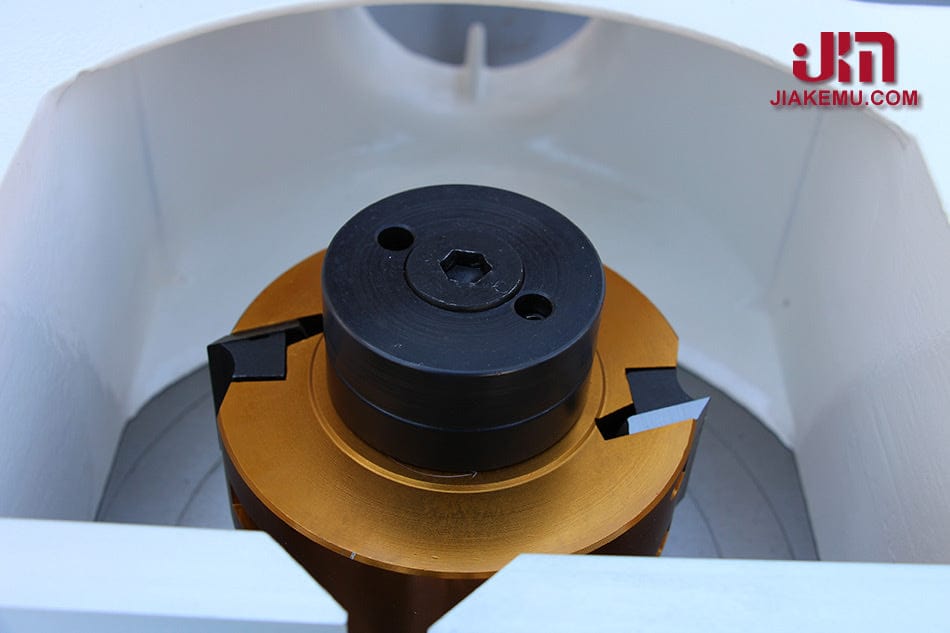

  • Spindle Moulder
  • Planer
  • Thicknesser
  • Mortiser
• Three motors
• Tilting functionality on Saw Blade
  • Scoring Saw

• Three-phase motor 5.3HP / 4kw
• Voltage 415V
• Carriage dimensions 2600x315mm
• Weight: 645kg
• Packing Weight N .W/G.W 645/ 690kg

• Spiral Cutter Block
• Working table: 400 x 1800mm
• Cutter block diameter: 70mm
• Cutter block rotation speed: 5700RPM
• Cutter block length: 400mm
• Max table adjustment: 4mm

• Working table: 400 x 760mm
• Feed speed: 7m/Min.
• Working height: 4-220mm
• Cutter block rotation speed: 5700RPM
• Max cutting depth: 4mm

• Working table: 326 x 1112mm
• Main shaft speed: 4500 r.p.m
• Scribe shaft speed: 7000 r.p.m.
• Main blade diameter: 300 x 30mm
• Scribe blade diameter: 90 x 22mm
• Cutting height at 90 °: 100mm
• Cutting width parallel fence: 730mm

• Working tables: 326x1112mm
• Shaft rotation speeds: 2000/3100/4400/7000RPM
• Standard shaft diameter: 30mm
• Shaft vertical stroke: 115mm
• Max. tool diameter: 180mm
• Max. tenoning depth: 65mm

• Working table: 250 x 500mm
• Longitudinal stroke: 205mm
• Traversal stroke: 95mm
• Vertical stroke: 90mm
• Chuck: 16mm
• Chuck rotation speed: 5700RPM

• 100mm Dust Hose #8600640
• FM300 Dust Collector

• Blades
• Main blade = 250 x 30mm x 24T
• Main blade = 250 x 30mm x 80T #8714666
• Scribe Blade = 90 x 22mm
