8Kg Glue Feeder Tank for PVA with 1 x 0002 Nozzle Series A8 9001 by Pizzi

PizziSKU: 11021

Price:
Sale price$1,142.00

Tax included Shipping calculated at checkout

Stock:
In stock (4 units), ready to be shipped

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

CLICK HERE to Shop our Sale!

Description

Pressurized glue tank for PVA glues with 1 glue gun with adjustable glue flow and universal pointed nozzle.

Iron tank with full inner plastic lining and chromed brass lid.

Specification

  • Glue capacity 8 kg
  • Max pressure 5 bar
  • Recommended viscosity: Brookfield viscosity from 3.000 to 15.000 mPa s, at an operating temperature of 20°C/68° F.

NOTE

This system grants accurate adhesive dosing, the right adhesive quantity, in the correct area, covering precisely just the requested surface on any component and handwork.

The adhesive is dispensed by extrusion.

Each pressurized glue tank can be fitted with 1, 2 or 3 glue guns on which it is possible to connect a wide range of standard nozzles and also custom-made ones, all interchangeable on PIZZI glue guns.

All PIZZI pressurized glue tanks can be equipped with a wide range of standard accessories and nozzles to fullfil any specific needs and glue task.

This system can be supplied without glue gun (cod. 9000) and also, with a second type of glue gun with anatomic grip (cod. 9004).

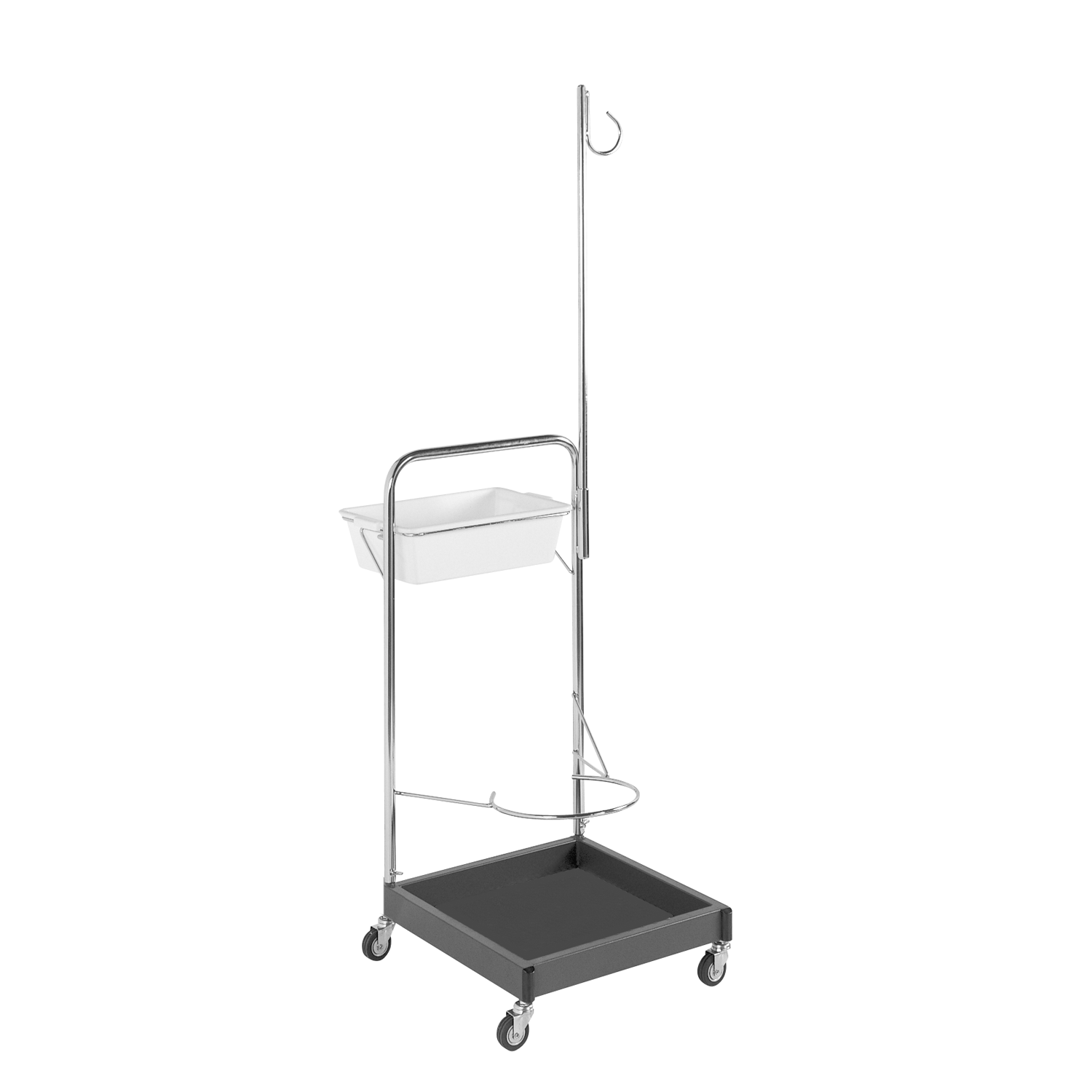

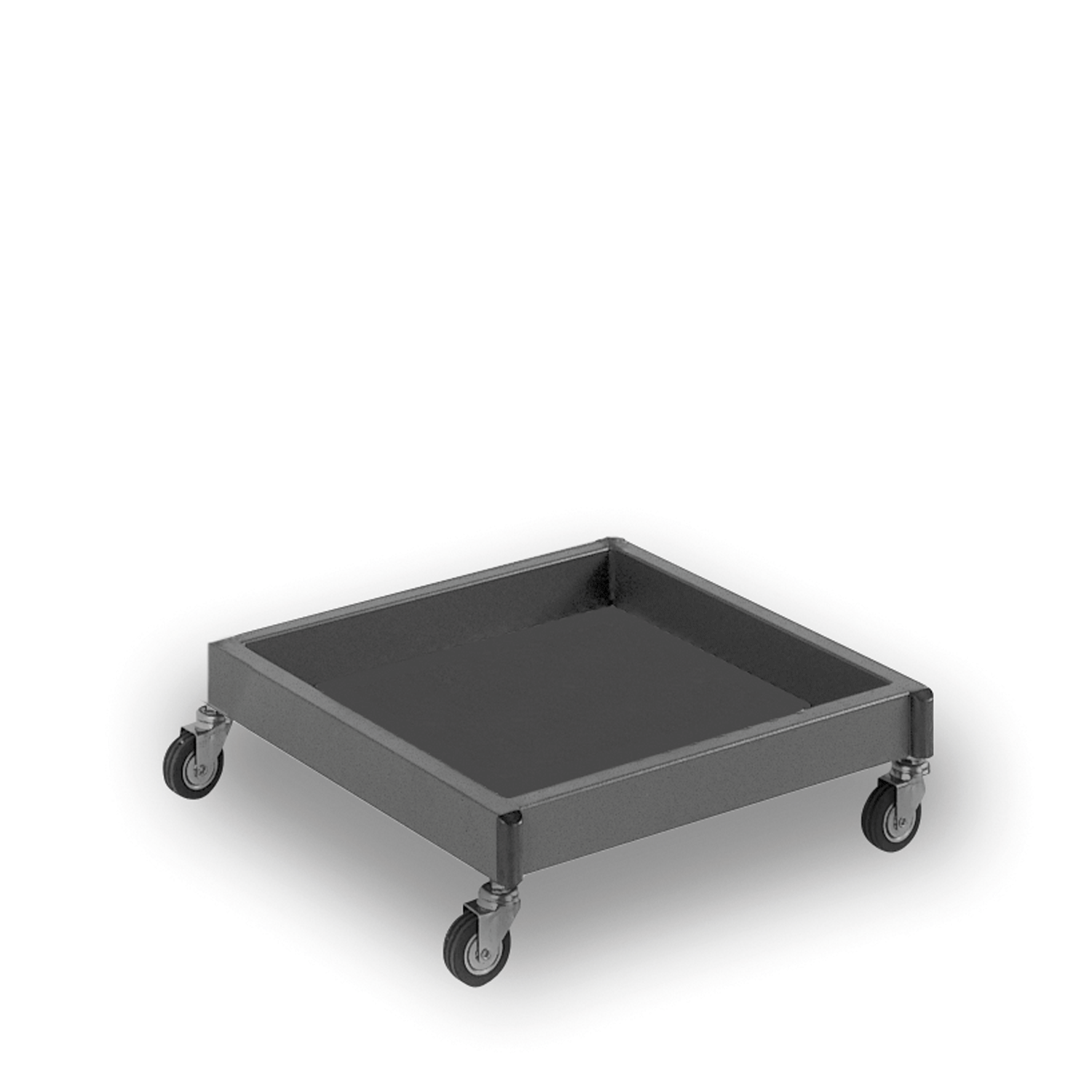

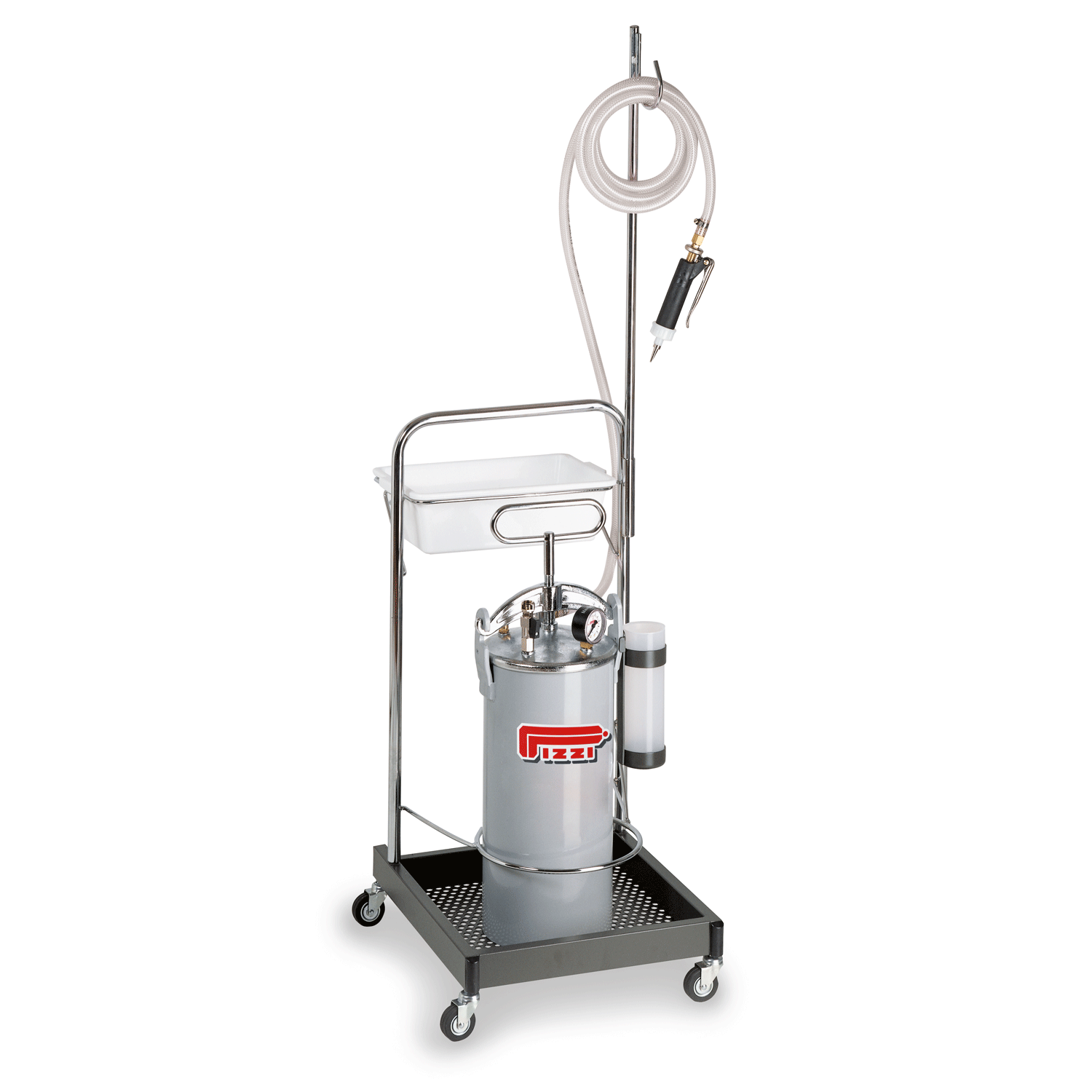

Please note: Trolley shown pictured is sold separately.

Additional Information

Model
Type
Glue Feeder
SKU
11021
Part Number
9001
Brand
Pizzi
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
Air / Pneumatic
Capacity
8Kg
PSI
75 PSI (5 Bar)

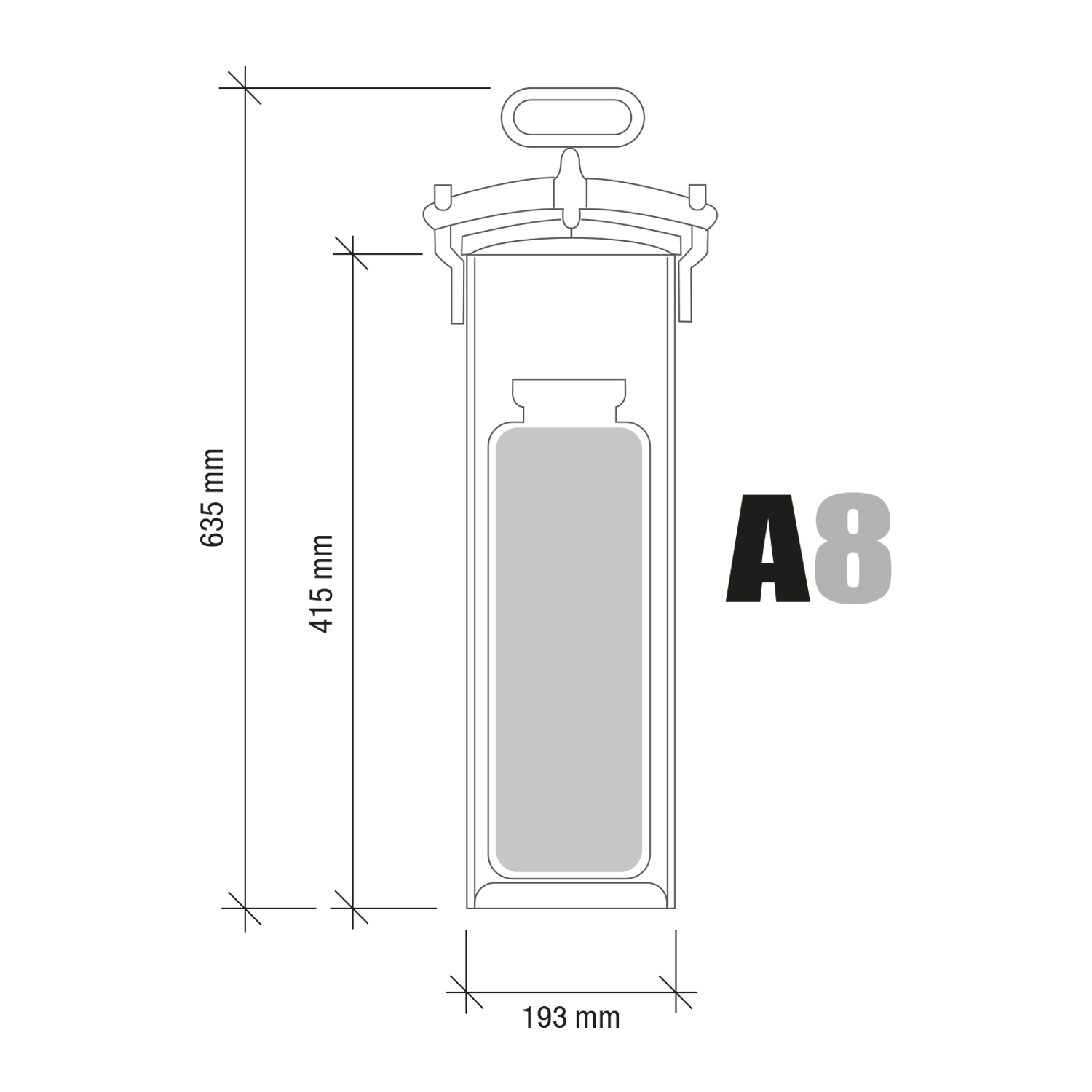

Dimensions
Product Length
193mm
Product Width
193mm
Product Height
635mm
Features
Standard Inclusions
8Kg A8 Series Pressurized Glue Tank for PVA glues1 x 0002 Glue Gun with adjustable glue flow and universal pointed nozzle.Iron tank with full inner plastic lining and chromed brass lid.
Packaging + Shipping
Shipping Weight (Gross)
10.48kg
8Kg Glue Feeder Tank for PVA with 1 x 0002 Nozzle Series A8 9001 by Pizzi
$1,142.00
