Description
Professional Diamond Core Drilling Machine for Concrete, Brick, Limestone & Masonry
The Dymaxion PCD1700HH Core Drilling Machine is a robust and proven diamond core drilling solution designed for professional concreters, plumbers, electricians, fencing contractors, builders, civil contractors, and construction trades. Featuring a powerful 1700W motor, heavy-duty die-cast aluminium construction, and a versatile 3-speed gearbox, the PCD1700HH delivers reliable performance for wet core drilling applications across concrete, brick, reconstituted limestone, masonry, and other building materials.
Whether you're installing plumbing penetrations, electrical conduits, balustrades, chemical anchors, HVAC services, or fence post openings, the PCD1700HH offers the flexibility of both hand-held operation and rig-mounted drilling for greater control and accuracy.
Key Features
- Powerful 1700W motor for demanding drilling applications
- Three-speed gearbox: 950 / 2100 / 2400 RPM
- Heavy-duty die-cast aluminium gearbox and motor housing
- Suitable for hand-held or rig-mounted operation
- Industry-standard 1-1/4" UNC spindle connection
- Mechanical safety clutch protection
- Built-in RCD protection for improved operator safety
- Low-speed setting ideal for large-diameter coring
- High-speed setting suited to anchor fixing and balustrade installations
- 60mm collar diameter
- Supplied in heavy-duty carry case
- Compatible with Dymaxion PCDRIG and PCD1500SS drilling rigs
Ideal Applications
The Dymaxion PCD1700HH is commonly used for:
- Concrete core drilling
- Brick and masonry coring
- Limestone fencing installations
- Glass pool fence balustrade installations
- Chemical anchor drilling
- Plumbing penetrations
- Electrical conduit installations
- Air-conditioning and HVAC service penetrations
- Construction and renovation projects
- Civil and infrastructure works
Performance Capabilities
Maximum Core Diameter
| Material | Maximum Diameter |
|---|---|
| Concrete (Rig Mounted) | 90mm |
| Reconstituted Limestone (Rig Mounted) | 90mm |
| Brick (Hand Held) | 133mm |
For larger diameter concrete drilling, a dedicated drilling rig is recommended.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PCD1700HH |
| Brand | Dymaxion |
| Motor Power | 1700W |
| Voltage | 230-240V |
| Frequency | 50-60Hz |
| No Load Speeds | 950 / 2100 / 2400 RPM |
| Variable Speed | No |
| Spindle Thread | 1-1/4" UNC |
| Collar Diameter | 60mm |
| Clutch | Mechanical |
| Plug | 10A |
| RCD Protection | Yes |
| Mounting Options | Hand Held or Rig Mounted |
| Weight | Approx. 10kg |
| Packaging | Heavy Duty Carry Case |
Built for Australian Trades
The Dymaxion PCD1700HH has been a trusted design within the Australian construction industry for many years. Its durable aluminium construction, dependable gearbox design, and simple operation make it a popular choice for contractors requiring a reliable core drill without unnecessary electronic complexity.
The low-speed 950 RPM setting provides excellent torque for larger diameter drilling in softer materials such as brick and limestone, while the 2400 RPM setting is ideal for smaller diameter holes used in anchor installations and architectural applications.
Why Buy From Beyond Tools?
When you purchase from Beyond Tools, you're backed by:
- Family-owned Australian business since 1986
- Perth showroom with expert advice
- Dedicated machinery and service department
- Technical support before and after purchase
- Spare parts and servicing assistance
- Australia-wide shipping
- Experienced team supporting construction, engineering, fabrication, education, and trade industries
Big on Tools. Big on Machinery. Big on Service.
Includes

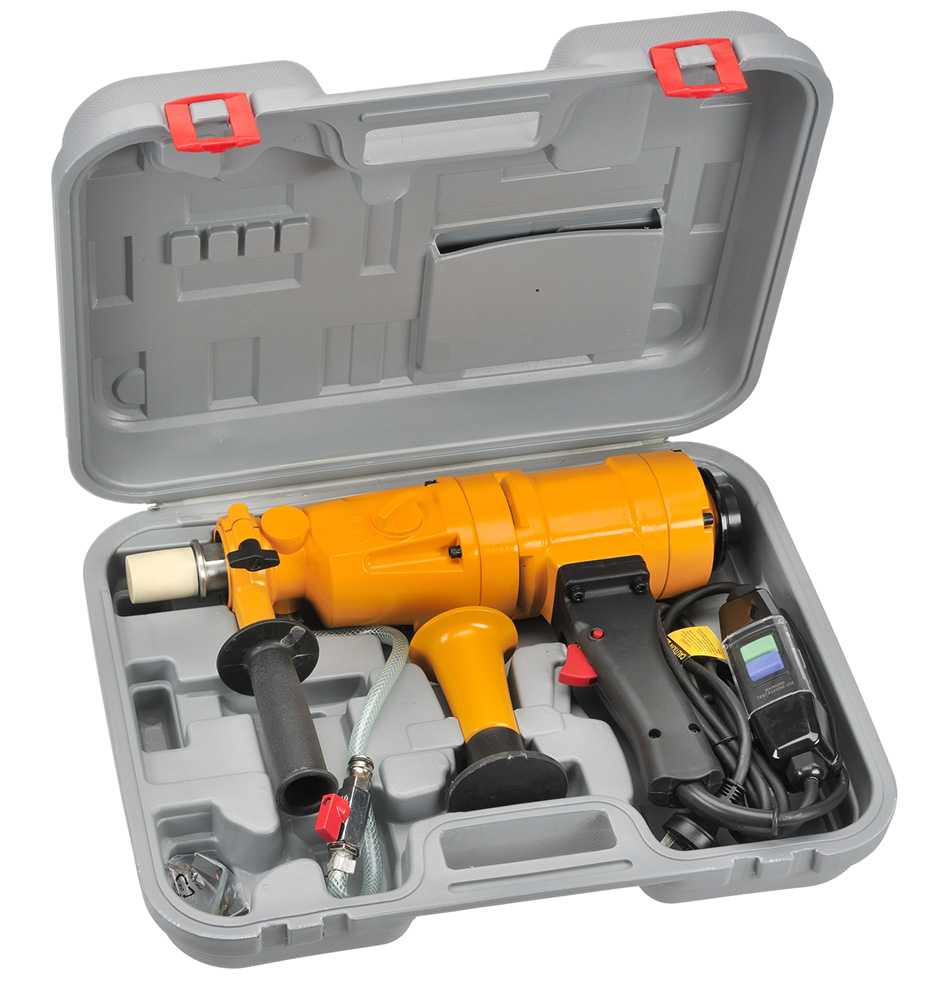

- Dymaxion PCD1700HH Core Drilling Machine
- Heavy Duty Carry Case
- RCD Protection
- Operating Instructions
Core bits, water supply accessories, and drilling rigs sold separately.
