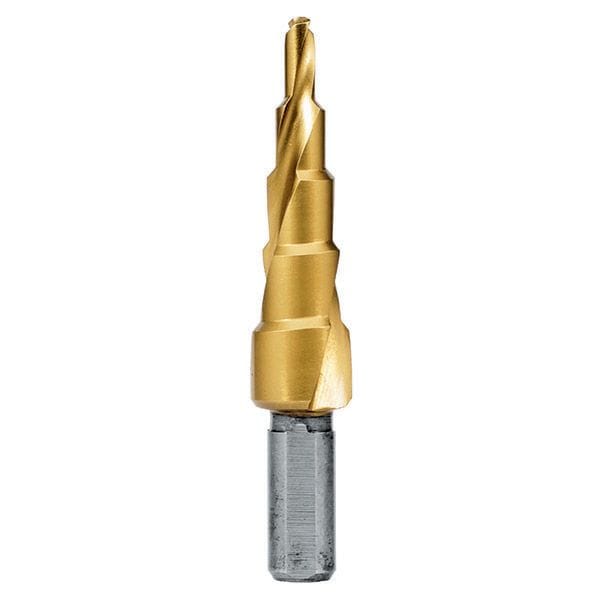

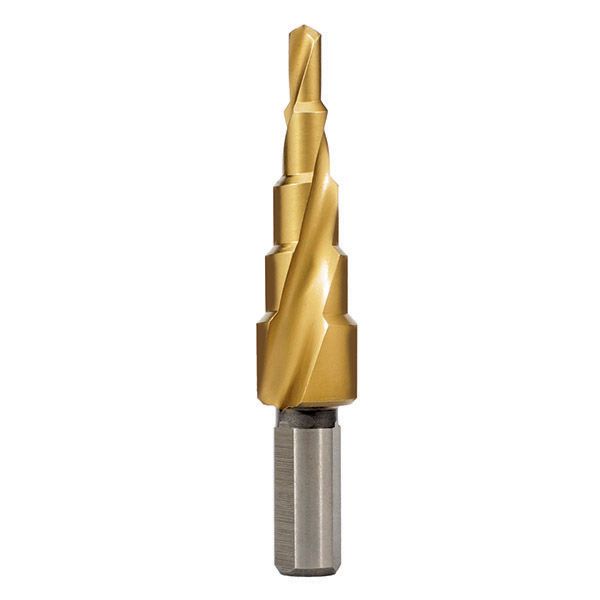

ITM Holemaker Spiral Step Drill Bits

Holemaker by ITMSKU: 8725929
No reviews

Size Range: 4-20mm
Price:
Sale price$43.00

Shipping calculated at checkout

Stock:
Only 1 unit left

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

Description

The Titanium Nitride coating significantly increases the tool life by providing the following benefits:

  • Increased surface hardness to 85HRC.
  • Ceramic surface, reducing friction by up to 30%.
  • Especially resistant to cold welding.
  • Suitable for cutting a wide range of materials

Variants

Code Product Name Specifications
SD4-20MM
HOLEMAKER STEP DRILL SPIRAL FLUTE, 9 STEPS, 3MM STEP LENGTH, 4-20MM
Sizes: 4, 6, 8, 10, 12, 14, 16, 18, 20mm
Step Length: 3.0mm
Overall Length: 74.5mm
Shank Diameter: 8mm
SD5-25MM
HOLEMAKER STEP DRILL SPIRAL FLUTE, 11 STEPS, 3MM STEP LENGTH, 5-25MM
Sizes: 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25mm
Step Length: 3.0mm
Overall Length: 83.0mm
Shank Diameter: 10mm

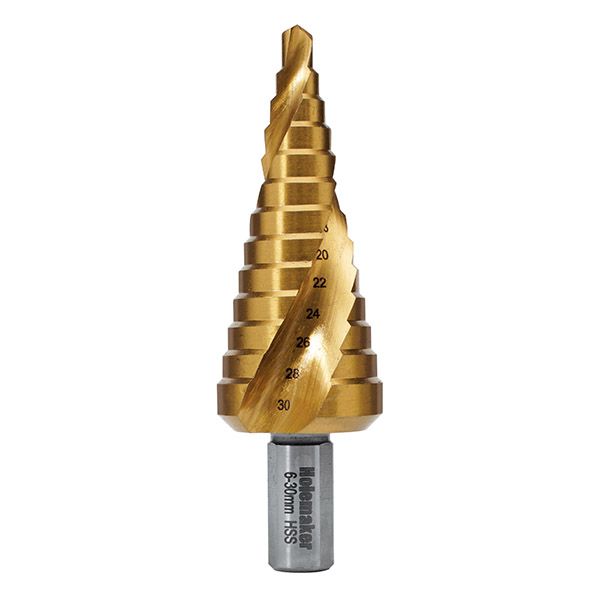

SD6-30MM
HOLEMAKER STEP DRILL SPIRAL FLUTE, 13 STEPS, 3MM STEP LENGTH, 6-30MM
Sizes: 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30mm
Step Length: 3.0mm
Overall Length: 98.0mm
Shank Diameter: 12mm

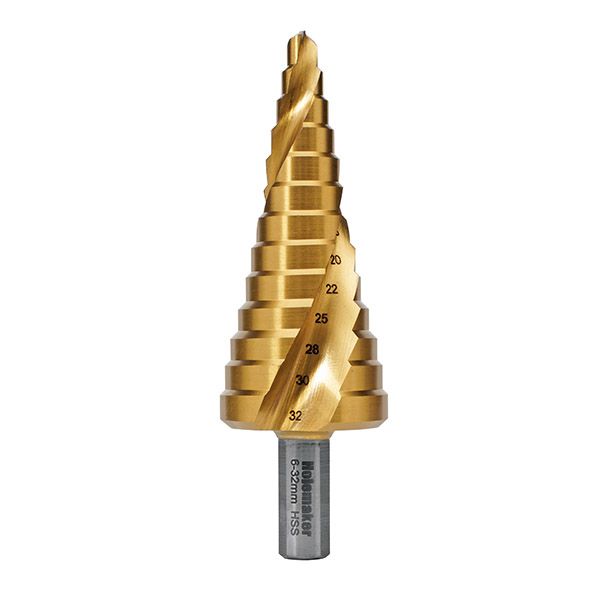

SD6-32MM
HOLEMAKER STEP DRILL SPIRAL FLUTE, ELECTRICIANS SIZES, 3MM STEP LENGTH, 6-32MM
Sizes: 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32mm
Step Length: 3.0mm
Overall Length: 100.0mm
Shank Diameter: 10mm

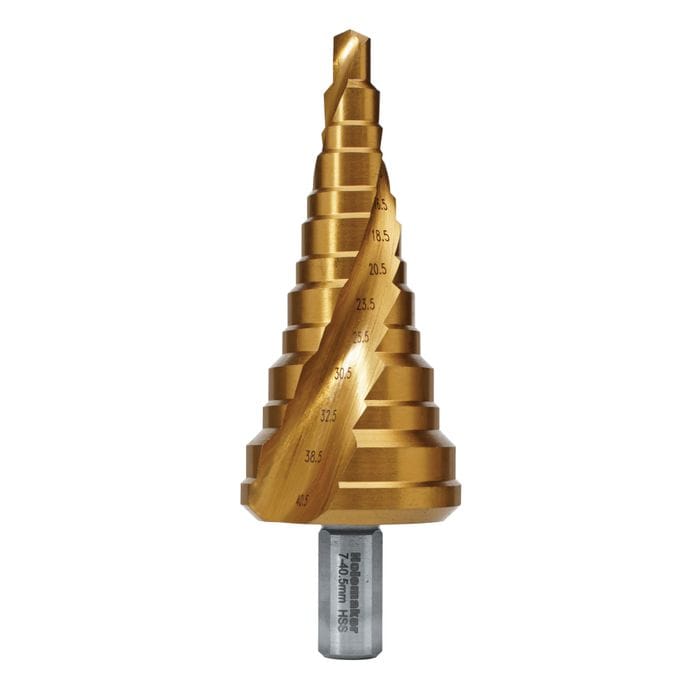

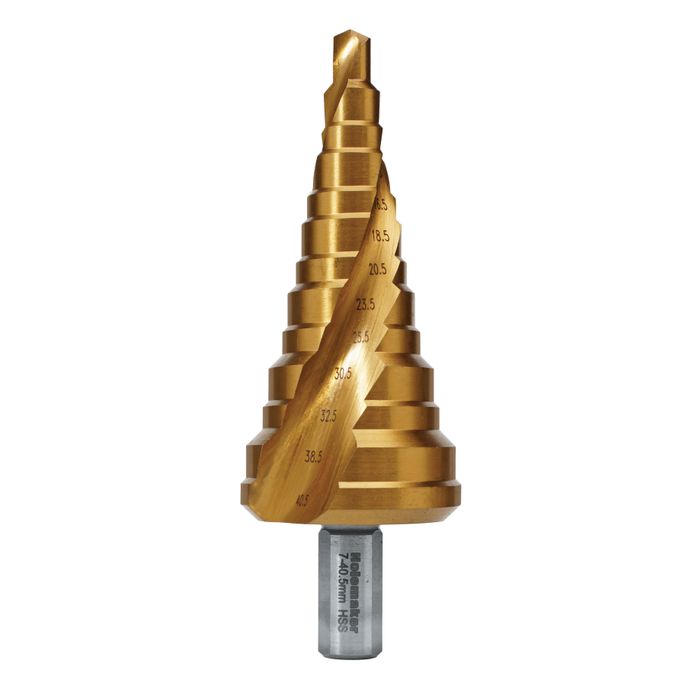

SD7-40.5MM
HOLEMAKER STEP DRILL SPIRAL FLUTE, 13 STEPS VARIED STEP LENGTH, 7-40.5MM
Sizes: 7, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 23.5, 25.5, 30.5, 32.5, 38.5, 40.5mm
Step Length: 3.0mm
Overall Length: 115mm
Shank Diameter: 12mm
SDL4-12MM
HOLEMAKER STEP DRILL, SPIRAL FLUTE, 9 STEPS, 5.5MM STEP LENGTH, 4 - 12MM
Sizes: 4, 5, 6, 7, 8, 9, 10, 11, 12mm
Step Length: 5.5mm
Overall Length: 63.6mm
Shank Diameter: 8mm

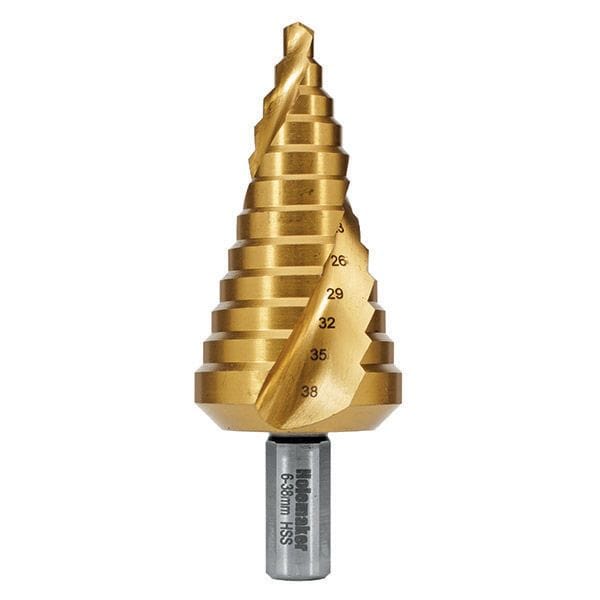

SDL6-38MM
HOLEMAKER STEP DRILL, SPIRAL FLUTE, 12 STEPS, 6MM STEP LENGTH, 6 - 38MM
Sizes: 6, 9, 13, 16, 19, 21, 23, 26, 29, 32, 35, 38mm
Step Length: 5.5mm
Overall Length: 101mm
Shank Diameter: 12mm
SDXL4-12MM
HOLEMAKER STEP DRILL, SPIRAL FLUTE, 5 STEPS, 8MM STEP LENGTH, 4 - 12MM
Sizes: 4, 6, 8, 10, 12mm
Step Length: 8.0mm
Overall Length: 64.0mm
Shank Diameter: 8mm

Additional Information

Model
Type
Stepped Drill Bit
SKU
8725929
Part Number
SD4-20MM
Barcode
9328042005960
