Description

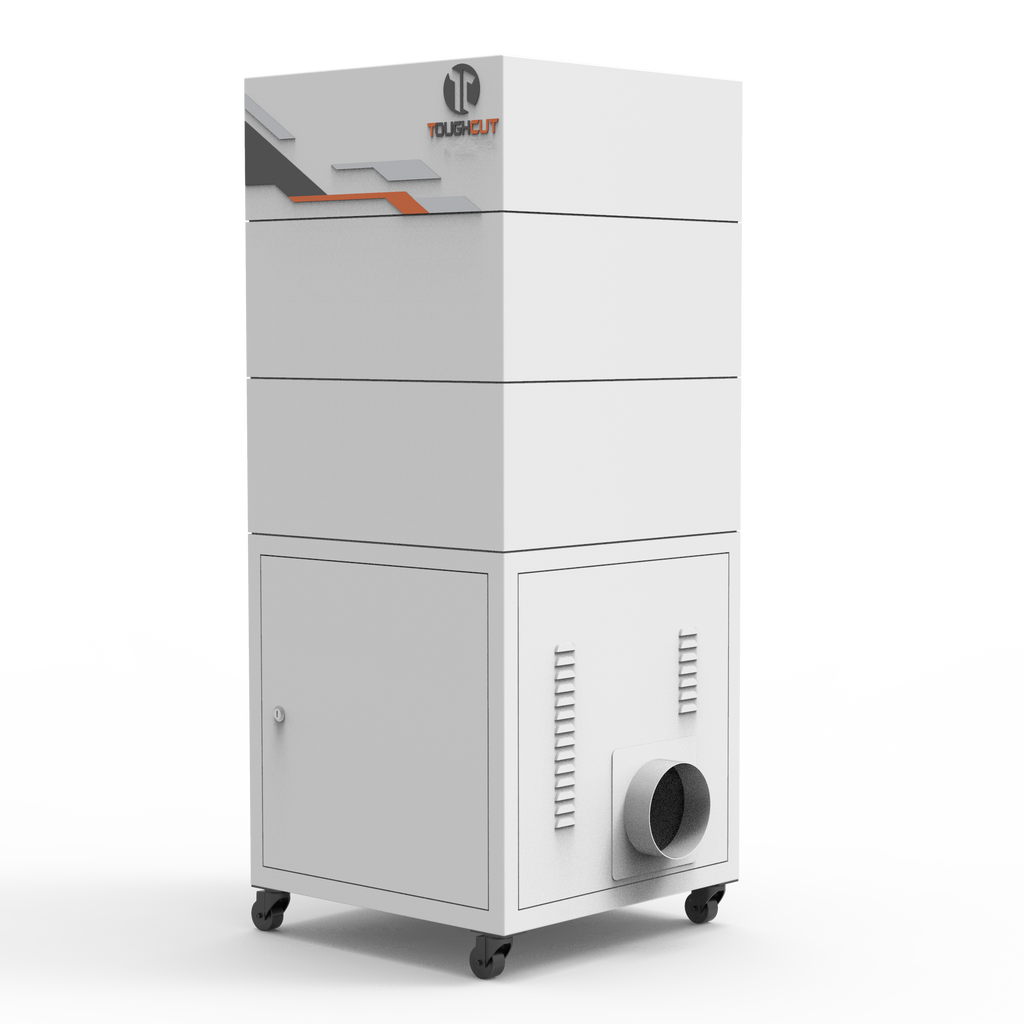

The ToughCut Air Filtration System – Fume (& Odour) Extractor TC-FE-1500FS is expertly engineered for efficient fume and odour filtration and dust collection. It is specifically designed for CO₂ laser cutting and engraving of non-metal materials such as plastic, PET, acrylic, paper, and cardboard, as well as for assembly line coding, multi-station soldering, circuit board processing, and other industrial applications requiring the purification of airborne dust, smoke, and odours.
Featuring a robust four-stage filtration and purification system, the TC-FE-1500FS captures and neutralises harmful airborne particles and odours generated during operation. Its advanced filtration technology helps reduce exposure to hazardous fumes and improves air quality within controlled environments.
Important Safety & Ventilation Notice
While this system is capable of discharging filtered air back into the workspace, best practice and industry guidelines strongly recommend that laser machine fumes be vented outdoors into natural air wherever possible.Indoor recirculation systems rely on consumable filtration media and require regular filter replacement to remain effective. These replacement filters—particularly HEPA and activated carbon filters—can represent a significant ongoing operating cost and must be monitored and maintained carefully to ensure safety and performance.
This unit is best suited for applications where external ducting is impractical, or as a supplementary filtration solution, with the understanding that outdoor ventilation remains the preferred and safest option for laser fume extraction.
Key Features
-
High-Efficiency Odour Purification
-
Four-Stage Filtration for smoke, odour, and harmful gases
-
LCD Display for easy operation
-
Real-time system data display (fan speed, air volume, gear position, etc.)
-
Filter clogging detection and alerts
Filtration System
Multi-Stage Filtration – Filters can be replaced individually to extend service life and manage replacement costs.
-
Layer 1 – G3 Primary Filter (PA1500-01)
Removes large and heavy particles, smoke, and dust (≥5 micron) -
Layer 2 – F8 Medium Efficiency Bag Filter (PA1500-02)
Removes fine particles, smoke, and dust (≥1 micron) -
Layer 3 – H13 HEPA Filter (PA1500-03)
Removes very fine particles and smoke (≥0.01 micron) -
Layer 4 – Activated Carbon Filter (PA1500-04)
Absorbs odours and toxic gases (>99.7%) using oxidant and activated carbon -
Heavy-duty metal framework with moveable castors
-
Multi-stage filtration enables filtered air recirculation when maintained correctly.
Specifications
-
Fresh Air Outlet: 150mm (window / duct connection)
-
Running Period: >10,000 hours
-
Maximum Air Flow: 1500 m³/h
-
Input Power: 1100 W
-
Air Pressure: 2300 Pa
-

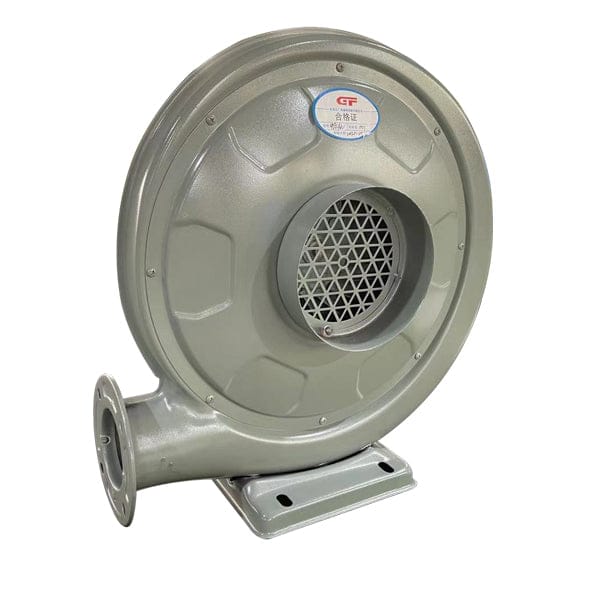

Brushless Blower Motor
Suits
-
ToughCut CNC CO₂ Laser Machines
-
Other approved and compatible CO₂ laser engravers
Comparable Products
-
Redsail Pure Air Fume Extractor Filter System PA1500FS
Additional Information
- ToughCut Filter Layer 2 - F8 Medium Efficiency suit Air Filtration Fume (& Odour) Extractor
- ToughCut Filter Layer 3 - H13 HEPA suit Air Filtration Fume (& Odour) Extractor
- ToughCut Filter Layer 4 - Activated Carbon / Charcoal suit Air Filtration Fume (& Odour) Extractor
- ToughCut Pre Filter Pad- F5 suit Air Filtration Fume (& Odour) Extractor
- ToughCut Extraction Fan CZ-TD550 Suit TCL80/RS80 & TCL130/RS130 Laser Machines
What's Included
Optional Accessories
Spare Parts
