500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
Roll over image to zoom in Click on image to zoom
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin

500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin

CasolinSKU: 9301598
Price:
$69,900.00

Tax included Shipping calculated at checkout

Stock:
Re-stocking soon

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

CLICK HERE to Shop our Sale!

Downloads

Description

Features:-
  • 5 x Axis CNC Movements
    • Scribe - Electronic left and right movement
    • Scribe - Electronic Rise & Fall movement

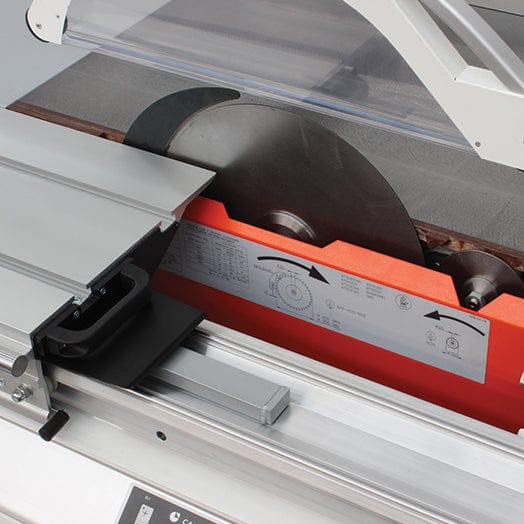

    • Main Blade - Electronic Rise & Fall
    • Main Blade - Electronic Tilting
    • Parallel Fence - Electronic Rise & Fall
  • 3800mm Double Roller Sliding Table
  • 1.3m Rip Fence

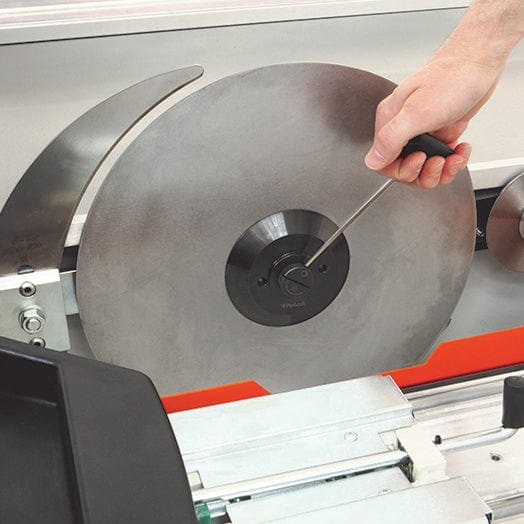

  • Quick Saw Blade Change
  • 3 x Speed

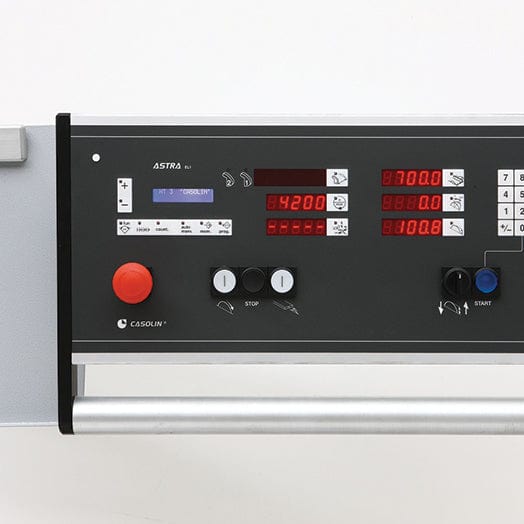

  • Overhead Control
Specification:-
  • Main Blade Diameter: 250-550mm (Without Scribe)
  • Main Shaft: 30mm Diameter
  • Scoring Shaft: 120mm
  • Speed Rotation: 3000-4200-5000RPM
  • Main Motor: 7.5HP
  • Scoring Motor: 1HP
  • Dimensions: 3800x2220x1800mmH
  • Approx. Weight: 1050-1350Kg

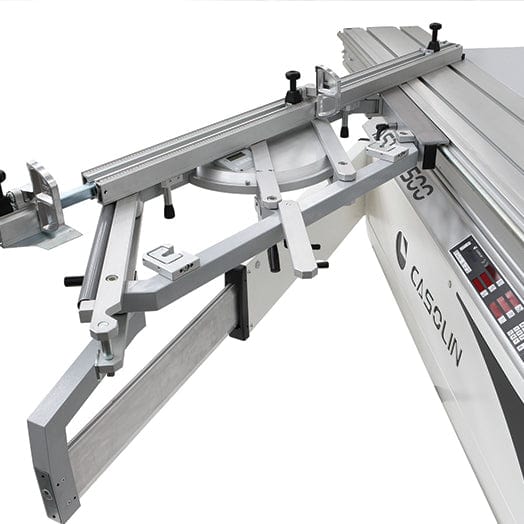

Includes (Cross Slide Parallelogram Sliding Table)
  • Fast & Precise Angular Cut Panels
  • Tapered Roller Bearings Guarantees Accuracy
  • Ground Plane Locking Position +/-46Deg.
  • Convenient Adjustment Handle with Locking Pin

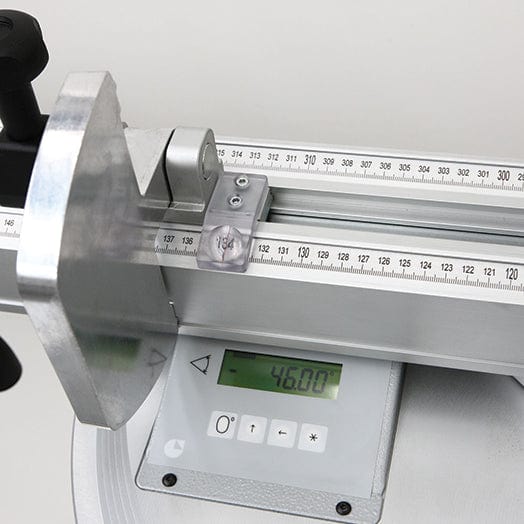

  • Viewing Angle on LCD Digital Display
  • Registers Telescopic Cuts up to 3000/3500mm, in 2 Working Positions

Additional Information

Model
Type
Panel Saw
SKU
9301598
Part Number
ASTRA 500 OHC
Brand
Casolin
Technical - Saw
Sliding Table (Cross Cut) Size
3800mm
Packaging + Shipping
Shipping Weight (Gross)
1.48kg
500mm (20") 7.5HP 3.8m Sliding Table with Overhead Control Panel Saw 415V Astra 500 by Casolin
$69,900.00
