Description

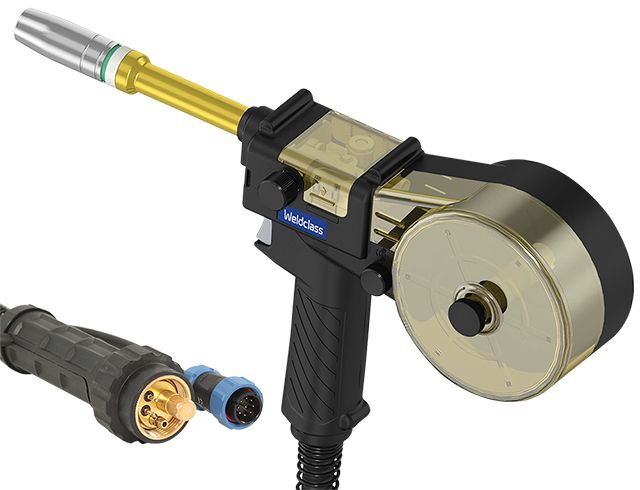

Complete Spool Gun - BZL25 8m Euro Connection with 9-Pin Plug.
BZL-25 series Spool Guns to suit various Weldclass MIG welders. Max 230A capacity, takes Binzel 25 style front-end torch consumables.
The Weldclass BZL25 Spool Gun with 8-metre Euro connection and 9-pin plug configuration delivers robust aluminium welding capability across the MIG welder range. Engineered to handle maximum 230A output, this unit accepts standard Binzel 25 style front-end torch consumables for straightforward maintenance and component replacement. Purpose-built for demanding fabrication applications, it provides reliable wire feeding performance on compatible Weldclass platforms.
Suits
- 205MST
- 255MST
- 290MST
- 350MST
- 395MST Mig Welders
| Image | Part No. | Description |
|---|---|---|
 |
WC-06610
|
|
 |
WC-06203
|
|
 |
WC-06313
|
Neck Liner to suit BZL 25 Spool Guns - Contains 2 liners: One suits old <2020 model torch, other suits new/current model torch
|
OPERATING INFO:
- 205/255/290/350/395MST: Must be in Manual MIG mode (Program 0 on 205/255MST) & Spool gun mode must be selected. Adjust wire feed speed using the control knob on the Spool Gun. Wire feed rate will show on machine LCD display.
- 200MST: Mode switch must be switched to "MIG" and Spool-Gun switch switched to "Spool Gun". Adjust wire feed speed using the control knob on the front of the machine.
- 180MST: Applies to the new model 180MST only (released June 2022), with spool gun switch & socket on the rear of the machine. Mode switch on the front of the machine must be switched to "MIG" and Spool-Gun switch on the rear of the machine must be switched to "Spool Gun". Adjust wire feed speed using the control knob on the front of the machine.
INCLUDES:
- U-Groove Roller for 0.9/1.0mm Aluminium
- V-groove roller for 0.8/0.9 steel/solid wire
SPECIFICATIONS:
- Torch Style: Binzel 25 style
- Current Capacity: 230 amps
- Voltage: 24V
- Electrical/control plug: 9-pin
- Drive roller size: 13.4mm OD, 6.4mm ID, 14.3mm wide
Disclaimer:
The products advertised above are original Weldclass products only. Weldclass is not affiliated in any way with Binzel, and the products are not original Binzel. Any references to Binzel trade names and/or part numbers are for identification purposes only.
Additional Information
Model
Type
Spool Gun
SKU
87434323
Part Number
WC-06203
Barcode
9341562062039
Brand
Weldclass
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
7 Years (with Online Registration)
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
What's Included
Weldclass Spool Gun - BZL25 Series - 8m Euro Connection with 9-Pin Plug WC-06203
$790.00
