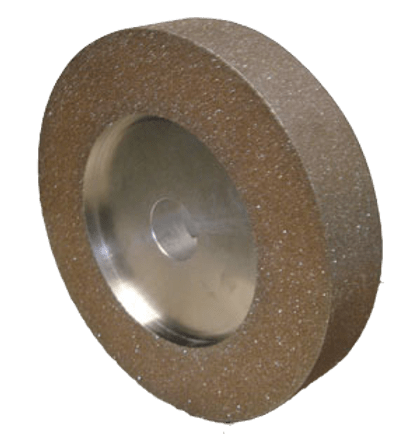

CBN Grinding Wheels suit Wood Turning Tool Sharpening by Vicmarc

VicmarcSKU: 8725644
No reviews

Size: 200mm x 40mm x 32mm
Grit: 80G
Price:
Sale price£166.00

Tax included Shipping calculated at checkout

Stock:
Re-stocking soon

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

Description

Carbon Boron Nitride (CBN) grinding wheels are a very popular abrasive wheel. CBN wheels have 4 times higher abrasive resistance, 55 times higher thermal conductivity and twice the hardness of aluminium oxide wheels. They are ideal for sharpening all Wood Turning Tools, including V10 or any High Speed Steel (HSS) tools. One of the advantages of CBN wheels is that you can sharpen without the requirement of coolant as the wheels don't overheat or burn the tools. These wheels provide excellent removal of steel whilst also delivering a sharp edge and smooth finish with very little effort. CBN wheels have a long life as they never need to be redressed. These wheels can be mounted on a 3000 RPM or 1500 RPM bench grinder. The 200mm CBN wheels have 40mm of grit across the width as well as 40mm of grit on the outer face whilst the 150mm CBN wheels has 40mm across the width and 30mm on the side face.'

Specification

Width - 40mm
Bore Diameter - 32mm
Available in 150mm Diameter or 200mm Diameter

Micron size of each wheel grit is shown below

Wheel Grit

Grit Microns (mm/micrometres)

200mm diameter

150mm diameter

80 Grit Grinding Wheel

0.23 / 230

P01270

P01272

180 Grit Grinding Wheel

0.12 / 120

P01271

P01273

240 Grit Grinding Wheel

0.08 / 80

P01269

P01274

360 Grit Grinding Wheel

0.065 / 65

P01268

not available



CBN Wheel Reduction Bushes Reduction bushes are required to fit the CBN Grinding Wheels to your grinder.

Size (Diameter) Part No.
1/2" P01278
5/8" P01280
16mm P01281
18mm P01279

Additional Information

Model
Type
CBN Grinding Wheel
SKU
8725644
Part Number
P01270
Brand
Vicmarc
Size
200mm (8")
Technical - Saw
Blade (Main) - Bore Size (mm)
32mm
Packaging + Shipping
Shipping Weight (Gross)
1.48kg
