Description

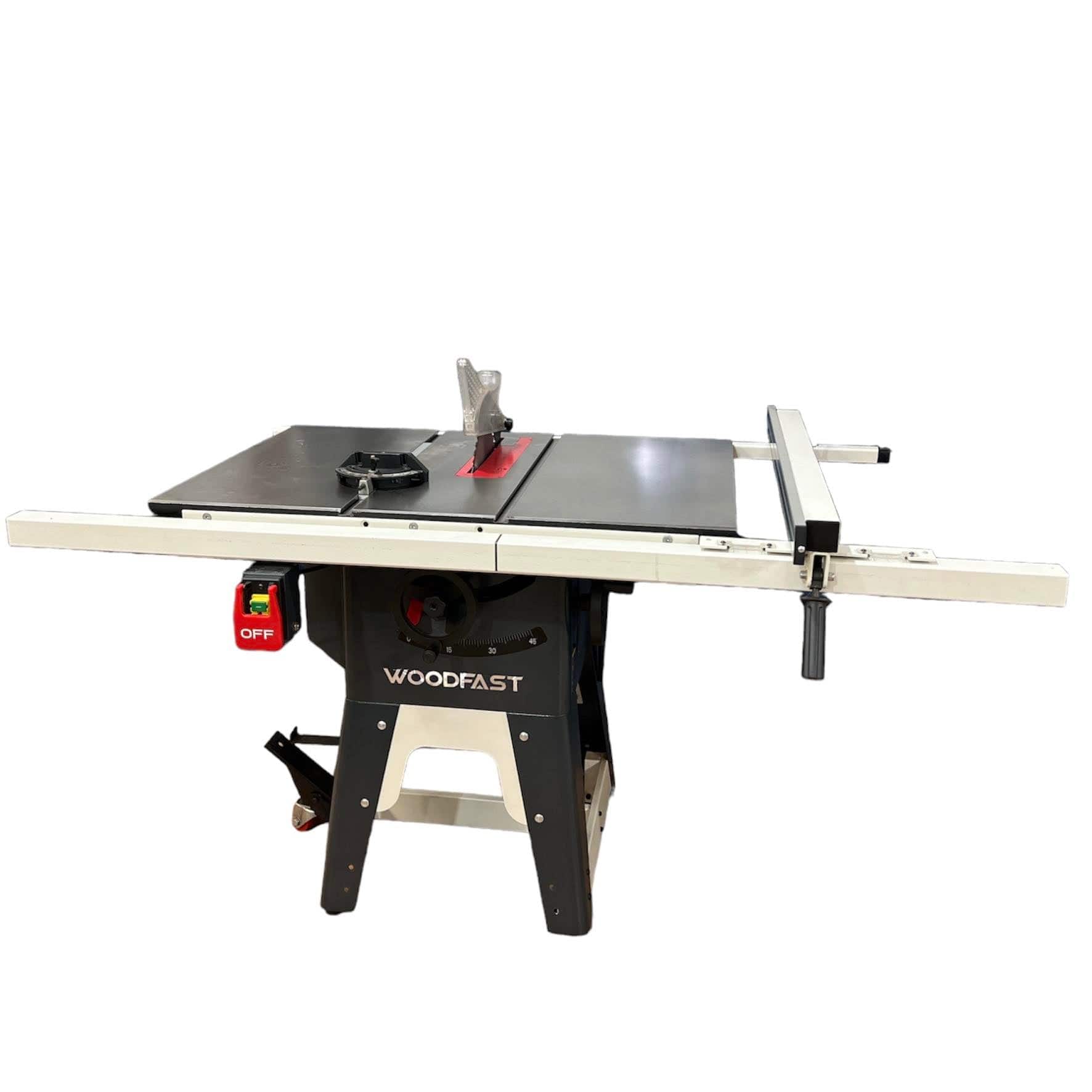

The Woodfast 250mm (10") Table Saw 2HP 240V TS250-CS is a lightweight, reliable tool for any workshop. It's a powerful and precise saw, perfect for DIY projects, woodwork, cabinetry, and more.
Features
- Closed or Open Cabinet - Select your Preferred Style
- Mobility Wheel Kit

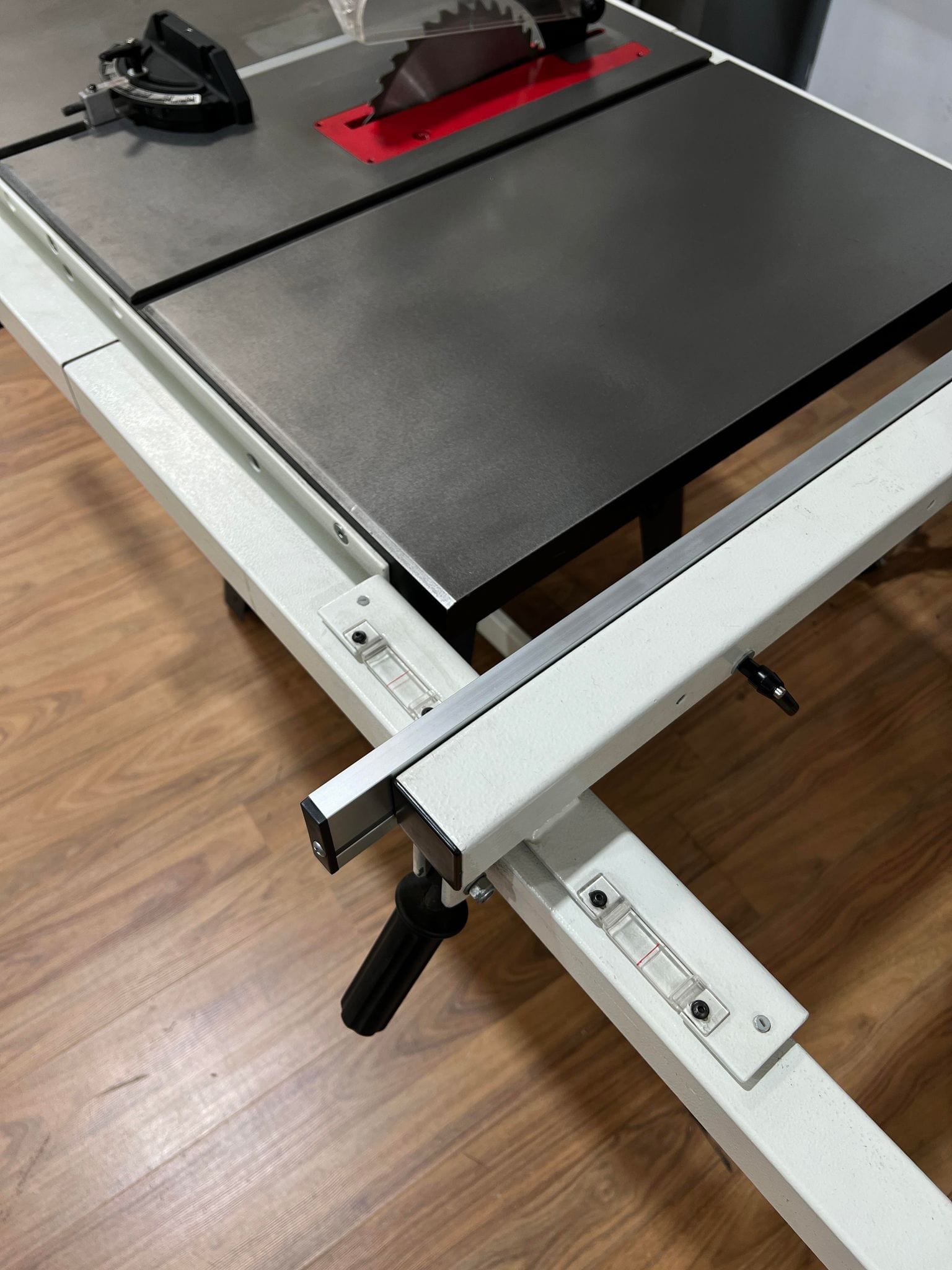

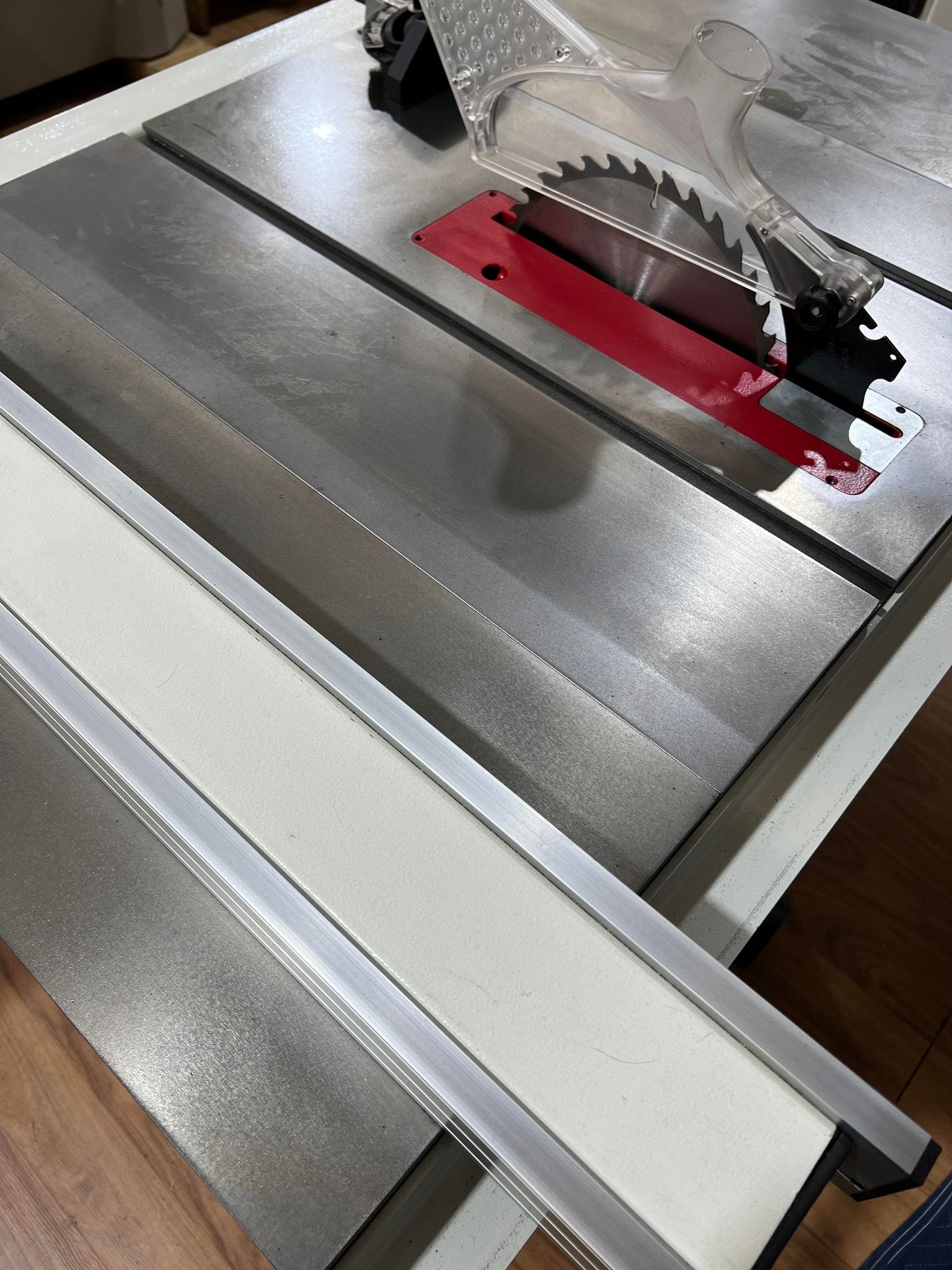

- Cast Iron Table and Extension Wings on both Left and Right Side
- Extension Table: Right Side / Left Side: 685.8 x 269mm
- Main Table Size: 685.8 x 508mm
- Table in Front of Blade: 860mm
- Maximum Dado Width: 30mm
- Maximum Dado Blade Diameter: 203mm
- Max Depth of cut at 90Deg: 80mm
- Max Depth of cut at 45Deg: 54mm
Options
- TS250-CS - Closed Stand
- TS250-OS - Open Stand
Additional Information
Model
Type
Table Saw
SKU
8601518
Part Number
TS250-CS
Brand
Woodfast
Size
250mm (10”)
Technical - Main
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
2HP / 1500W
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Electrical Connection
Electrical Connection
Please note by default all our products are rated 230V-240V or 415V to suit the Australian Market
10Amp Plug & Lead
Cutting Capacity - Height
80mm
Technical - Saw
Rip Capacity
Rip Capacity
Rip capacity refers to the distance between a table saw's blade and its fully extended rip fence.
762mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
254mm
Blade (Main) - Speed
3400RPM

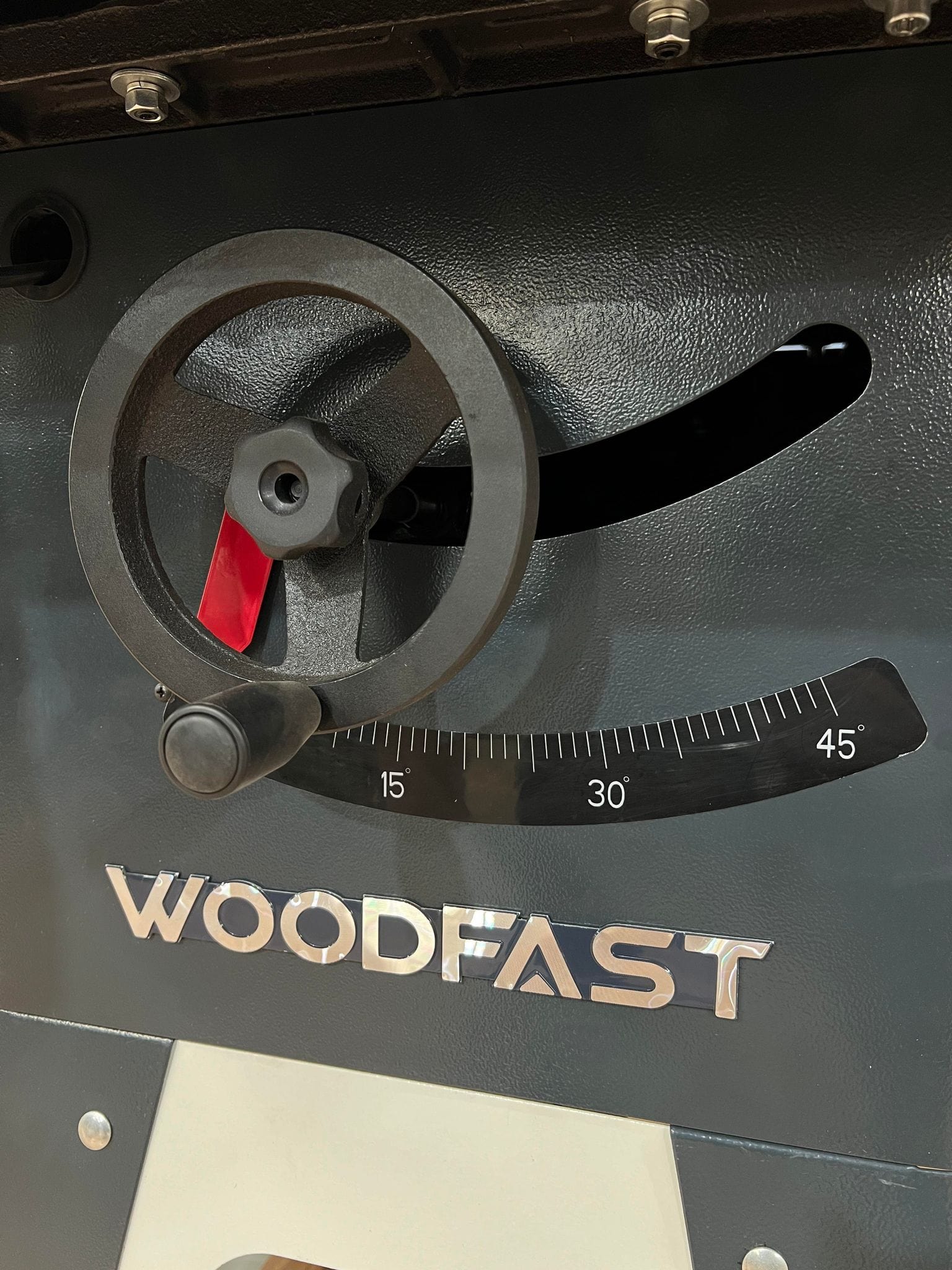

Blade Tilt
90° to 45°
Dimensions
Product Length
1046mm
Product Width
685mm
Product Height
870mm
Product Weight (Net Weight)
142kg
Features
Induction Motor
Induction Motor
This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
Push Stick Included
Workshop (Site) Info

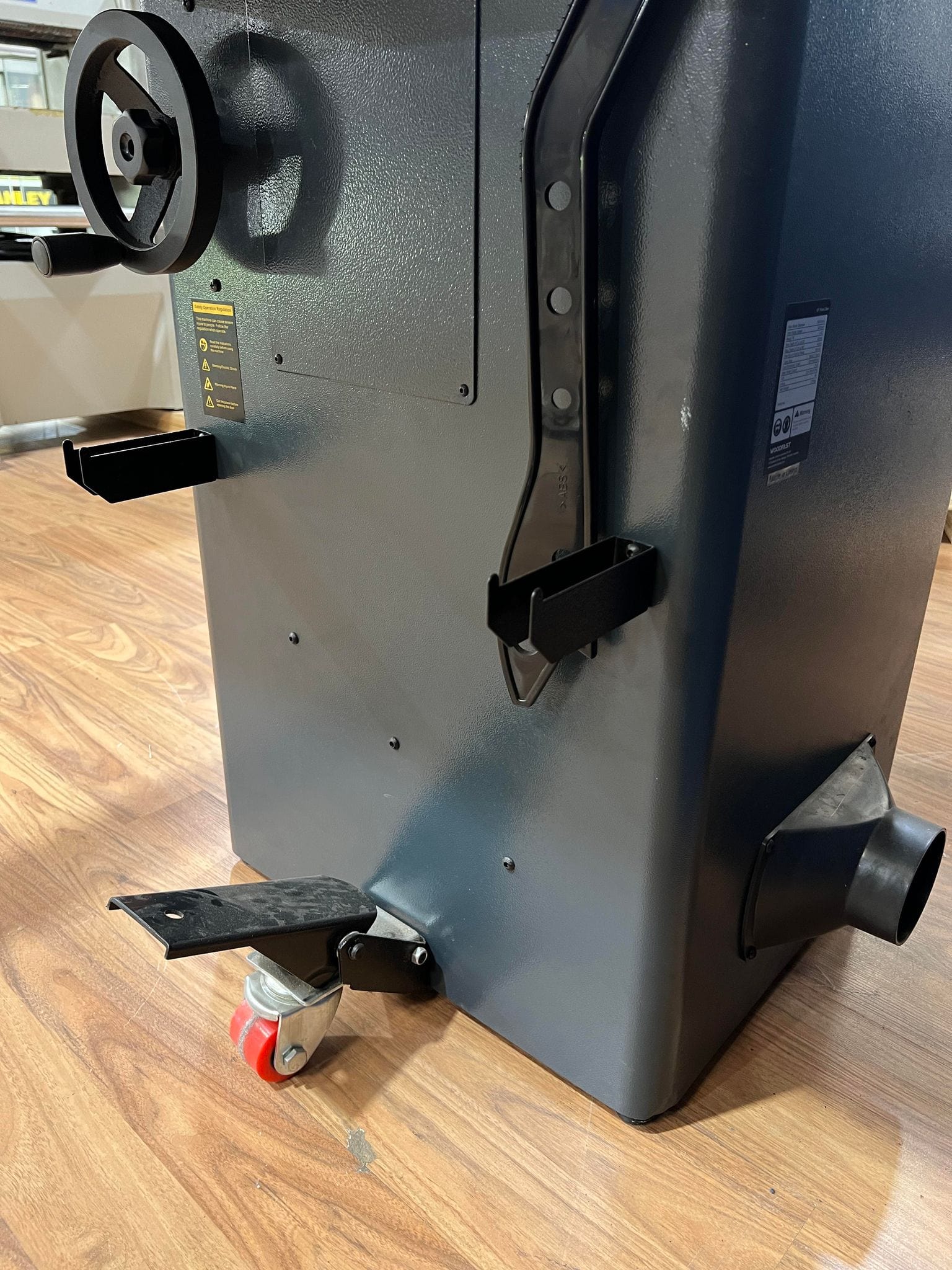

Dust Hose Inlet Diameter
1 x 90mm, 1 x 50mm
Warranty
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
990mm
Shipping Width
760mm
Shipping Height
1030mm
Shipping Weight (Gross)
184kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product requires a skid / pallet / crate in order to safely transport via road (a custom price will be provided after your order is placed)
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
What's Included
Woodfast 250mm (10") Table Saw 2HP 240V TS250
