Description

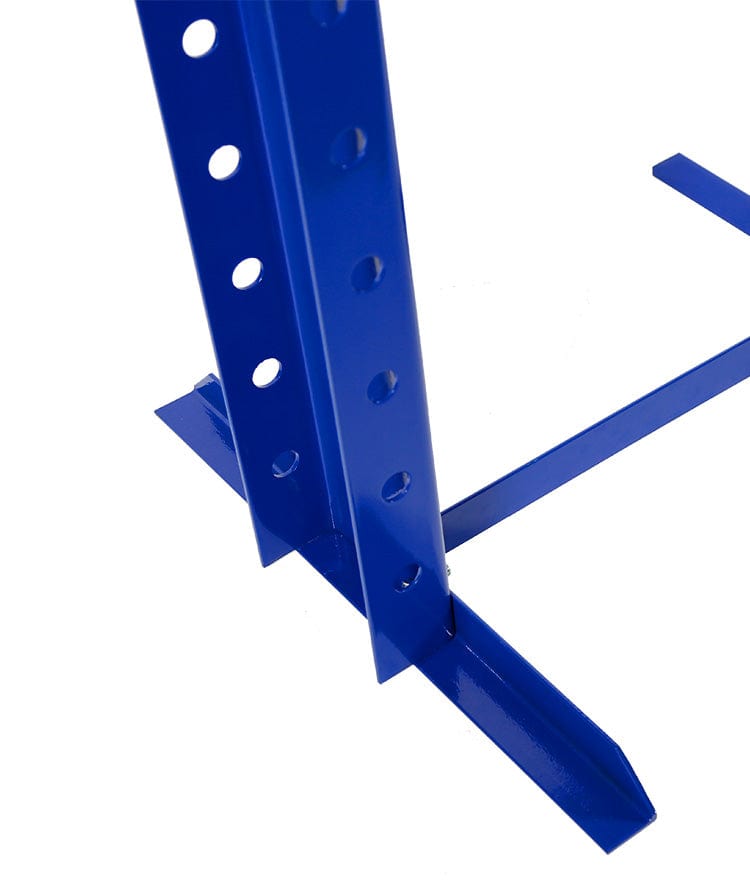

- Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
- Welded frame prevents flexing under maximum load
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint finish is oil, grease and dirt-resistant for easy cleanup
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Dependable double spring return for fast ram retraction
- Piston-ram is treated and polished for extended life
- Reinforced head bolster for added strength

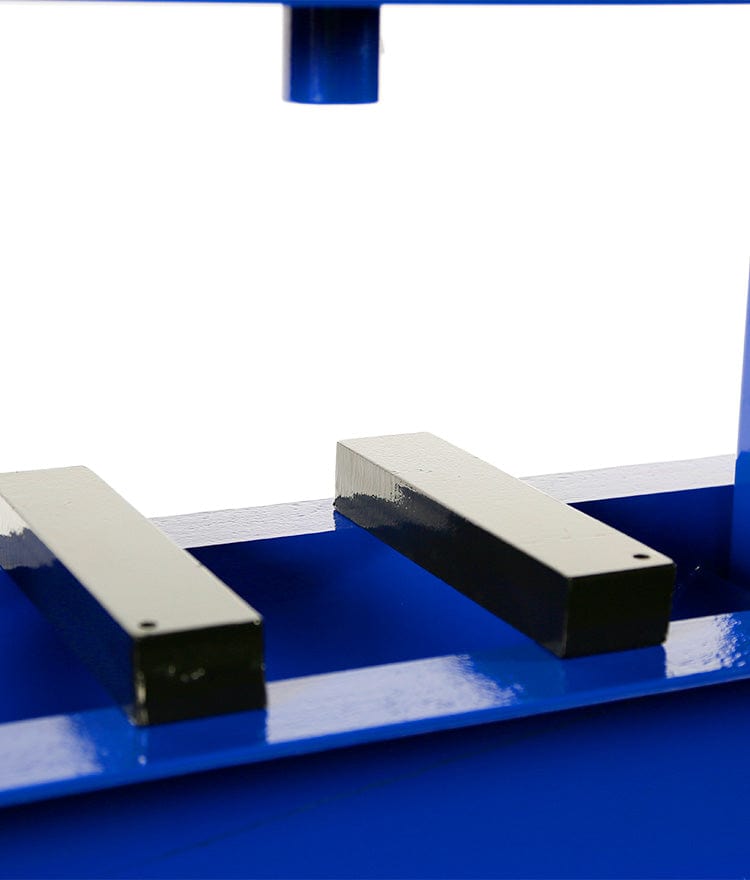

- Pair of bed plates included
- Safe Working Capacity: 30,000kg
- Working Range: 0-900mm
-
Overall Height: 1690mm
-
Overall Width: 830mm
-
Overall Depth: 660mm
-
Bed Outside: 315mm
-
Bed Inside: 185mm
-
Bed Width: 590mm
-
Ram Stroke: 150mm
-
Ram Diameter: 53mm
-
Nett Weight: 142.7kg
- Carton 1: 830x360x170mm
- Carton 2: 780x310x180mm
- Ideal for straightening, stamping, bending and pressing any component that is difficult to handle.
