Description

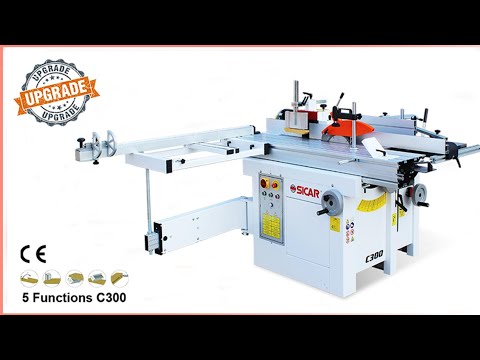

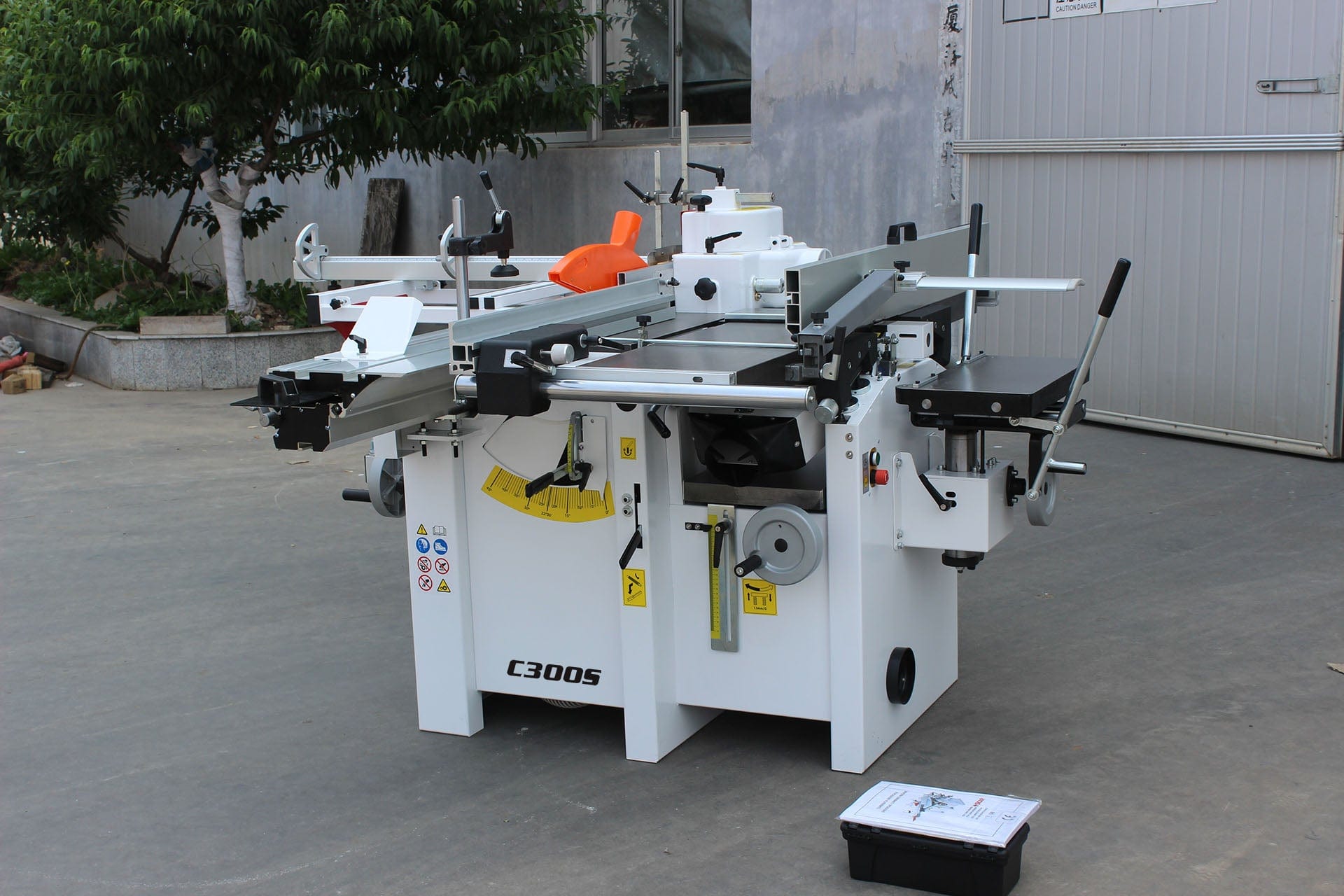

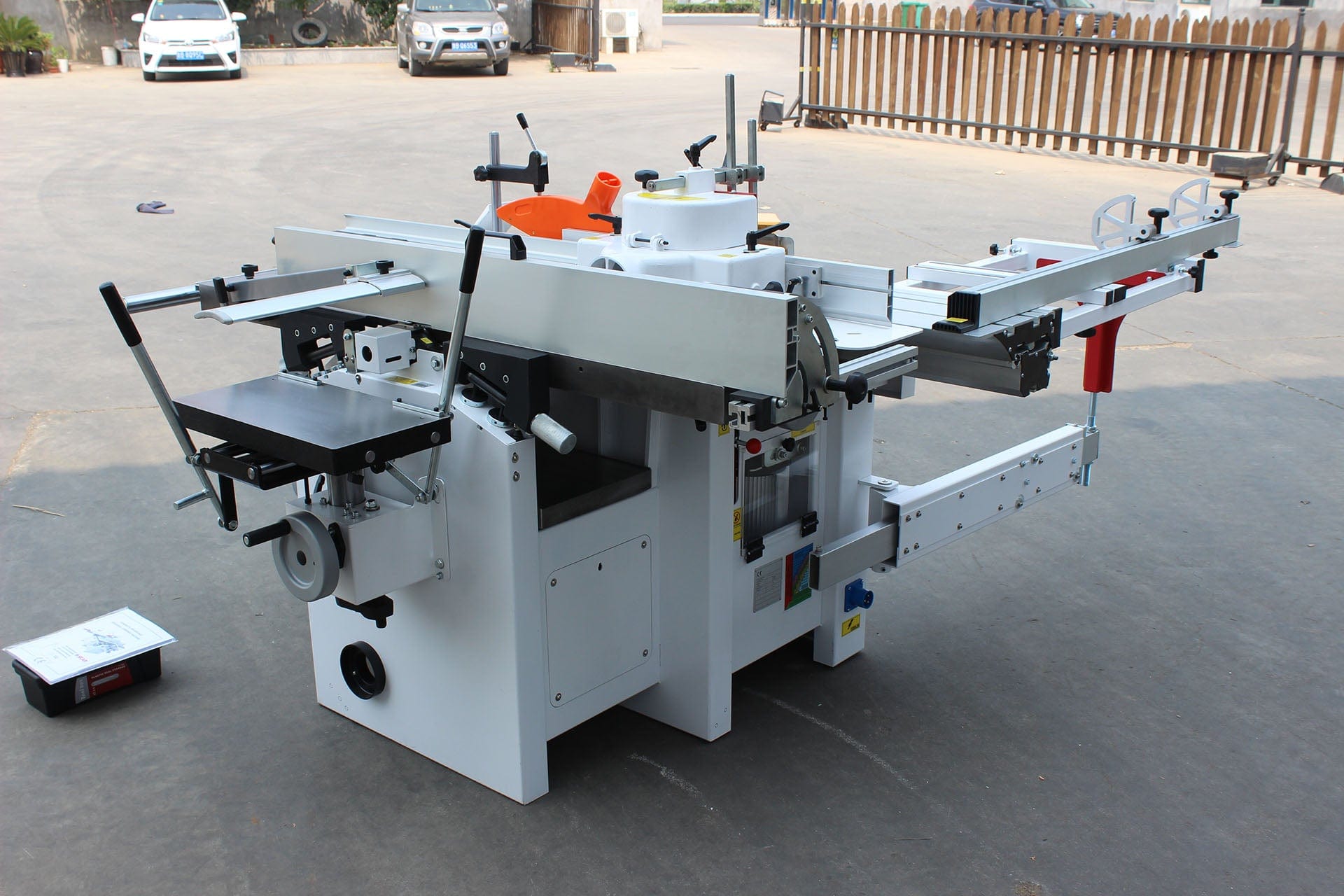

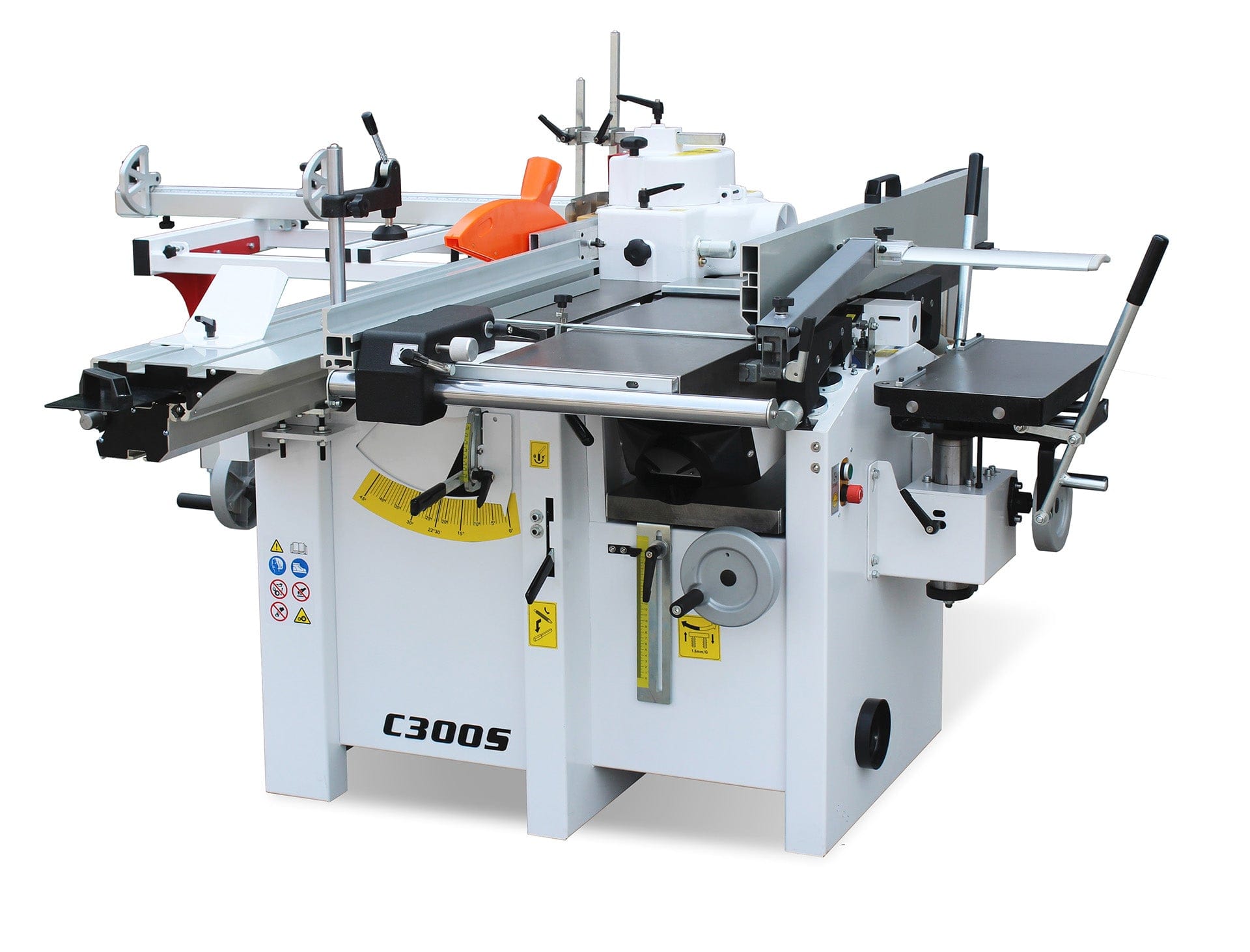

The Sicar C300S Combination Woodworking Machine is an industrial-standard machine built for the small professional workshop, factory or serious woodworking environment. Combining five essential woodworking operations into one machine, the C300S is designed to help maximise workshop productivity while reducing the floor space required for multiple standalone machines.
This machine features:
-
Sliding table saw
-
Planer
-
Thicknesser
-
Mortiser
-
Spindle moulder

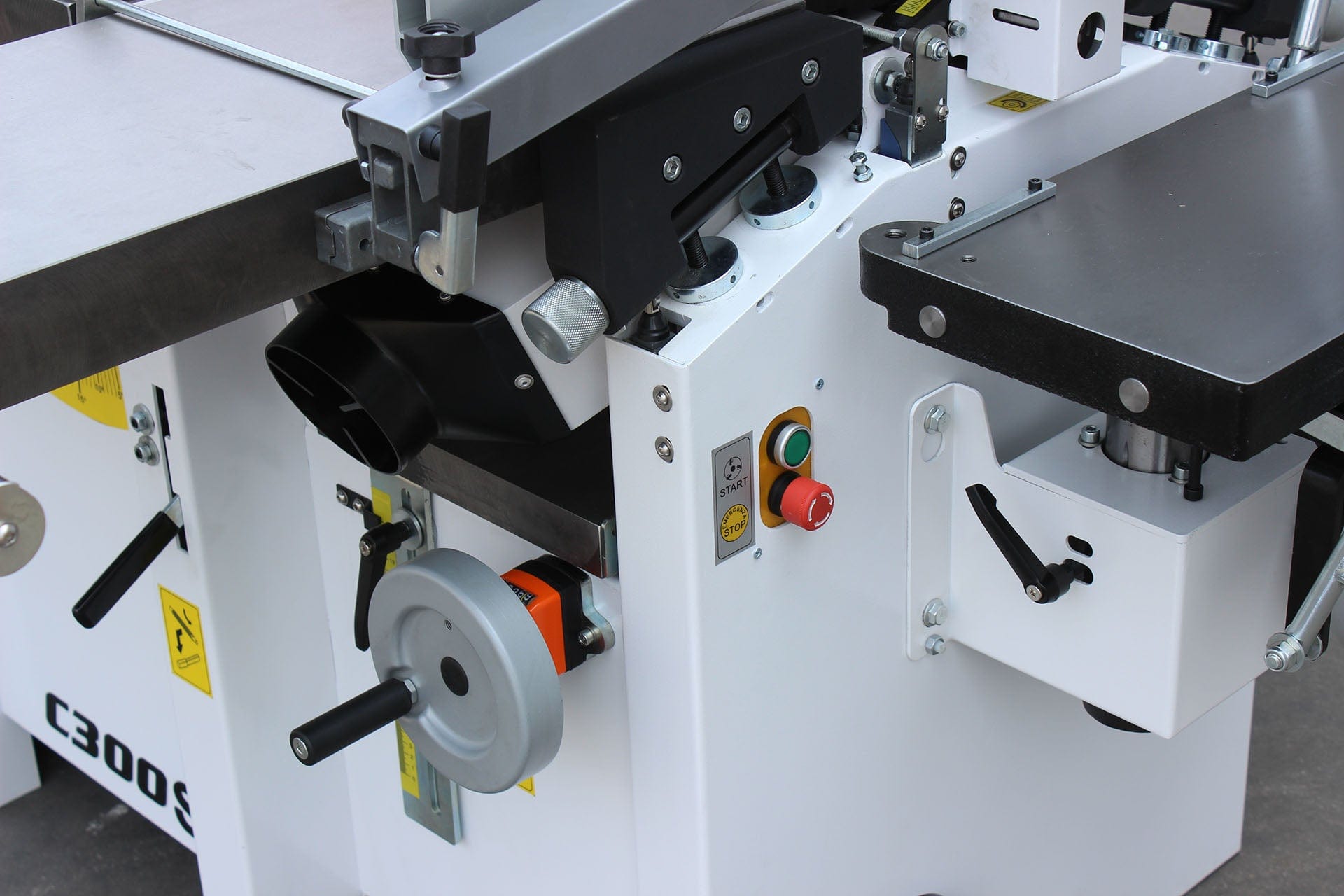

The Sicar C300S is built with a cast iron construction for stability, durability and accuracy. Designed to deliver professional-level precision, it features fully adjustable settings and three independent motors that allow for fast function changes at the flick of a switch rather than manual belt changes.

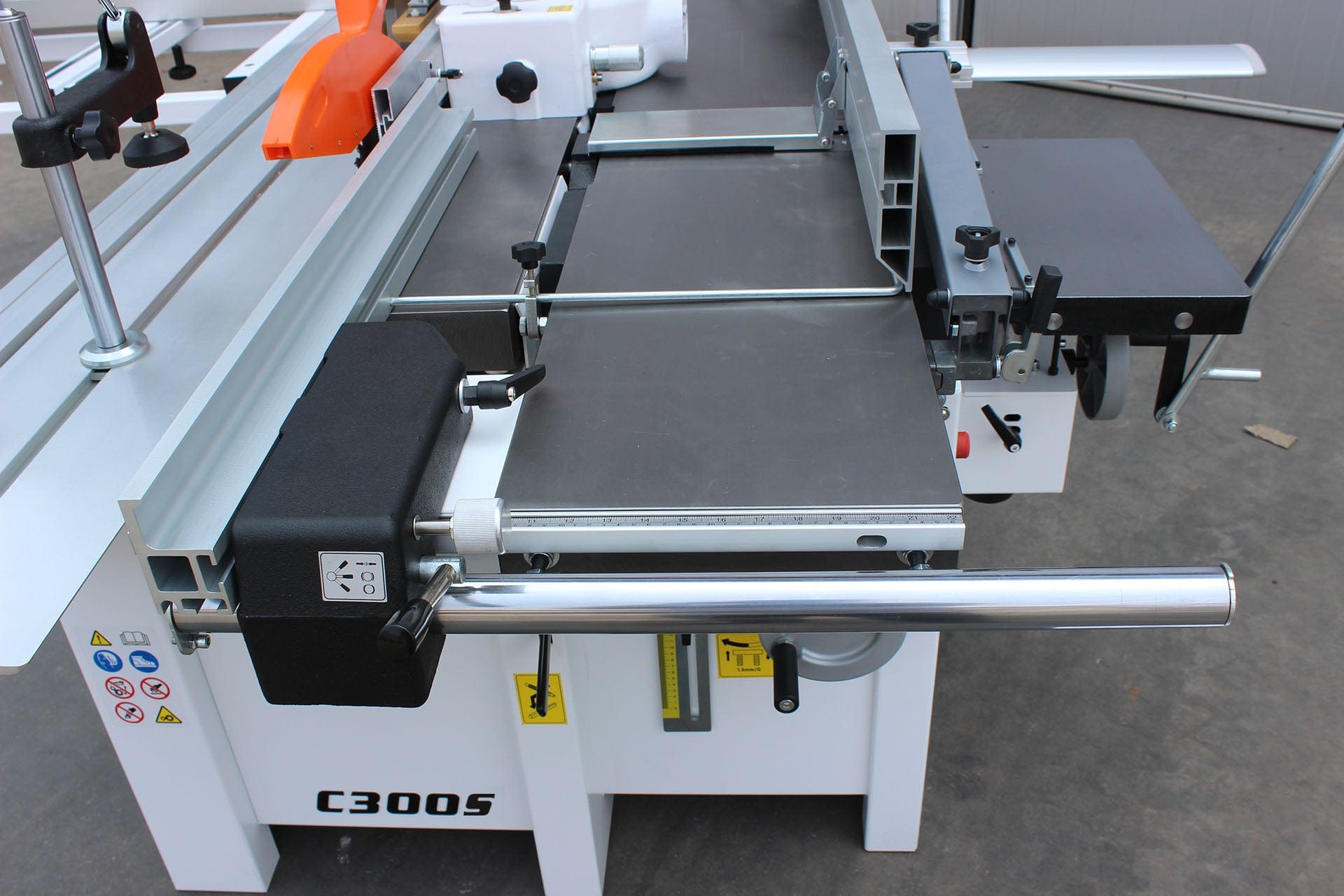

The sliding beam saw assembly runs close to the blade in a panel saw-style arrangement to support accurate cutting, while the planer / thicknesser section is designed for strong performance and clean finishing results. The compact inward-swing thicknessing design also helps keep the machine manageable in tighter workshop spaces.
Features
-
5 in 1 combination machine
-
Sliding table saw
-
Spindle moulder
-
Planer with Spiral Cutter Head Block
-
Thicknesser with Spiral Cutter Head Block
-
Mortiser
-
Three motors
-
Tilting saw blade functionality
-
Scoring saw
-
Heavy-duty cast iron construction
-
Compact all-in-one design for professional workshops

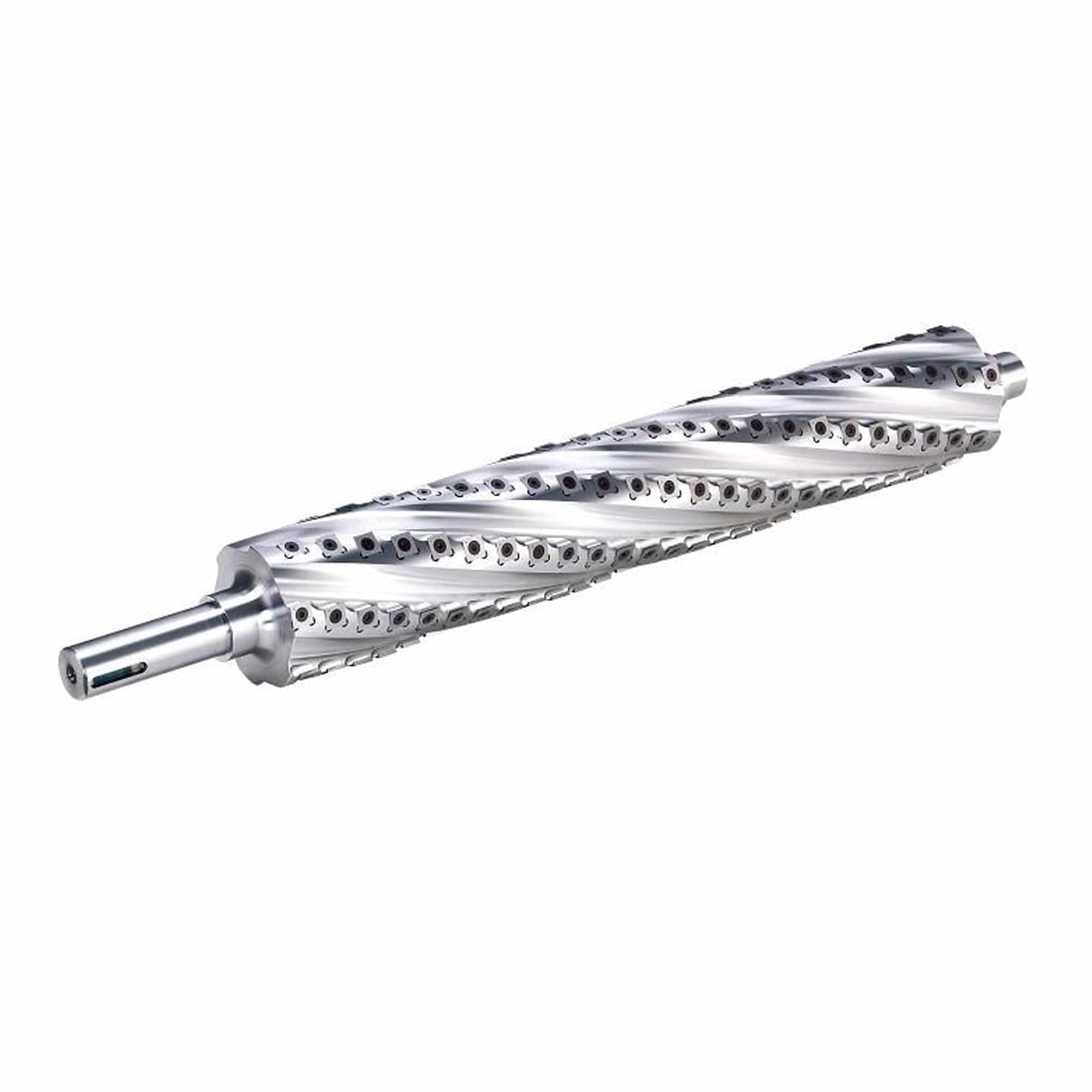

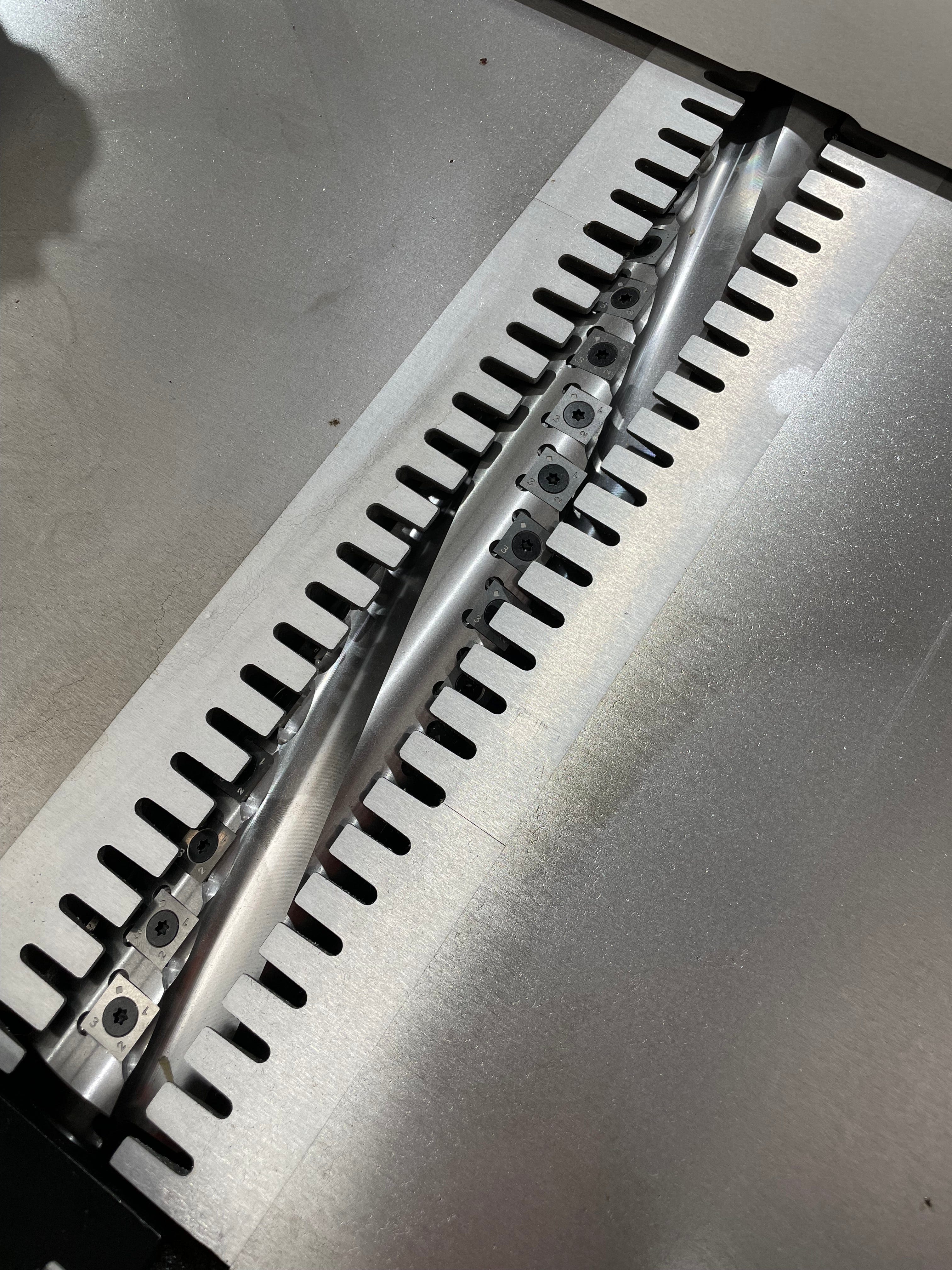

Planer with Spiral Head Cutter Block

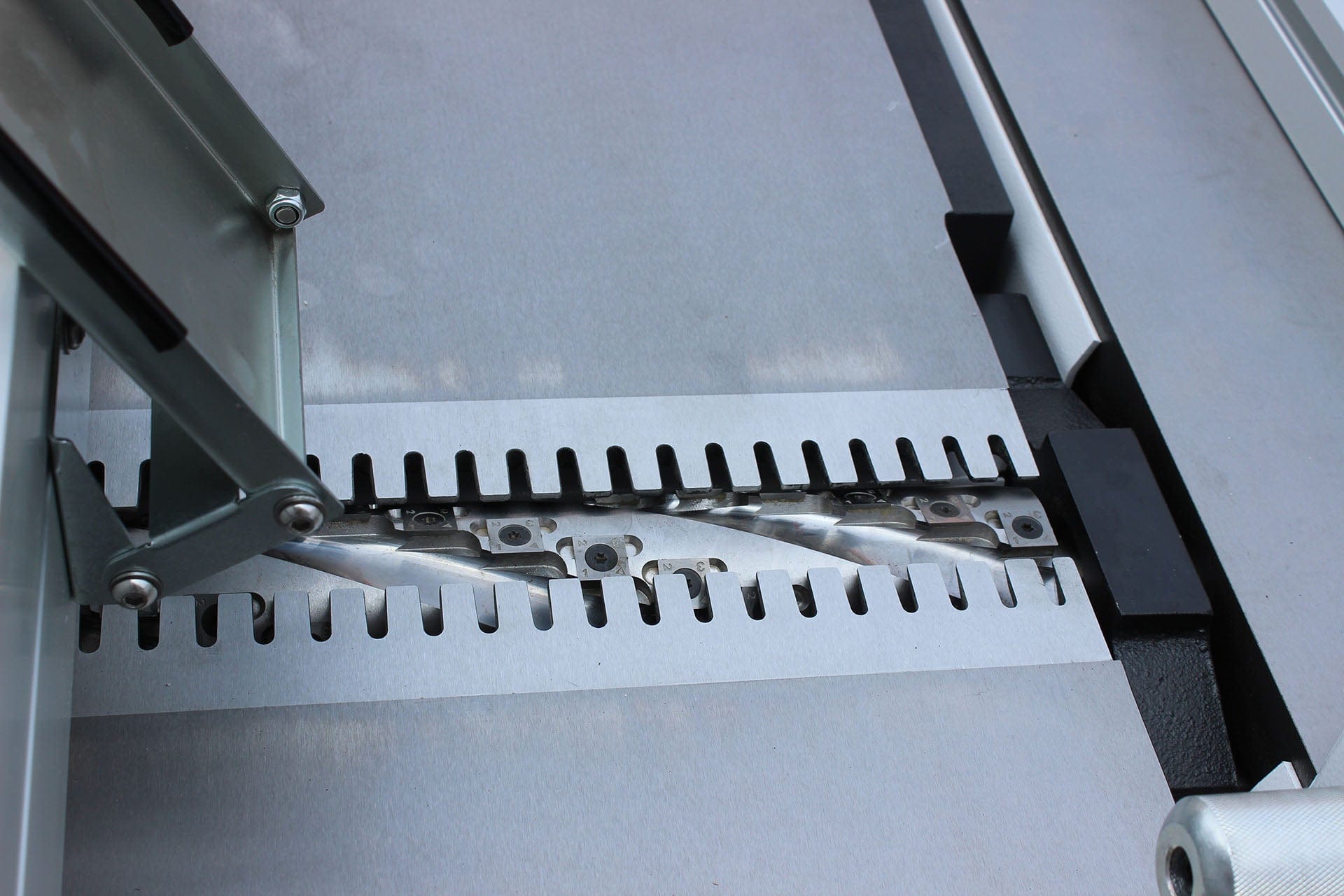

This type of spiral cutter head is designed with a true shear cut. The carbide knives sit at an angle along the helical grooves, helping reduce tear-out on your workpiece while producing smaller chips and less noise than conventional cutter heads.
If one knife edge becomes dull or nicked, it can simply be rotated to another edge in seconds, allowing the cutter head to perform like new again. This helps reduce downtime significantly. Inserts only need to be replaced once all four edges are worn, meaning you do not need to replace a full set of straight knives as with conventional cutter blocks. For many workshops, this can pay for itself in a very short time.
Planer Specifications
-
Working Table: 300 x 1500mm
-
Cutter Block Length: 300mm
-
Max Table Adjustment: 4mm
Thicknesser with Spiral Head Cutter Block
The thicknesser unit is designed for efficient stock preparation with the added benefit of the spiral cutter head for smoother cutting performance and reduced tear-out.
Thicknesser Specifications
-
Working Table: 300 x 660mm
-
Feed Speed: 8m/min
-
Working Height: 4–220mm
Table Saw / Circular Saw

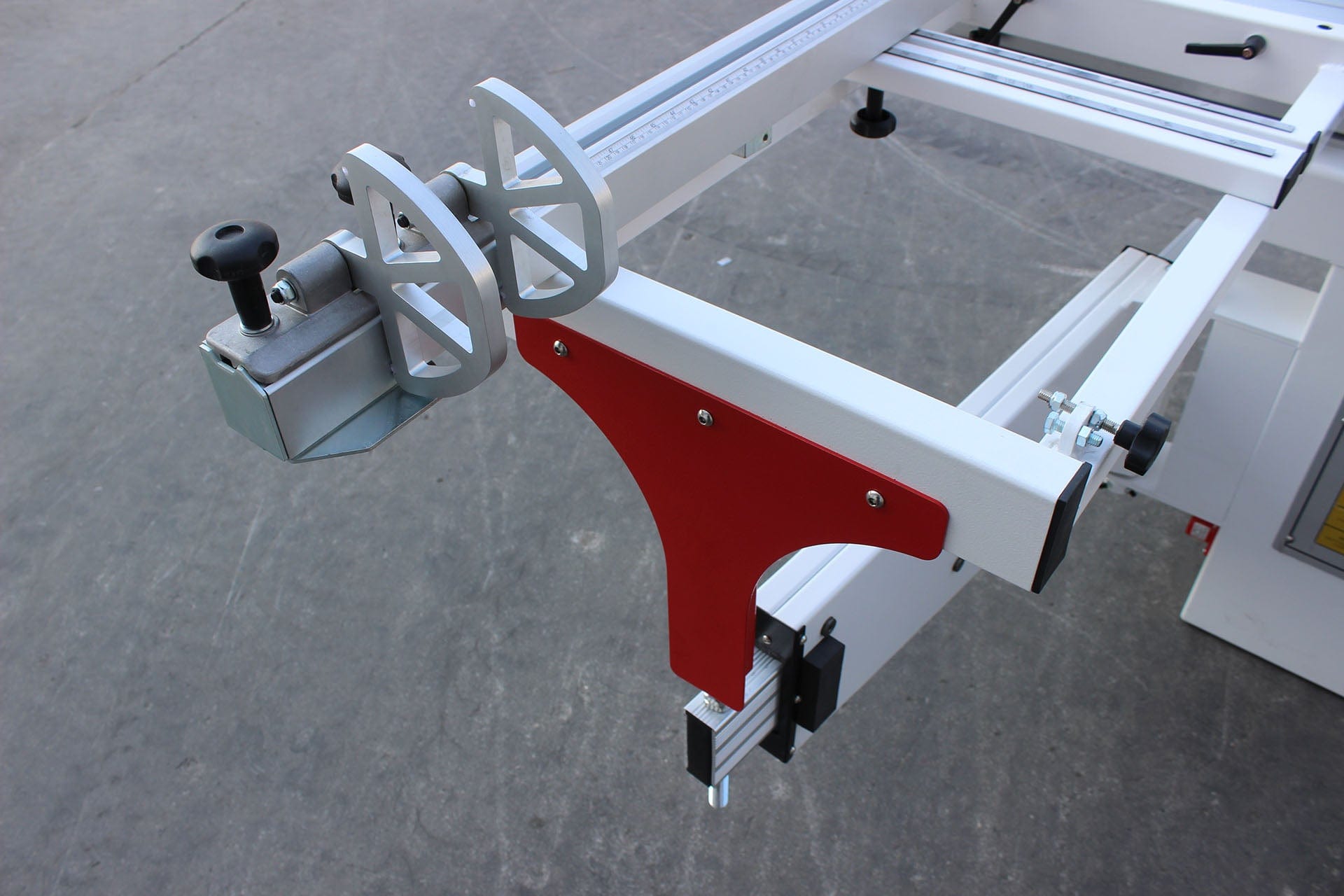

The sliding table saw is designed to provide accurate support for cutting timber panels, boards and general stock, with a tilting blade and scoring saw for added versatility.
Table Saw Specifications
-
Working Table: 220 x 1000mm
-
Main Shaft Speed: 4500rpm
-
Scribe Shaft Speed: 7000rpm
-
Cutting Height at 45° / 90°: 50 / 80mm
-
Cutting Width Parallel Fence: 500mm
Spindle Moulder
The spindle moulder section offers a range of shaft speeds for shaping, profiling and tenoning applications in the workshop.
Spindle Moulder Specifications
-
Working Tables: 220 x 1000mm
-
Shaft Rotation Speeds: 2000 / 3100 / 4400 / 7000rpm
-
Standard Shaft Diameter: 30mm
-
Shaft Vertical Stroke: 115mm
-
Max Tool Diameter: 160mm
-
Max Tenoning Depth: 55mm
Mortiser
The integrated mortiser adds further versatility, allowing the machine to perform accurate mortising work without the need for a separate standalone machine.
Mortiser Specifications
-
Working Table: 250 x 500mm
-
Vertical Stroke: 205 / 95 / 90mm
-
Chuck (M18 x 1.5-S): 0–16mm
Comparison Table – Available Options
| Feature | C300S / 1.8M / 240V | C300S / 2.6M / 240V |
|---|---|---|
| Model | C300S | C300S |
| Power | 240V | 240V |
| Functions | 5 in 1 Combination Machine | 5 in 1 Combination Machine |
| Planer Cutter Block | Spiral Head Cutter Block | Spiral Head Cutter Block |
| Thicknesser Cutter Block | Spiral Head Cutter Block | Spiral Head Cutter Block |
| Sliding Table Length | 1.8m | 2.6m |
| Saw Blade Tilt | Yes | Yes |
| Scoring Saw | Yes | Yes |
| Best Suited To | Workshops wanting a more compact footprint | Workshops needing greater support for larger panels and longer stock |
Available Options
-
C300S / 1.8M / 240V
-
C300S / 2.6M / 240V
Optional Accessories
-
125mm (5") Dust Hose
-
FM300 Dust Collector
Optional Consumables
-
Main Blade: 250 x 30mm x 24T – Suit ripping
-
Main Blade: 250 x 30mm x 80T – Suit melamine, MDF, chipboard
-
Scribe Blade: 90 x 22mm
Ideal For
-
Professional woodworking workshops
-
Cabinet makers and joinery shops
-
Small factories
-
Serious timber users
-
Workshops needing multiple core woodworking functions in one machine
-
Users wanting the advantages of a spiral cutter head block in a compact combination machine
Additional Information
- Oltre Dust Collector 3HP 2 x Filter (Needlefelt Top + Plastic Bottom Bag) OT-DC-2200
- Oltre Dust Collector 240V 2HP 1 x Filter Element (Needle Felt Top Bag + Plastic Bottom Bag) OT-DC-1500
- Mobility Kit Wheel System C300-MW60 suits C300 and C400 Combination Machines by Sicar
- Mortiser Bits No. 6 suitable for Sicar C300/C400 Combination Machines by Sicar
- Profile Cutter Heads N°7 TS30 Set suit Spindle Moulder C300/C400 Combination Machines by Sicar
- Sicar Three Awl Slot Mortise Chisel Bits suit C300 / C400 Combination Machines by Sicar
- ToughCut 15mm x 15mm x 2.5mm Square 30 Deg 4 Sided TCT Insert Blade (10Pce) suit Spiral Cutter Head
- Oltre Clear PU Flexible Antistatic Dust / Duct Hose (Per Metre off a Continuous 10m Roll)
- ToughCut Tungsten Carbide Tipped Triple Chip Panel Saw Blade suit MDF / Melamine Cutting
- ToughCut Panel Saw Split Scribe Blade Set | 90mm x 22mm x 24T (12+12) Tungsten Carbide Tipped Split Scribe Blade Set TC.90.24.22
