500kg Engine Stand W/Gearbox 1894T by TradeQuip Professional
500kg Engine Stand W/Gearbox 1894T by TradeQuip Professional
500kg Engine Stand W/Gearbox 1894T by TradeQuip Professional
Roll over image to zoom in Click on image to zoom
500kg Engine Stand W/Gearbox 1894T by TradeQuip Professional500kg Engine Stand W/Gearbox 1894T by TradeQuip Professional500kg Engine Stand W/Gearbox 1894T by TradeQuip Professional

500kg Engine Stand W/Gearbox 1894T by TradeQuip Professional

TradeQuipSKU: 8200847
Price:
£431.00
Stock:
Order In

Downloads

Description

The TradeQuip "Made for the Trade" Revolving Engine Stand accepts a wide variety of engines and transmissions. The head easily rotates 360 º via the 40:1 ratio gear box for convenient accessibility to all parts of the engine. Using an engine stand where the rotational movements of the stands can be safely controlled not only saves man hours by eliminating non-productive handling procedures, it meets with popular safe working practice and safety regulations to minimise the dangers of personal injuries (that result from the manual handling of heavy loads). This unit has fully adjustable mounting arms and heavy duty swivel castors to provide excellent functionality. If you're in the market for an easy to rotate "Made for the Trade" engine rebuilding stand look no further. The quality of this stand is amazing. The gearbox assist allows for a no fuss full 360 º rotation simply by turning the handle on the gearbox and it requires little to no effort at all. Designed and built for those mechanics that see value in efficiency and safe this TradeQuip Engine Stand uses a 90 degree gear drive system known as a Geared Reduction Worm Drive or lessor known Crown and Pinion Drive. The worm wheel shown below has a thru shaft which connects directly to the load bearing adaptors holding the engine, the worm shown below connects directly to the crank handle, the 90 degree alignment of these two gears allows for reduced torque required when rotating the engine via the crank handle. It also has a reverse effect in that the worm gear prevents the load on the worm wheel from forcing rotation, holding the load secure at any point throughout the 360 ° rotation of the engine. Using an Engine Stand with a Geared Reduction Worm Drive rotational movement that can be safely controlled, not only saves valuable time by eliminating non-productive handling procedures, it meets with Safe Work practices and most safety regulations to minimise the dangers of personal injuries (that result from the manual handling of heavy loads).

Features:-

  • Constructed of high-grade steel and built to "Made for the Trade" standards for quality and durability
  • 360 ° swivelling and gear ratio head allows easy rotation for obtaining the perfect angle position

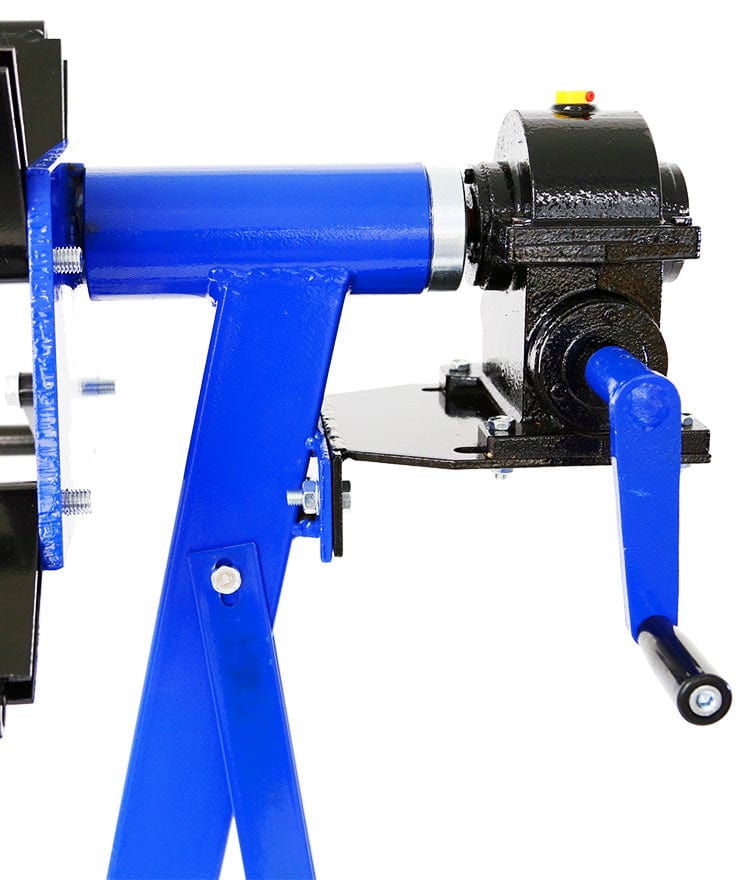

  • 90 ° 'Geared Reduction Worm Drive' system holds the load secure at any point throughout the 360 ° rotation
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and prevent rust
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • Heavy-gauge tubular construction with industrial-grade steel bearing castors for easy maneuverability
  • Mounting head has four adjustable arms with bolt holes to accommodate various load sizes
Specifications:-
  • Safe Working Capacity: 500kg
  • Gearbox Ratio: 40:1
  • Height: 1230mm
  • Width: 850mm
  • Length: 1190mm
  • Castor Dia: 90mm
  • Distance between legs: 680mm
  • Lower steel tubing: 60 x 60mm
  • Column tubing: 70 x 70mm
  • Nett Weight: 54kg
  • Carton 1 of 2: 1195 x 860 x 70mm (Weight: 17kg)
  • Carton 2 of 2: 1120 x 270 x 230mm (Weight: 45kg)
Intended Use:-
  • For safe handling and positioning of most 4 and 6 cylinder passenger car engines during dismantling and re-assembly. WARNING: Engine dimensions must be within legs of Engine Stand.
