Description

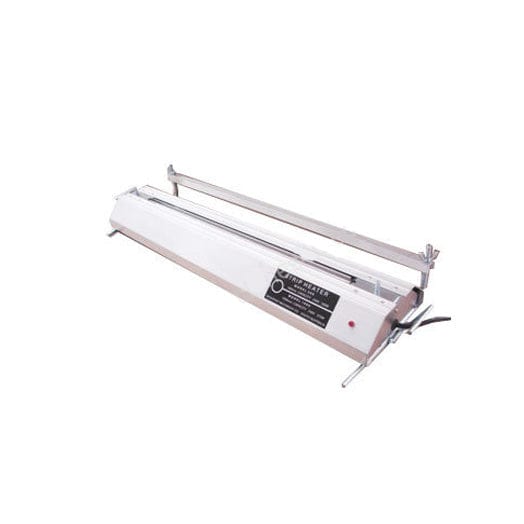

Ideal for bending and folding Plastic / Acrylic Sheeting. These units are ideal in education environments and school plastics workshops with two models (different lengths) designed to provide a safe and inexpensive portable unit capable of quickly producing straight line bends in acrylic and other thermo-plastic sheet materials.
Features:-
- Effective heating length 500mm (Model 500) and 1000mm (Model 1000)
- Most attractive appearance with polished aluminium finish.
- Ability to produce quick neat bends with minimum preparation.
- Strongly constructed, light weight, compact and portable.
- Low heat principle keeps outer body relatively cool.
- Tubular element completely safe for school use with minimum power consumption.
- Safe electrical connection with insulated heat resistant internal wiring.
- Red neon lamp indicates when power is on.
- Adjustable Heat Mask determines size of bends.
- Outrigger Support for longer plastic projects
- Model 500
- Effective Heating Length: 500mm
- 240v / 200w - 1210000
- Model 1000
- Effective Heating Length: 1000mm
- 240v / 375w - 1310000
- Simple straight line bends in Thermo Plastic sheet material up to 3mm in thickness can be obtained with heat mask removed. For thicker materials up to 6mm in thickness use adjustable heat mask. This determines size of bend and additional height provides better heat penetration and prevents burning or blistering.
- Thicker materials should be turned over during heating process to give even penetration resulting in clean neat bends.
- The best method for bending thicker material is where two strip heaters are available. One can be placed upside down above the other to form a heat sandwich which heats both sides of the project simultaneously.
- It should be noted that where it is necessary to use the adjustable heat mask at narrow setting for long periods it can become quite hot and under these conditions should be handled with care.
- Replacement Elements
Additional Information
Model
Type
Plastic Strip Heater
SKU
8000227
Part Number
MODEL500
Brand
Beyond Tools
Size
500mm (20'')
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Country of Origin
Manufactured in
Australia
Warranty
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Weight (Gross)
1.48kg
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
What's Included

500mm Plastic Strip Heater
