Description

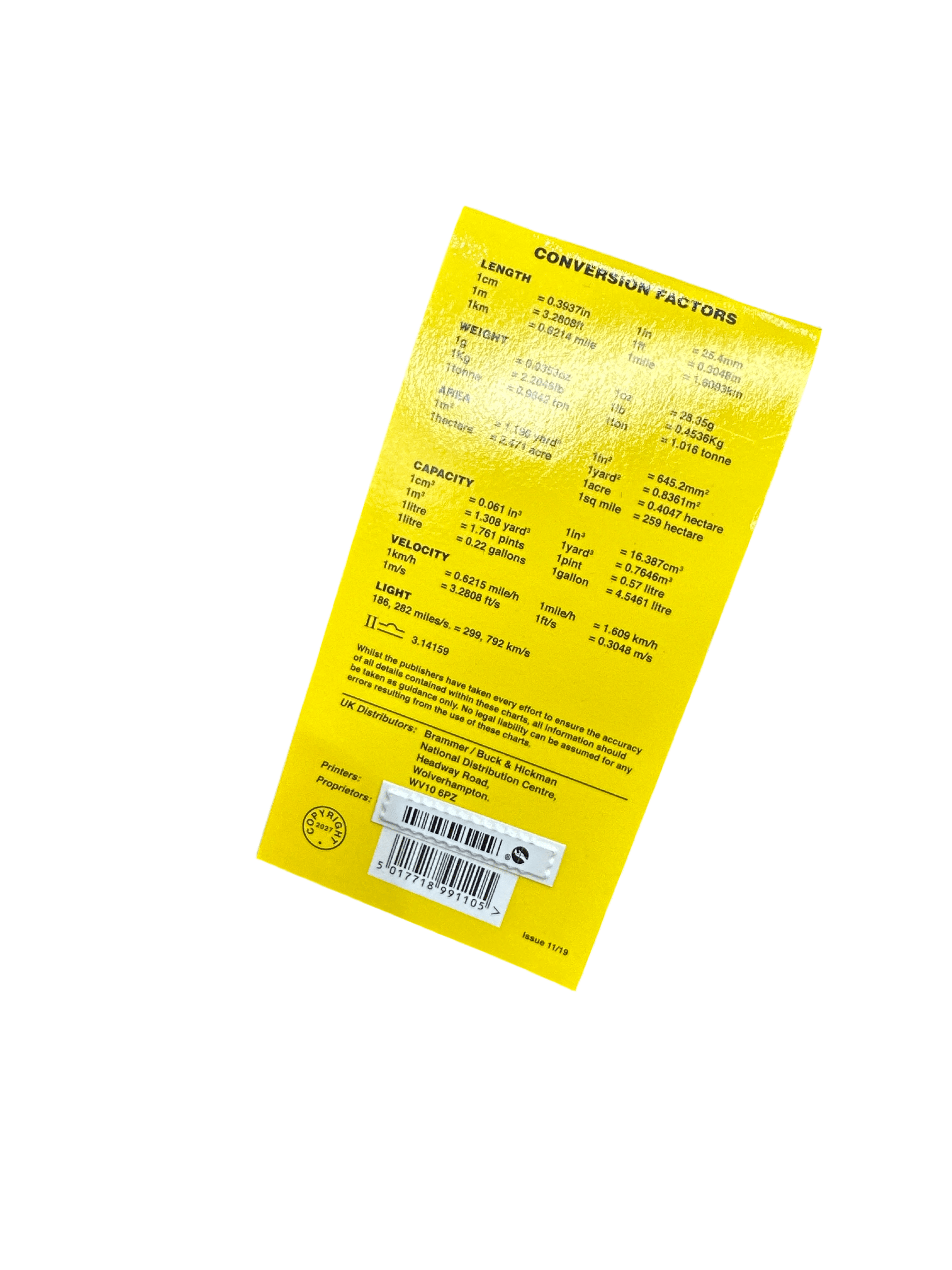

Data Chart and Reference Table Handbook by Roebuck Zeus Precision
Features:-
- Revised metric edition
- Covers and all pages have a plastic finish, so that they will not pick up dirt, oil, etc easily
- Contains data charts and reference tables for all engineering trades
- For Drawing Office, Toolroom & workshop
- Standard Drill Sizes and Decimal Equivalents
- ISO Metric Fine Threads in mm; ISO Metric Coarse Threads in mm
- BA Standard Tapping Drills; BSF Threads (55 °) and Tapping Drills
- Whitworth Threads (55 °) and Tapping Drills; British Standard Pipe Threads and Tapping Drills
- Unified Screw Threads - below 14" for Attachment Purposes
- ANC Threads (60 °) and Tapping Drills; ANF Threads (60 °) and Tapping Drills
- UNF Fine Thread Series - Unified Screw Threads (Basic Sizes) and Tapping Drills
- UNC Coarse Thread Series - Unified Screw Threads (Basic Sizes) and Tapping Drills
- ISO Limits and Fits - Preferred Fits for Holes and Shafts
- Hardness Comparison Table - BrinellVickersRockwell C & B
- Co-ordinates for Locating Equally Spaced Holes in Jig Boring
- Allowances for Sheet Metal Bending; Morse Taper Sleeves
- Table of Natural Sines; Table of Natural Tangents
- Letter Addresses used in Numerical Control; Numerical Control - G Code Addresses
- Standard Miscellaneous Function Words from USA-EIA Standard
- Commonly Accepted Symbols and Abbreviations used on Engineering Drawings
- Solutions for Oblique Angled and Right Angled Triangles
- Conversion Factors - Length, Weight, Area, Capacity, Velocity and Light
Additional Information
Data Chart and Reference Table Handbook by Roebuck Zeus Precision
£17.00
