Festool MB 40 Hole Drilling guide Set in Systainer 577971

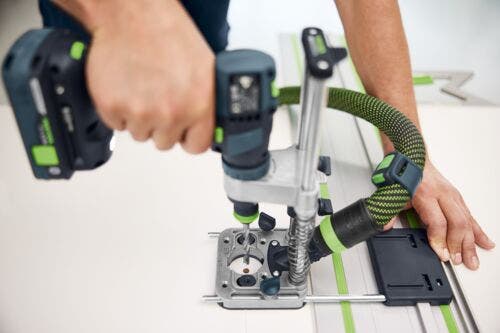

The MB 40 mobile drilling attachment is your companion when precision is required. As a compact drilling aid, it enables you to drill at right angles with pinpoint accuracy and repeat accuracy, no matter where you are working. Versatile stops and exact depth adjustment allow you to drill vertical holes, end face holes and a series of holes. For a good view of the drilling point, you can couple the dust extraction directly with the base plate. As a further FastFix attachment, it is ideally suited to your drilling applications in wood, metal and plastic, thus expanding the range of possible uses for your Festool cordless drills.
Precise: Built to be robust and stable – for exact holes.
Exact depth adjustment: With zero position and readable drilling depth up to 50 mm. Display in mm and inches.

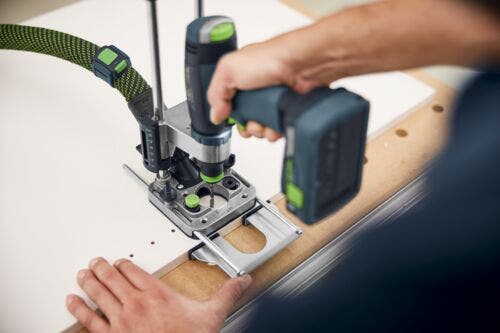

Versatile accessories: With parallel side fence and stop for end face holes, for drilling holes exactly and with repeat accuracy in panel edges, or guide rail adapter for drilling in long and wide workpieces.
Exceptional: With hole series function for holes in the 32-type system.
Compatible: The tool chuck can be fitted quickly and without tools. The CENTROTEC chuck also enables quick insertion and replacement of drilling tools.
Integrated: Chip extraction for extractors from dust class M and hose diameter D 27.
Easy positioning: Markings on the base plate simplify exact alignment on the workpiece.
Sturdy: Rubberised base for precise alignment without slipping.

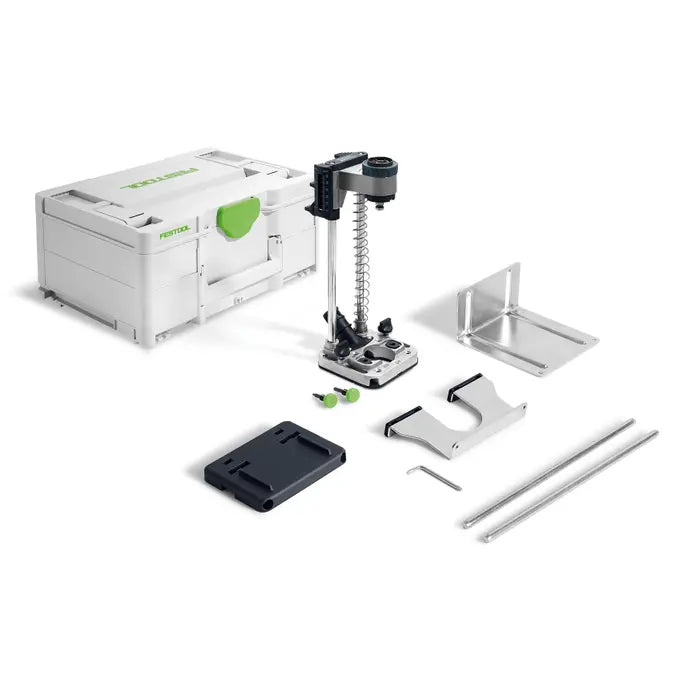

Clearly organised: Compact and cleverly packed in the Systainer³.

Please note - Not Compatible With

• CXS 10.8V/2.6Ah
• TXS 10.8V/2.6Ah

Specifications

• Diameter (mm): 16.00 - 40.00 mm
• Dust Extraction Connection Diameter (mm): 27 mm
• Length (mm): 110 x 114 mm base
• Weight (kg): 1.40 kg
• Tool Holder Type: FastFix

FastFix attachment

Enables you to fit Festool cordless drills and cordless percussion drills quickly, easily and entirely without tools.

Depth-controlled

For depth-limited holes up to 50 mm, such as series of holes or cupboard hinges, the exact plunge depth into the material can be set in mm or inches using the scale.

Hole series function

For holes in the 32 mm system with a 3 mm hole series pin and a 5 mm hole series pin. The pin stays in the same spot throughout the hole series project. No need to switch the pin.

Spring-loaded supports

Enable easy guidance when drilling. For special applications, you can convert the drilling attachment and remove the



Variable use

Thanks to the holes in the base plate, you can fit the MB 40 on a workpiece or on individually built fixtures.

Scribe marks and other markings

Help when drilling series of holes, cupboard hinges and alignment on the scribe mark, to achieve drilled holes with pinpoint accuracy.

Dust extraction

For a clear view of the drilling point and a clean working environment, a mobile dust extractor from dust class M can be connected to the extractor connector.
