Description

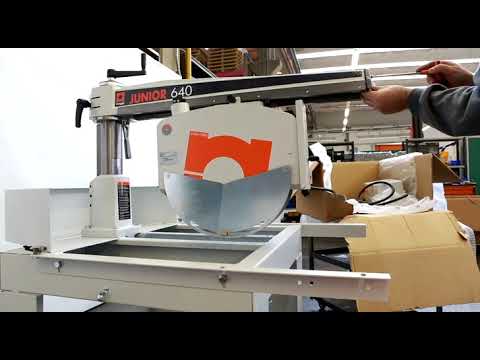

The Maggi Junior 640 Radial Arm Saw is a compact, professional crosscutting machine designed for accurate cutting of solid timber, MDF, plywood, particleboard, laminated panels and other wood-based materials.
With a maximum crosscutting capacity of 545mm and cutting height of up to 125mm, the Junior 640 is ideal for joinery workshops, furniture manufacturers, cabinetmakers and woodworking businesses requiring a versatile saw without occupying excessive floor space.

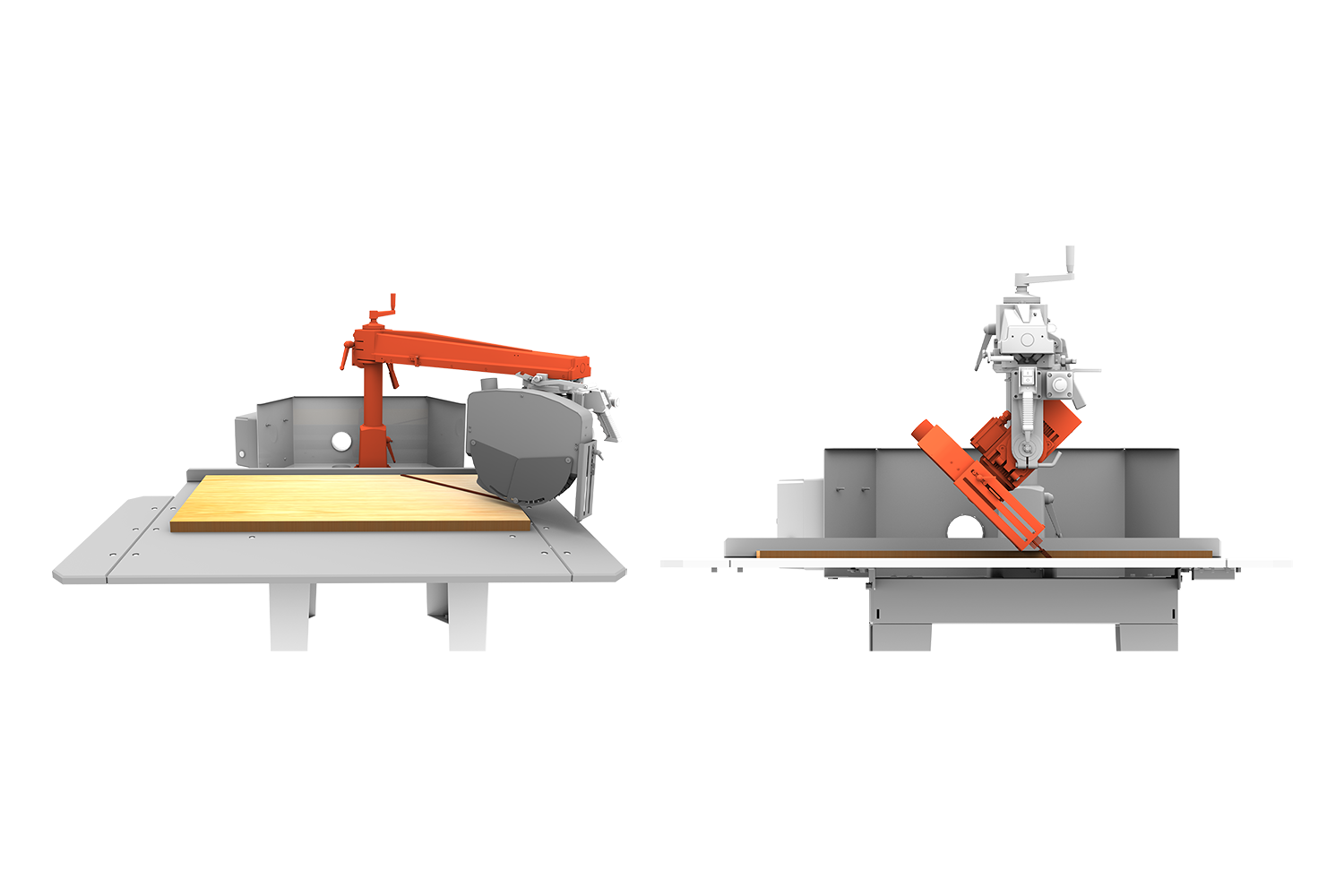

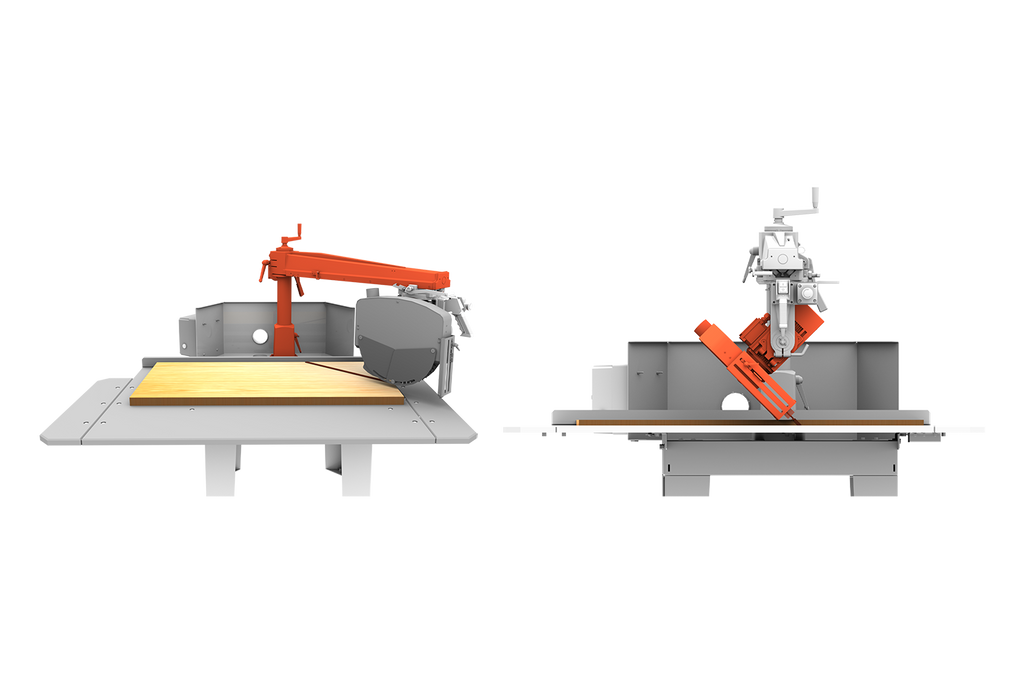

The swivelling radial arm provides preset 45° mitre cutting to the left and right, while the cutting head can be tilted and mechanically locked at 45° to the left for bevel cutting. The saw carriage travels smoothly along hardened steel guides on eight ball bearings, helping deliver accurate, controlled and low-effort operation.
Manufactured in Italy, the Junior 640 combines a heavy-duty steel frame with a cast-iron column, arm and base for excellent stability and long-term cutting accuracy.
Features
- Maximum cutting height of 125mm
- Crosscutting capacity up to 545mm
- Suitable for straight, mitre and bevel cutting
- Radial arm swivels to 45° left and right
- Cutting head tilts and locks at 45° to the left
- Smooth manual carriage movement on eight ball bearings
- Hardened, interchangeable steel carriage guides
- Heavy-duty steel frame and cast-iron construction
- Large MDF worktable for supporting panels and timber

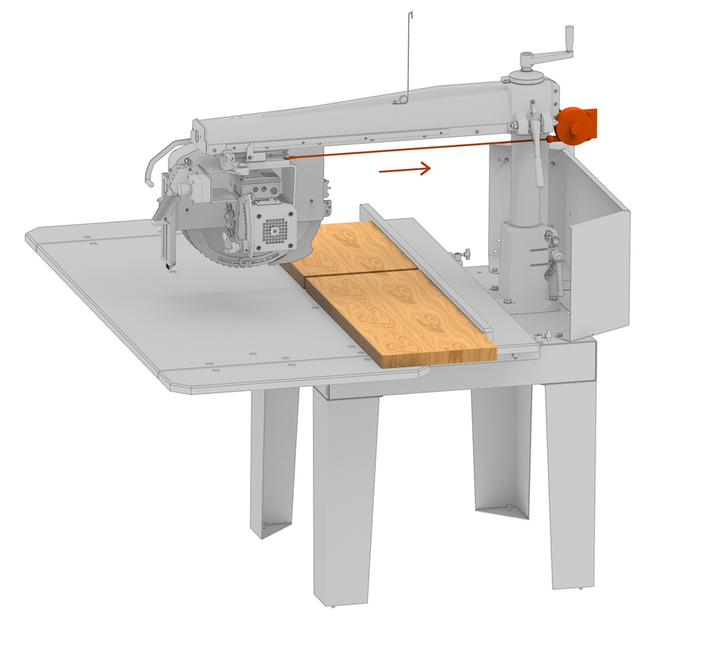

- Automatic return spring assists carriage repositioning
- Self-braking motor
- Motor overload protection
- Emergency-stop button
- Lockable electrical switch
- Full-cover, sound-insulated steel blade guard
- Rear extraction hood ready for connection to a dust collector
- Compact footprint suited to smaller workshops
- Manufactured in Italy
Cutting Applications
The Maggi Junior 640 is suitable for cutting:
- Solid timber and timber boards
- MDF
- Particleboard and chipboard
- Plywood
- Laminated panels
- Multilayer wood panels
- Furniture and joinery components
- Long workpieces when used with suitable infeed and outfeed support
Technical Specifications
| Specification | Details |
|---|---|
| Maximum cutting height | 125mm |
| Maximum cutting capacity | 545 × 20mm high |
| Cutting capacity at maximum height | 450 × 125mm high |
| Blade height at 45° | 0–80mm |
| Cutting capacity at 45° right | 315–380mm |
| Cutting capacity at 45° left | 125–190mm |
| Blade adjustment above table | 0–45mm |
| Blade diameter | 400mm |
| Blade bore | 30mm |
| Maximum blade thickness | 4.5mm |
| Motor power | 4HP / 3kW |
| Motor speed | 2,800rpm |
| Worktable dimensions | 1690 × 1155 × 25mm |
| Blade guard extraction outlet | 60mm |
| Rear extraction outlets | 2 × 100mm |
| Assembled dimensions | 1690 × 1560 × 1580mm |
| Net weight | 220kg |
| Packed dimensions | 1420 × 850 × 750mm |
| Gross packed weight | 232kg |
Standard Equipment
- Automatic return spring
- Self-braking motor
- Motor overload protection
- Emergency-stop button
- Sound-insulated steel blade guard
- Rear dust-collection hood
- MDF worktable
- Lockable switch
Please note: Saw blade is not included unless otherwise specified.
Available Options
| Option | Power Supply | Motor Power | Motor Speed |
|---|---|---|---|
| Single Phase | 220–240V, 50Hz | 3HP / 2.2kW | 2,800rpm |
| Three Phase | 400–415V, 50Hz | 4HP / 3kW | 2,800rpm |
Optional Accessories
- 400 × 3.8 × 30mm, 60-tooth saw blade
- Laser cutting-line guide
- Independent 500 × 1500mm roller table
- Ready-assembled machine supplied in a wooden crate
- Alternative electrical configurations where available
Electrical configuration must be selected when ordering and cannot be changed after manufacture. The machine is supplied with an electrical cable but may not include a power plug. Connection and commissioning must be completed by a suitably qualified electrician.
Voltage specifications may vary according to the destination market. Please confirm the required voltage, phase and frequency before ordering.
Additional Information
Model
Type
Radial Arm Saw
SKU
8601003
Part Number
JUNIOR 640 1PH
Brand
Maggi
Technical - Main
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Dimensions
Product Length
1540mm
Product Width
1375mm
Product Height
1540mm
Product Weight (Net Weight)
180kg
Country of Origin
Manufactured in
Italy
Features
Standard Inclusions
Automatic return-spring , Self-braking motor, Electrical system equipped with motor-overload protection and emergency button, Sound-insulated blade guard made of steel, Push-sticks for ripping, Well-dimensioned rear hood, ready to be connected to a dust collector, MDF working bench, Lockable switch , Package: recyclable cardboard box, Blade not included
