Description

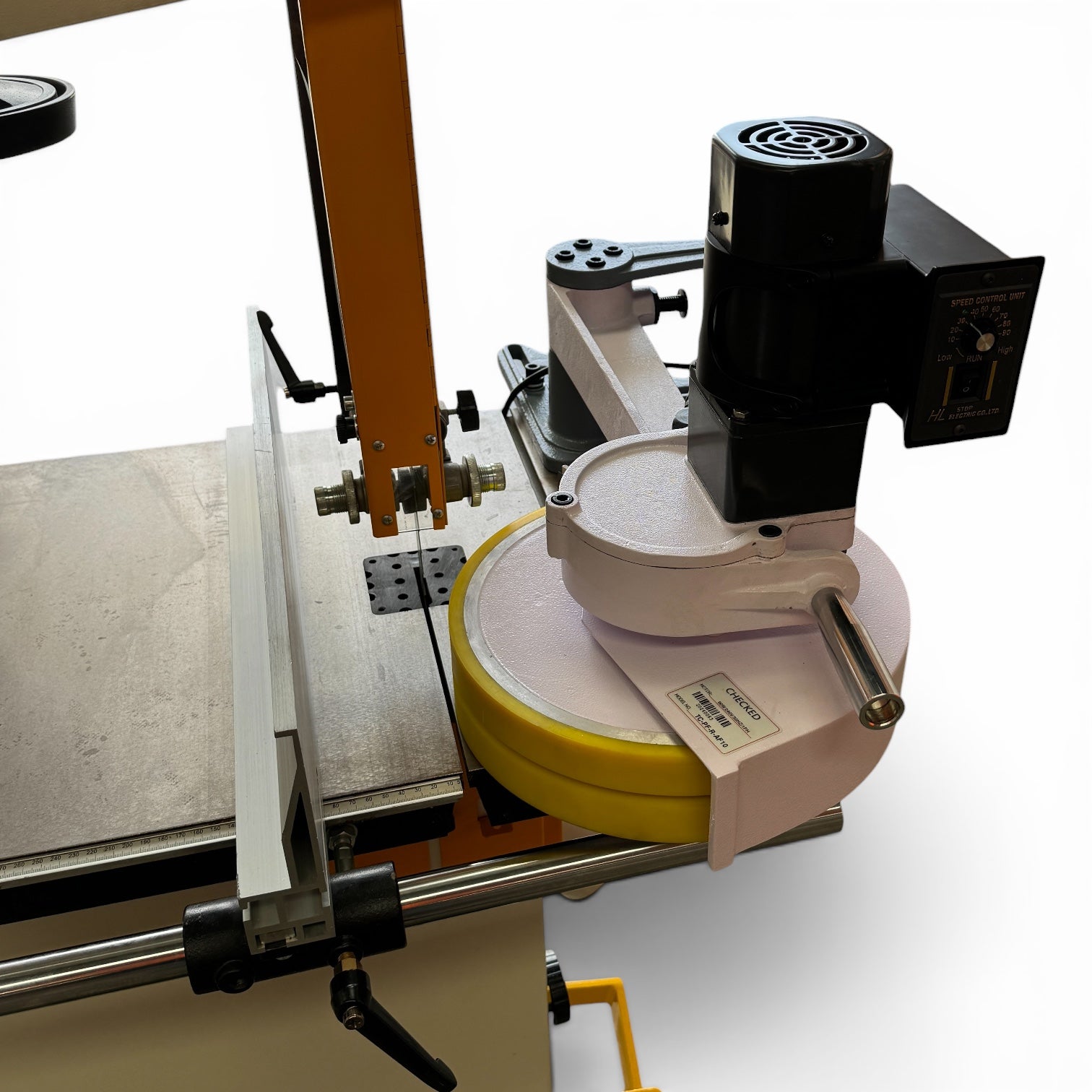

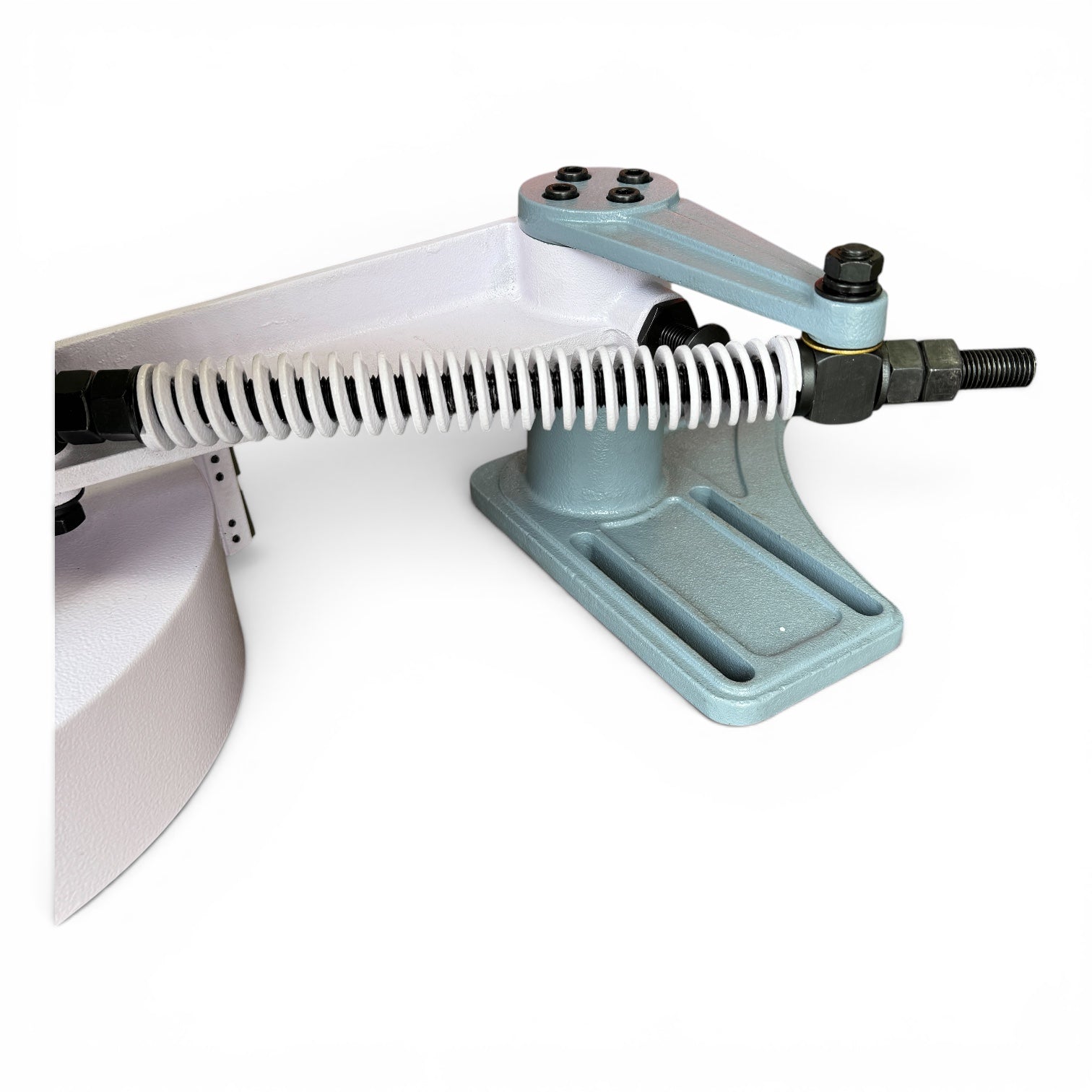

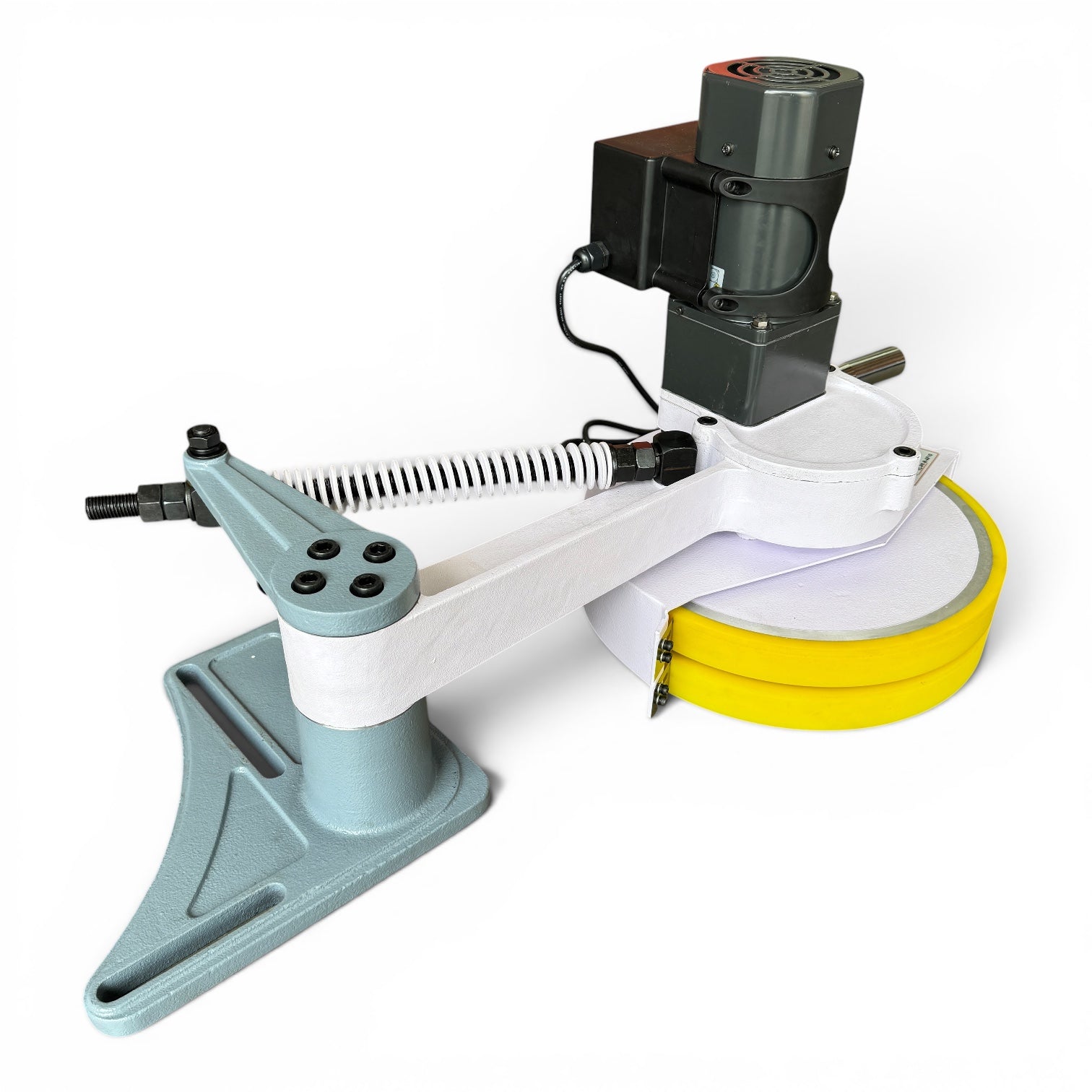

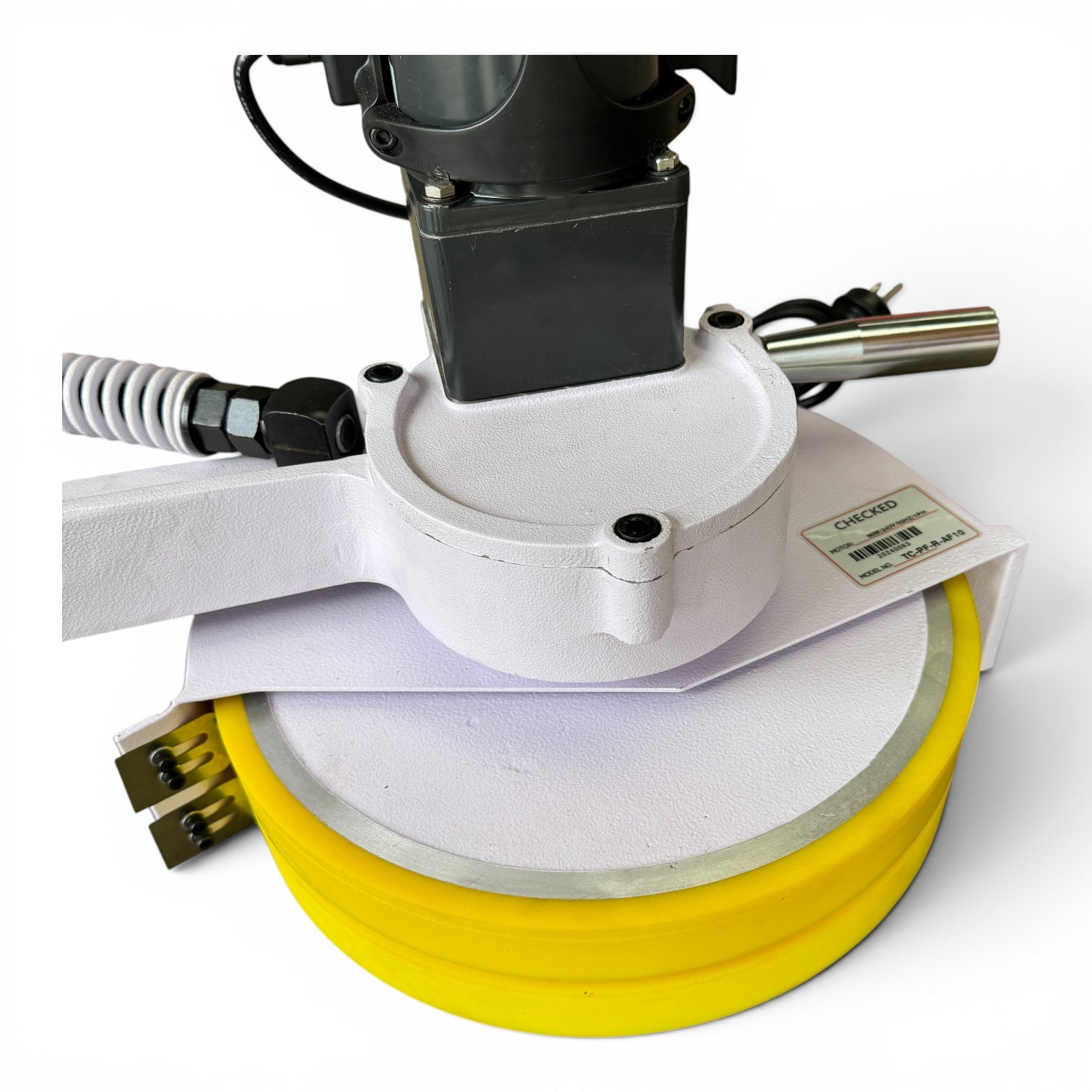

The AF10 Giant Feeder is ideal for medium-duty use with a bandsaw over 600mm (24") and it features a spring-loaded mechanism that ensures smooth and accurate cuts. AF10 is a superior alternative to using standard 3- and 4-roller feeders for resawing. A spring-loaded cover automatically opens when a workpiece is introduced, enabling it to handle heavier boards and cuts compared to the lighter-duty AF06, thanks to its heavier spring.
Features
- 1HP motor
- 2 rollers

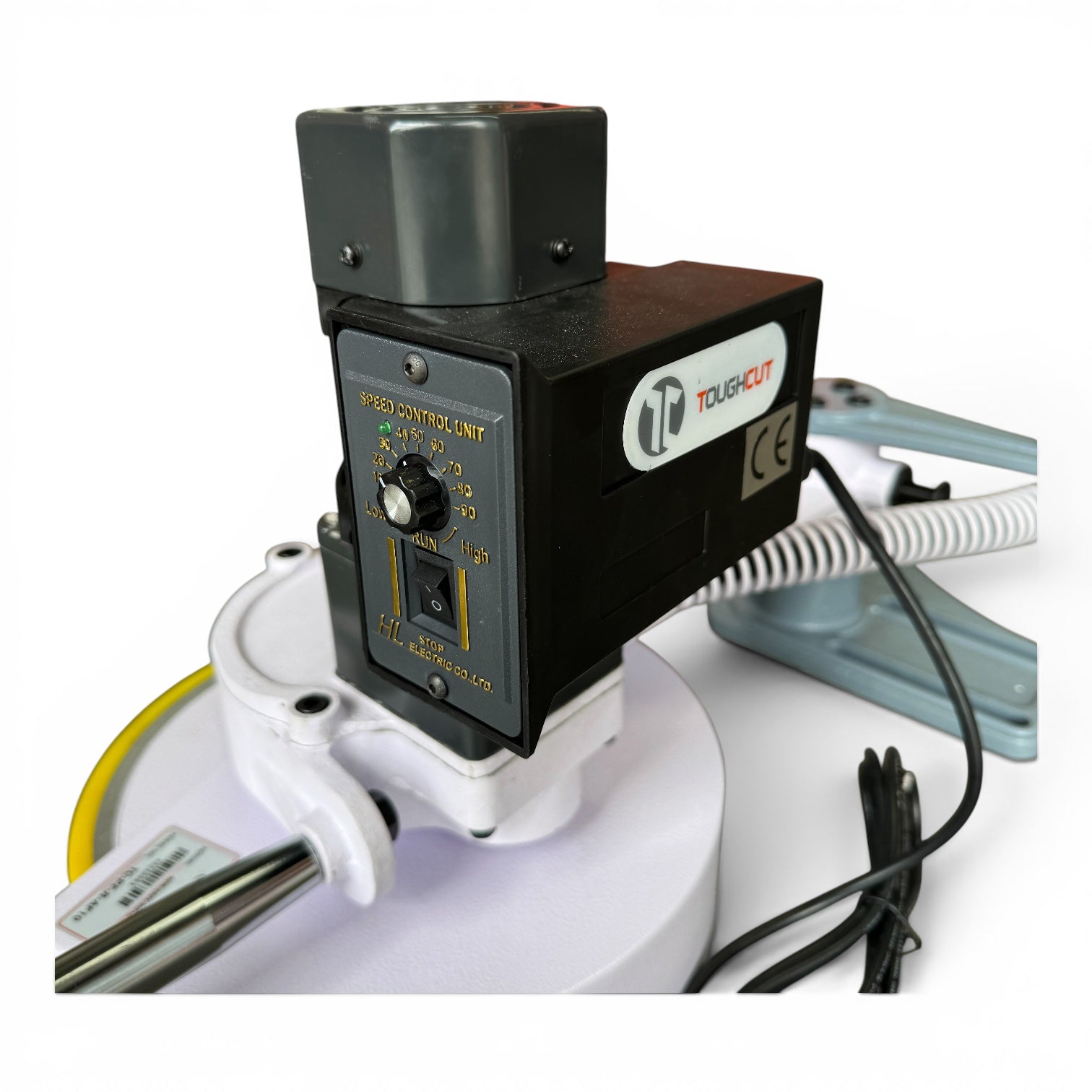

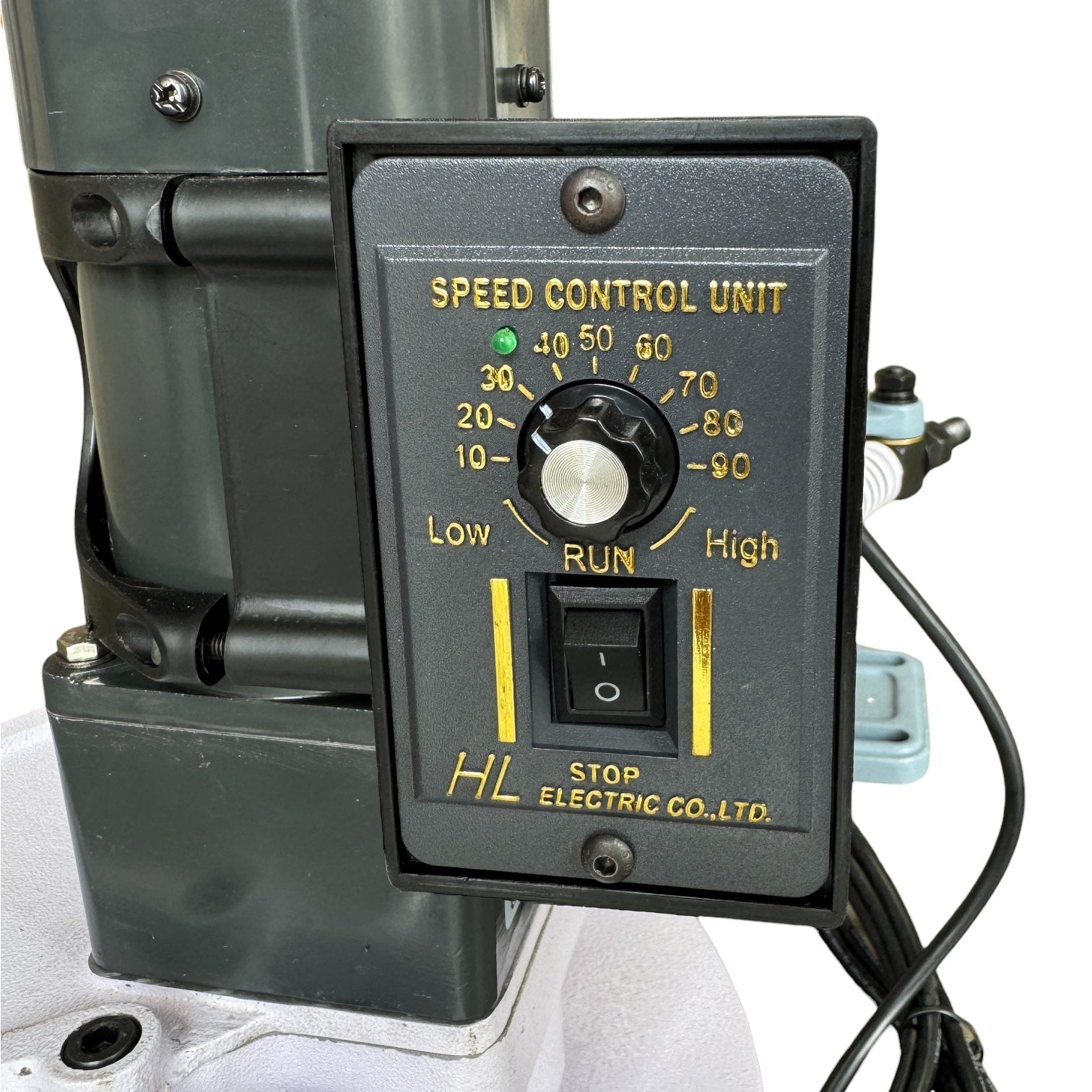

- Variable Speed - With variable speed adjustment, the AF10 offers the most versatile speed options
- Range of Speeds: 1.5-18m/min.
- Stand included

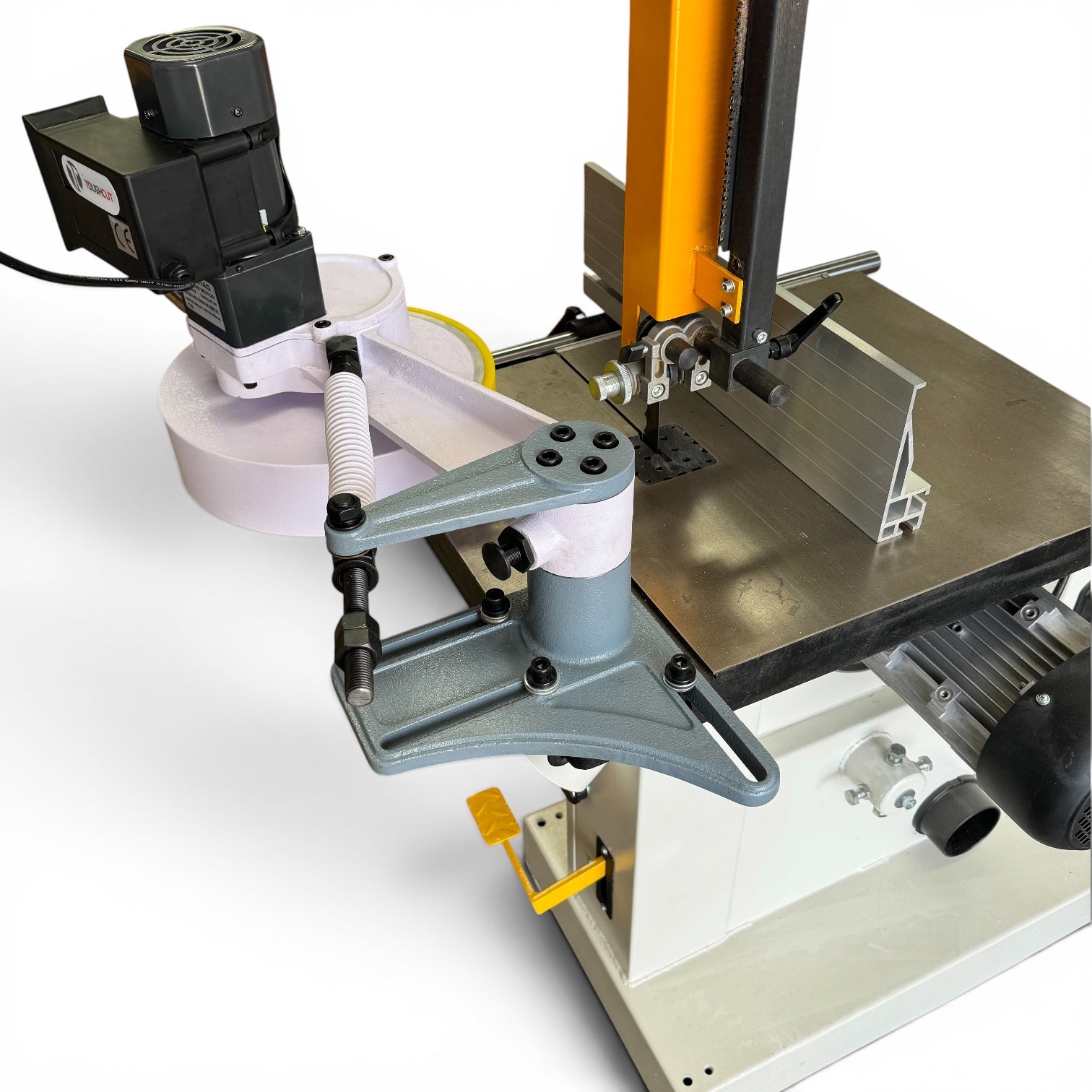

- Drill-less Fast Positioning Design - No need to drill holes in your bandsaw, you only need to use the parts that come with the feeder to secure it to the bandsaw.
- Conventional AC Motor - A continuous-duty 1/8 horsepower motor provides the feed, ensuring a consistent and reliable feed rate.
Specification
|
Max. Height of Rollers |
82 mm (3-3/8") |
|---|---|
|
Max. Roller-Blade Clearance |
246-398 mm (9-1/2" - 15-1/2") |

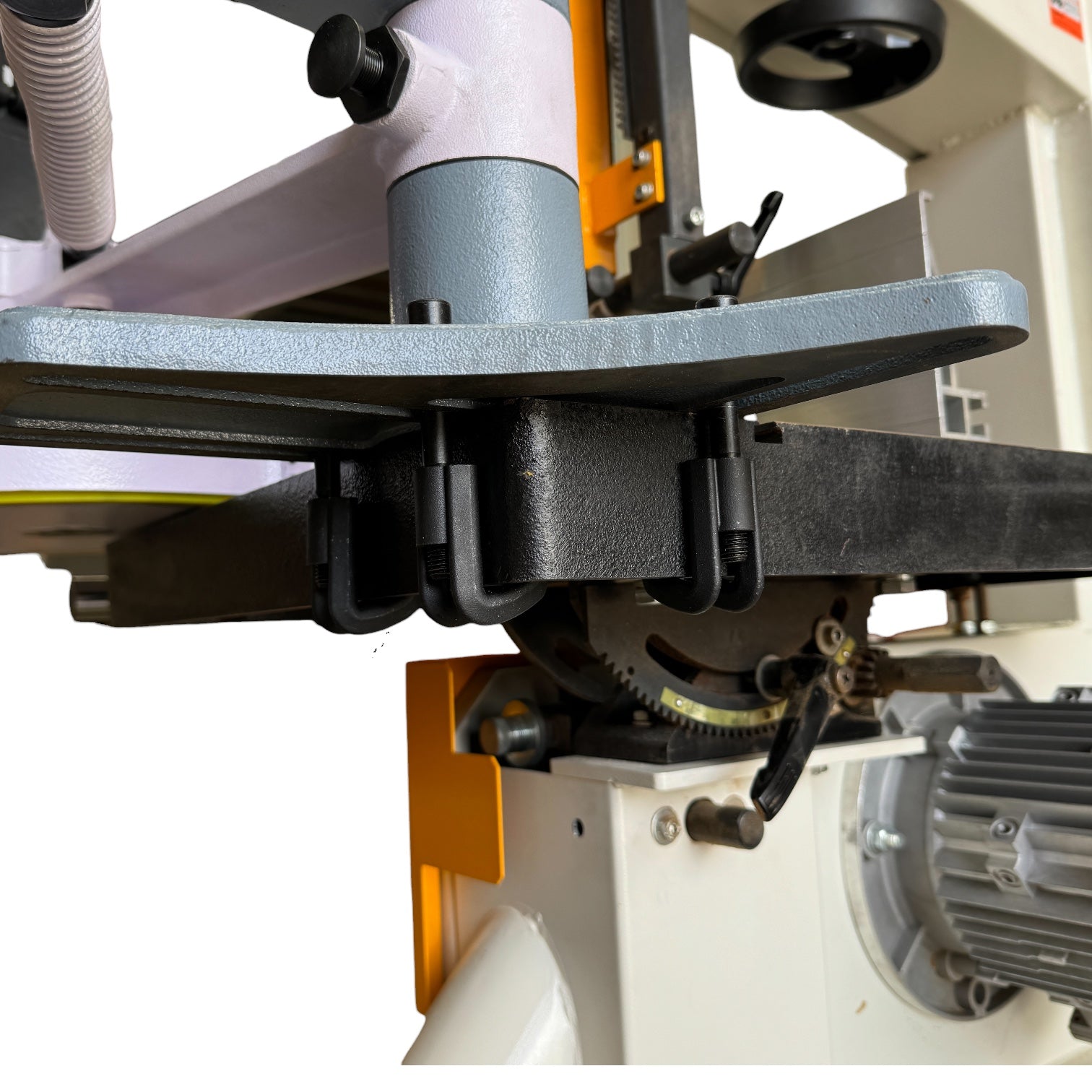

Mounting Notes
- Distance required from mounting position on corner of table to tip of blade: 370mm to 469mm (14.5" to 18.5")
- May need to add extension if too small
Additional Information
Optional Accessories
