Description

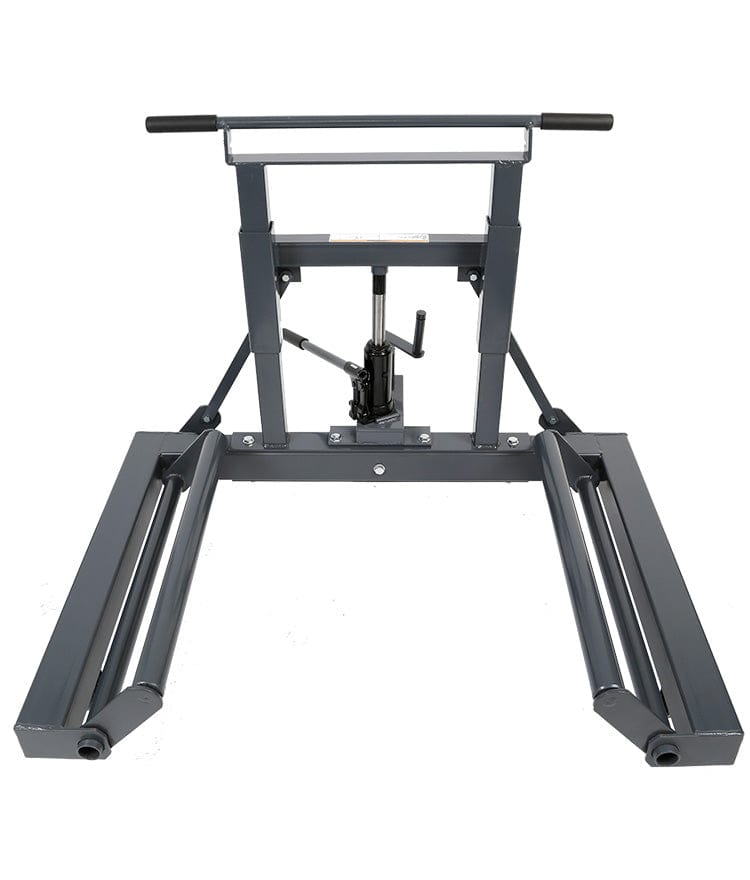

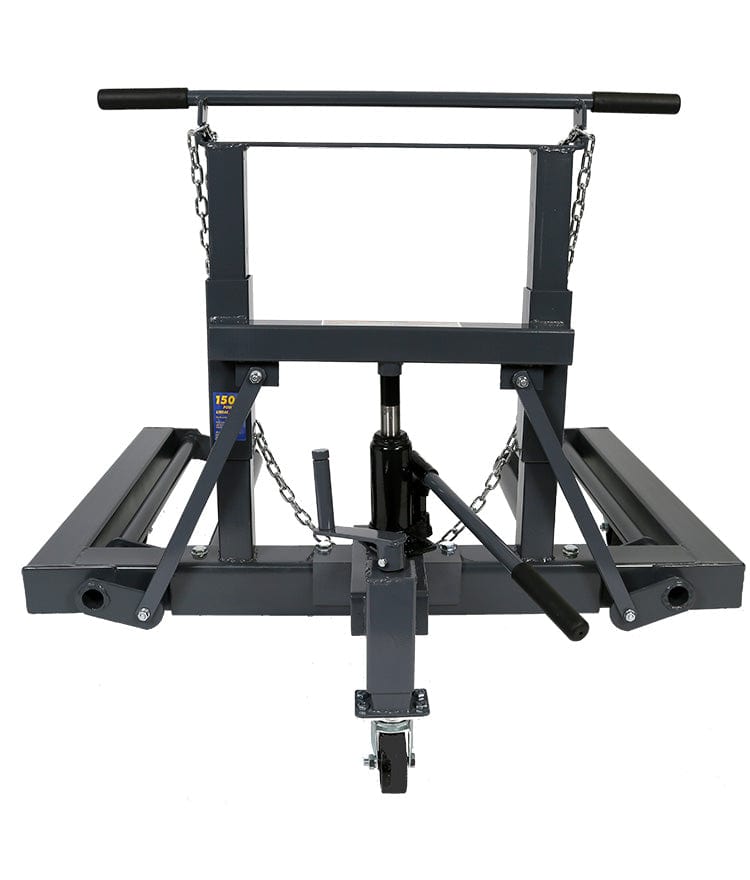

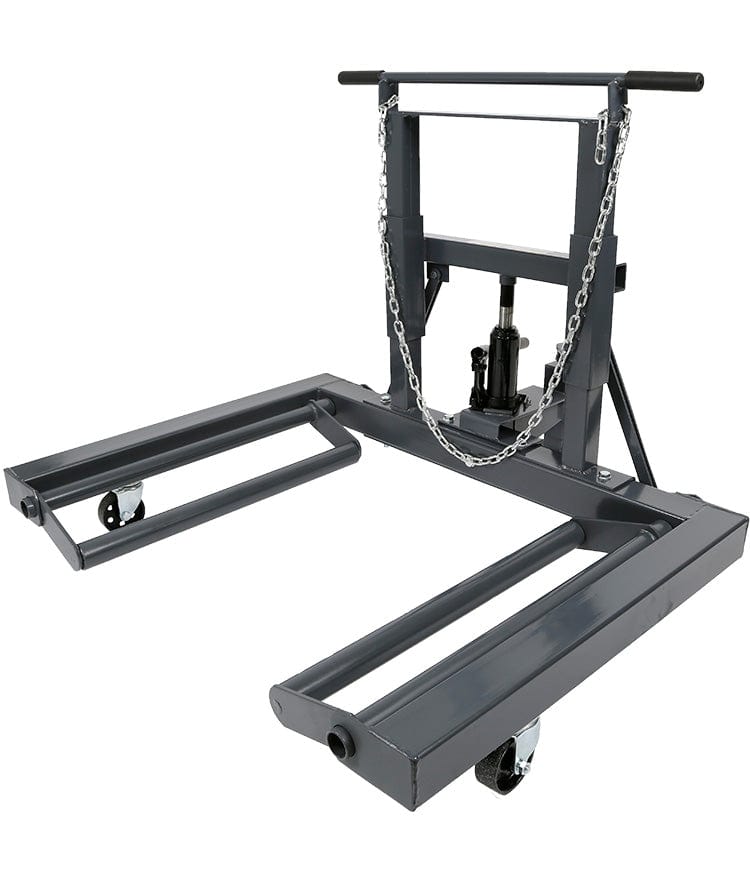

This Borum Industrial Hydraulic Truck Wheel Lifter is designed for the removal, installation and transportation of single, tandem and duplex truck tyre and wheel combinations. Hydraulically activated lift arms handle wheel assemblies up to 400mm frame with tilt feature that aligns lift arms with spindle angle. Three ball bearing mounted castor wheels provide positive stability and easy maneuverability. Bearing mounted lift arms easily rotate vehicle rim for bolt pattern alignment.
Features
- Hydraulic system actuated to provide smooth, positive power for the removal and installation of single, tandem and duplex tyres and wheels
- Heavy duty steel frame tilts to allow precise positioning of truck tyres.
- Supports heavy commercial rims and tyres

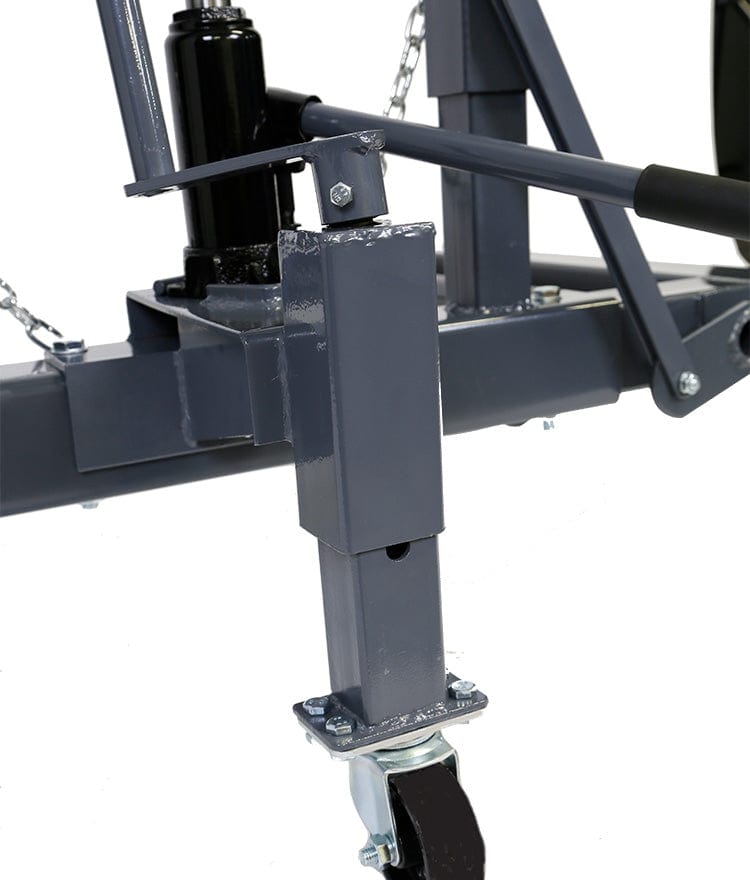

- Rolls easily on quality steel bearing castors
- Includes heavy duty chain to keep load secure
- Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
- Paint finish is oil, grease and dirt-resistant for easy cleanup
Specifications
- Safe Working Capacity: 750kg
- Max. Tyre Diameter: 1300mm
- Lift Arm Length: 660mm
- Lift Arm Spread: 533mm (min) to 635mm (max)
- Lifting Range: 60 - 275mm
- Tilt Range: -2.5 to 10 degrees
- Hydraulic Ram Travel: 100mm
- Dimensions: 787(L) x 1092(W) x 895(H)mm
- Weight: 70kg
Intended Use
Designed to facilitate the removal and installation of pneumatic tyres and wheel assemblies on earth movers, trucks, buses and trailers.
Additional Information
Model
Type
SKU
8728098
Part Number
BTWD750
Barcode
9332105010211
Brand
Beyond Tools
Technical - Main
Working Load Capacity
750kg
Dimensions
Product Length
787mm
Product Width
1092mm
Product Height
895mm
Product Weight (Net Weight)
70kg
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Weight (Gross)
70.48kg
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
What's Included
TradeQuip Truck Wheel Lifter 750Kg BTWD750
£526.00
