Description
Features

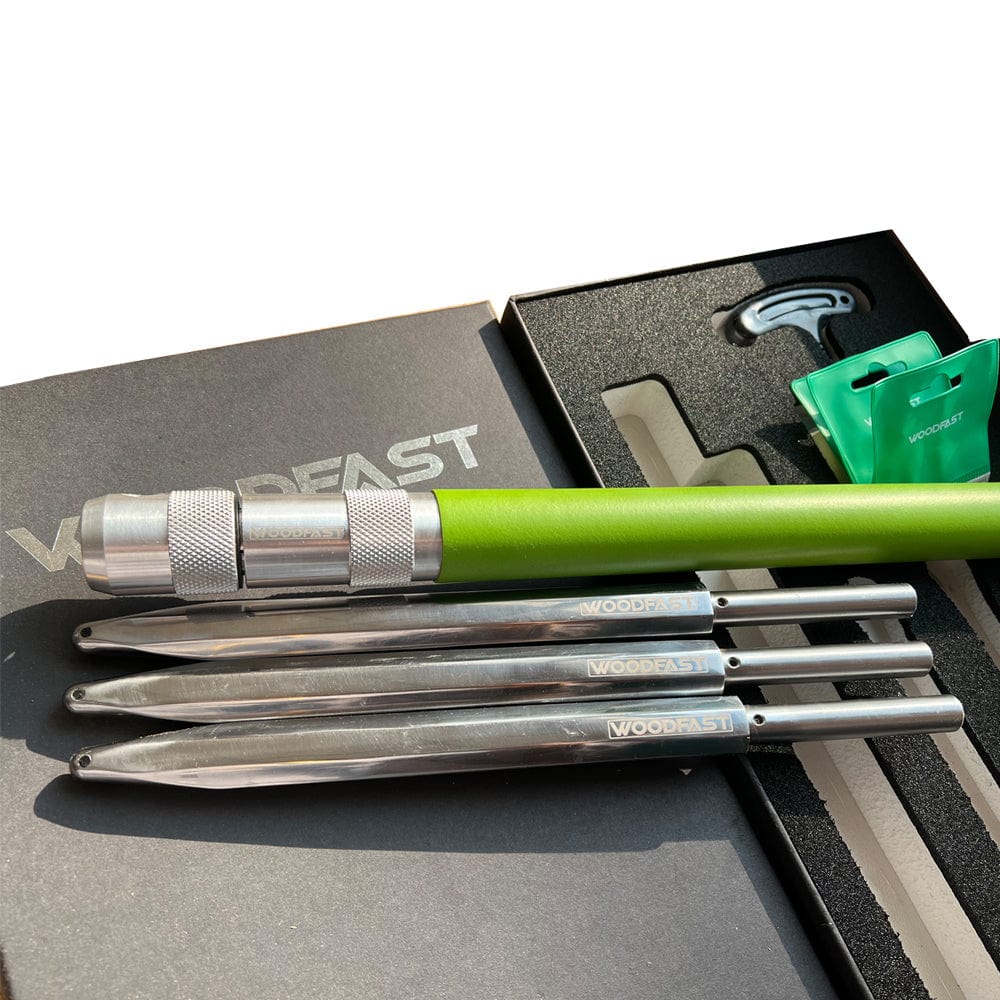

- System includes a 16” long, machined aluminium Handle with an anti-vibration grip that features a unique forward chucking system
- Simply unscrew the knurled chuck collet to insert any of the three supplied shafts with carbide cutters, tighten the chuck collar, and you are ready to turn
- Three, 8-3/8” steel Shafts are supplied with either a Circle, Square or Diamond shaped carbide Insert Cutter secured to their end with a T20 screw
- The finely machined shafts have bottoms that are milled with a flat, and 2 side bevels for extra stability on the tool rest when turning
- The two side bevel surfaces also give the user extra support when the cutter is shifted to an angled skew position for shear cutting action

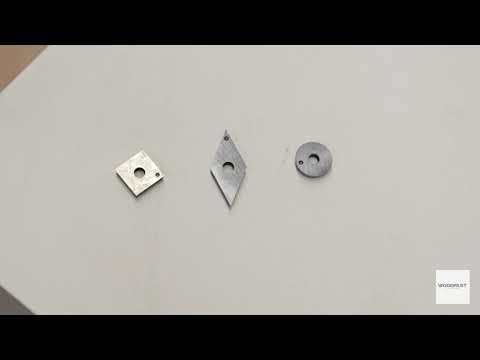

Cutters Specifications
- Material: Tungsten Carbide
- Shapes: Square, Round, & Diamond
- Square Cutter Size: 13mm x 13mm x 3.2mm
- Round Cutter Size: 14mm Diameter x 3.2mm
- Diamond Cutter Size: 31mm x 13.8mm x 3.2mm (Tip 48°)
- Mounting Hole Size: 4.2mm Diameter

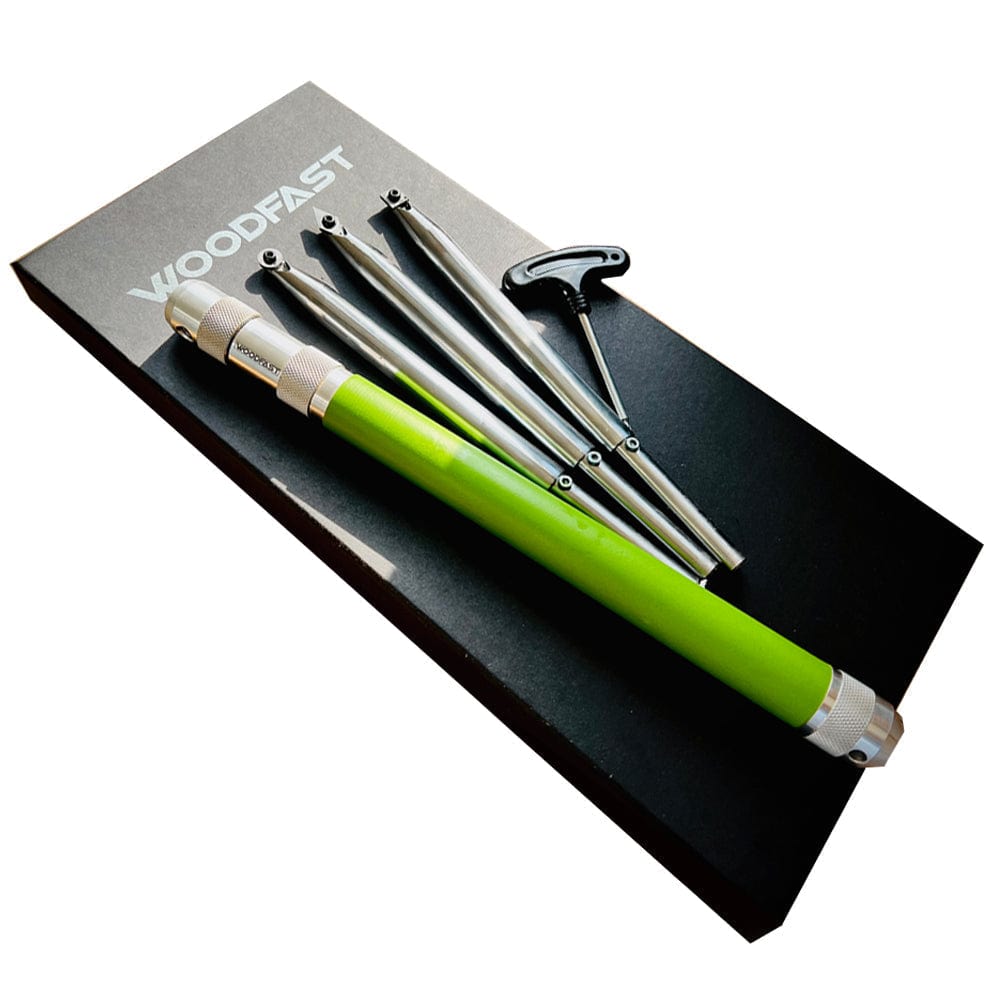

Standard Accessories
- 16” Handle
- 3 x Shafts
- 3 x Carbide Cutters – Shapes: Square, Round, & Diamond
- Square Cutter Size: 13mm x 13mm x 3.2mm
- Round Cutter Size: 14mm Diameter x 3.2mm
- Diamond Cutter Size: 31mm x 13.8mm x 3.2mm (Tip 48°)
- Mounting Screws
- Star Wrench
- Manual
- Storage Box
