Woodfast 315mm (12") 2.6m Sliding Panel Saw 3HP 240V & 5.5HP 415V PS315B

The Woodfast TS315B panel saw is designed for precision, power, and efficiency in a compact yet robust form. Featuring a powerful motor and an extended 2.6m sliding table, this saw ensures accurate and fast cuts, making it perfect for woodworking professionals and serious enthusiasts alike.

Not every workshop requires a large industrial panel saw, but a fully featured, space-saving alternative can be a game-changer. The TS315B is built with a heavy-gauge steel chassis and a durable grey cast iron table, providing exceptional stability and vibration-free operation. Its real panel saw trunnion enhances accuracy, delivering a premium cutting experience.

Features

• Available in 240V (3HP) & 415V (5.5HP) to suit different workshop setups

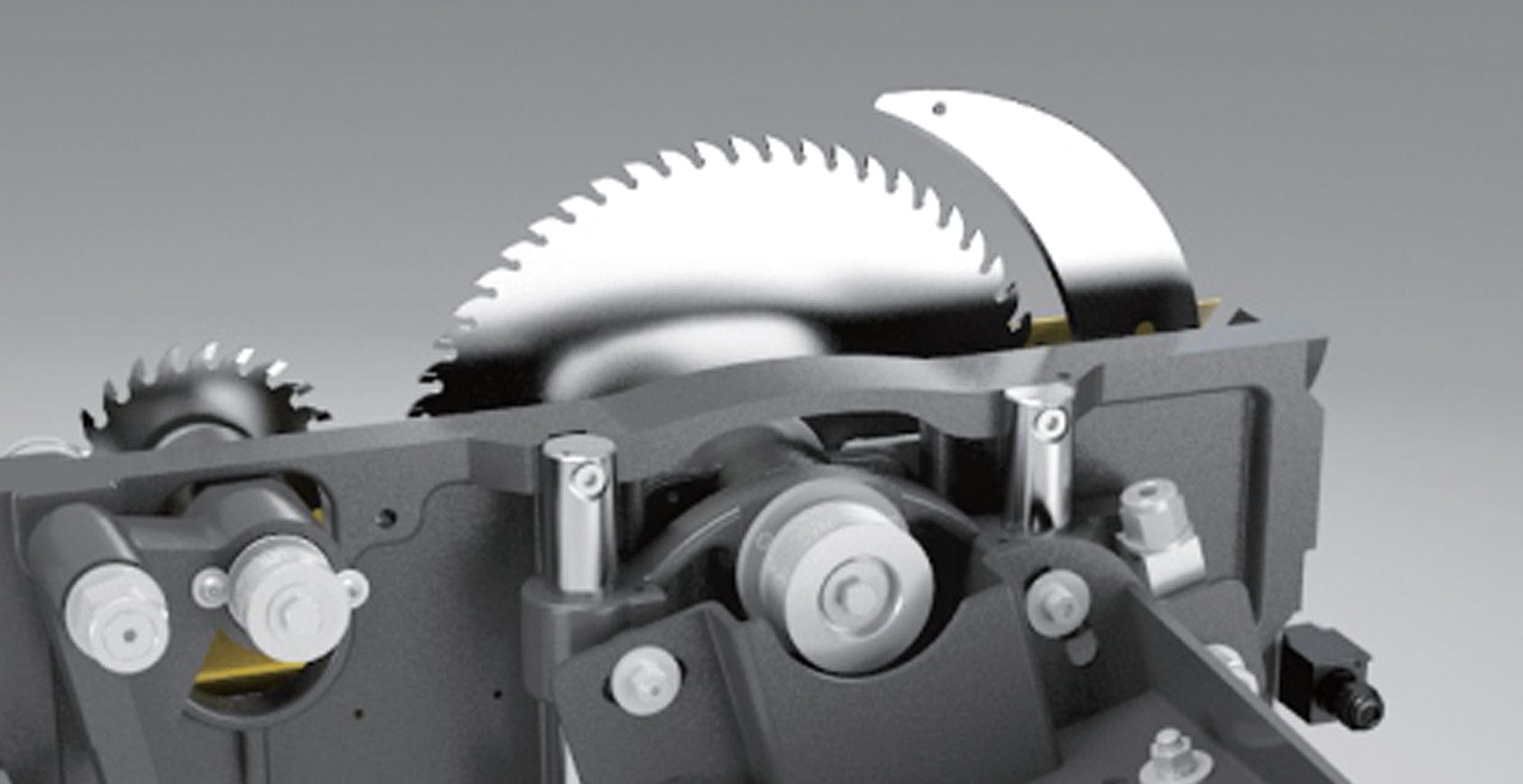

• Cast iron saw unit for superior support and reduced vibration

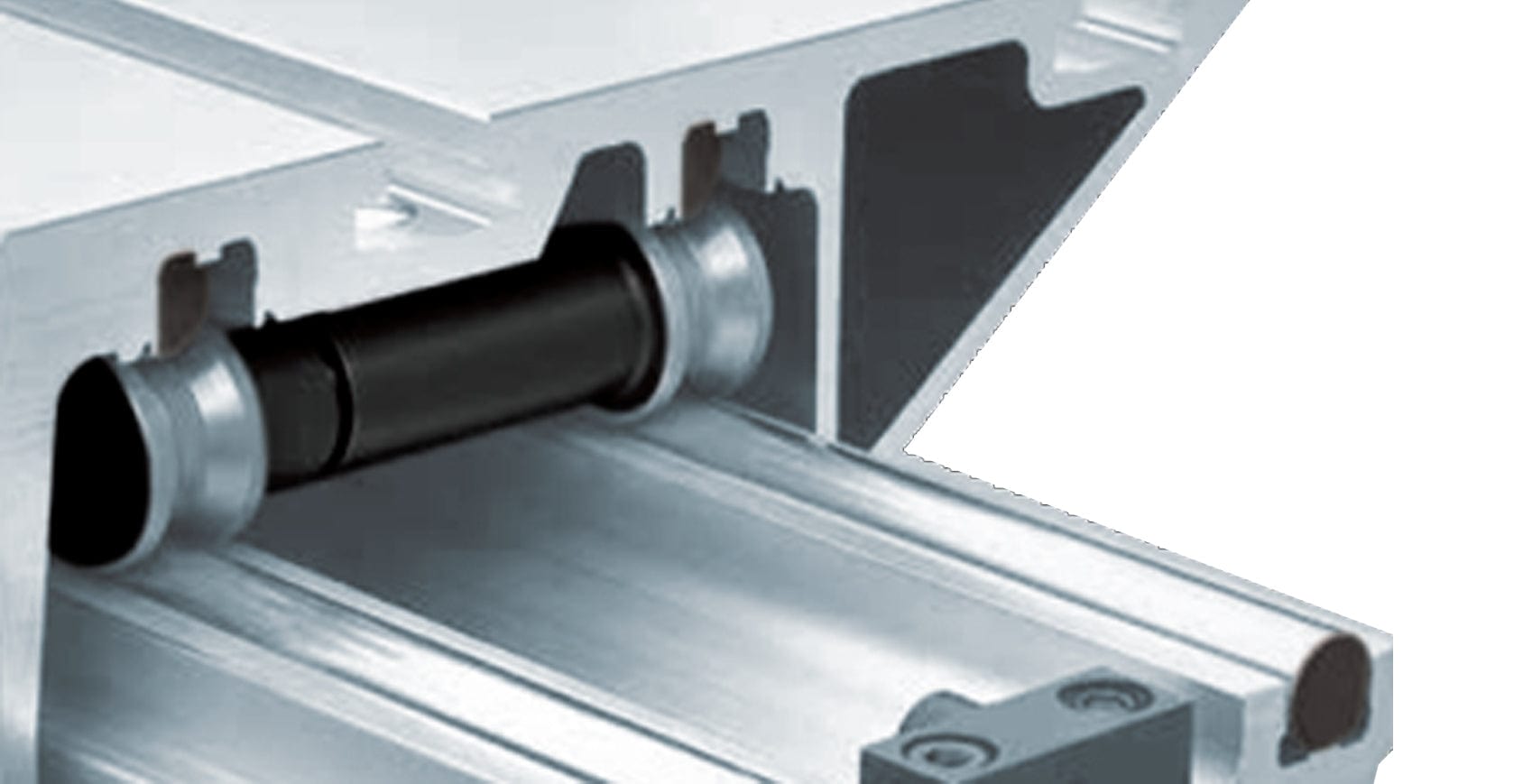

• Ball-bearing rollers on precision-ground prismatic guides for ultra-smooth sliding and cutting
• Electric rise & fall with tilting function (0-45°) for ease of adjustment

• Digital tilt angle readout for increased precision

• Large sectional cross-cut fence with stops for repeatable accuracy

• Solid cast iron rip fence with aluminium profile mounted to a sturdy 50mm bar

Specifications

• Main Motor Power: 3HP (240V) / 5.5HP (415V)
• Main Blade Speed: 4000 RPM
• Scoring Motor Power: 1HP
• Scoring Blade Speed: 8000 RPM
• Blade Tilt: 0-45°
• Major Table Size: 800mm (530+820mm)
• Sliding Table Size: 2600 x 312mm
• Sliding Table Cutting Capacity / Rip (Blade to Rip Fence): 1250mm
• Maximum Cut Depth: 95mm at 90° / 67mm at 45°

Optional Accessories

• Angled Cutting Device
• 100mm Dust Hose
  ✔ Hose Clamps + Fittings
  ✔ FM Series Dust Collector
