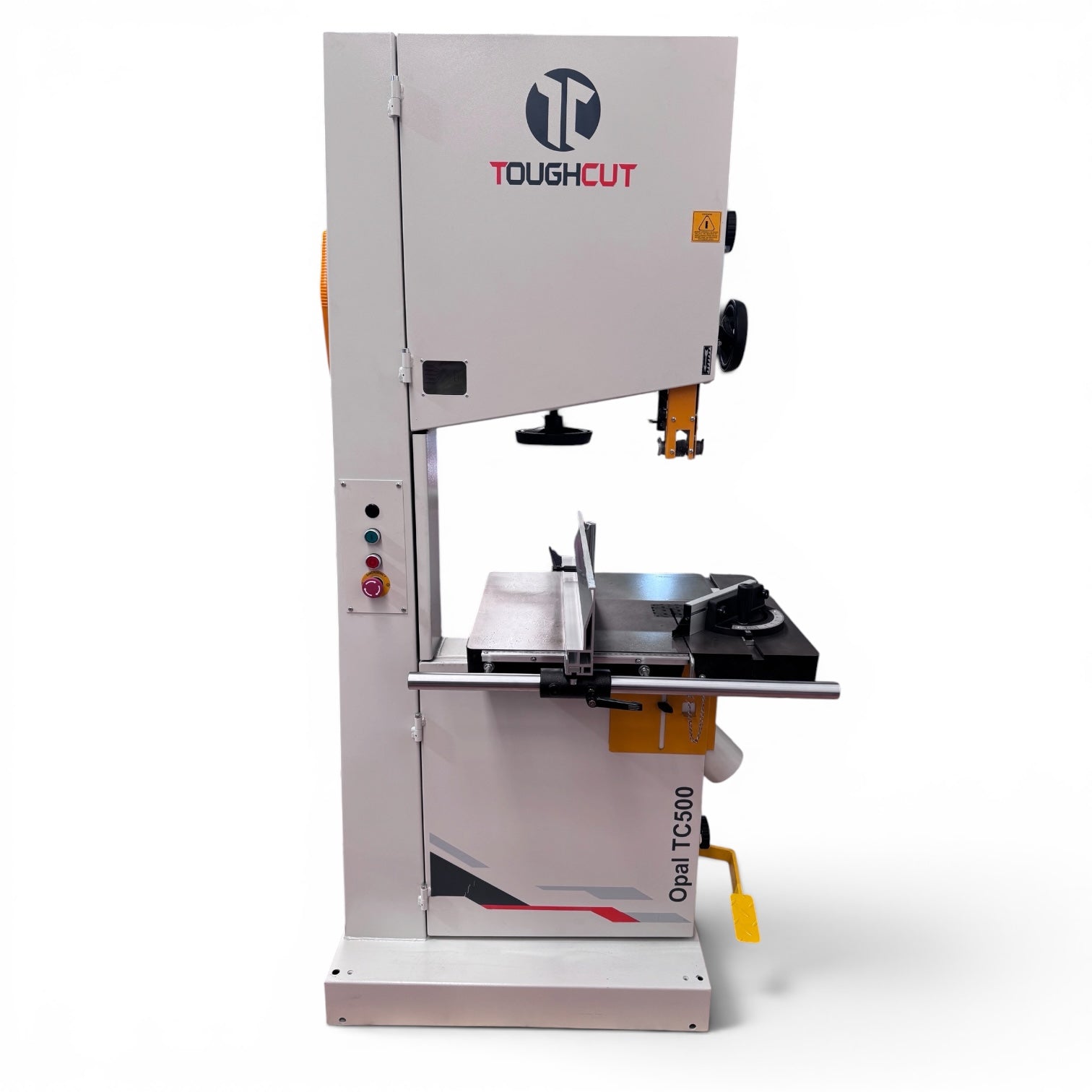

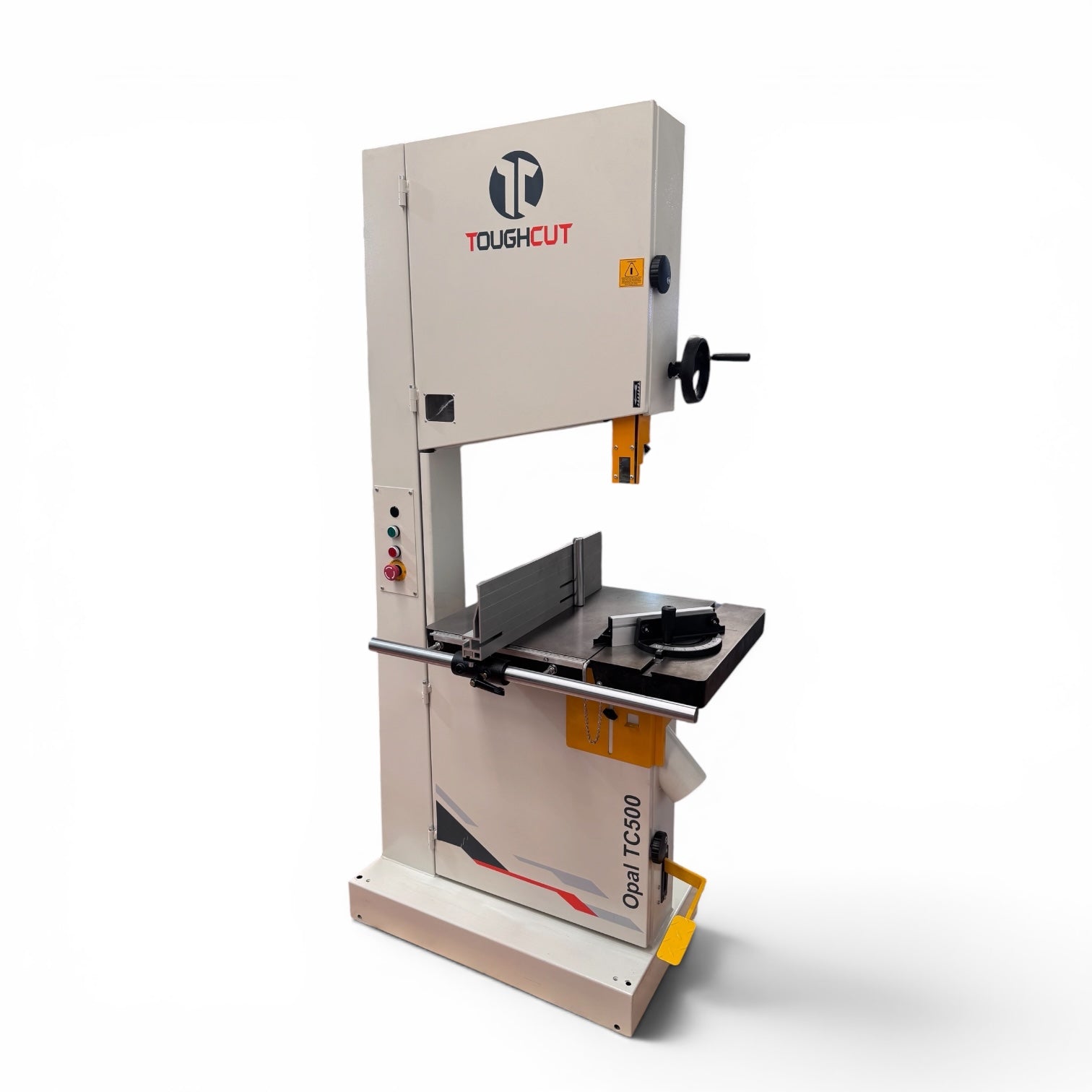

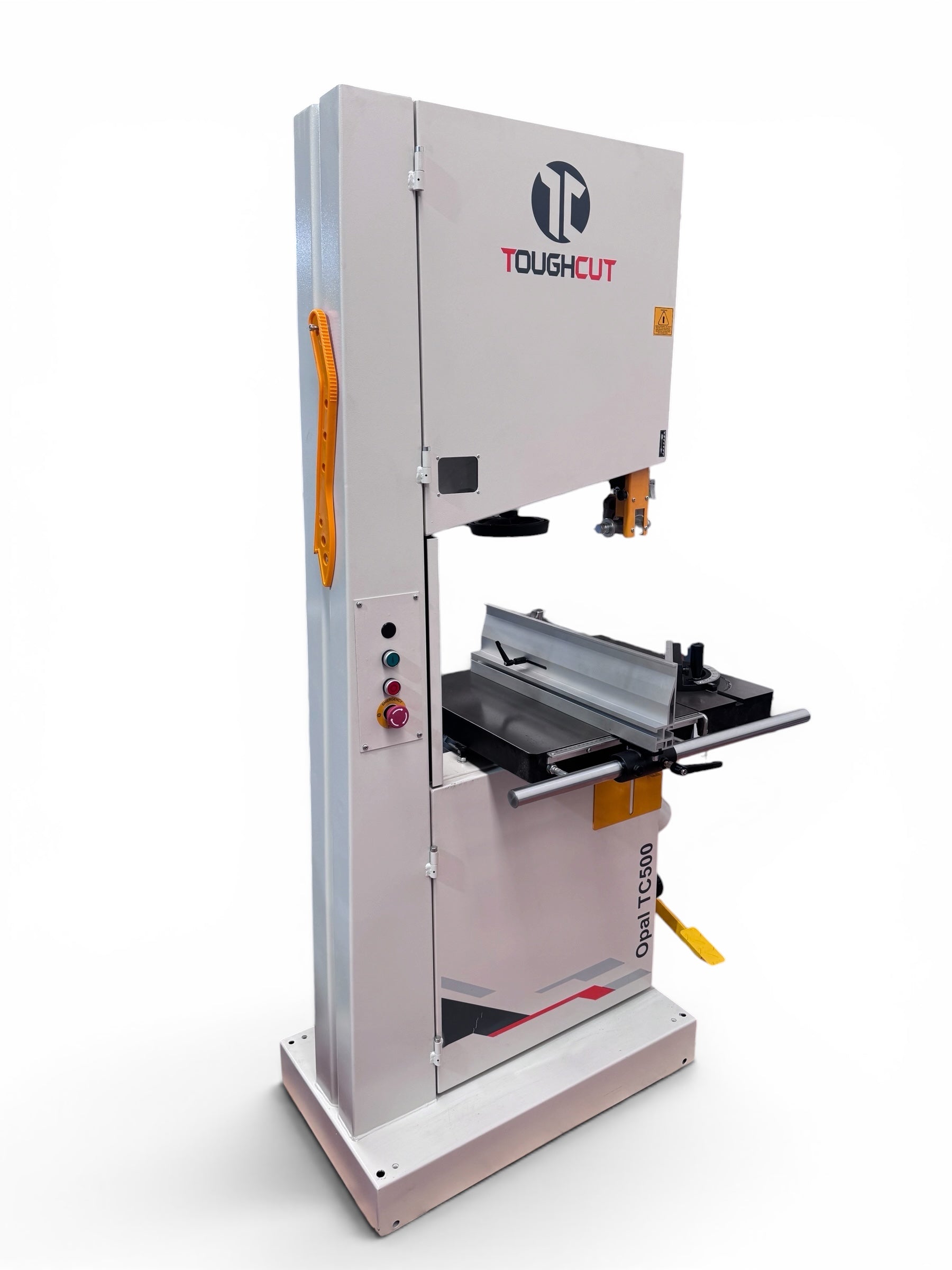

*Special Order* 500mm (20") Industrial Bandsaw Opal TC500 by Toughcut
*Special Order* 500mm (20") Industrial Bandsaw Opal TC500 by Toughcut
Roll over image to zoom in Click on image to zoom
*Special Order* 500mm (20") Industrial Bandsaw Opal TC500 by Toughcut*Special Order* 500mm (20") Industrial Bandsaw Opal TC500 by Toughcut

*Special Order* 500mm (20") Industrial Bandsaw Opal TC500 by Toughcut

Save 27%
ToughCutSKU: 8000907
Price:
$3,500.00 $4,799.00

Tax included Shipping calculated at checkout

Stock:
In stock (6 units), ready to be shipped

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

CLICK HERE to Shop our Sale!

Downloads

Description

Features

  • 305mm Re-Saw Capacity
  • Dual 4″ Dust Ports
  • Double Bearing Blade Guide System
  • Thickened Large Cast Iron Table with T Slot Design
  • Fully Enclosed thickened Steel Body
  • Quick Release Blade Tension
  • Hinged Blade Guard with Sight Window
  • Rack and Pinion Saw Blade Guide

Additional Information

Model
Type
Bandsaw
SKU
8000907
Series
Opal
Part Number
OPAL TC500
Brand
ToughCut
Size
500mm (20”)
Size*
500mm (20”)
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP / 3000W
Bandwheel
500mm
Bandwheel Diameter
3962mm
Blade Length
3962mm
Blade Width
6-30mm
Cutting Capacity - Height
335mm
Throat Capacity
480mm
Table Size
633mm x 485mm
Technical - Saw
Blade (Main) - Speed
1500m / Min.
Dimensions
Product Length
1201mm
Product Width
889mm
Product Height
2017mm
Country of Origin
Designed, Researched & Developed in
Australia
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk. De-tensioning your blade will extend the life of your blade.
Induction Motor
Induction Motor
This motor operates using electromagnetic induction, which allows it to generate consistent torque and speed without the need for brushes or commutators, resulting in lower maintenance and increased durability. With its robust design, the induction motor delivers reliable power, ensuring smooth operation even under heavy loads.
Table Fence Construction
150mm High Aluminium Rip Fence with Solid Round Bar Guide Rail and Solid Cast Locking Mechanism - Fence can be fitted to either side of the work table.
Mitre Gauge Included
Push Stick Included
Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
Standard Inclusions
1 x Push Stick1 x 3962mm Bandsaw Blade1 x Mitre Gauge
Workshop (Site) Info
Electrical Connection
Excludes Plug & Lead (must be connected / installed by Licensed Electrician)
Other Requirements
Dust Extraction
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Weight (Gross)
245kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
*Special Order* 500mm (20") Industrial Bandsaw Opal TC500 by Toughcut
$3,500.00
