Description

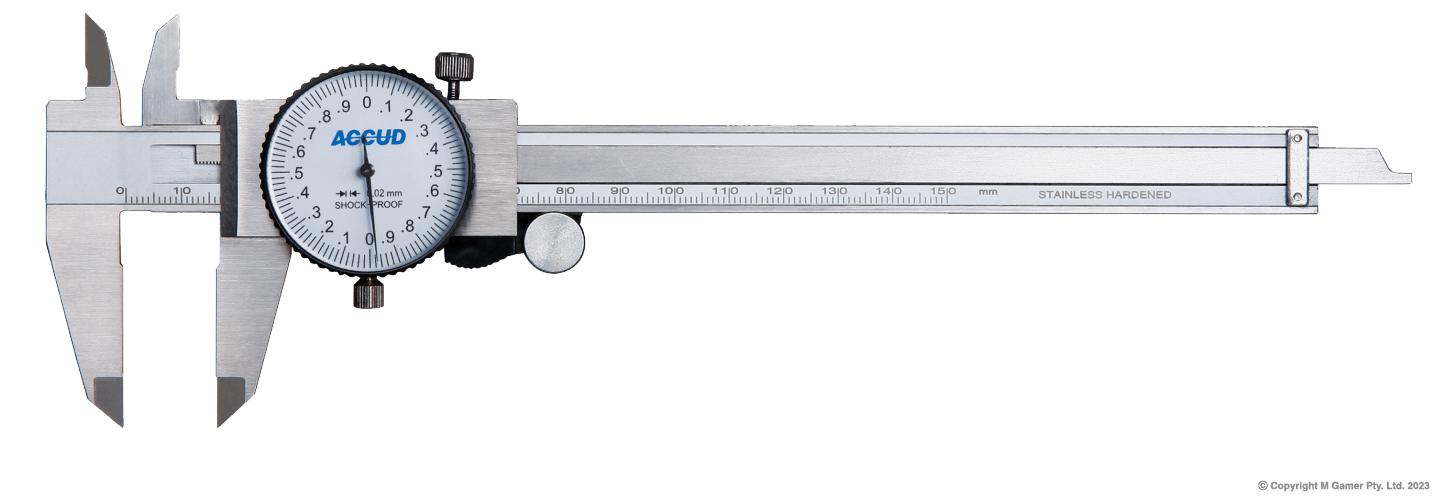

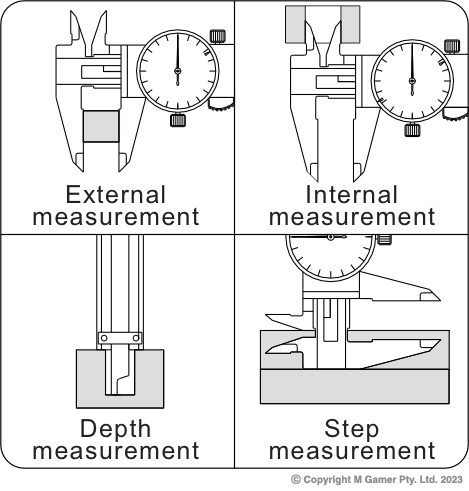

Accud Calipers are versatile precision measuring tools for internal, external, and depth dimensions. Reliable accuracy for quality control and engineering needs.
Featuresca
-
Shockproof dial indicator
-
Made of stainless steel

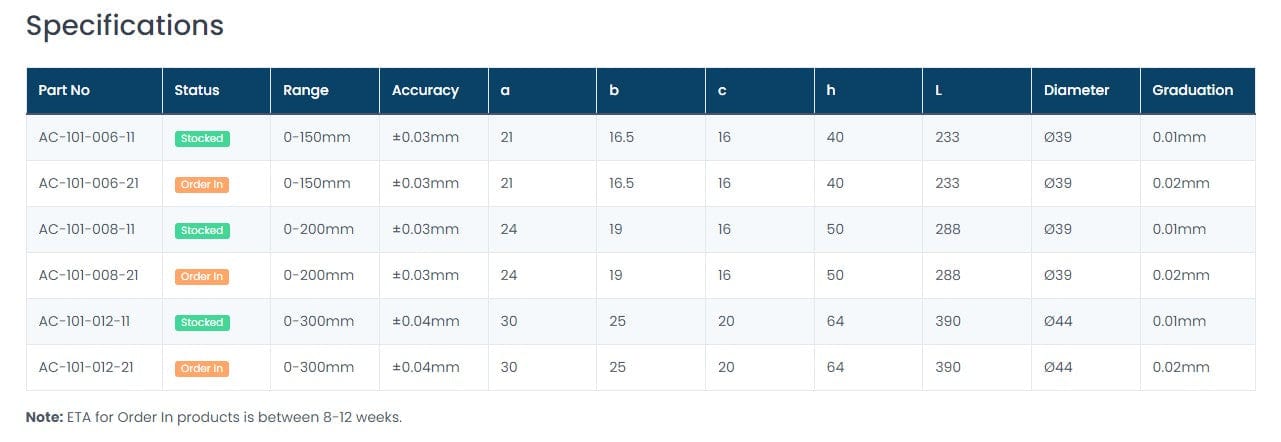

Specification

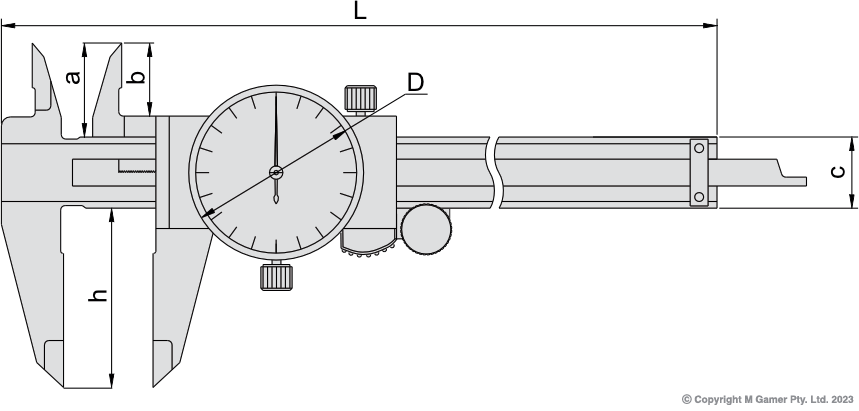

| Part No | Status | Range | Accuracy | a | b | c | h | L | Diameter | Graduation |
|---|---|---|---|---|---|---|---|---|---|---|
| AC-101-006-11 | Stocked | 0-150mm | ±0.03mm |
21 | 16.5 | 16 | 40 | 233 | Ø39 | 0.01mm |
| AC-101-006-21 | Order In | 0-150mm | ±0.03mm |
21 | 16.5 | 16 | 40 | 233 | Ø39 | 0.02mm |
| AC-101-008-11 | Stocked | 0-200mm | ±0.03mm |
24 | 19 | 16 | 50 | 288 | Ø39 | 0.01mm |
| AC-101-008-21 | Order In | 0-200mm | ±0.03mm |
24 | 19 | 16 | 50 | 288 | Ø39 | 0.02mm |
| AC-101-012-11 | Stocked | 0-300mm | ±0.04mm |
30 | 25 | 20 | 64 | 390 | Ø44 | 0.01mm |
| AC-101-012-21 | Order In | 0-300mm | ±0.04mm |
30 | 25 | 20 | 64 | 390 | Ø44 | 0.02mm |
Note: ETA for 'Order In / Special Order' products is between 8-12 weeks.
