Description
Specifications
- Major Table Size: 380 x 800mm
- Extension Table, Cast Iron: 440 x 800mm
- Extension Table, Steel Plate: 440 x 800mm
- Rear Extension Table: 310 x 500mm
- Sliding Panel Size: 1600 x 270mm
- Cross Cut Table Size: 680 x 580mm
- Cross Cut Fence: 1200 - 2200mm
- Maximum Cut Depth: 100mm at 90 ° / 80mm at 45 °
- Maximum Distance, Blade to Rip Fence: 1220mm
- Maximum Cross Cut Length: 1600mm
- Maximum Cross Cut Width: 1350mm
- Saw Blades
- 100mm Dust Hose
- Hose Clamps + fittings etc
- Dust Extractor FM Series Dust Collector
- Optional Mobility Wheel Kit (MW-1)
- Full 12Month Manufacturer's Warranty
- $750 for assembly + delivery (Metro WA)
- Please contact us for other assembly options available throughout Australasia
Additional Information
Model
Type
Panel Saw
SKU
9504836
Part Number
OT-PS-1216A
Brand
Oltre
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP / 3000W
Cutting Capacity - Height
80mm
Technical - Saw
Sliding Table (Cross Cut) Size
1600mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
315mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
90mm
Blade (Scoring) - Bore Size
20mm
Blade (Scoring) - Speed
7500RPM
Blade Tilt
90° to 45°
Workshop (Site) Info
Electrical Connection
Lead & Plug
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
910mm
Shipping Width
741mm
Shipping Height
1047mm
Shipping Weight (Gross)
350kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.

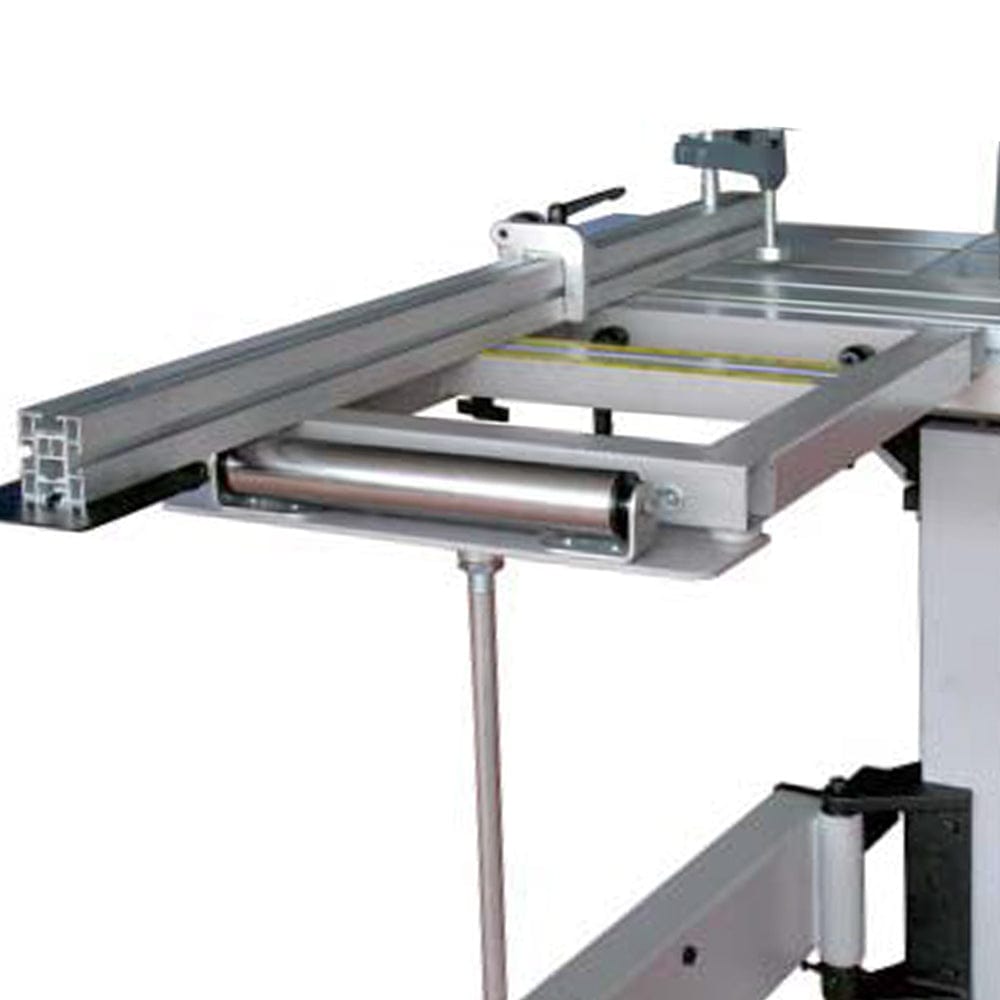

315mm (12") 4HP 1.6m Sliding Table Panel Saw 240V OT-PS-1216A by Oltre
$4,895.00
