Description
Features
- 2 Speeds
- Spring Loaded, Tool-Less Blade Guides – easy & fast setting of the guides without wrenches!
- Large Cast Iron Table
- Quick-Lock Table Trunnion System – handy lever and gear unlock and set table angles in seconds!

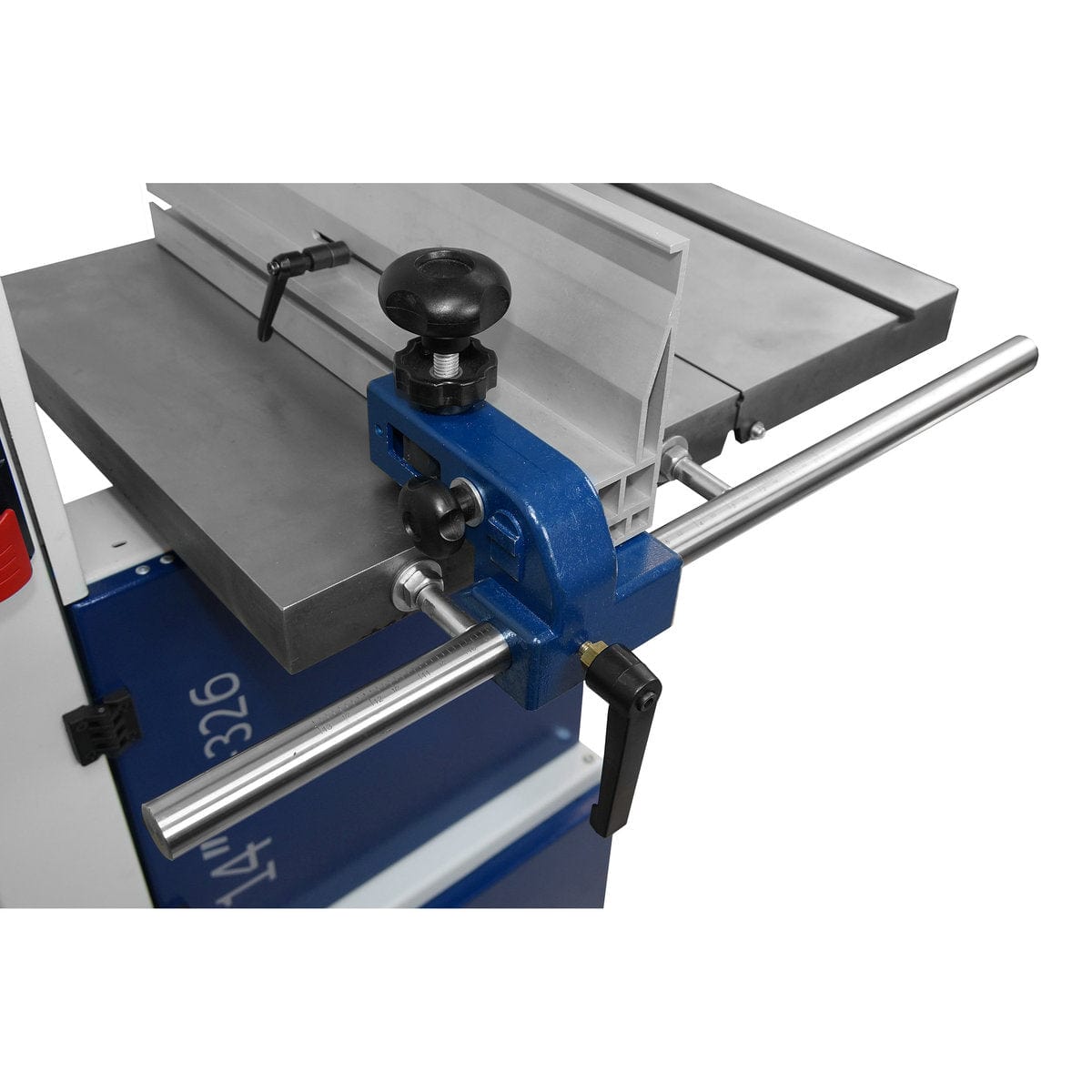

- Extra Tall Rip Fence – Increased fence and re-saw bar heights of 6” give added support of lumber being ripped or re-sawn
- Mechanical Motor Brake – Approximately 8-9 secs to come to a complete stop
- Micro-Safety Switch On Upper + Lower Doors – Prevents machine being turned on whilst doors are open

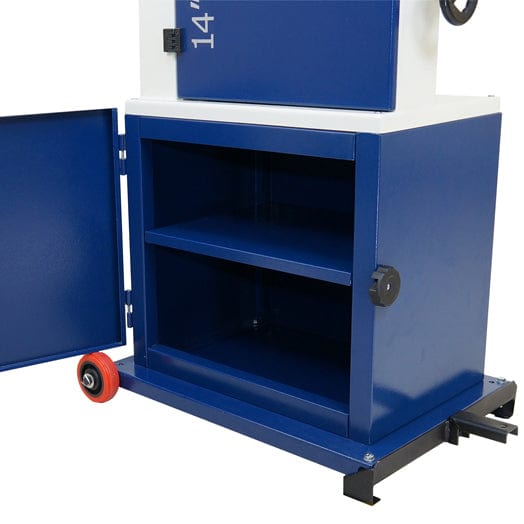

Product shown with optional Mobility Wheel Kit.
Additional Information
Model
Type
Bandsaw
SKU
9700079
Part Number
10-326
Brand
Rikon
Size
350mm (14")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
230-240V 50Hz (Single Phase)
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
1.5HP (1.11kW)
Bandwheel
Cast Iron
Blade Length
2820mm
Blade Width
6-19mm
Cutting Capacity - Height
330mm
Throat Capacity
345mm
Table Size
545 x 400mm
Speed Range
440m/min., 900m/min.
Table Size
405 x 550mm
Dimensions
Product Length
820mm
Product Width
670mm
Product Height
1810mm
Product Weight (Net Weight)
129kg
Country of Origin
Designed, Researched & Developed in
USA
Manufactured in
China
Features
Rack & Pinion
Rack & Pinion
A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack).
Tool Less Blade Guide System
Tool Less Blade Guide System
Tool Less Blade Guide System features quick adjusting, spring loaded, ball bearing blade guides for fast and easy setting to the blades.
Blade Tensioning Quick Release Device
Blade Tensioning Quick Release Device
Lever to ensure quick release of blade tensioning when not in use to help prevent blade stretching and deforming the band saw tyres, which are likely made of rubber or urethane. A stretched blade will cause the operator to increase blade tension to compensate, increasing blade break risk. De-tensioning your blade will extend the life of your blade.
Mitre Gauge Included
Push Stick Included
Drift Bar
Drift Bar
The drift bar acts as a thickness gauge and adjusts the angle of cut with the scribed line, ensuring a uniform thickness without putting undue strain on the blade.
Tilting Table
Tilting Table
A tilting table in a machine is a mechanical component designed to adjust the angle or orientation of a work surface or workpiece relative to the machine's axis of operation. This adjustable feature enables operators to position the workpiece at different angles, facilitating various machining processes such as drilling, milling, or grinding. Tilting tables are commonly found in machining centers, allowing for greater flexibility in manufacturing operations by accommodating different machining requirements and achieving precise workpiece positioning for optimal results.
Standard Inclusions
2820 x 16mm x 4 TPI BladeRip Fence AssemblyWrenchManual
Workshop (Site) Info
Electrical Connection
10Amp Lead & Plug
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
5 Years
Packaging + Shipping
Shipping Length
1400mm
Shipping Width
450mm
Shipping Height
600mm
Shipping Weight (Gross)
135kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
![](http://beyondtools.com/cdn/shop/products/10-326_120x120.png?v=1658209603)

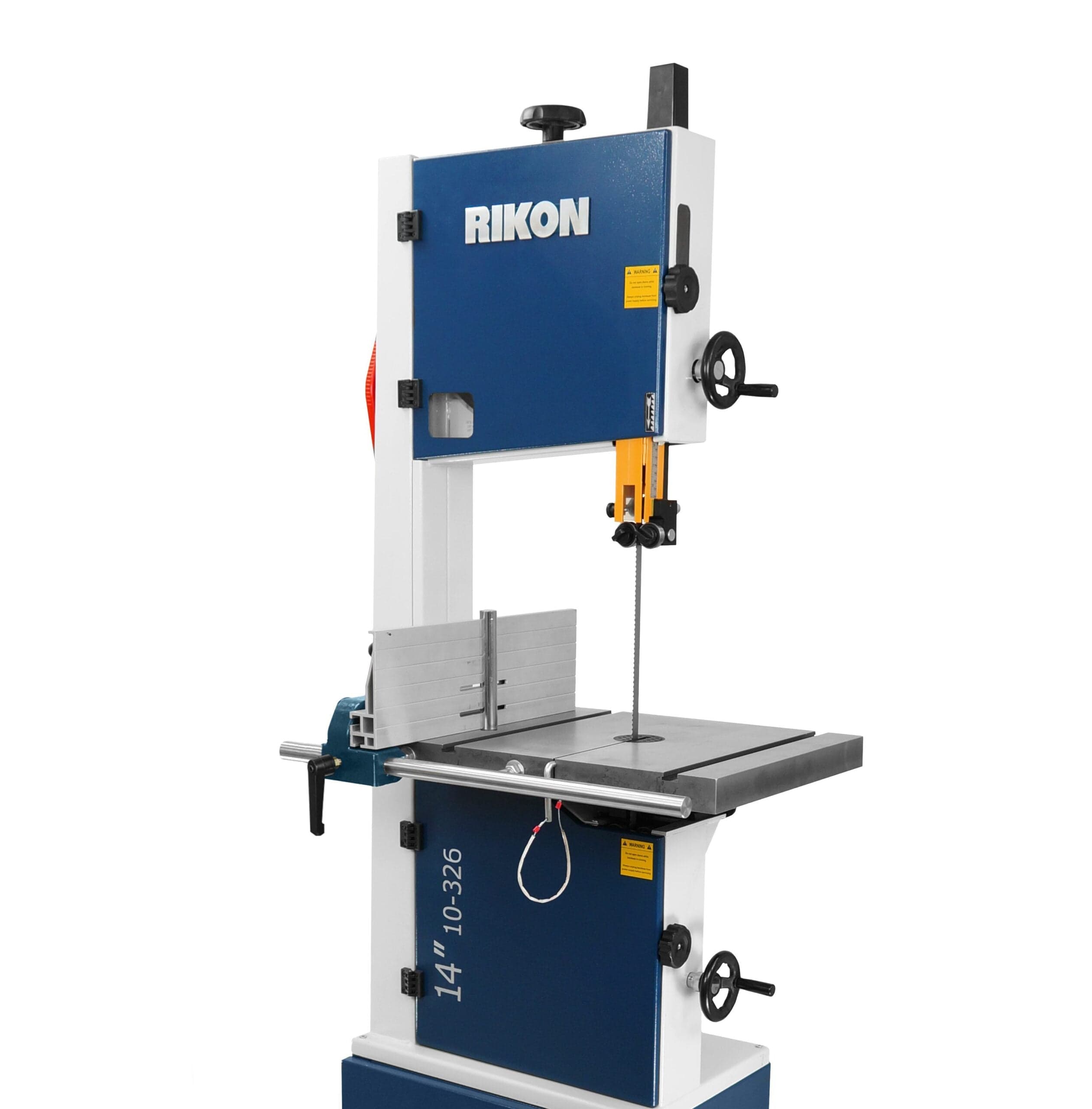

350mm (14″) Deluxe Bandsaw with 2820mm x 4-19mm Blade with Storage Cabinet 1.5HP 240V 10-326 by Rikon
$1,799.00
