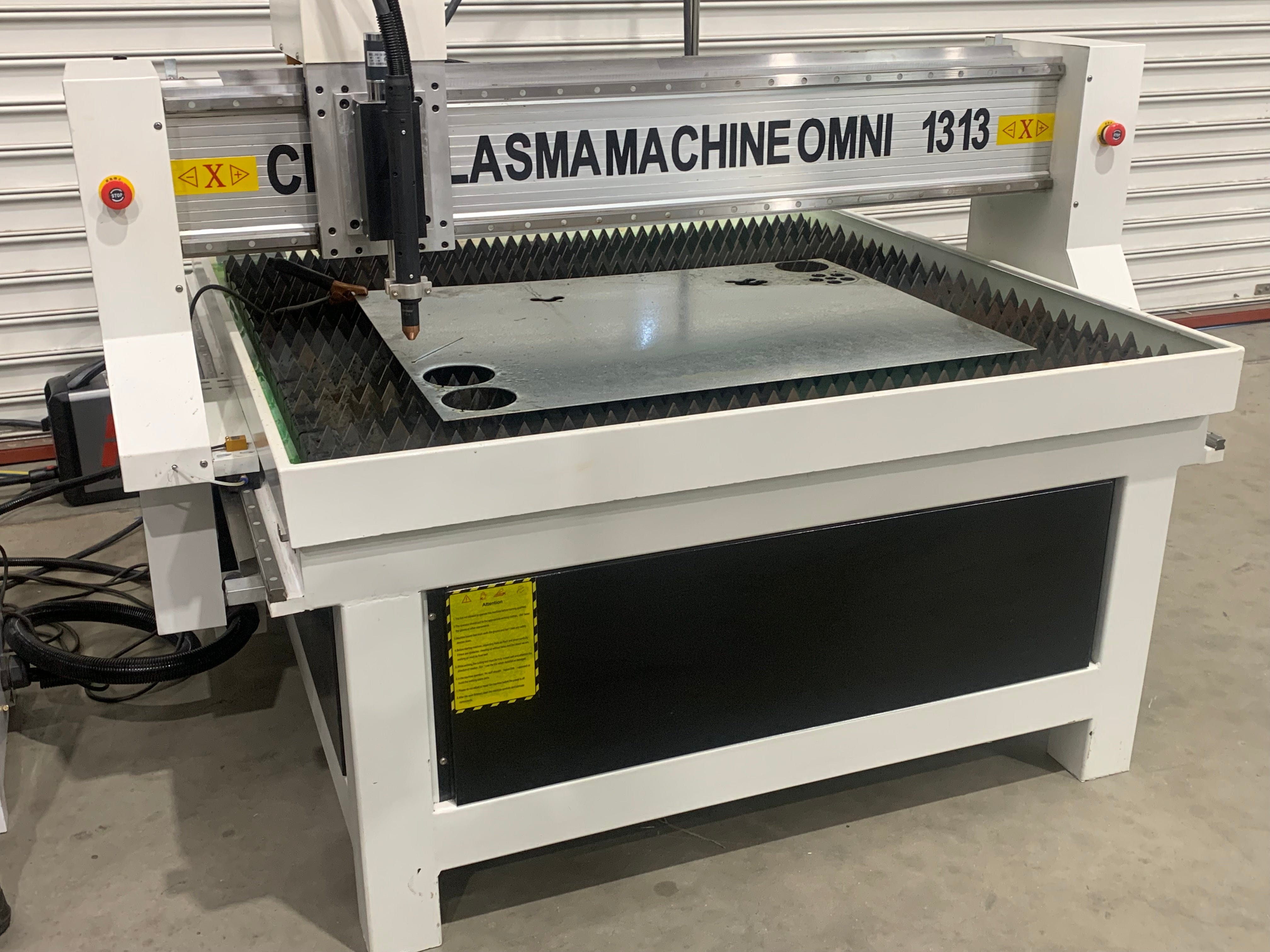

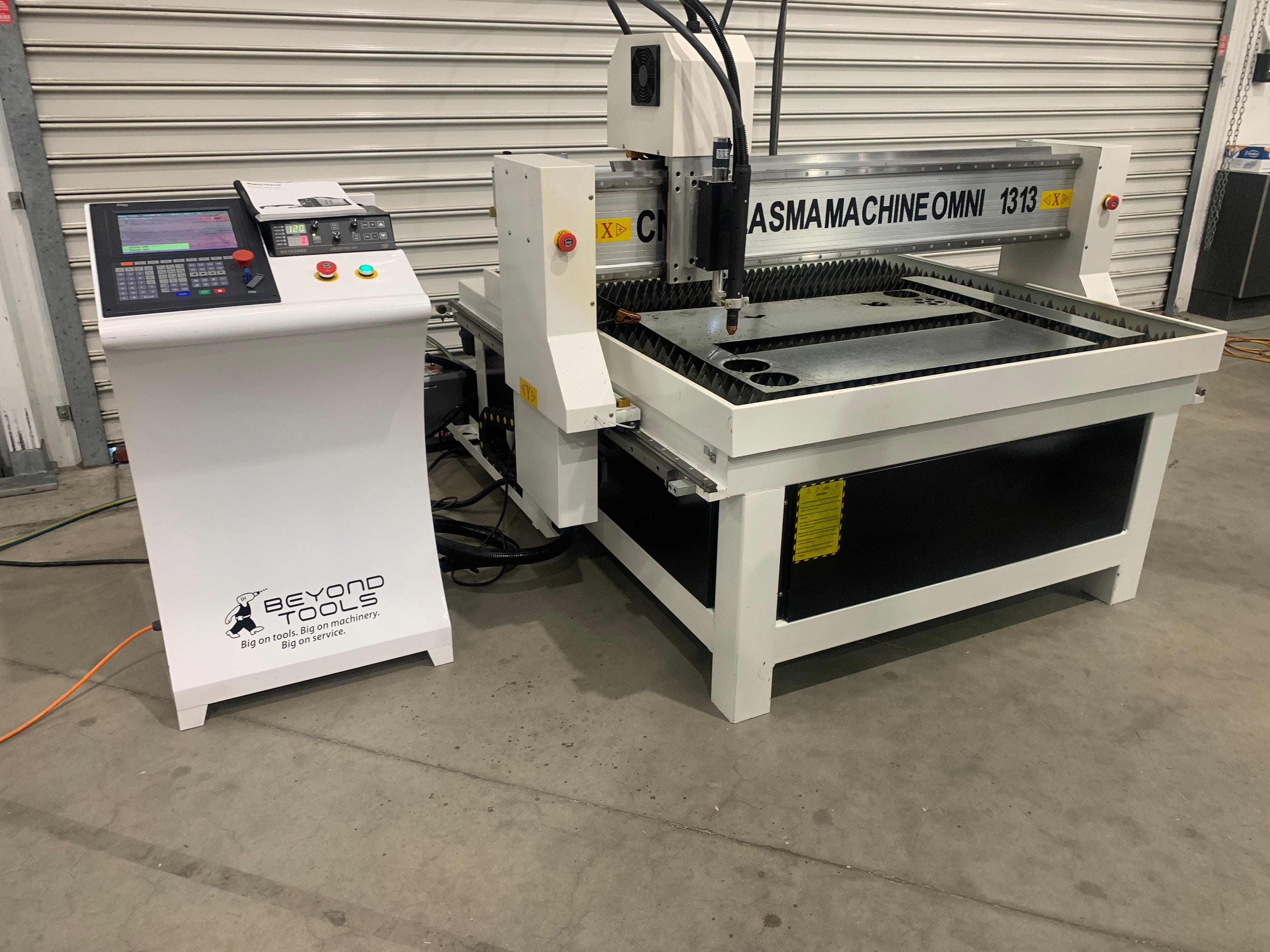

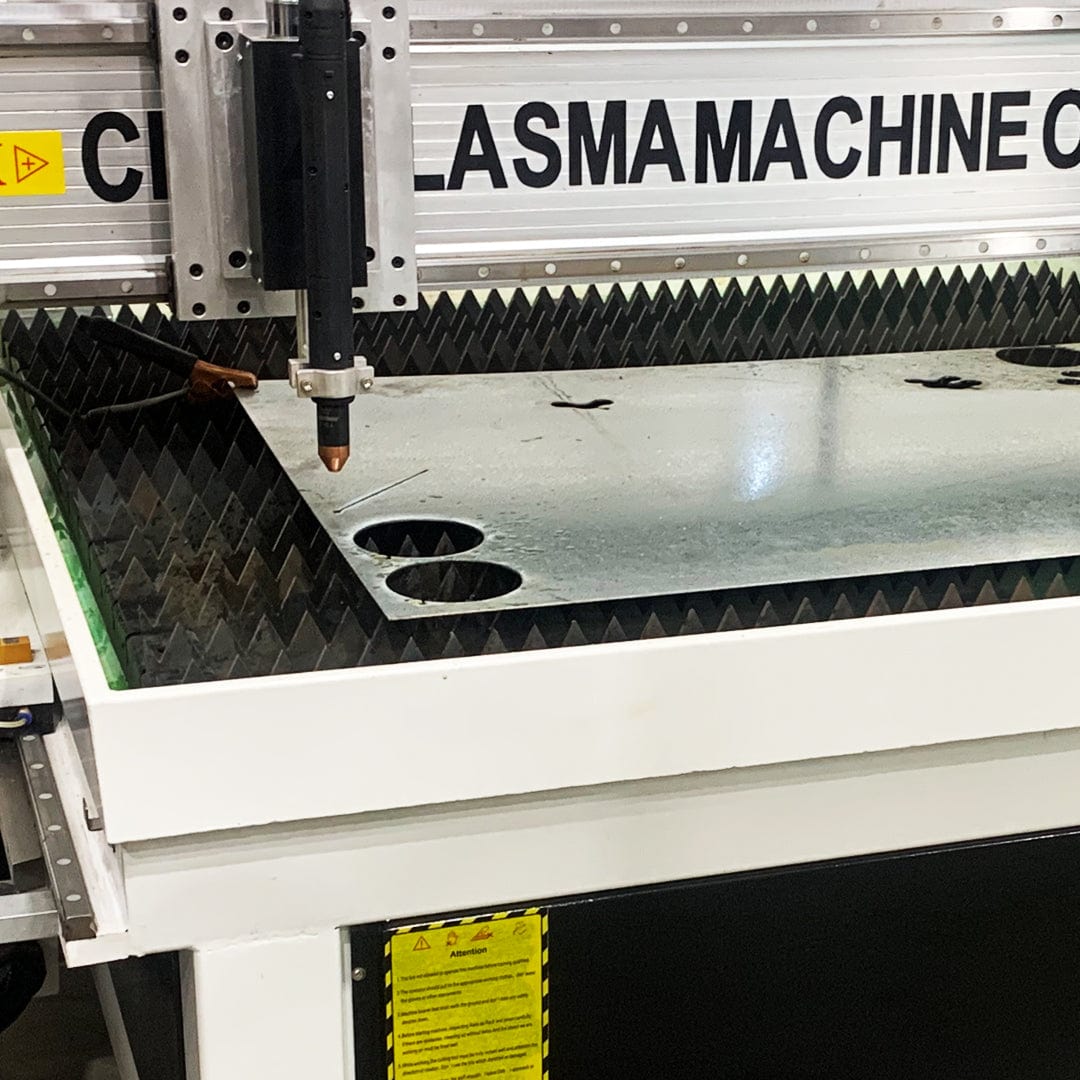

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

Roll over image to zoom in Click on image to zoom

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

1300mm x 1300mm CNC Plasma Cutter with Huayuan Plasma Generator 415V 1313 by Omni

Save 6%

OmniSKU: 9000555

Size: 1300mm x 1300mm

Variant

Price:

$15,400.00 $16,383.00

Tax included Shipping calculated at checkout

Stock:

Only 1 unit left

Quantity:

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

Share this product

Omni CNC plasma cutting machines are ideal for creating smooth cutting edge and clean cut. Ideally suited for automotive fabrication, structural steel cutting, construction, sign shops, metal fabrication, decorative fencing.

Features

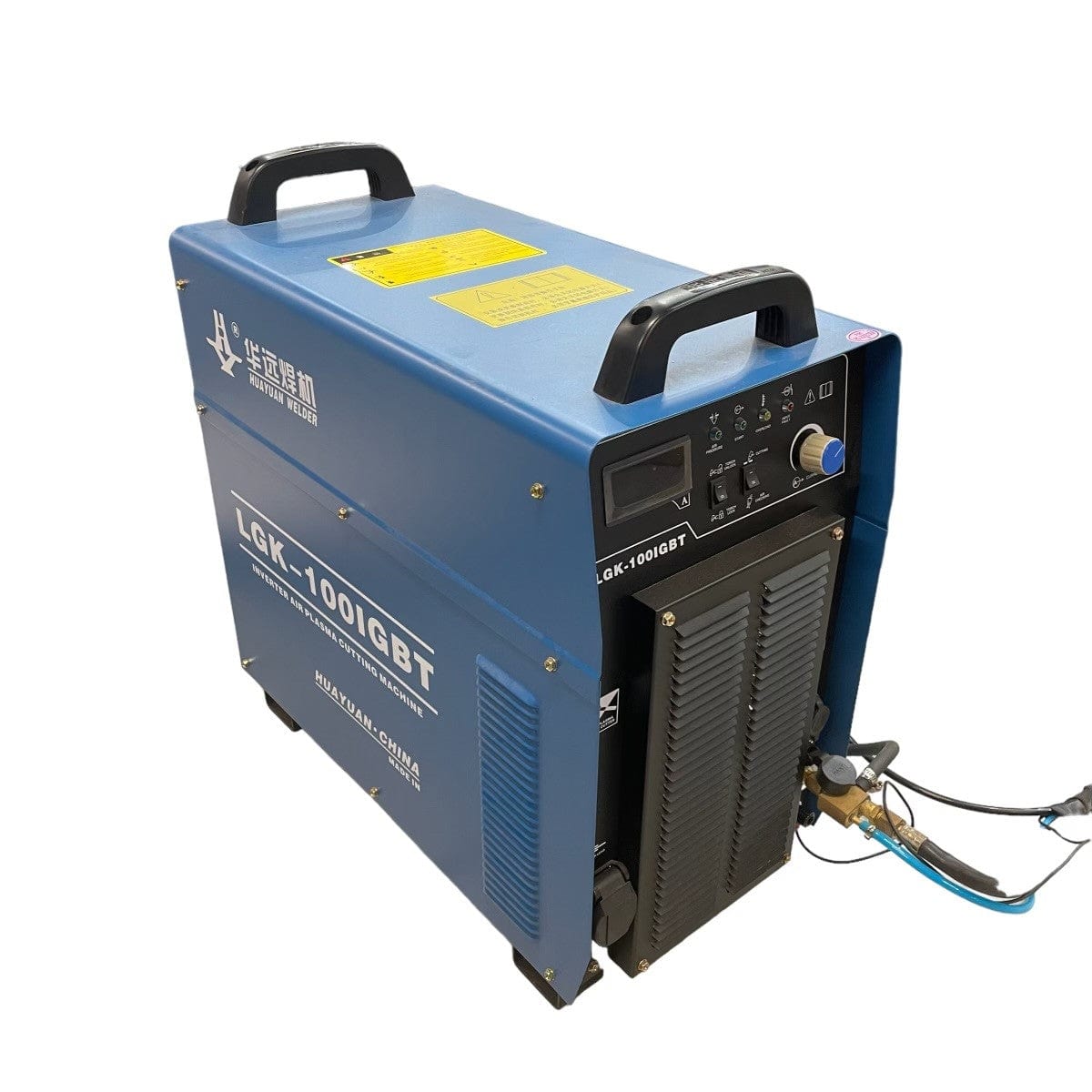

Plasma Generator: Huayuan Plasma
- System Output Current: 45A
Torch:
- Duramax ® Lock torches are designed for high-impact and heat resistance
- SpringStart technology ensures consistent starting and optimum torch performance

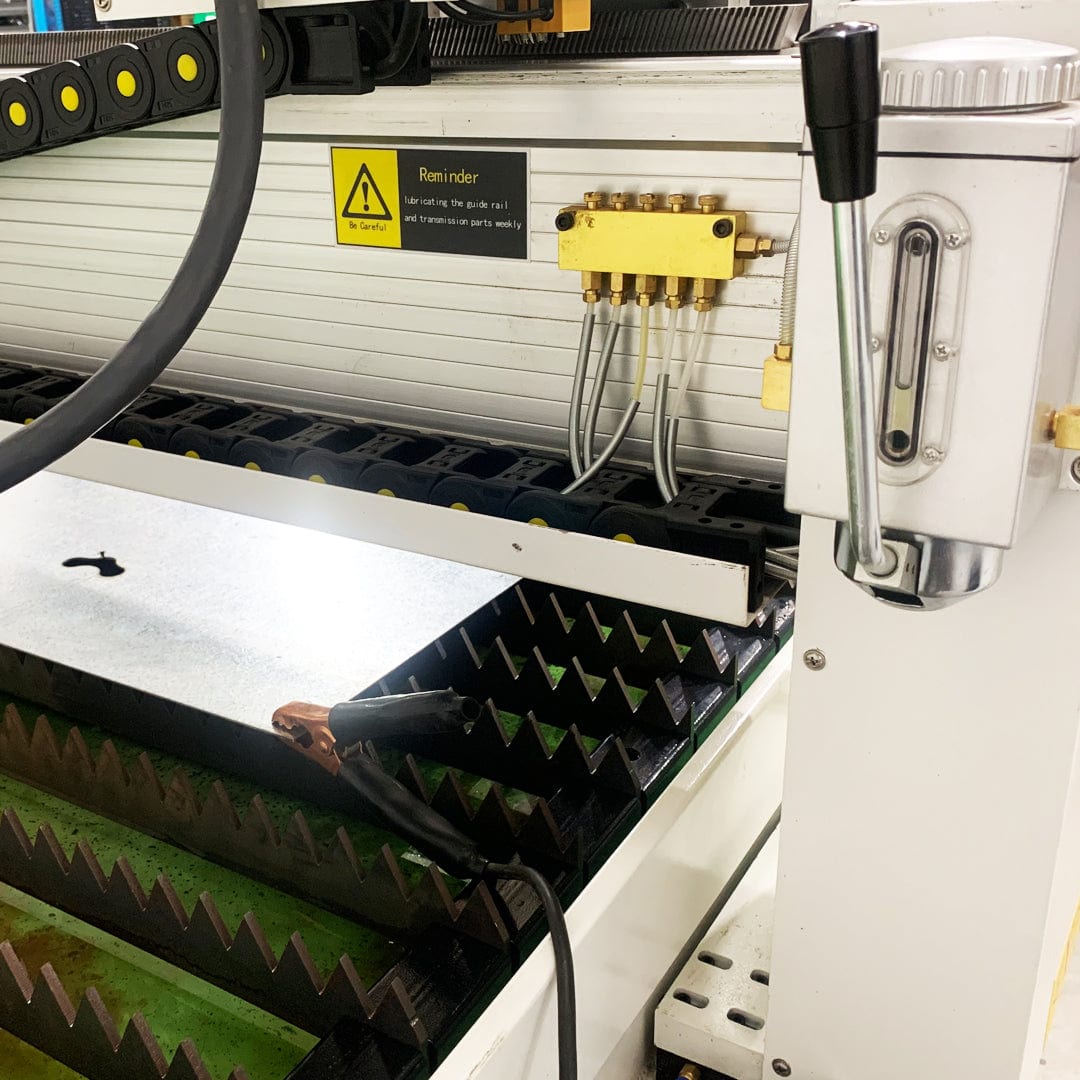

Hiwin Square Guide Rails and Bearings, Helical Rack and Pinion on X,Y, Z Axis

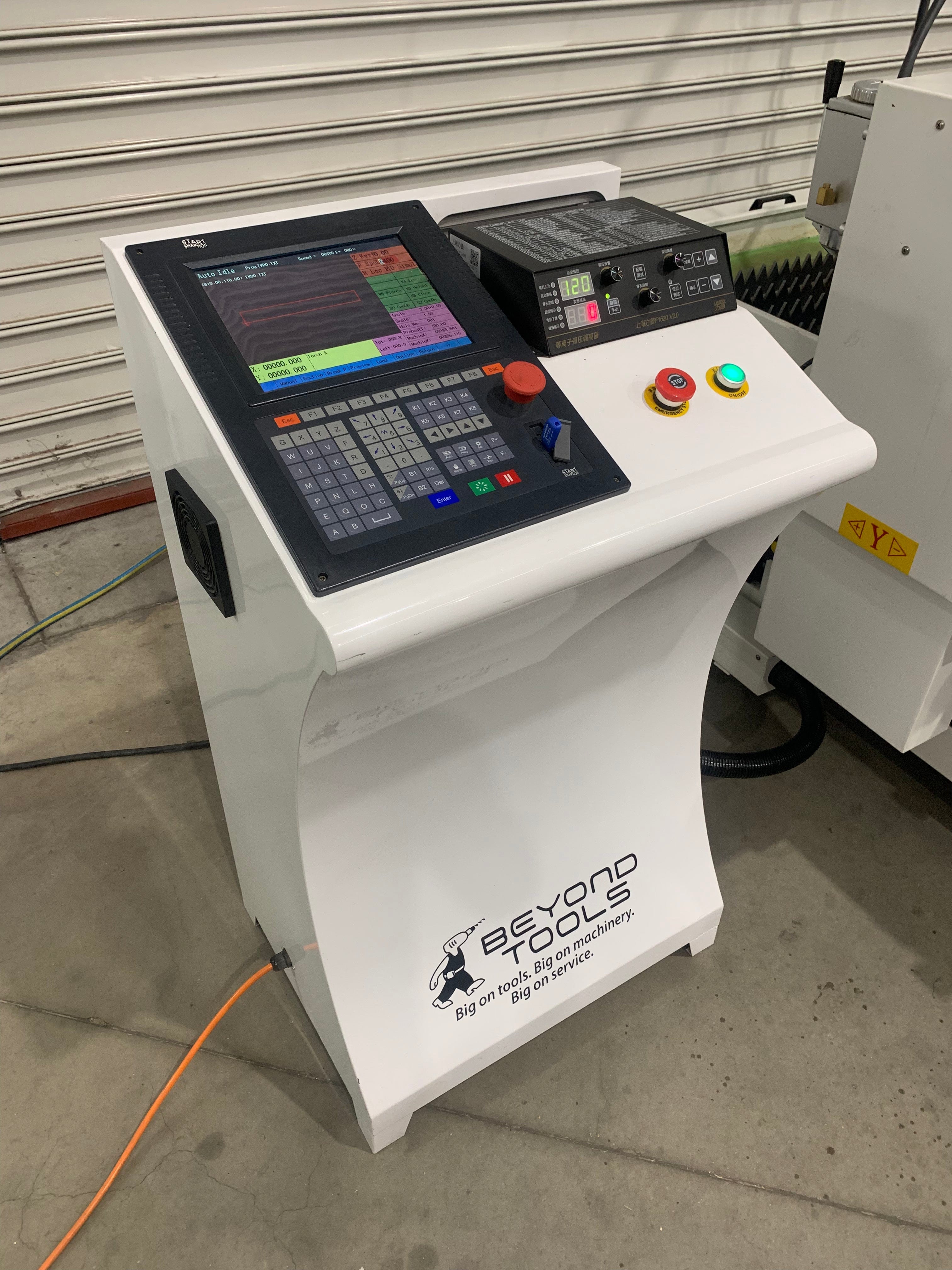

Operating START Control System with USB and Anti Collision System
Stepper Motor and Drivers â€“ 0-8000mm Cutting Speed
Welded Square Tube Steel Frame with Inlet and Outlet Tap for Water Table
Working Form: Untouched Arc Striking
X,Y,Z Travelling Positioning Accuracy: ±0.05mm
X,Y,Z Travelling Repositioning Accuracy: ±0.05mm

Operating / Production Cutting Data

Material	Thickness inches	Current amps	Production cut speed* ipm
Mild steel	10 GA	45	181
	1/4	45	72
	3/8	45	38
	1/2	45	24
	5/8	45	16
Stainless steel	10 GA	45	134
	1/4	45	59
	3/8	45	29
	1/2	45	19
	5/8	45	13
Aluminum	1/8	45	263
	1/4	45	104
	3/8	45	42
	1/2	45	26
	5/8	45	14

Material	Thickness mm	Current amps	Production cut speed* mm/min
Mild steel	3	45	5590
	6	45	2110
	10	45	920
	12	45	690
	16	45	400
Stainless steel	3	45	4725
	6	45	1695
	10	45	870
	12	45	540
	16	45	320
Aluminium	3	45	7120
	6	45	3095
	10	45	1015
	12	45	745
	16	45	340

Model

Type

CNC Plasma Cutting Machine

SKU

9000555

Brand

Omni

Technical - Main

Power Source

415V 50Hz Three Phase

Accuracy

±0.05mm

Cutting Capacity

22mm (7/8") = 250mm/min. (10ipm)

Plasma Generator

Huayuan Plasma Generator

Speed Range

0-8,000mm

Country of Origin

Manufactured in

China

Features

Standard Inclusions

Swirl Ring

Workshop (Site) Info

Plasma Generator

Huayuan Plasma Generator

Workshop Requirements

Extraction (Flued)

Warranty

Warranty

1 Year

Packaging + Shipping

Shipping Length

2200mm

Shipping Width

2150mm

Shipping Height

1780mm

Shipping Weight (Gross)

800kg

Shipping Notes

This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).

Product Specification Disclaimer

Product Specification Disclaimer

See Notes

Comparable Products Disclaimer

See Notes

Electrical Specifications (Important for International Customers)

Electrical Specifications (Important for International Customers)

See Notes
