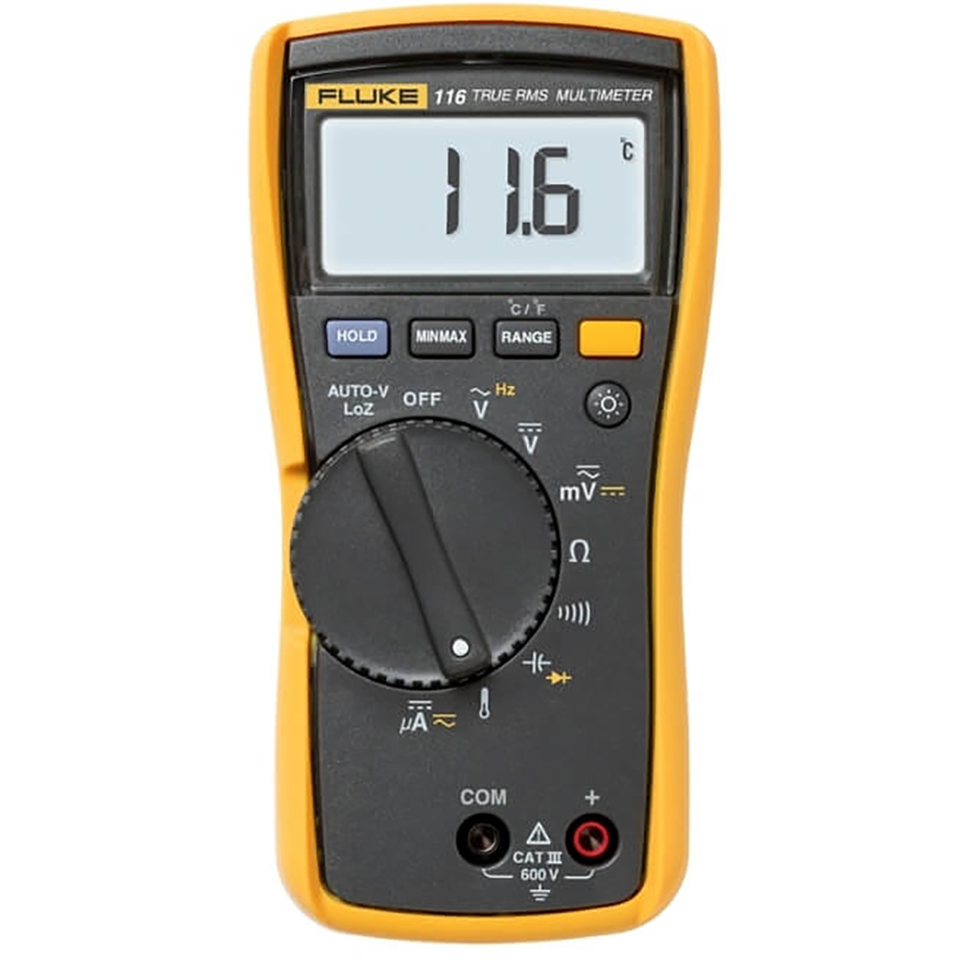

Fluke Digital HVAC Multimeter Fluke 116

Name: Fluke Digital HVAC Multimeter Fluke 116
Brand: Fluke
SKU: 1041810
Price: 462.00 USD
Availability: InStock

FlukeSKU: 1041810

Price:

$462.00

Stock:

Order In

Quantity:

Share this product

Features:

Digital multimeter designed specifically for HVAC professionals

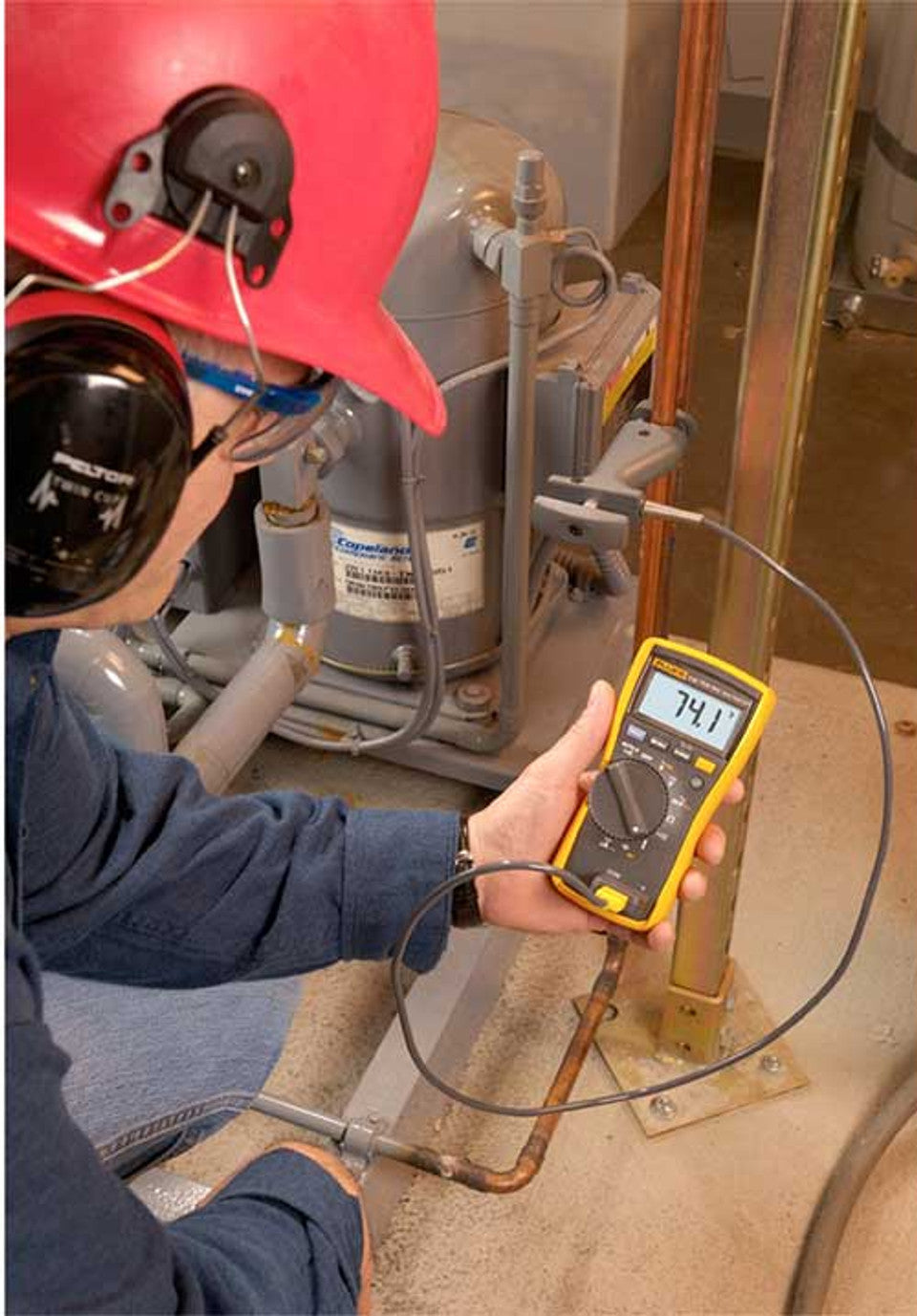

Includes built-in thermometer to measure temperature from -40°C to 400°C (-40°F to 752°F)
Provides microamps to test flame sensors
Features low input impedance to helps prevent false readings due to ghost voltage
Presents a large white LED backlight for working in poorly lit areas

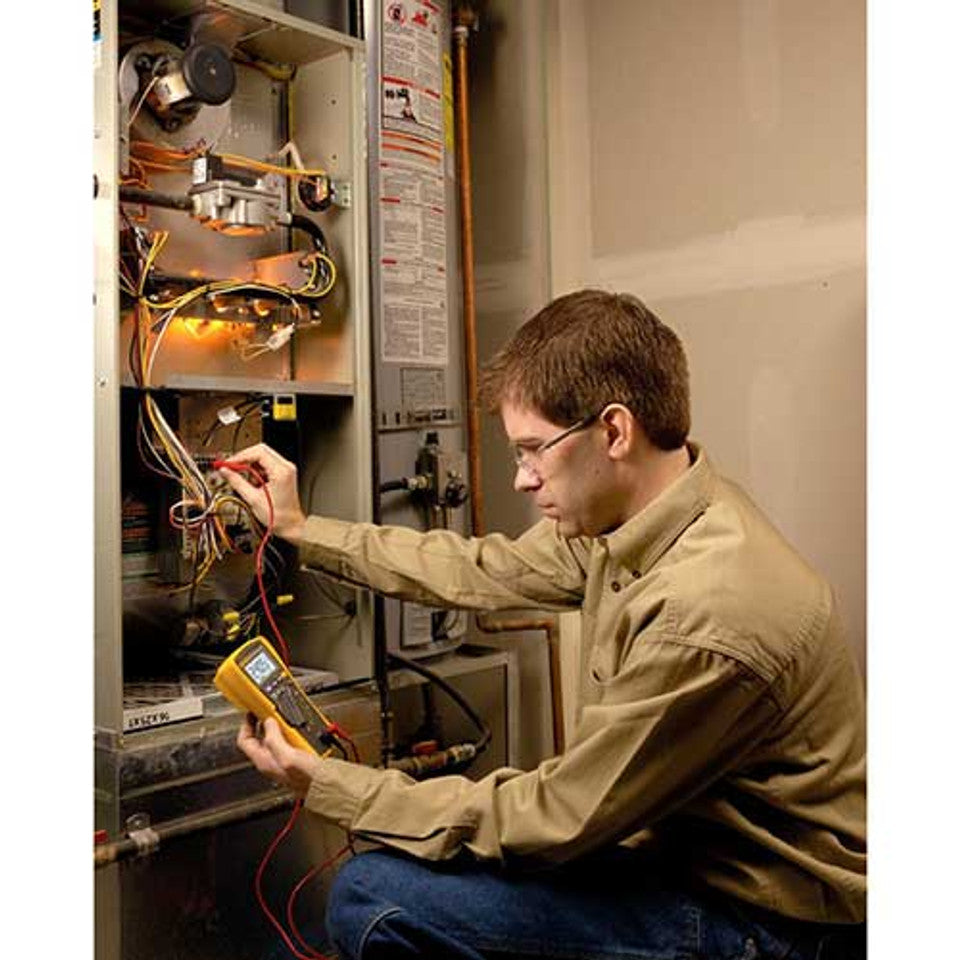

The Fluke 116 DMM provides the features you need to quickly troubleshoot HVAC equipment

The Fluke 116 was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.

Fluke 116 multimeters are independently tested for safe use in CAT III 600 V environments.

Other useful features:

Measures resistance, continuity, frequency, and capacitance
Provides Min/Max/Average to record signal fluctuations
Comes with a holster with probe holders for easy storage
Features a compact ergonomic design for one-handed operation
Fits into optional ToolPak™ magnetic hanger for hands-free operation
CAT III 600 V safety rate

Includes:

TL75 test lead set
80BK Integrated Temperature probe
Holster
Installed 9 V battery
User manual

Specifications: Fluke 116 Digital HVAC Multimeter

Specifications
Maximum voltage between any terminal and earth ground	600 V
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to + 50°C
Storage temperature	-40°C to + 60°C
Battery type	9 volt Alkaline, IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
DC volts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Auto volts	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
AC millivolts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
AC volts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/Resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode Test	Range/resolution	2.00 V / 0.001 V
Diode Test	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z Capacitance	Range	1 nF to 500 μF
Lo-Z Capacitance	Accuracy	10% + 2 typical
Temperature² (Type-K thermocouple)	Range/resolution	-40°C to 400°C / 0.1°C
	Accuracy	1% + 10²
	Range/resolution	-40°F to 752°F / 0.2°F
	Accuracy	1% + 18²
AC μA true-rms (45 Hz to 500 Hz)	Range/resolution	600.0 μA / 0.1 μA
AC μA true-rms (45 Hz to 500 Hz)	Accuracy	1.5% + 3
DC μamps	Range/resolution	600.0 μA / 0.1 μA
DC μamps	Accuracy	1.0% + 2
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz
Hz (V or A input)²	Accuracy	0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years
