Macnaught MINILUBE® Greasing System K7-24
Macnaught MINILUBE® Greasing System K7-24
Roll over image to zoom in Click on image to zoom
Macnaught MINILUBE® Greasing System K7-24Macnaught MINILUBE® Greasing System K7-24

Macnaught MINILUBE® Greasing System K7-24

MacnaughtSKU: 87433147
Price:
$285.00
Stock:
Order In

Downloads

Description

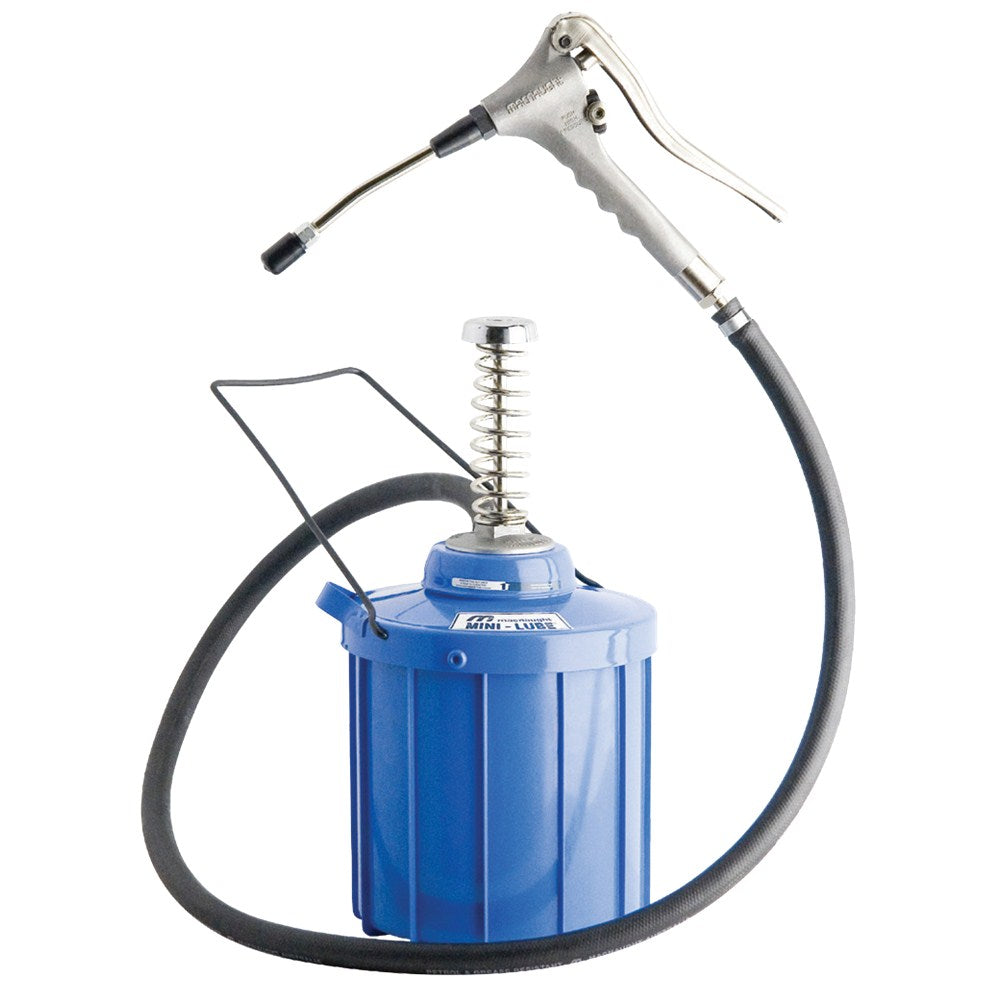

The K7-24 MINILUBE® (2.5kg model) is a portable High Pressure Manual Greasing System that provides high-volume/high-pressure greasing in a compact and portable package. The K7-24 comes with a KT5 2.5kg reusable container and consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7-24 is an economical alternative to the more expensive air-operated greasing systems.

Technical Specifications

  • High volume delivery pressure up to 34,450kPa (5,000psi)
  • High pressure delivery pressure up to 68,900kPa (10,000psi)
  • Provides up to 30 shots of grease with each prime
  • KY SUPERGRIP™ 3 jaw high pressure coupler
  • Up to 0.45g per shot (High pressure setting)
  • Up to 1.25g per shot (High volume setting)
  • Maximum viscosity - Up to NLGI 2
  • Includes a KT5 reusable 2.5kg grease container for contamination free greasing or bulk fill via a J3 Transfer Pump
  • Wetted parts - Aluminium, steel, nitrile rubber
  • 1.5m Flexible delivery hose

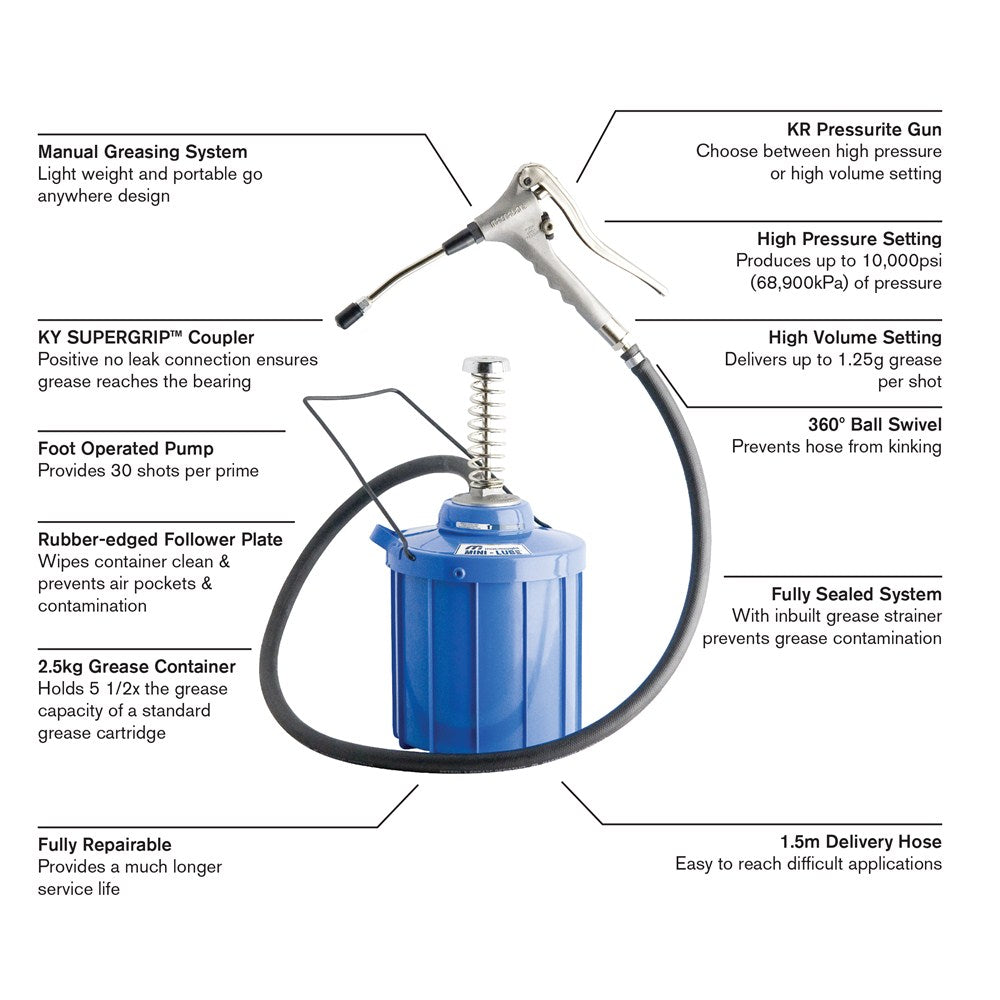

      Features & Benefits

      • Includes a KT5 (2.5kg) reusable container
      • Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
      • Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
      • Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
      • Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
      • Self air bleeding system when first used - No air purging necessary when changing containers
      • Manually operated & light weight with carry handle - Portable go anywhere system.
      • 2 way KR patented Pressurite Gun - Two grease guns in one
      • High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
      • Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
      • Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
      • Fully sealed greasing system - Clean grease to the bearing every time
      • Handles most greases up to NLGI No.2 viscosity - Versatility of use
      • Easy push-down foot operated, spring loaded pump - Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
      • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
      • KY Supergrip™ Coupler - Positive, no leak connection. Ensures grease gets to the bearing
      • Inbuilt grease strainer - Ensures clean grease to the bearing
      • Fully repairable - Provides a longer service life
      • 1.5m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
      • 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
      • Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for dif- ferent applications

      Package Includes

      • K7 MINILUBE® Portable Greasing system
      • KR PRESSURITE gun
      • 1.5m Flexible delivery hose
      • Follower plate
      • KT5 reusable 2.5kg grease container

      Recommended to be used with

      • The K7-01 MINILUBE® does not include a 2.5kg container
      • The K7-24 comes with a 2.5kg container
      • The K7-67 comes with a 5kg container

      Repair Kits

      • K7-2K: Top Assembly
      • K7-3K: Seal Kit
      • KH40S: Hose Assembly
