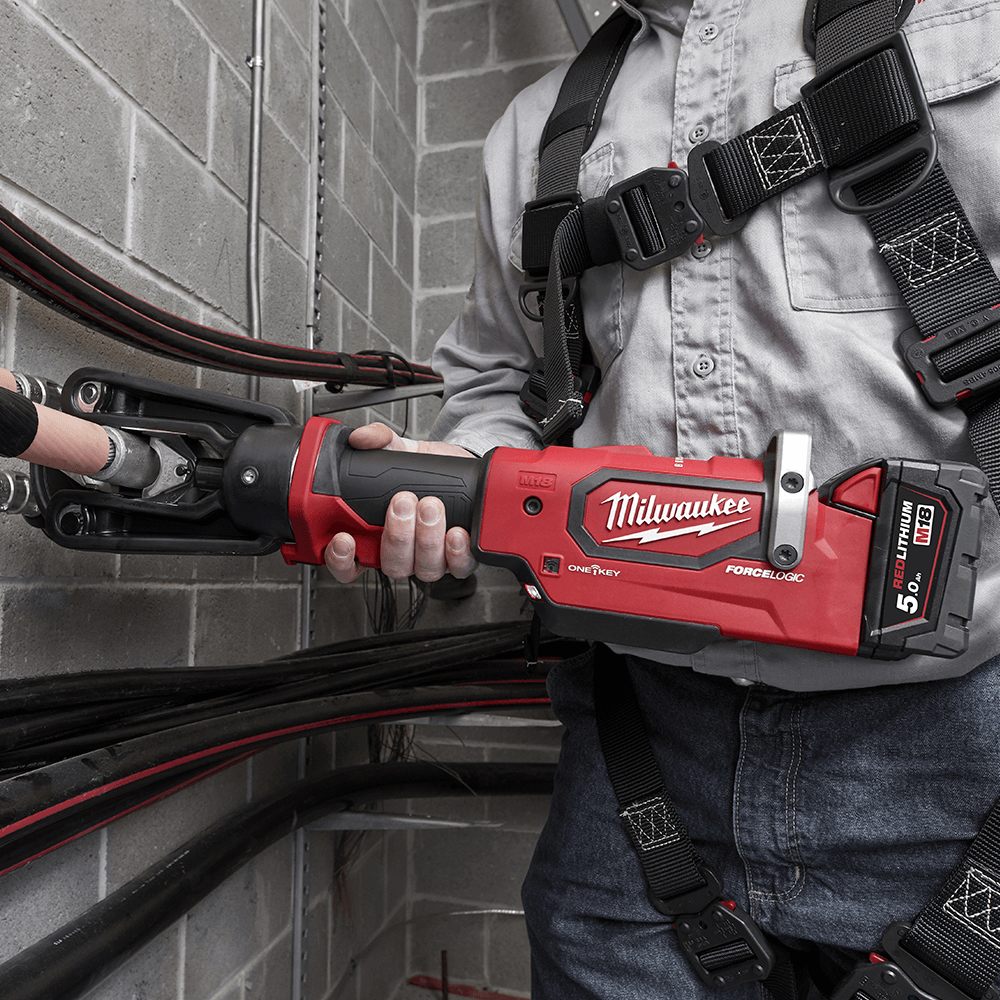

The M18™ FORCE LOGIC™ 137kN Inline Utility Crimper makes crimping easy. The battery-powered crimper's unique in-line design and centre-balanced grip allows you to use it with one hand, reducing peak muscle effort. Featuring a Quick Release with Push-to-Close pin design that provides easy access around splices and joins, and a 350° rotating head ensures quick alignment on the job. The crimper is fully compatible with all industry-standard P-Dies and P-to-U Die Adapters, allowing you to utilize existing dies and can complete crimps up 750mm2 CU and 630mm2 AL when using P-Dies. Predictive Force Monitoring (PFM™) constantly measures force output to provide you with the fastest crimp speed while delivering accurate pressure with instant verification every time. The M18™ FORCE LOGIC™ 137kN Inline Utility Crimper can deliver up to 90 crimps on a single 5.0Ah battery and features a POWERSTATE™ Brushless Motor matched with REDLINK™ Electronics providing unmatched reliability in the toughest conditions.
- Crimps up to 750mm2 CU and 630mm2 AL (using 15T P-Dies).
- Up to 90 crimps per charge using a 5.0Ah battery on 1000 MCM AI.

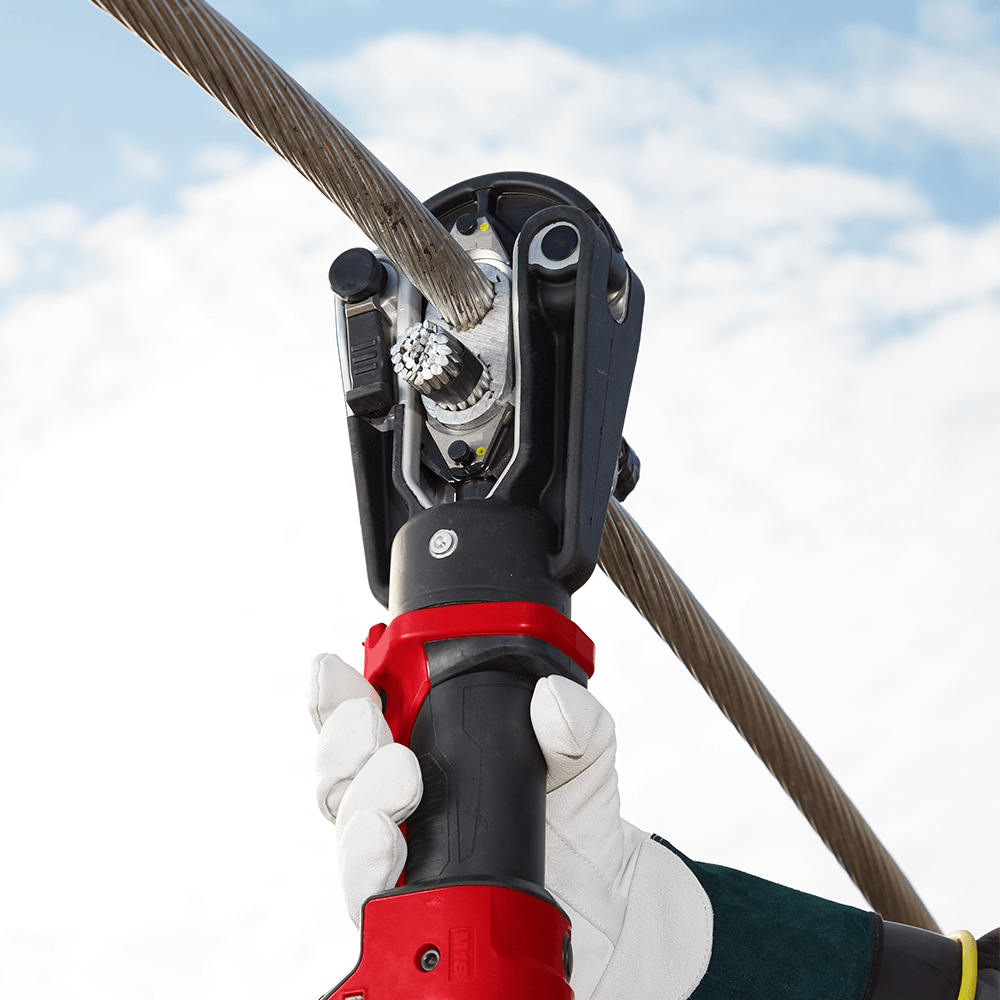

- 350° Rotating head with Quick Release/Push to Close Jaw design.
- Compatible with “P” Dies and “P to U” Die adapters.
- One handed grip for easy alignment.

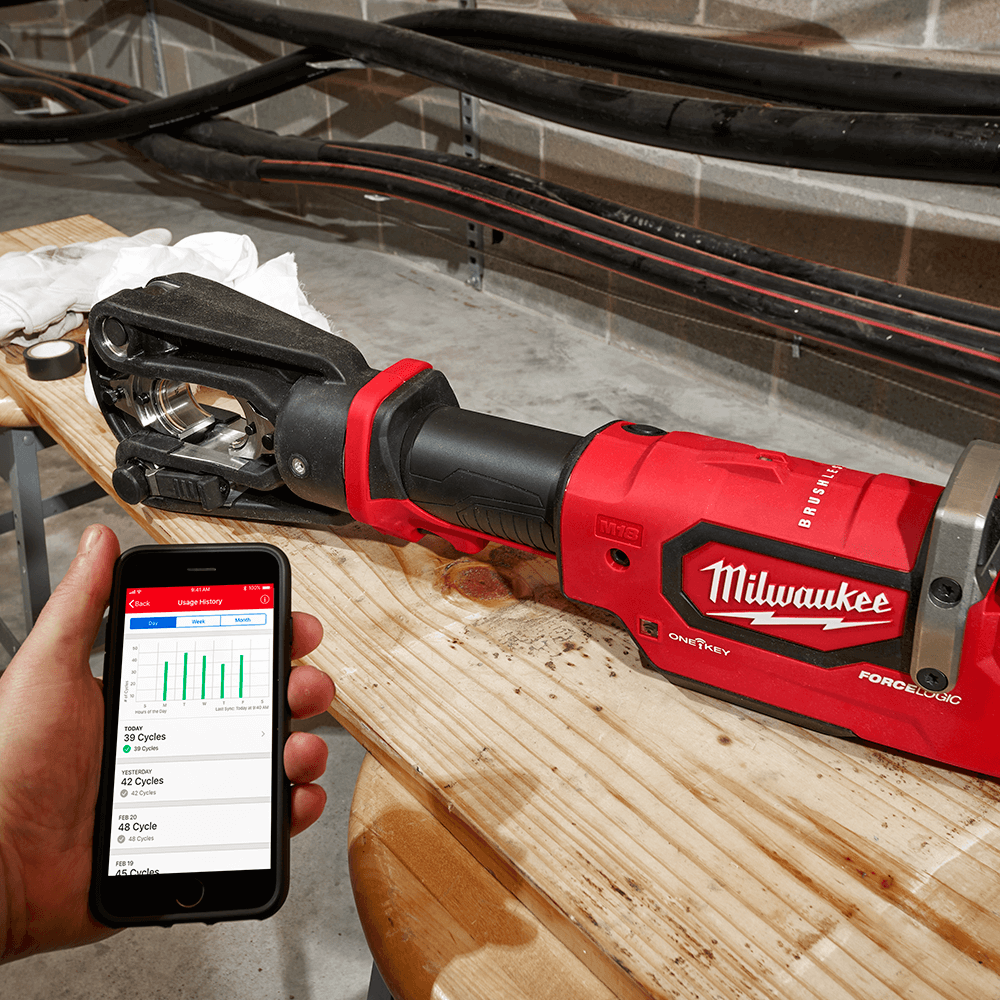

- One Key™ Enabled.
- Platform: M18™ / ONE-KEY™
- Capacity: 750mm² (1500 MCM) Cu / 630mm² (1250 MCM) Al
- ONE-KEY Enabled: Yes
- Length: 591 mm
- Weight: 7 kg
- Warranty - Tool: 5 Years
- Crimping Force: 137kN
- Crimp Time: 8.5 Seconds (1000 MCM AI)
- Predictive Force Monitoring (PFM™): Yes

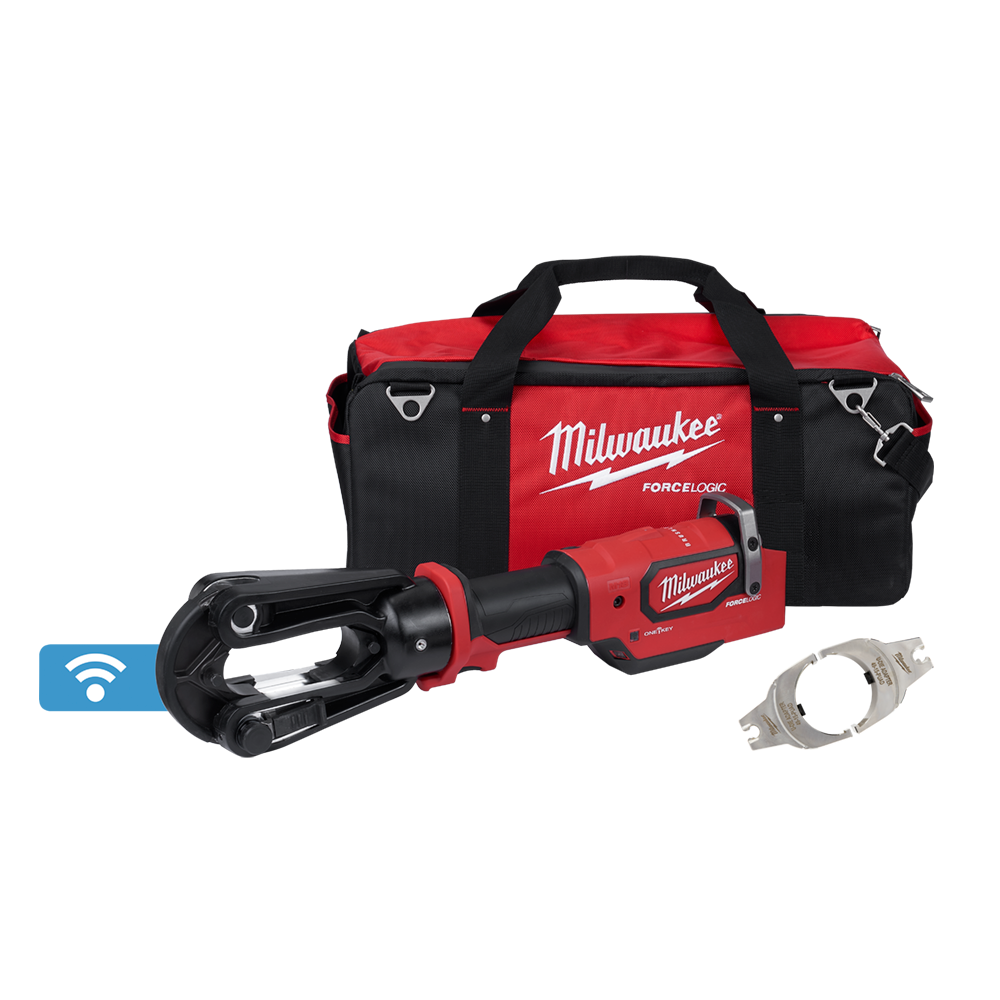

Inclusions

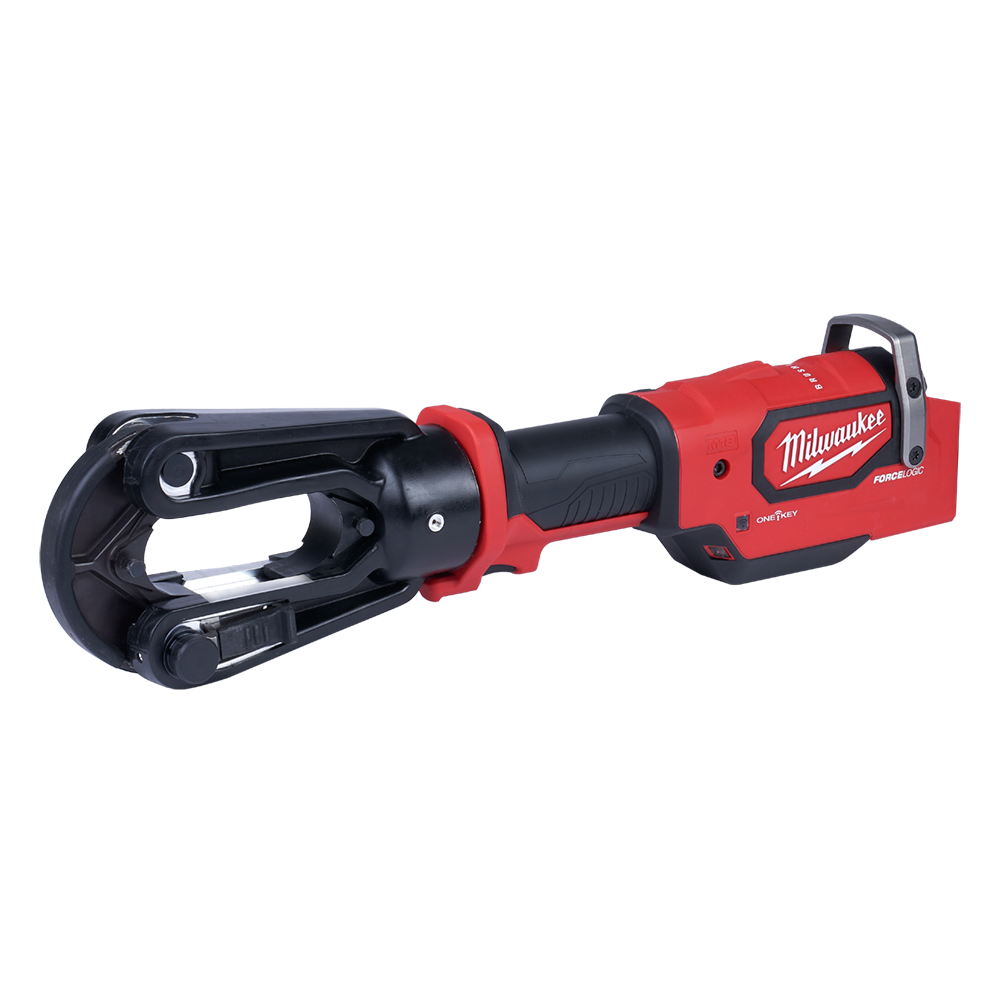

- M18™ FORCE LOGIC™ 137kN Inline Utility Crimper
- Carabiner
- 2x 137kN P-to-U Die Adaptors
- Contractor Bag
