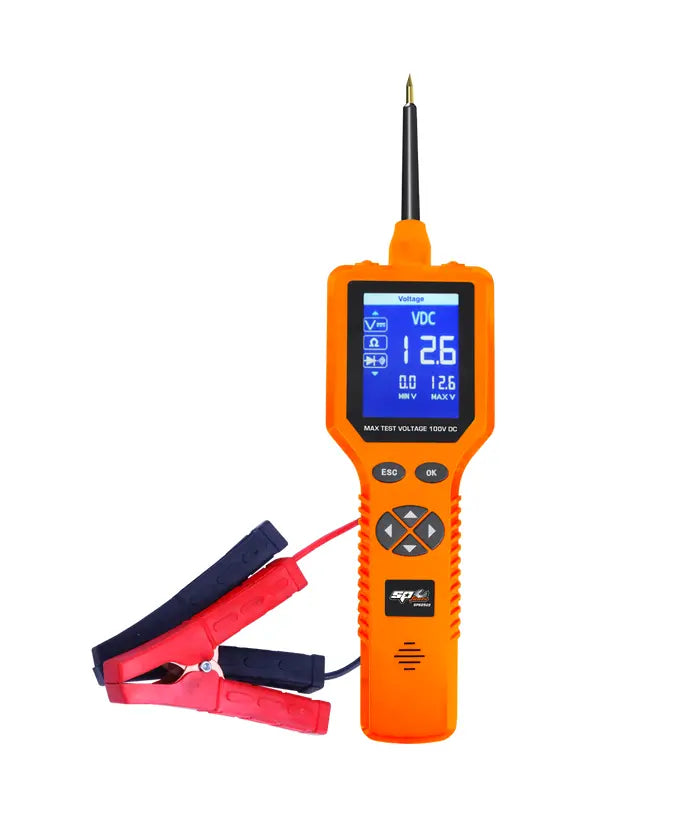

SP Tools Electrical System Tester Multimeter, Power Probe & Oscilloscope SP62505
SP Tools Electrical System Tester Multimeter, Power Probe & Oscilloscope SP62505
Roll over image to zoom in Click on image to zoom
SP Tools Electrical System Tester Multimeter, Power Probe & Oscilloscope SP62505SP Tools Electrical System Tester Multimeter, Power Probe & Oscilloscope SP62505

SP Tools Electrical System Tester Multimeter, Power Probe & Oscilloscope SP62505

SP ToolsSKU: 50417441
Price:
$258.00
Stock:
Order In

Downloads

Description

DESIGNED TO TEST THE ELECTRICAL SYSTEMS OF 12 & 24V AUTOMOTIVE VEHICLES

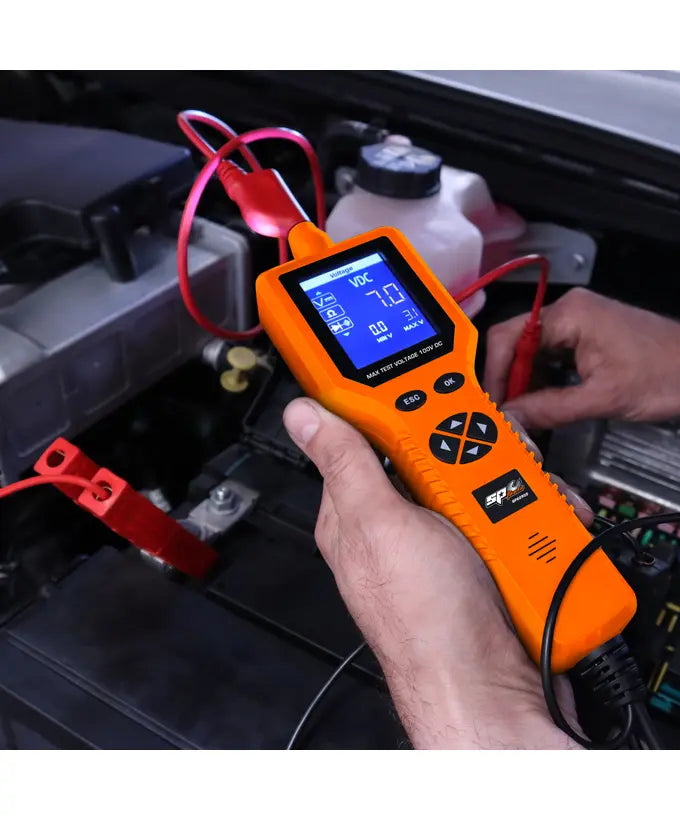

Fast and convenient, this generation of intelligent electrical system tester is equipped with a large LCD colour display screen it is designed to fault find all 12 and 24 volt vehicles. It allows you to activate electrical components, test their function, follow and locate bad earths or shorts. Measure DC voltage, Pulsed DC, Current, frequency and duty cycle, perform fuel injection tests and view the wave form display, check the continuity, diodes, confirm polarity, test and operate relays all in a self-protected test unit that is simple and easy to operate.

Features

  • Tests all 9V to 30V vehicle electrical systems
  • Intelligent identification of voltage & resistance
  • Interchangeable probe and 1m extension cord for difficult to reach areas
  • Powered by 12 or 24V vehicle battery
  • Oscilloscope function for single circuit testing
  • Multimeter mode (measure voltage, resistance & diode)
  • Dual top-mounted LED work lights
  • Back lit 2.4” LCD display
  • Multiple language settings
  • Built-in speaker for warnings & alerts

Specifications

  • Working voltage DC: Min 9V – Max 30V
  • Working temperature: 0 - 60˚C (32 - 140˚F)
  • Storage temperature: -40 - 70˚C (-40 - 158˚F)
  • Power supply: 12V or 24V DC (Vehicle Battery)
  • Max measuring voltage: 100 Volts
  • Min measuring voltage: 0.1 of a Volt
  • Resistance measuring Ω: 1.0 ohm ~ 200K ohm
  • Current measuring range: 0 ~ 18 Amps
  • Max continuous current: 18 Amps
  • TFT true colour LED display: 2.4”inches (320x240 DPI)

Inclusions

  • Electrical system tester
  • 5m power cable & 1m probe extension cable
  • Alligator clips
  • Needle point test probe
  • Automotive test probe (1mm diameter flattened tip)
  • Auxiliary grounding clip

Additional Information

Model
Type
Multimeter
SKU
50417441
Part Number
SP62505
Barcode
9330514093498
Brand
SP Tools
Warranty
