Vacuum Press (Double Table) ROBO by Ribex

Vacuum Press (Double Table) ROBO by Ribex, Manufactured in Turkey

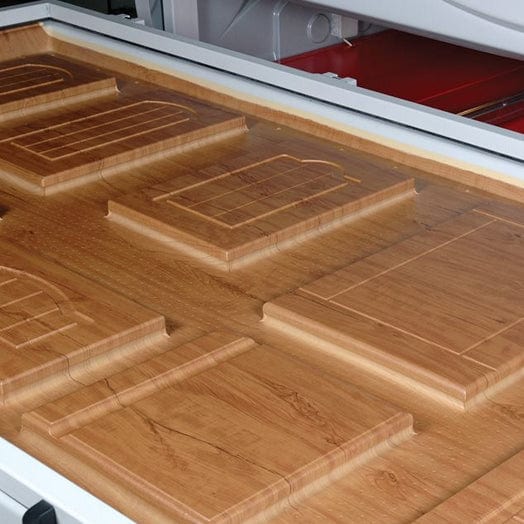

New generation RIBEX Vacuum Press Machines are used for flat or 3D lamination of pvc foils to MDF board, Chipwood, Plywood e.t.c and suitable for doors and cabinets, panels in kitchens, various furniture applications, in bathrooms and bedrooms. Process starts by heating cycle with high temperature quartz heating elements then gradually vacuum press cycle to finish foiling with negative suction pressure. Optional silicone membrane allows to also laminate veneers as well as the other laminating products onto the workpiece. Moreover this, ROBO has a unique full automatic touchscreen PLC system, cooling fans system boosting your production speed at your maximum limits.

• 4-5 Minutes Total Operating Time
• Automatic Temperature Control
• Double Table Selection
• Low Cost Heating Elements
• Ergonomic body design

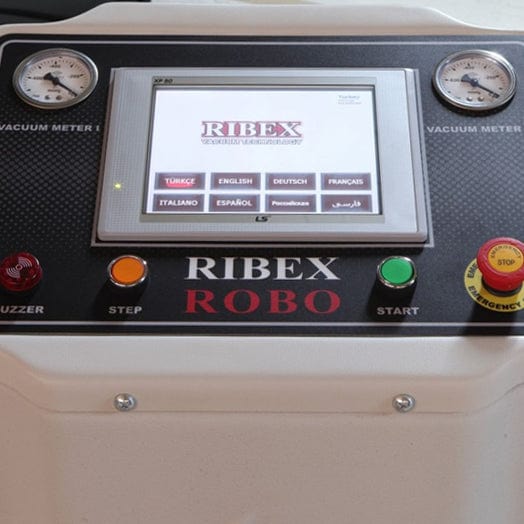

• Full Automatic LG LS PLC System
• CE, ISO 9001 certified products
• Work table security sensors
• Automatic temperature control
• Options to Single or Dual table control
• Short operation time
• Independent vacuum and temperature system
• Viewing window for viewing workpiece during operation
• Manual setting and usage
• Low-cost maintenance/repair
• Low cost heater
• Removable control table
• Different language selection
• Minimum wastage and saving from time
• Thermofoil PVC stand

• Working Table Area: 2275x1230mm
• Pump Motor Speed: 1450rpmPump Motor Speed: 1.5kw
• Total Power: 47kw
• Weight: 750kg
• O/A Dimensions: 3000 x 3000 x 1400mm

Options:-

• Robo Magnetic System for support the workpiece on worktable
• Divisible Table to use material economize.
• Second table preparation for single table machines
• Extra Thermofoil PVC stand
• Silicone membrane unit
• PLC controlling system
