Description
All -purpose Vacuum Cleaner - ASR 35 M ACP:
Features:
- For extraction from the power tool in continuous mode, both on construction sites and in the workshop
- Especially suited for extracting concrete and rock dust
- Compact vacuum cleaner for liquids and dry solids with commercial registration
- Power socket for a power tool for using the automatical start-up/shut-down of the vacuum cleaner
- AutoCleanPlus: saves both costs and time thanks to automatic MPulse filter cleaning during continuous use
- If the optimum suction performance falls below a certain level, the filters are vibrated immediately
- High user protection: certified in accordance with EU standard for M class dusts
- Automatic shut-down when vacuuming liquids once the maximum fill level is reached
- Warning signal on shortfall of the minimum volume flow to protect the user
- Optimum suction power by preselection of the hose diameter
- Automatic trailing mechanism for emptying the suction hose completely
- Antistatic basic equipment prevents static charge when using appropriate accessories
- Sturdy thanks to especially large wheels and castors with wheel stop
- Cable winding mechanism
- Practical accessory case and storage area
- Air output max.: 4380 l/min / 157 cfm
- Vacuum: 270 hPa (mbar) / 3.6 psi
- Filter surface: 8600 cm ² / 1333 sq.inch
- Input power max.: 1400 W
- Container volume: 35 l / 9 gal
- Suction hose Ø: 35 mm / 1 3/8 "
- Hose length: 4 m / 15 ft
- Weight: 16 kg / 35.3 lbs
- Cable length: 8 m / 26 ft
- Noise Emission: Sound pressure level: 69 dB(A)
- Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm
- Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
- Robust aluminium die-cast hood with rubber rolls and optimal handle position for comfortable guiding of the machine
- Pushing cut for optimal view of the marking line
- Channel width and cutting depth can be set
- Metabo Marathon motor with patented dust protection for long service life
- Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
- Electronic soft start and restart protection for safe working
- LED signal informs about overload or active restart protection
- Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
- Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
- Also suitable for cutting with only one diamond cutting disc
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly
- Adjustable cutting depth: 10 - 40 mm // 3/8 - 1 9/16 "
-
Possible groove widths: 9 / 15.5 / 22 / 28.5 / 35 mm / 3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8 "
-
Cutting disc Ø: 125 mm / 5 "
-
Rated input power: 1900 W
-
Output power: 1120 W
-
No-load speed: 5000 rpm
-
Revolutions at rated load: 4200 rpm
-
Torque: 6 Nm / 53 in-lbs
-
Weight (without power cable): 4.6 kg / 10.1 lbs
-
Cable length: 4 m / 13 ft
-
Noise emission: Sound pressure level: 93 dB(A)
-
Sound power level (LwA): 104 dB(A)
-
Uncertainty of measurement K: 3 dB(A)
The machine shown may differ in equipment and technical details depending on the configuration. Kindly pay attention to delivery scope and product description. Accessories included only if listed in the delivery scope.
Additional Information
Model
Type
Wall Chaser
SKU
9504209
Part Number
AU60010070
Barcode
9339742001312
Brand
Metabo
Size
125mm (5")
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
1900W
Motor Speed - No Load
5000rpm
Noise Level (Std Pressure)
93dB (A)
Sanding Disc Size
125mm
Warranty
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Weight (Gross)
10.48kg
Product Specification Disclaimer
Product Specification Disclaimer
Product Specification Disclaimer
The specifications provided on our product pages are obtained from various manufacturers and third-party sources. While we strive to ensure that the information is accurate, we do not warrant or guarantee its accuracy, completeness, or timeliness. Therefore, we cannot be held liable for any errors, omissions, or discrepancies in the specifications provided.Please note that product specifications are subject to change by the manufacturers without notice. It is recommended to verify the specifications with the manufacturer or seller before making a purchase decision.In the event of any discrepancy between the product specifications on our website and the actual product, the latter shall prevail.We reserve the right to update, modify, or remove product specifications at any time without prior notice.
See Notes
Comparable Products Disclaimer
Comparable Products Disclaimer
Our product comparisons are based on our first-hand experiences and knowledge of models we've sold in the past. We aim to provide objective and accurate information to assist you in making informed decisions. We do not receive compensation for featuring products in our comparisons. For more details on our disclosure practices, please click here to view the full disclosure statement.
See Notes
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)
Electrical Specifications (Important for International Customers)All power tools and machines sold by Beyond Tools are designed to operate on 230V / 50Hz electrical systems as standard in Australia.These products are supplied with Type I Australian power plugs.If you are purchasing from outside Australia, particularly from regions using 110V–120V systems (e.g., USA, Canada), you will require a step-up transformer or region-appropriate model.Please consult a qualified electrician before using voltage converters to ensure safe and correct operation.Disclaimer: Beyond Tools is not responsible for any damage, malfunction, or safety risks resulting from the use of products outside their intended voltage range or with incompatible electrical systems.
See Notes
What's Included

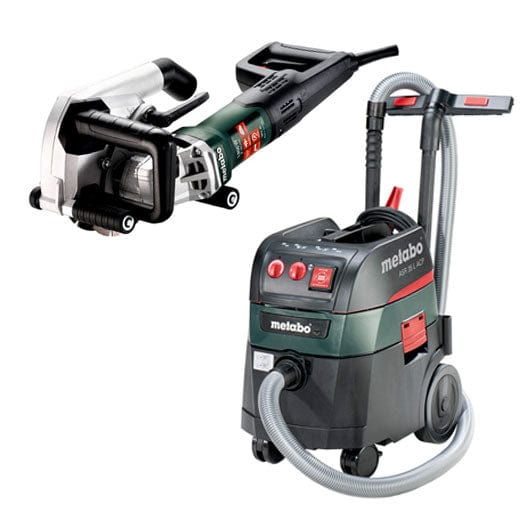

125mm 1900W Wall Chaser MFE40 + 35L M Class Vacuum / Dust Extractor Combo ASR 35 M ACP Combo (AU60010070) by Metabo
$1,534.00
