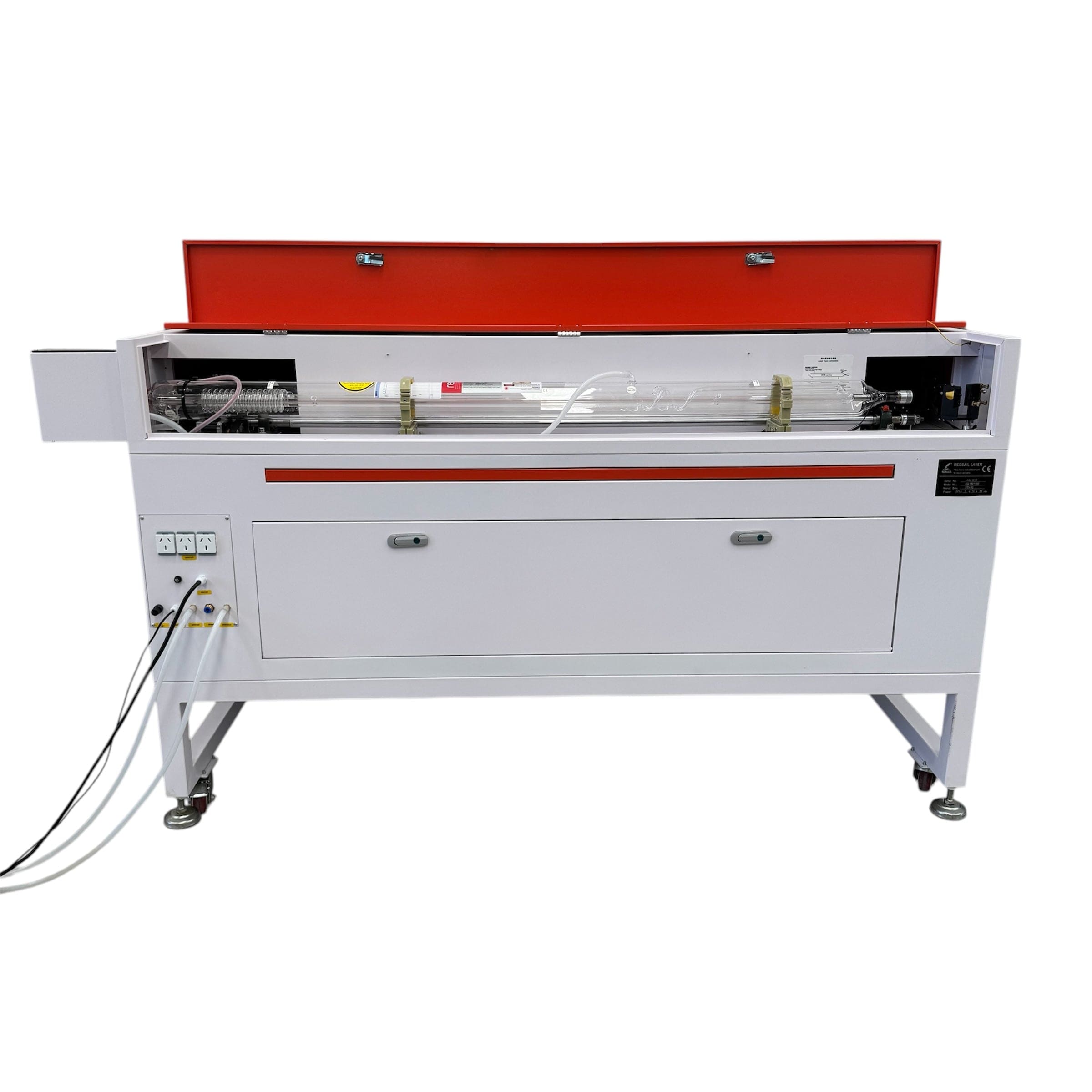

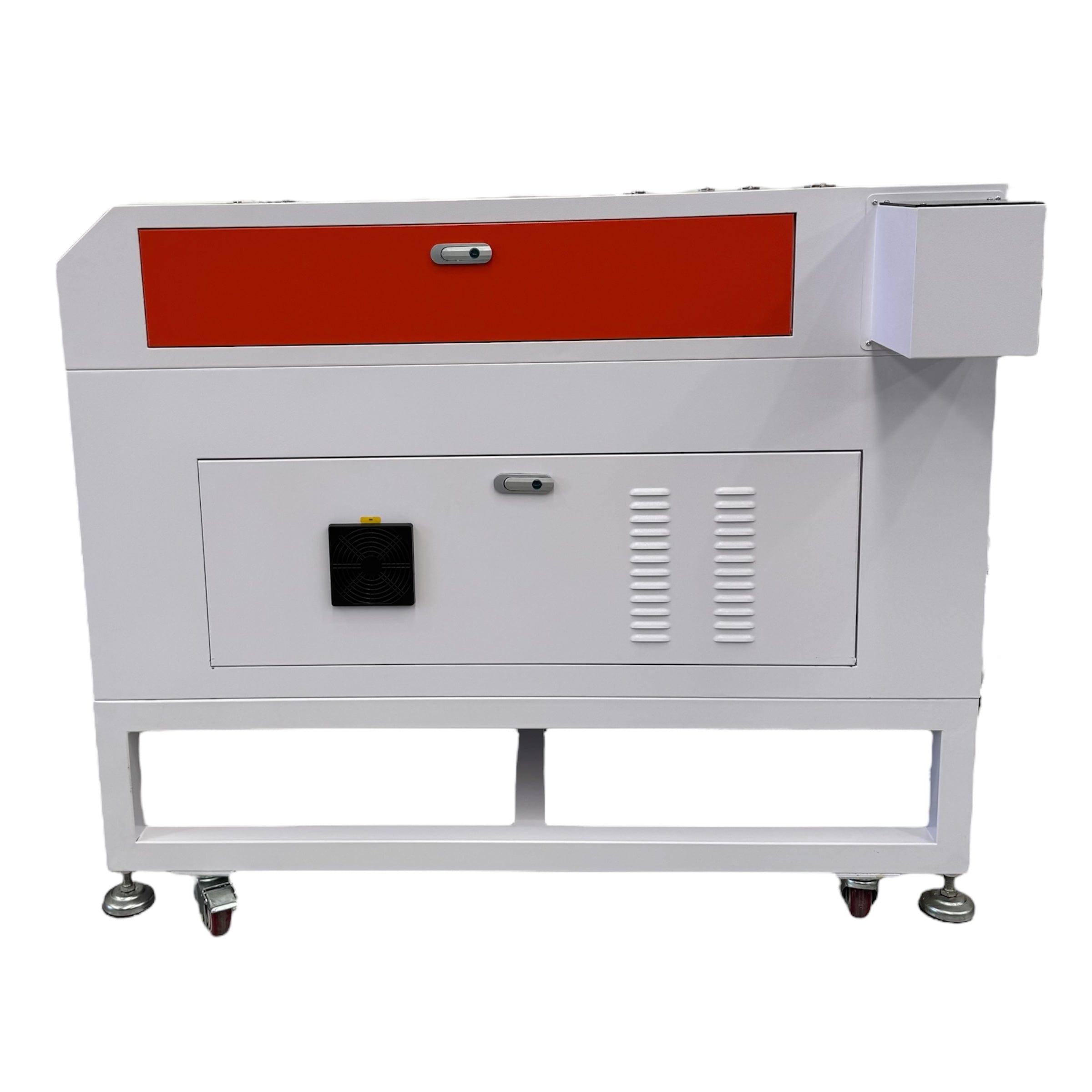

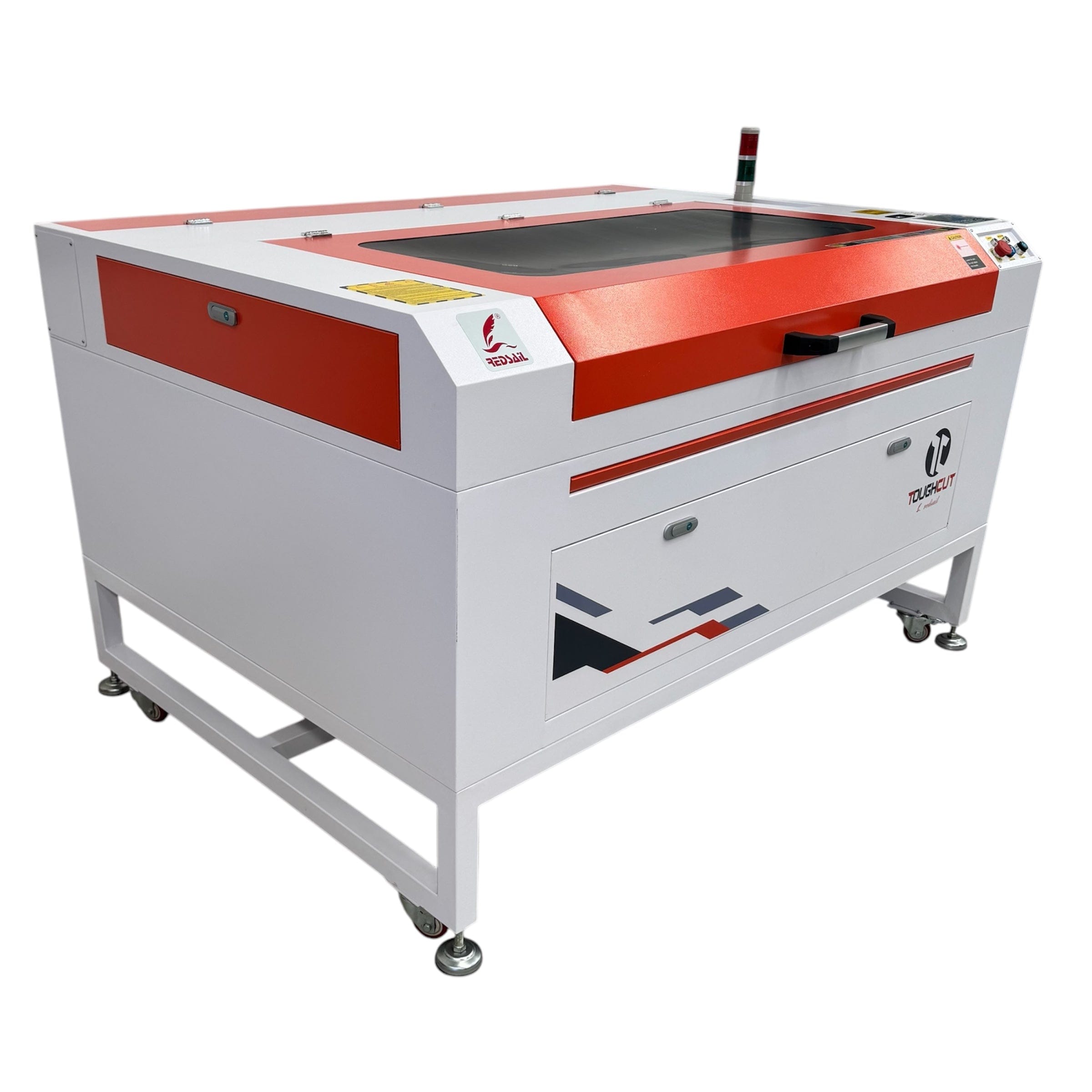

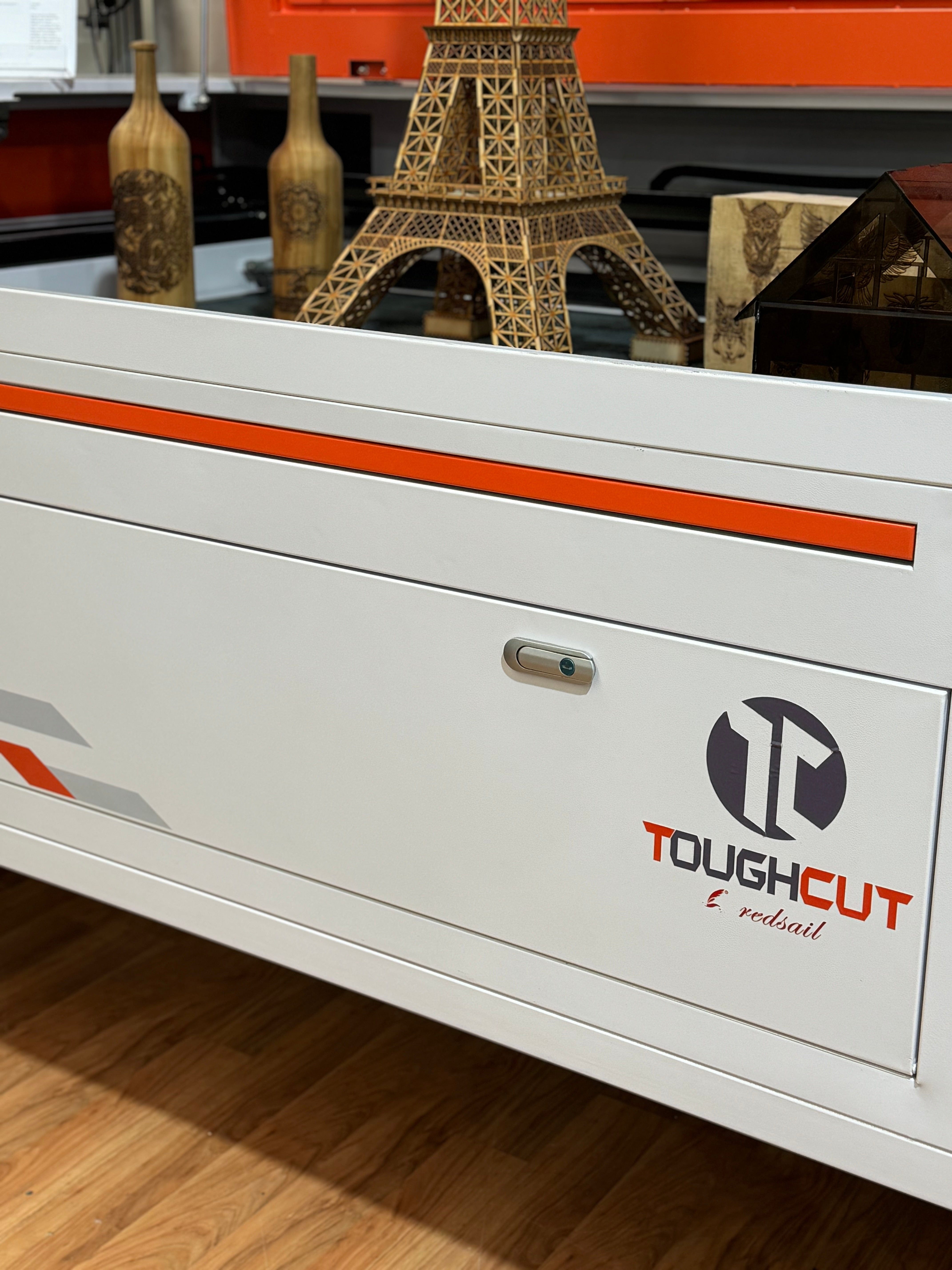

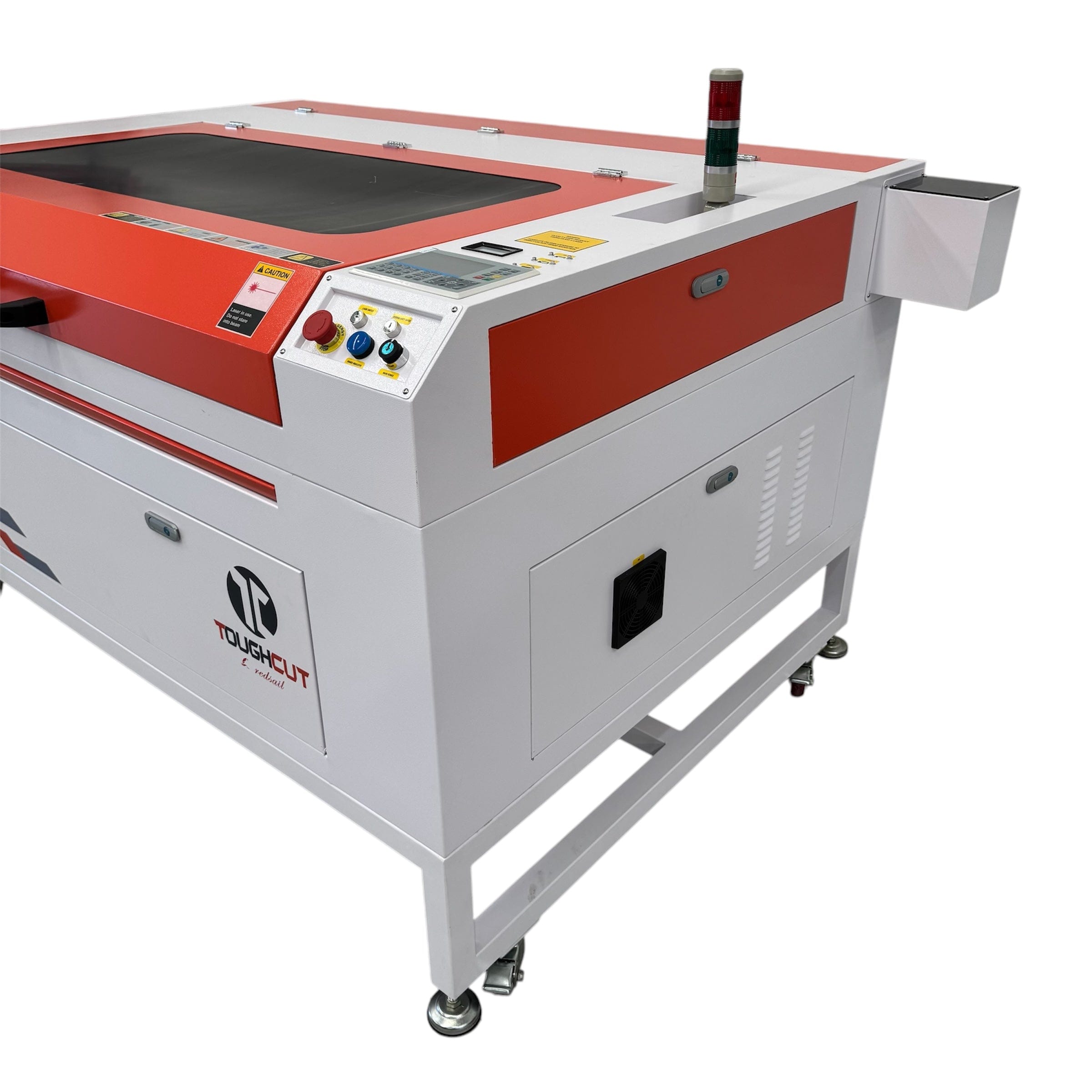

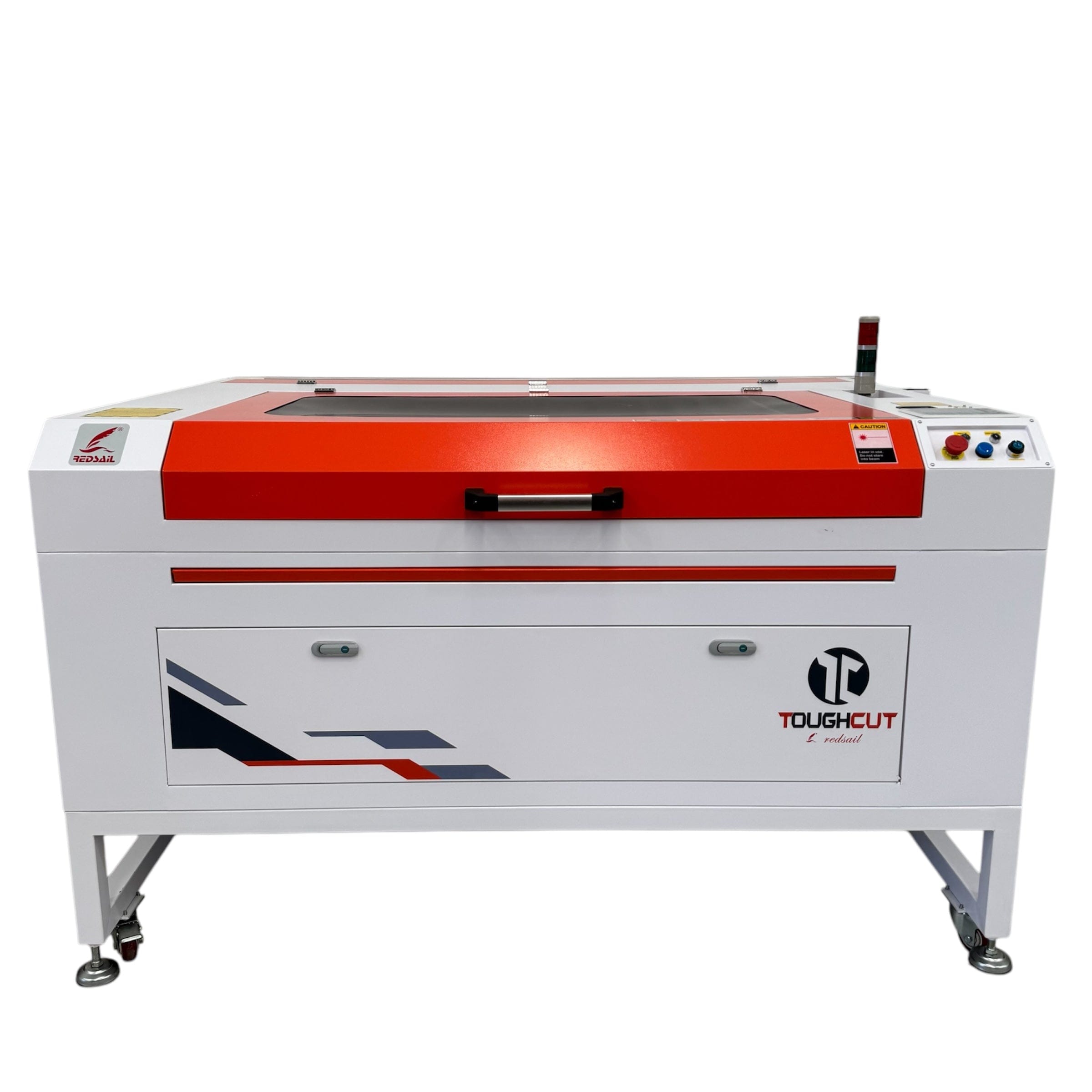

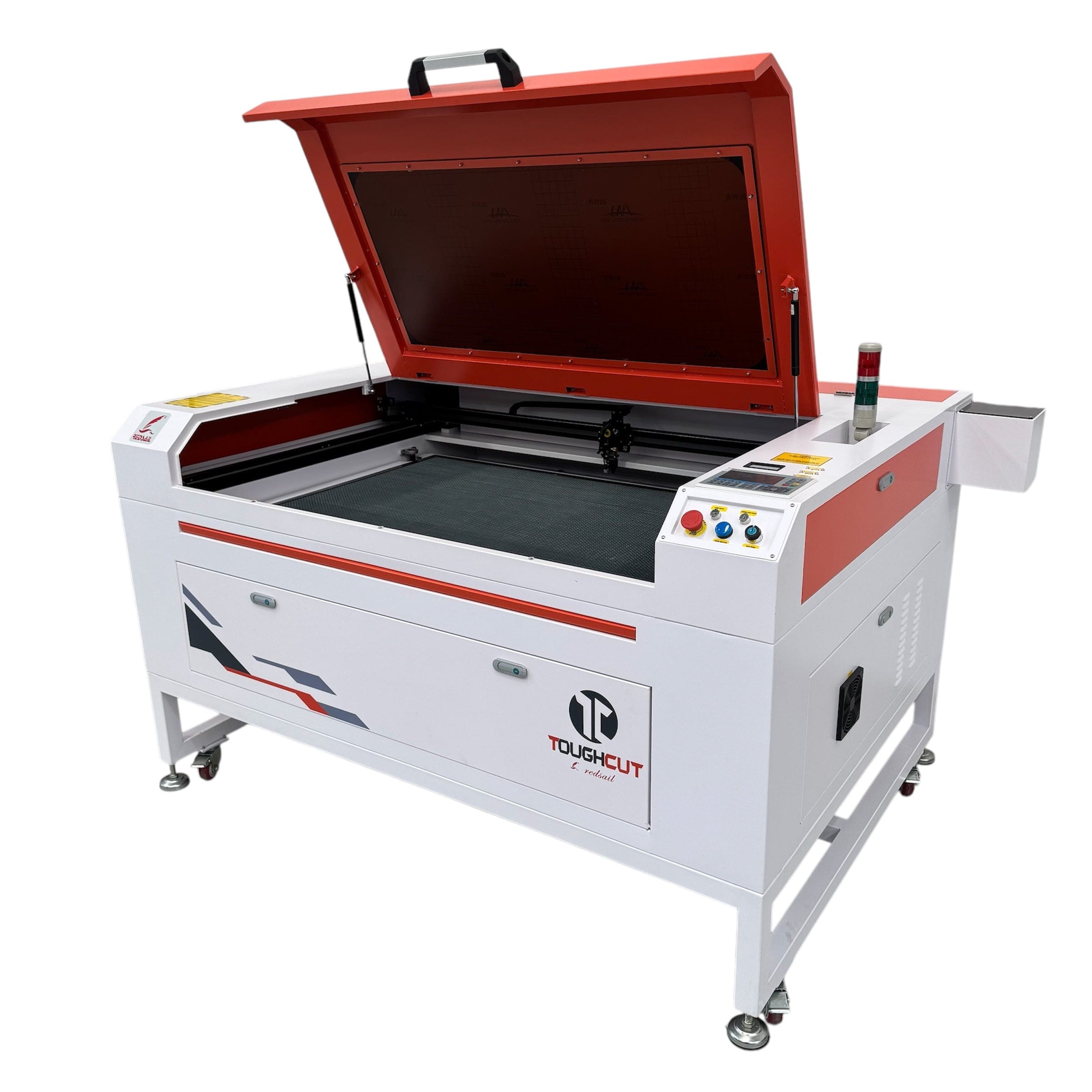

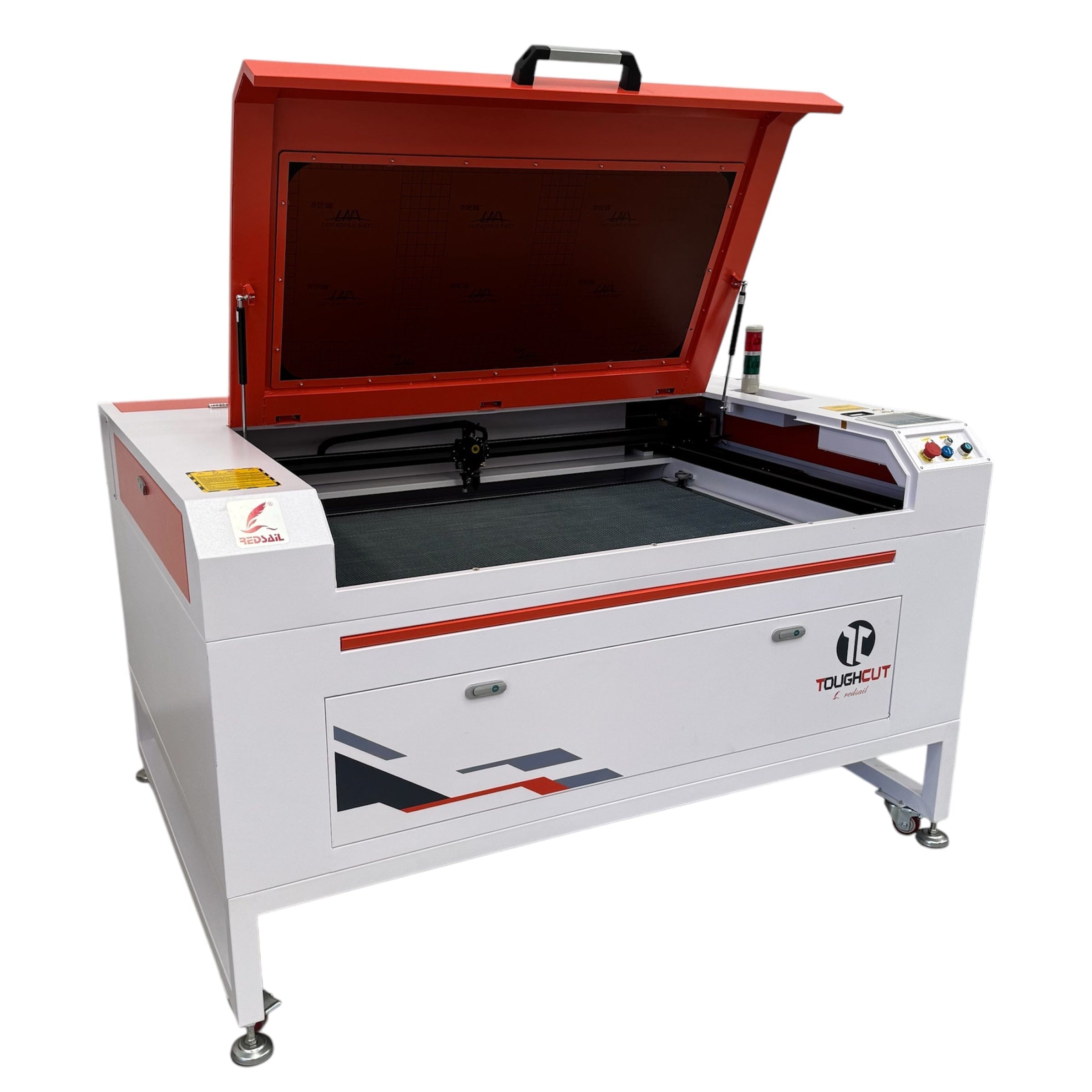

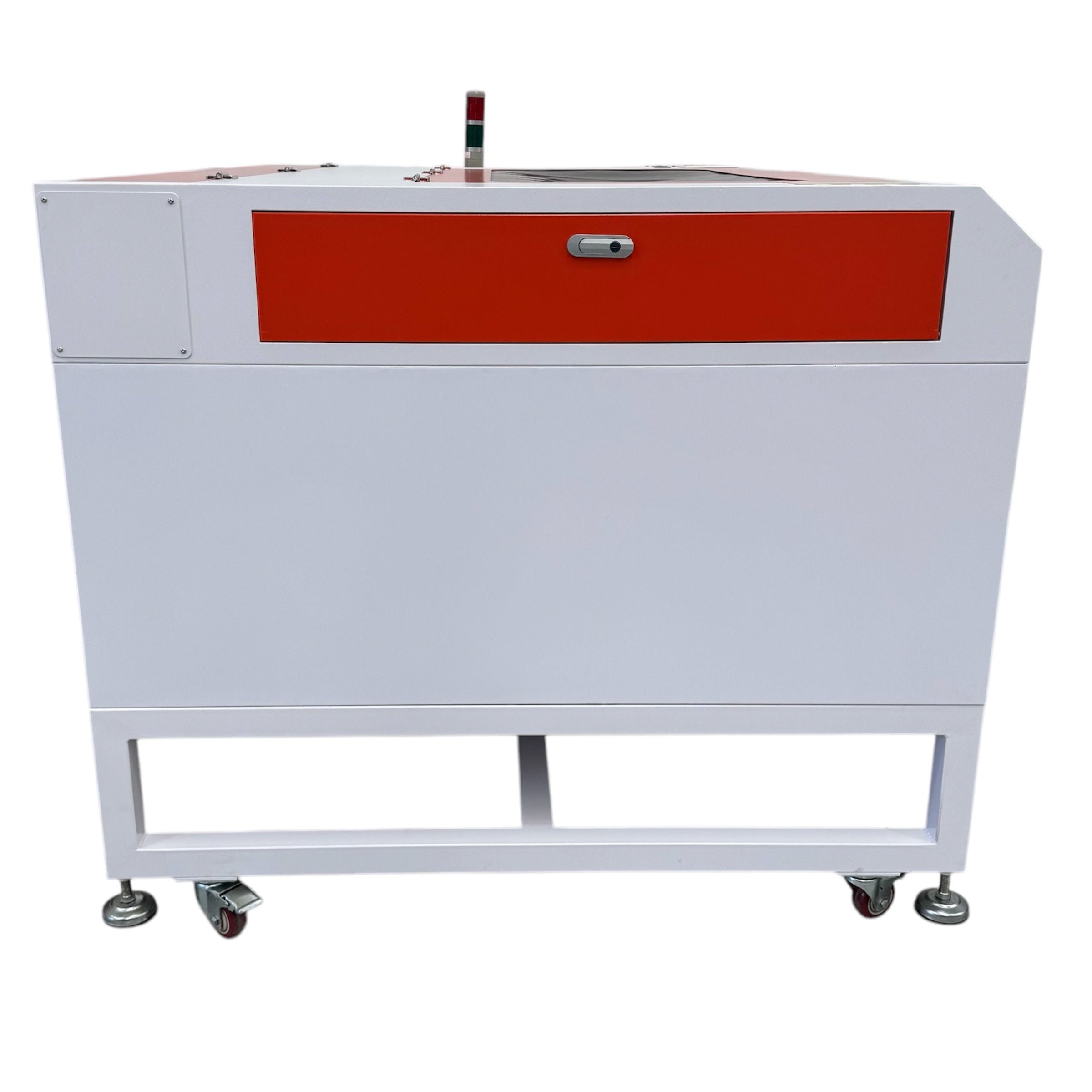

1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*
Roll over image to zoom in Click on image to zoom

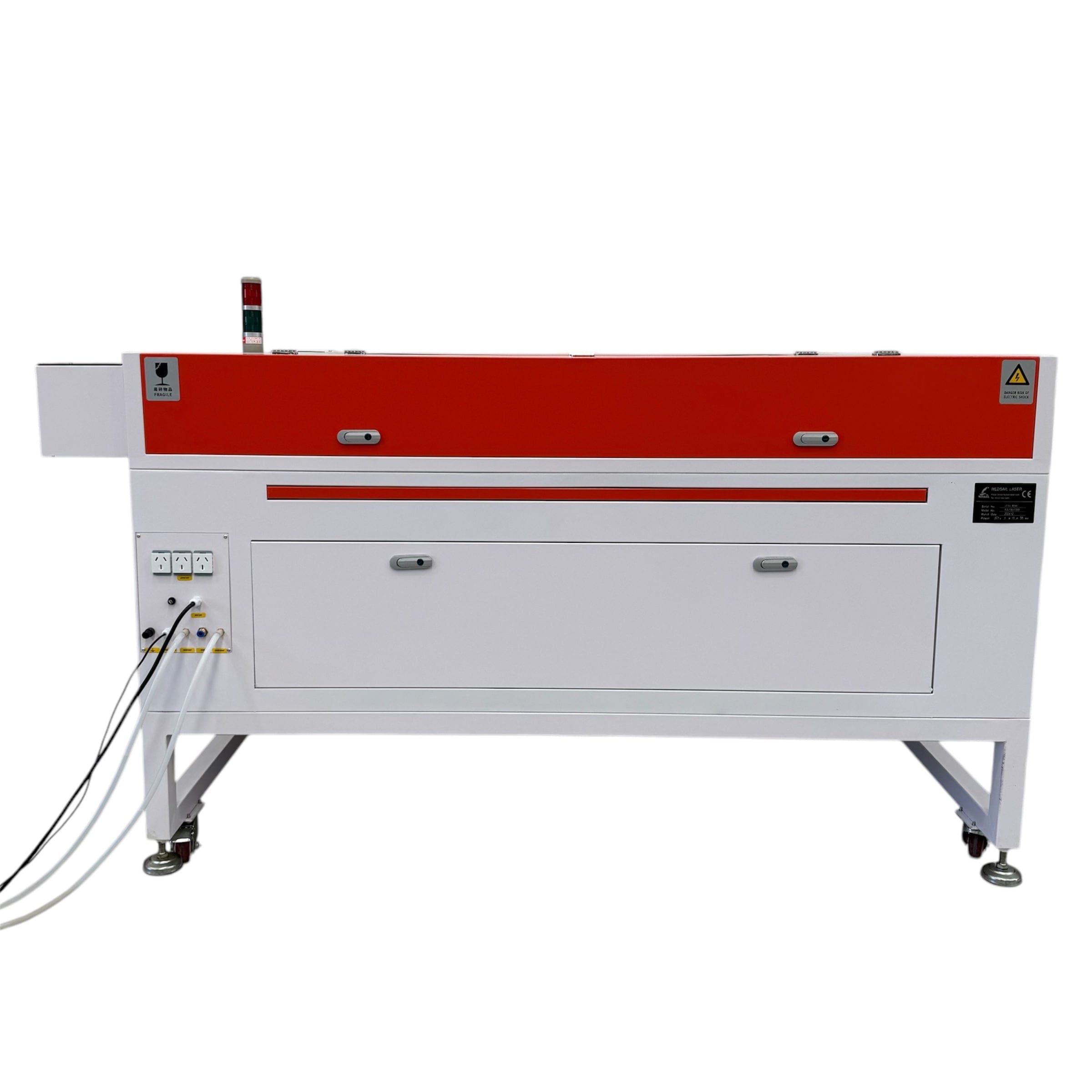

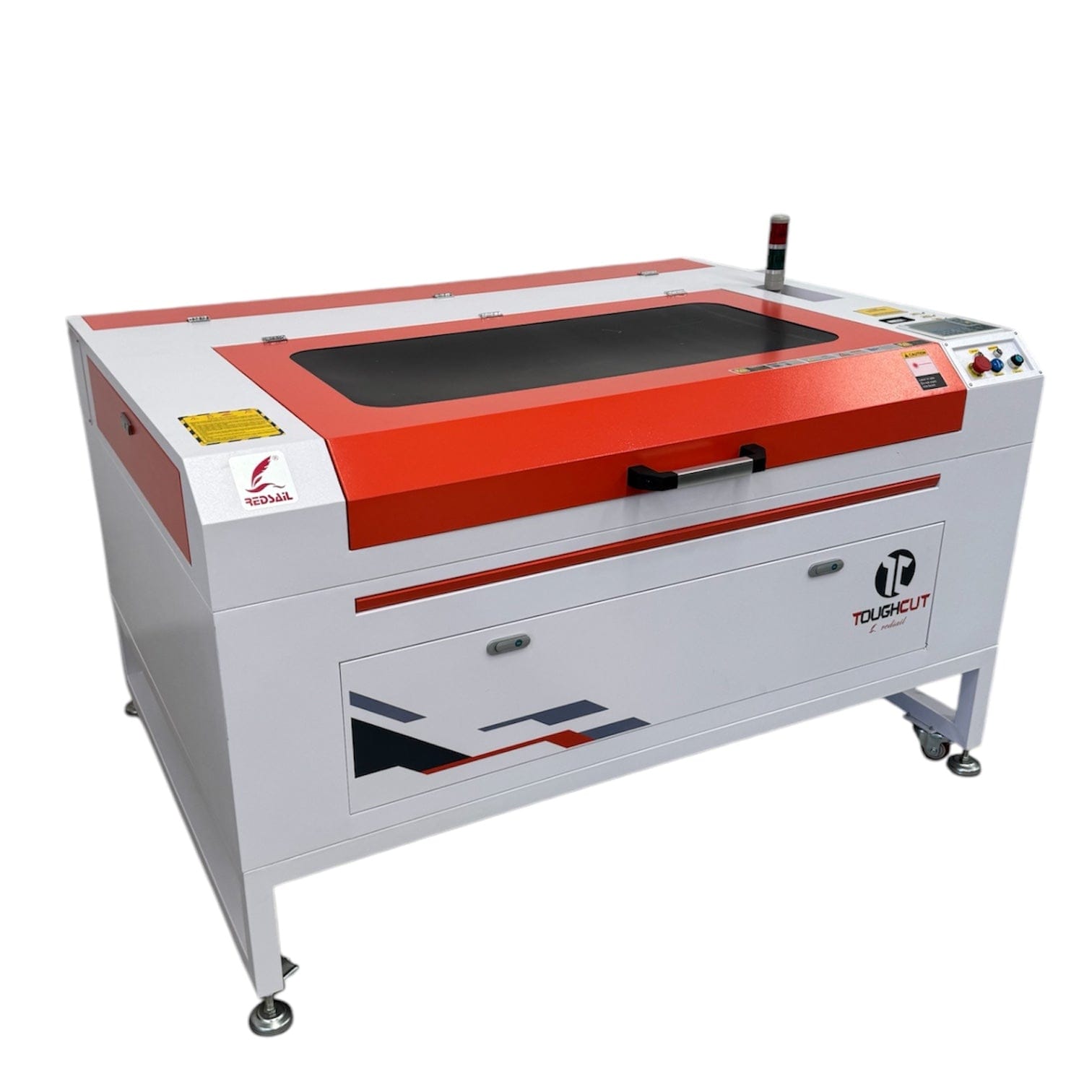

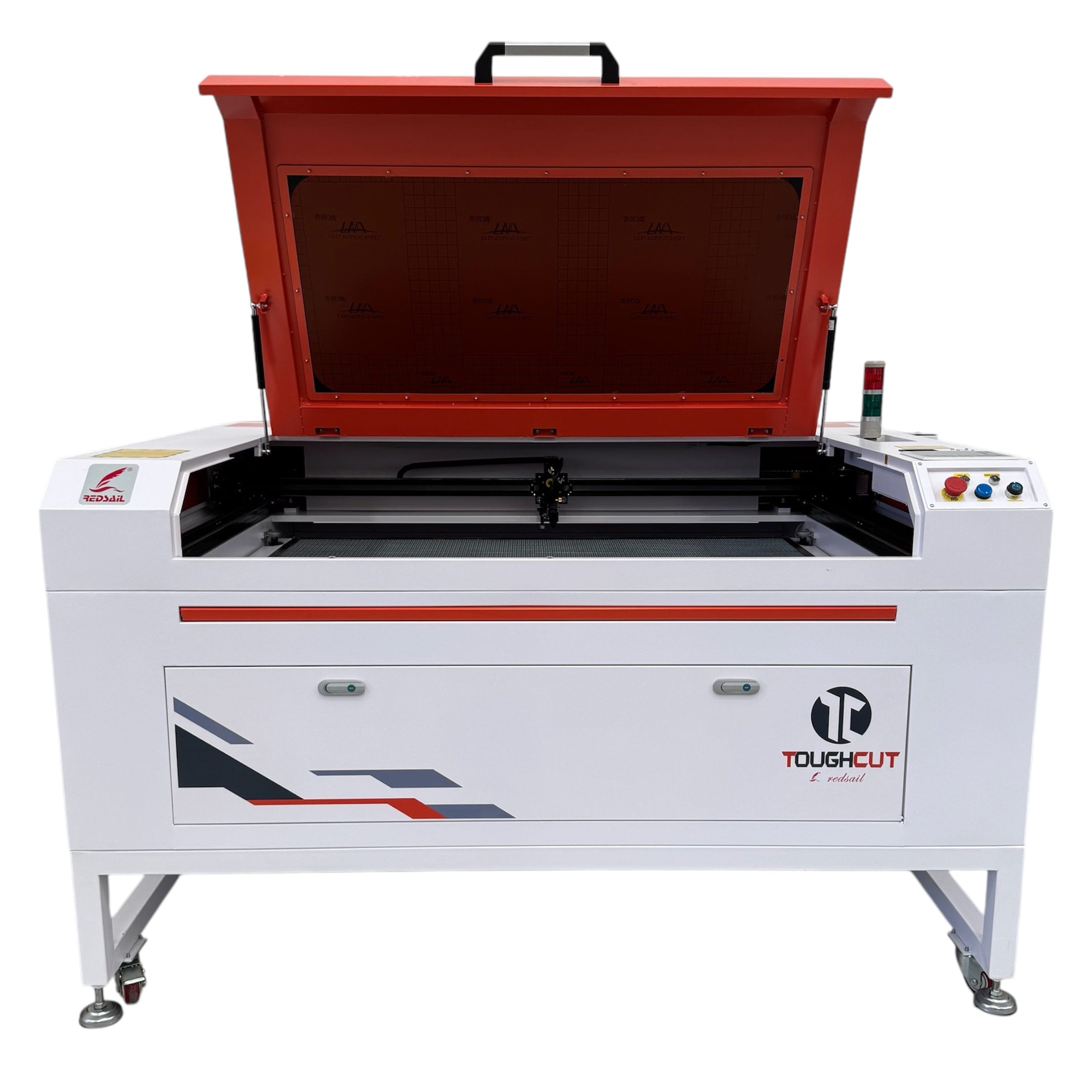

1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival* 1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*

1300mm x 900mm 130W CNC CO2 Laser Machine TCL130-1390 by ToughCut *New Arrival*

ToughCutSKU: 8043401
Price:
$13,963.00

Tax included Shipping calculated at checkout

Stock:
Re-stocking soon

Pickup available at 23 Exhibition Drive

Usually ready in 24 hours

CLICK HERE to Shop our Sale!

Downloads

Description

Suitable for cutting Wood, Plastic, Paper, Acrylic, Rubber, other non-metal items. Ideal for Industry cutting of Signage and Advertising components, Air Plane / Hobby Models plus more. 130W C02 Laser Tube. No CAD experience is necessary. Includes easy to use CAD Software, Exhaust Fan, Water Cooling System, and Air Pump.

This machine features an open frame configuration rather than a cabinet enclosure. Having this open frame setup, allows the machine to be easily unmounted from this frame allowing it to pass through narrows doors (This is not possible with the cabinet enclosure featured on the standard RS130 machine).

The Cutting Capacity / Thickness is dependent entirely on the material specification (ie. material composition) eg.:

  • Material Country of Origin?
  • Whether the material (MDF / Timber) is Dry / Wet?
  • Whether the material is Old / New?

All materials should be trialed and tested, however, a guide is as follows:

  • Acrylic 0-20mm
  • MDF 0-12mm
  • Ply 0-12mm
  • Pine 0-16mm

    Standard Accessories

    • User Manual (CD)
    • Water chiller Pump – CW5200 (Size 560mm x 285mm x 470mm)

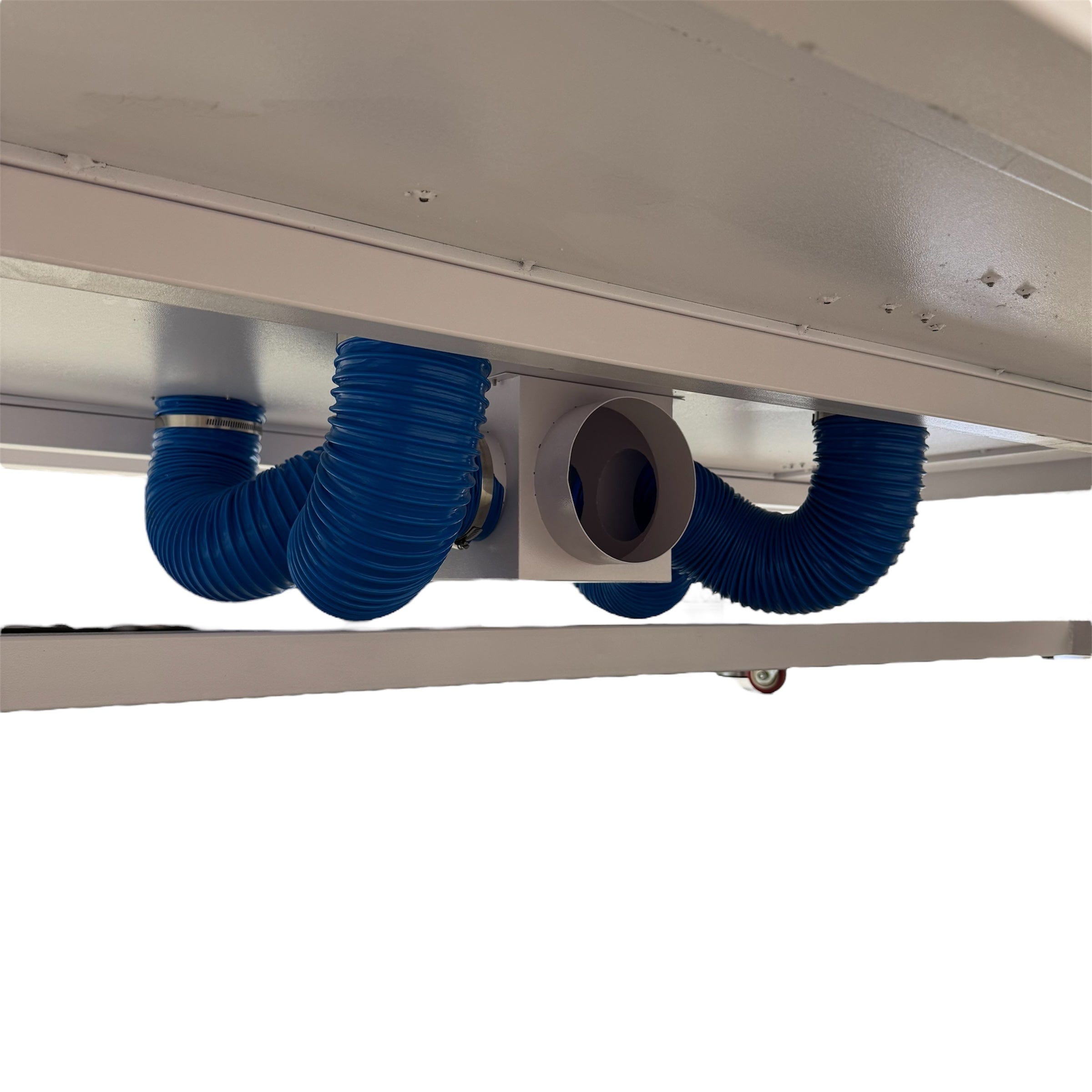

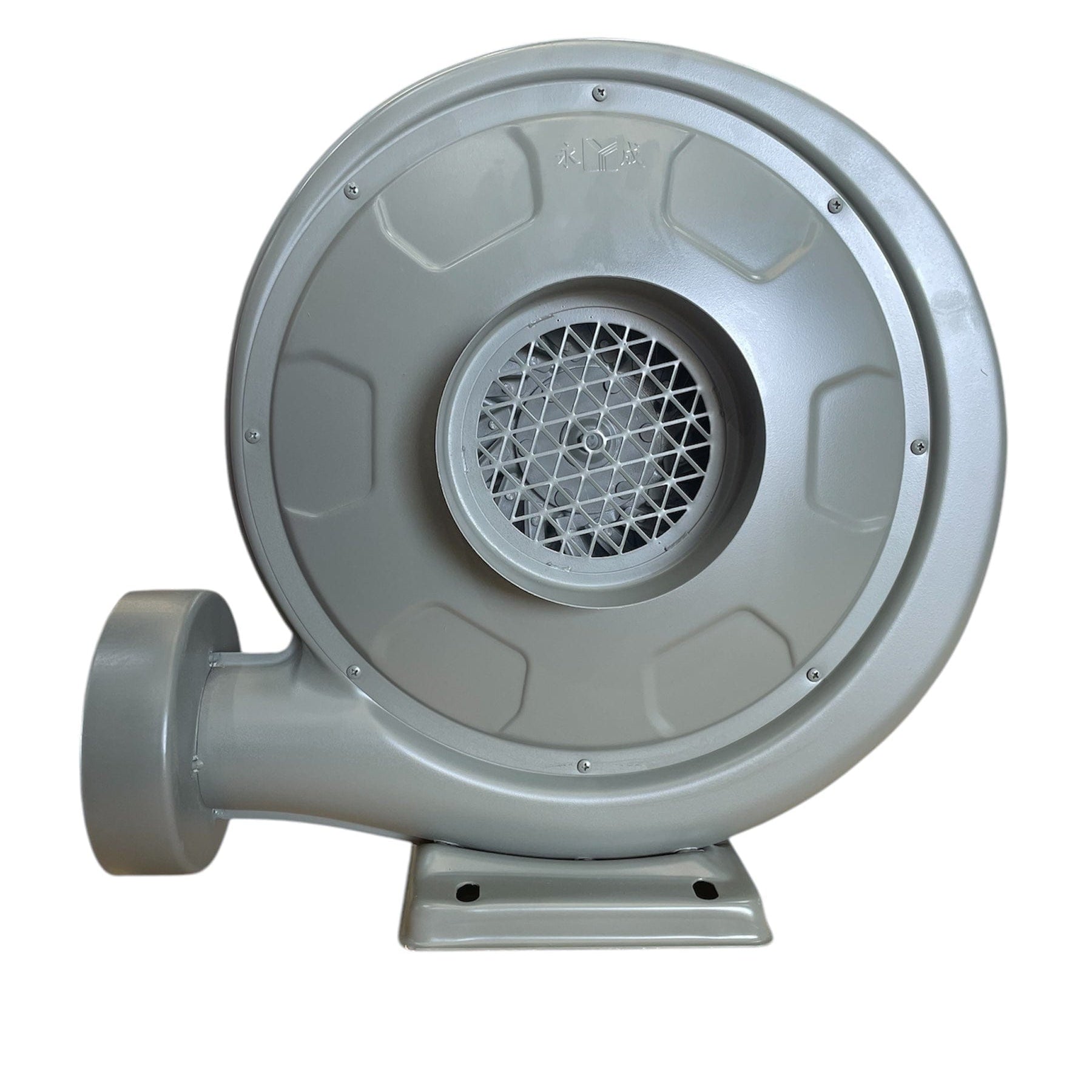

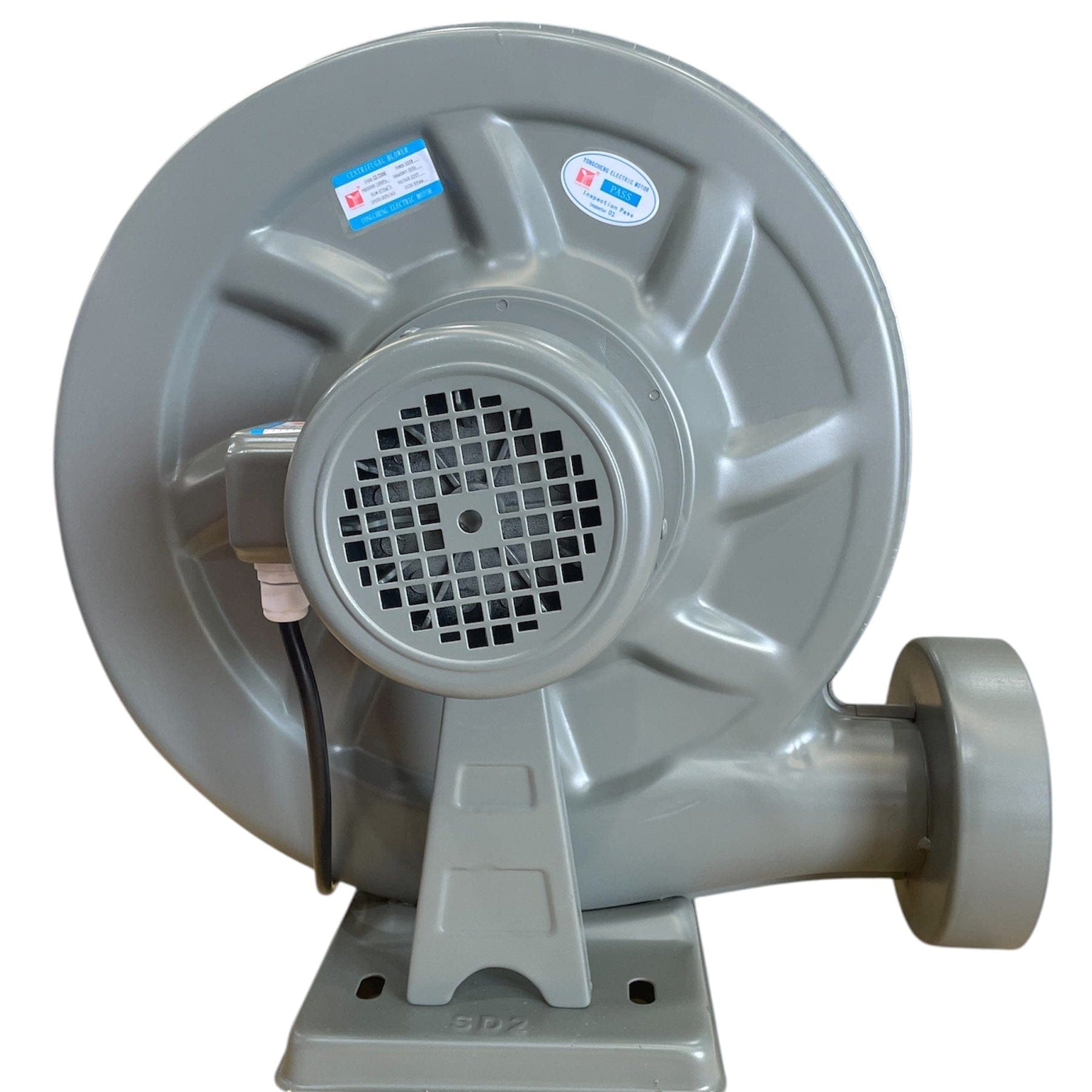

    • Air exhaust fan
    • Air Pump
    • Communication cable

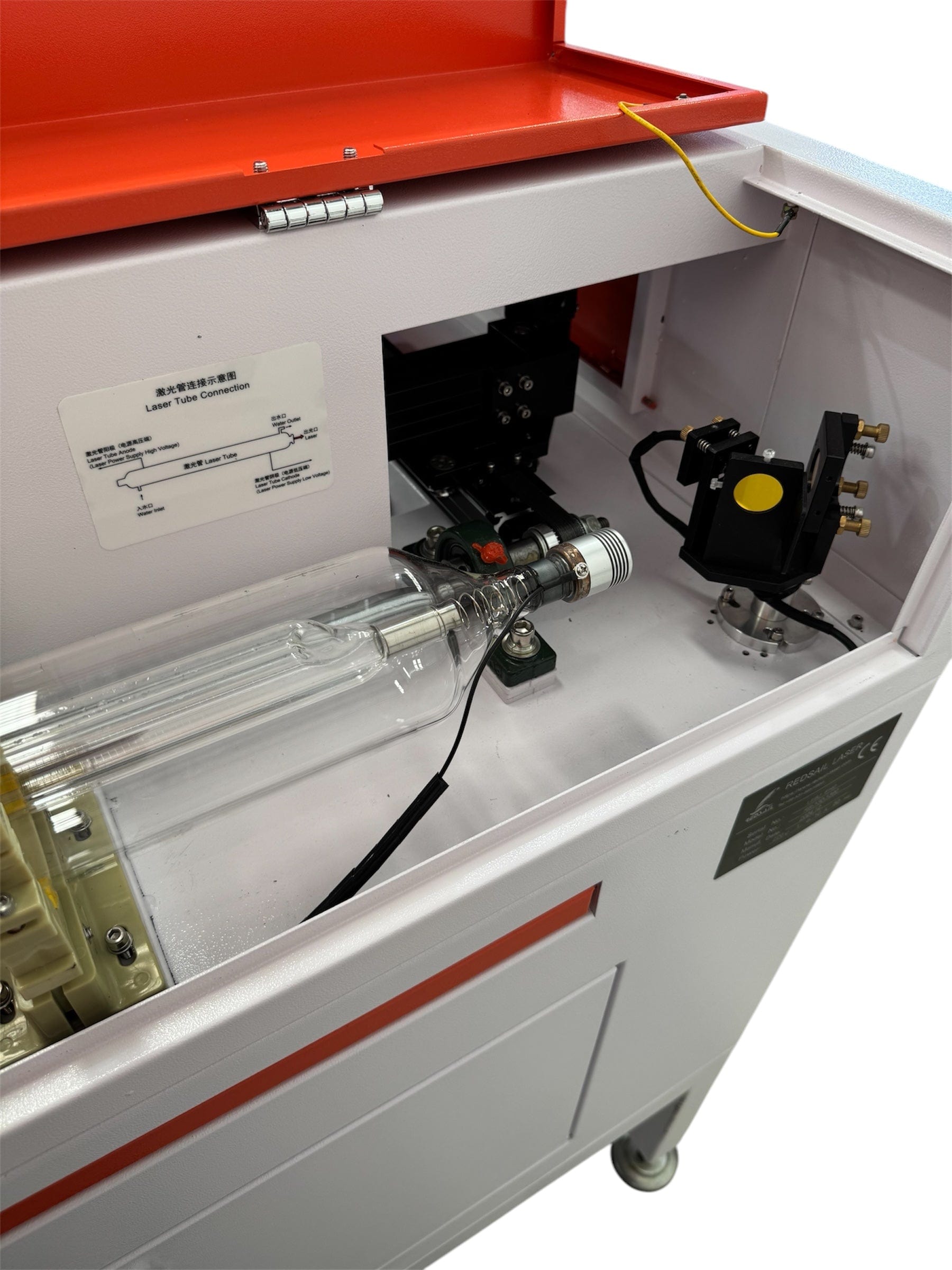

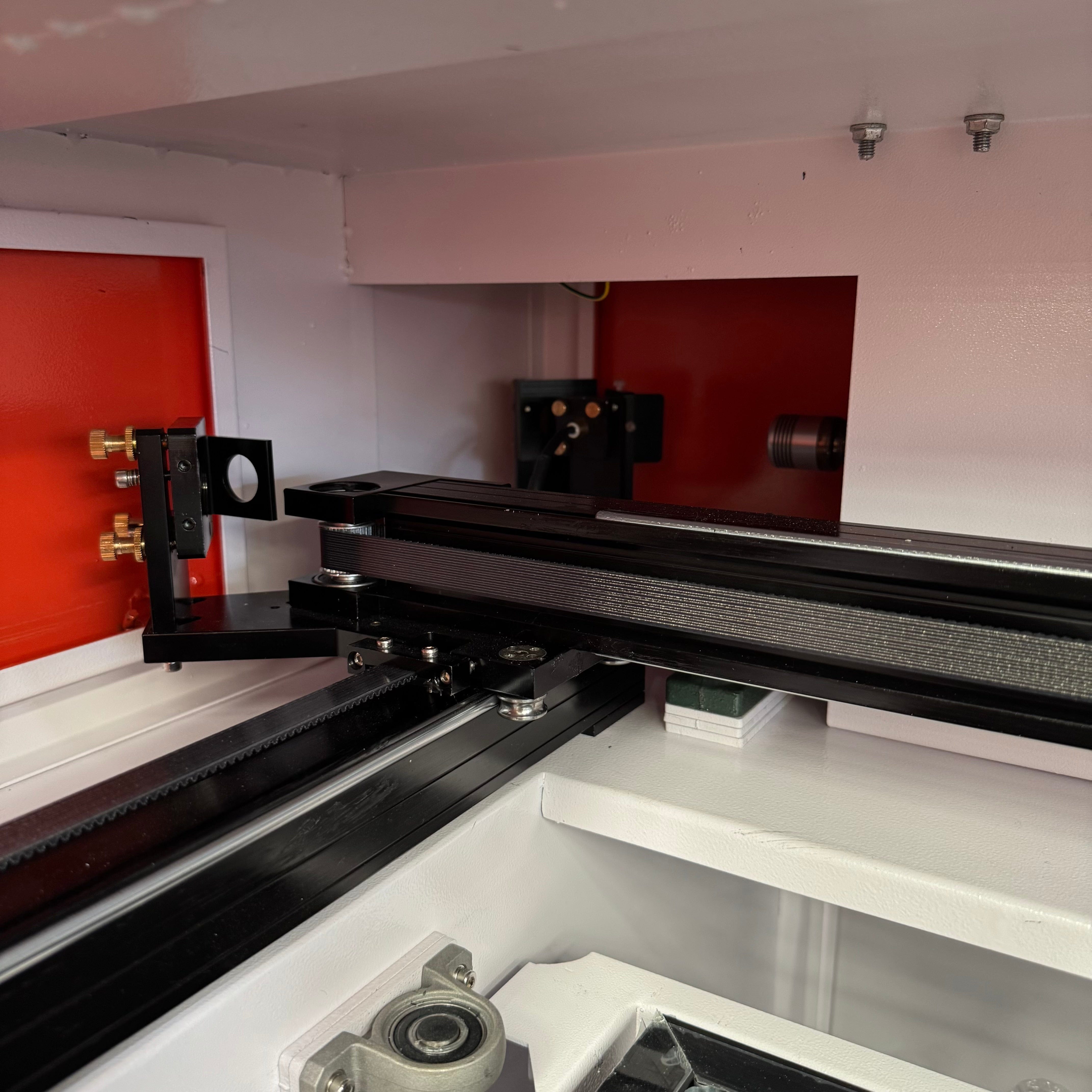

    • 3 Reflect Optics (installed in the machine)

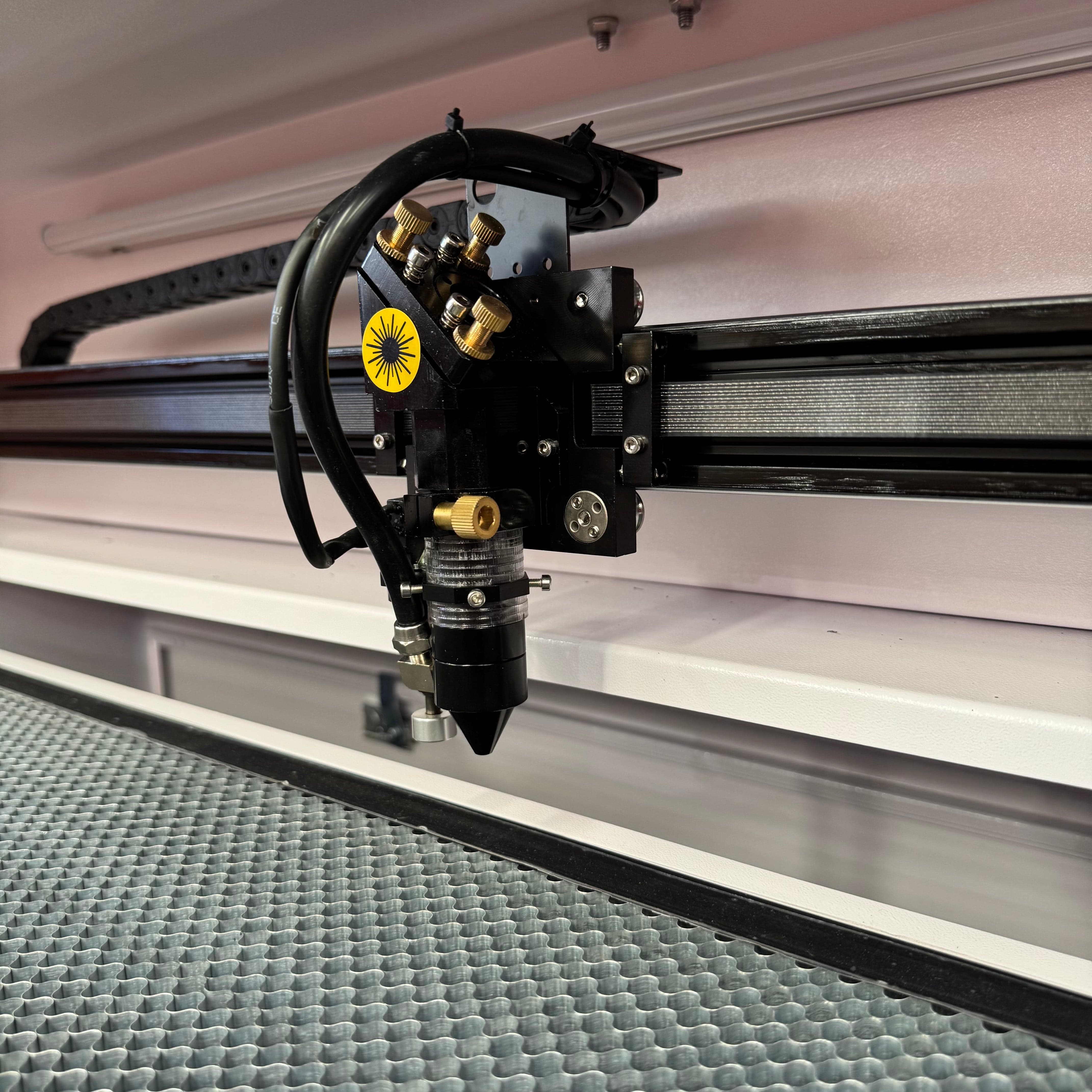

    • 1 Focus Optics (installed in the machine)

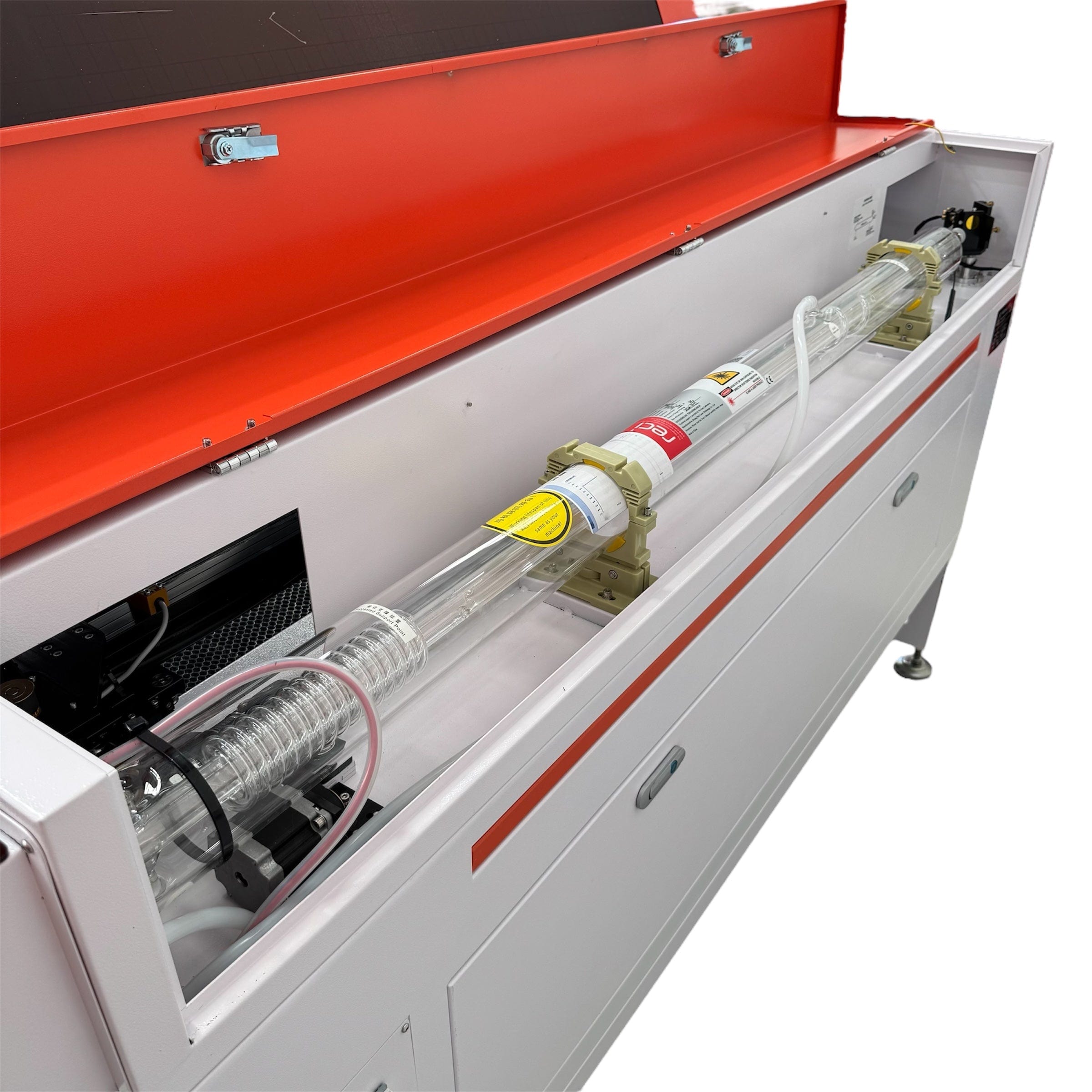

    • 1 Laser tube
    • Rotary attachment for cylinder
    • Motorised up and down platform

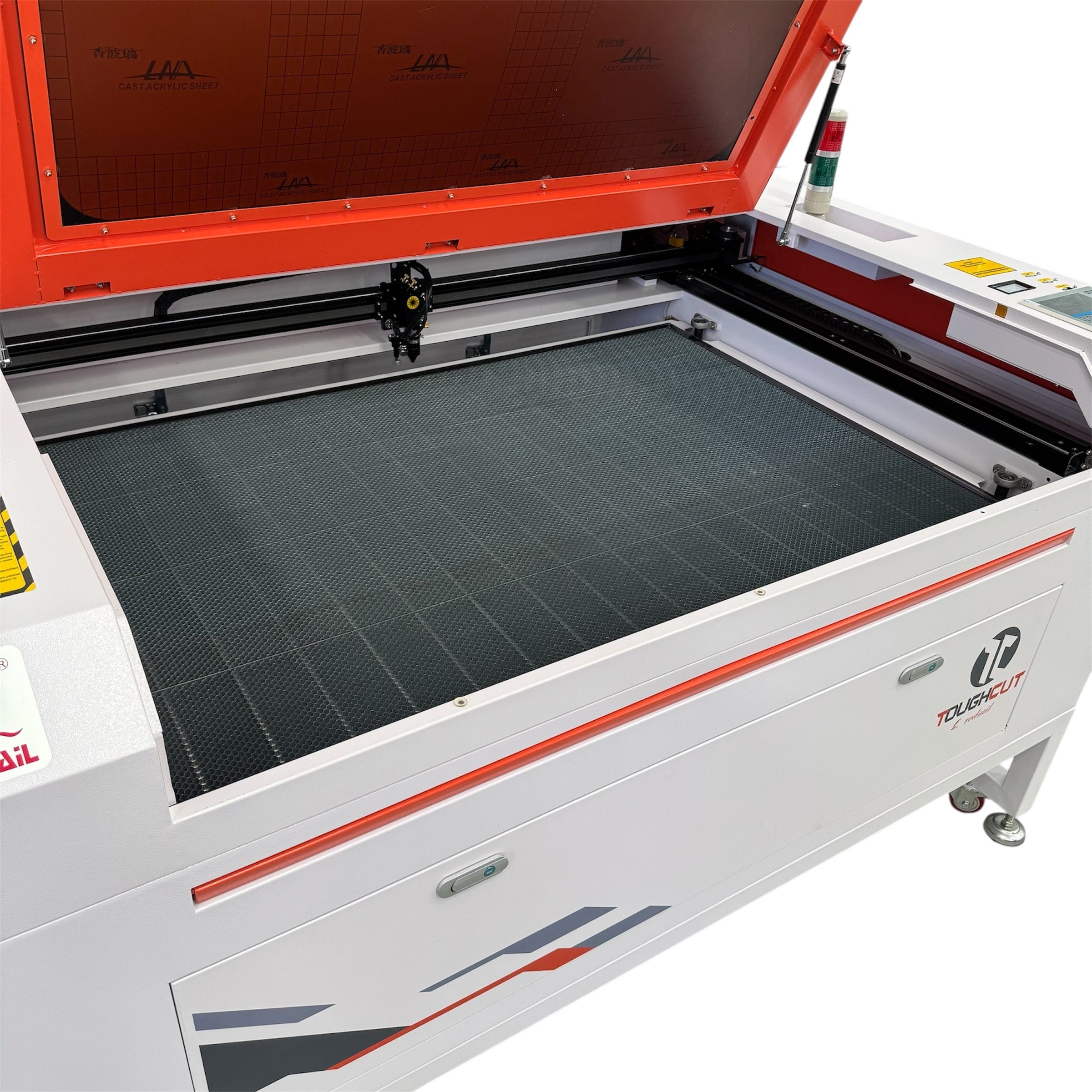

    • Honeycomb Table
    • Laser Engraving Software Package: Lightworks Software

    Workshop Requirements

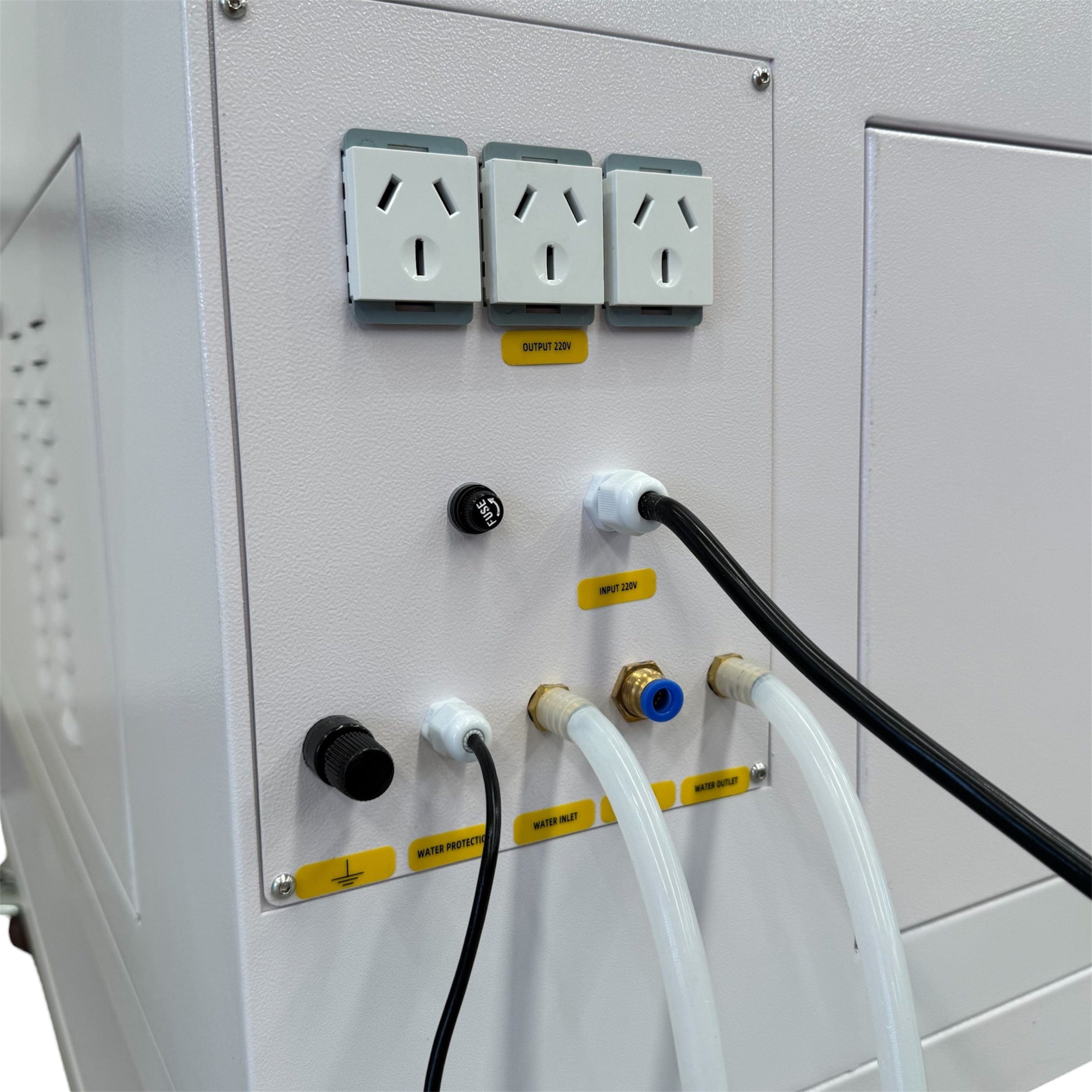

    • Power: 240V 10Amp 50Hz
    • Odour & Fume Extractor
    • Computer / Laptop
    • Delivery, Installation, Commissioning

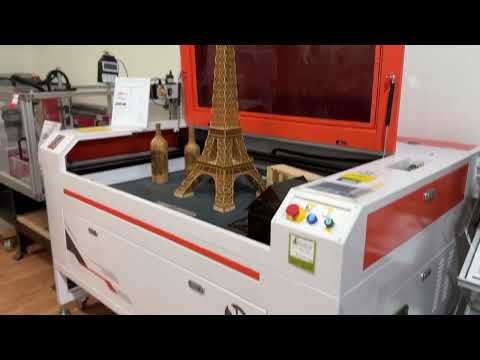

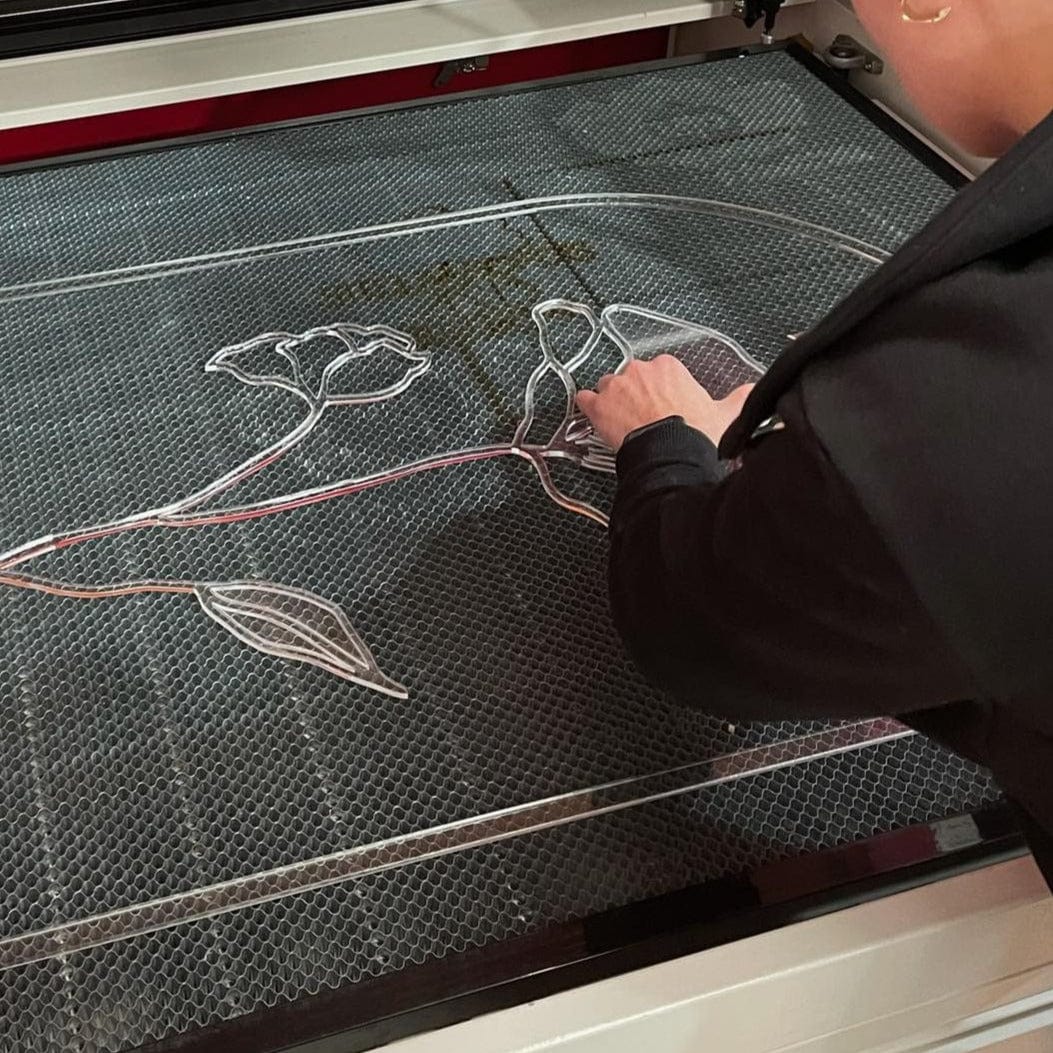

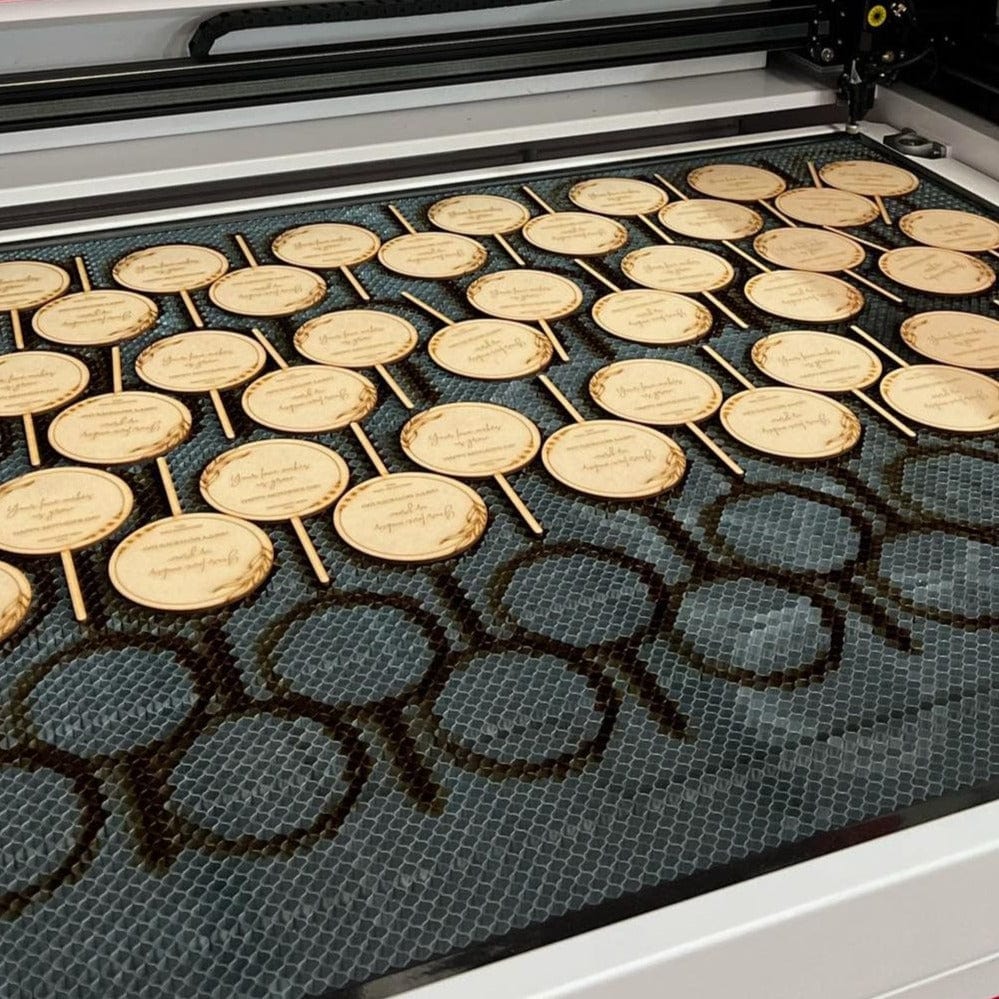

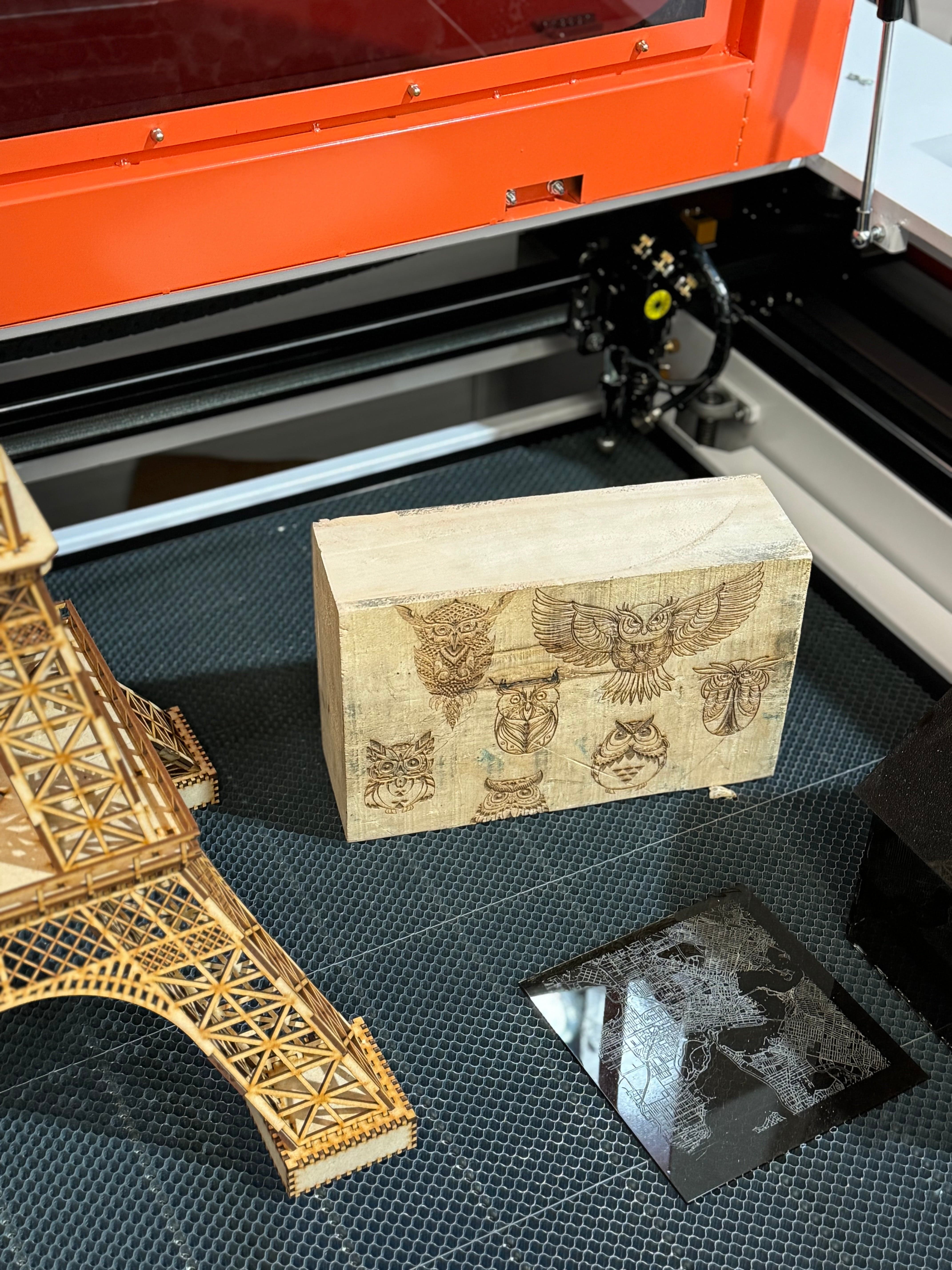

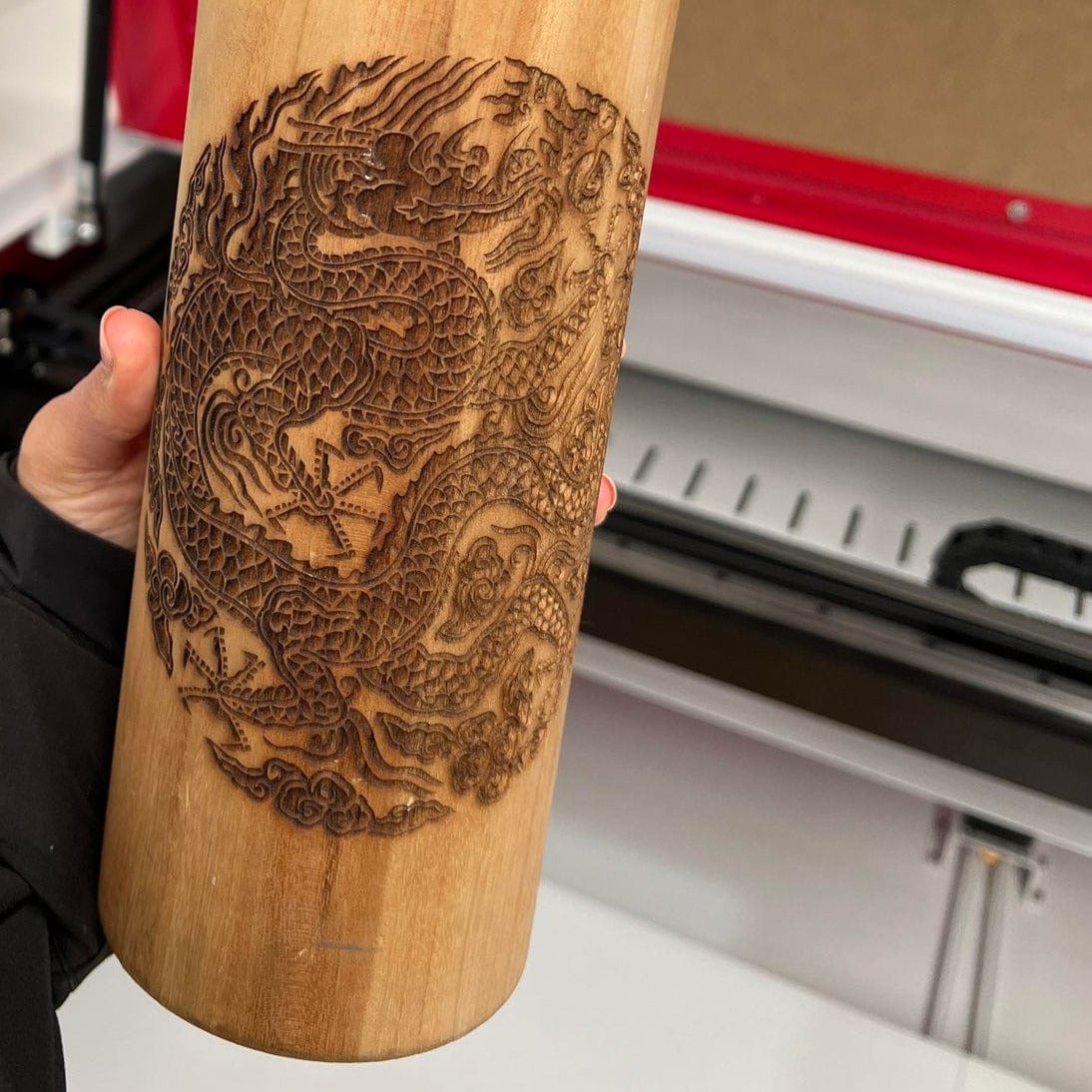

    Client Work

    Image Credits

    Some user images courtesy of Cut & Co. Perth + Blu Builders, Perth

    Comparable Products

    • Redsail RSX130-1390 #8601391

    Additional Information

    Model
    Type
    CNC Laser
    SKU
    8043401
    Part Number
    TCL130-1390
    Brand
    ToughCut
    Size
    1300mm x 900mm
    Size*
    1300mm x 900mm
    Technical - Main
    Power Source
    Power Source
    Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
    240V 50Hz Single Phase

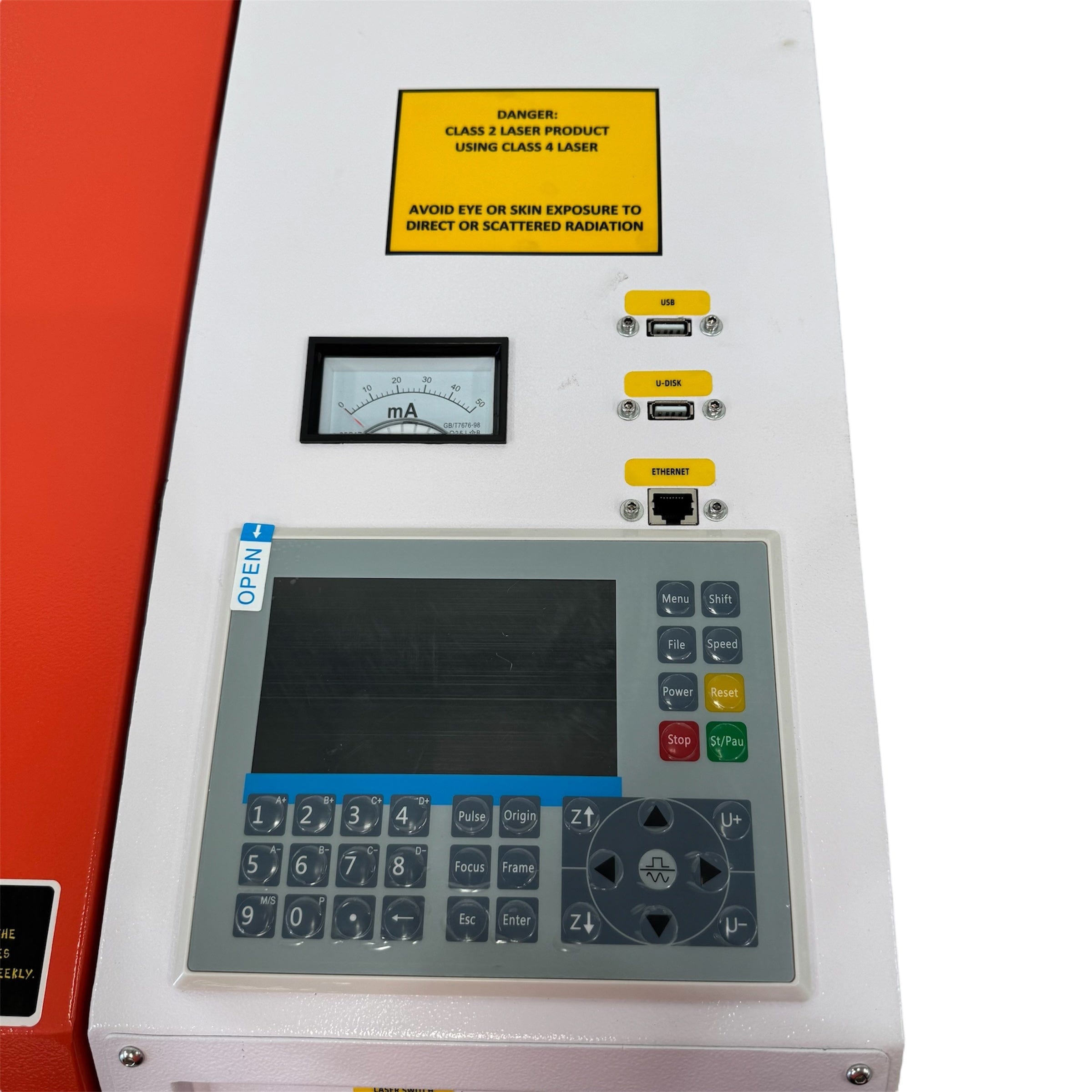

    Laser Class
    Laser Class
    Laser classes are categories assigned to lasers based on their potential to cause harm to humans, particularly to the eyes and skin. The classification system is designed to indicate the level of risk associated with the laser's power output and wavelength, guiding the necessary safety precautions for their use. The classes range from Class 1 (safest) to Class 4 (most hazardous).Class 1: Safe under all conditions of normal use. Used in CD/DVD players, laser printers, barcode scanners. No special precautions needed.Class 1M: Safe except when viewed with optical instruments. Used in fiber optic systems, measurement tools. Avoid using optical instruments to view the beam.Class 2: Safe for brief exposure due to blink reflex. Used in laser pointers, alignment lasers. Do not stare into the beam.Class 2M: Safe for brief exposure unless viewed with optical instruments. Used in alignment tools, rangefinders. Avoid using optical instruments to view the beam.Class 3R: Low risk of injury, up to 5 mW. Used in laser pointers, alignment lasers. Avoid direct eye exposure.Class 3B: Can cause eye and skin injuries, up to 500 mW. Used in research, some medical devices. Use safety goggles and avoid direct exposure.Class 4: High risk, can cause severe injuries and fire hazards, above 500 mW. Used in industrial cutting, welding, medical, research. Use protective equipment and follow strict safety measures.
    Class 1 Laser Product using Class 4 Laser
    Laser Style
    Laser Style
    Fiber LasersHigh-efficiency lasers using doped optical fibers; excellent beam quality, used in cutting, welding, and telecommunications.Continuous Wave (CW) LasersEmit steady, uninterrupted beams; used for continuous material processing and research, require robust cooling.Pulsed LasersEmit high-energy bursts; ideal for precision applications like micro-machining, engraving, and medical procedures.Fiber Pulsed LasersCombine fiber laser efficiency with pulsed operation; used for precise tasks in micro-machining, engraving, and medical fields.Gas LasersUse gases like CO2 or helium-neon; high beam quality, common in cutting, engraving, and scientific research.Solid-State LasersUse solid gain media like crystals or glass; versatile applications including medical procedures, material processing, and laser ranging.Dye LasersUse liquid dyes as the gain medium; tunable wavelengths, used in spectroscopy and medical treatments.Semiconductor Lasers (Diode Lasers)Compact, efficient lasers using semiconductor materials; common in communications, barcode scanning, and laser printing.
    CO2 (Glass Sealed Laser Tube)
    Laser Power
    130W Agreed Power (150W Peak Power)
    Resolution (Location Precision) (DPI)
    Resolution (Location Precision) (DPI)
    DPI, or dots per inch, is a measure of the resolution of a printed document or digital scan. The higher the dot density, the higher the resolution of the print or scan. Typically, DPI is the measure of the number of dots that can be placed in a line across one inch, or 2.54 centimeters.
    2500
    Travel - Z Axis
    260mm
    Maximum Travel Speed
    1m / Min.
    Dimensions
    Product Length
    1800mm
    Product Width
    1360mm
    Product Height
    1070mm
    Country of Origin
    Designed, Researched & Developed in
    Australia
    Features
    Standard Inclusions
    Laser Engraving Software PackageUser Manual (CD)Water chiller Pump – CW5200Air exhaust fanAir PumpCommunication cable3 Reflect Optics (installed in the machine)1 Focus Optics (installed in the machine)1 Laser tubeRotary attachment for cylinderMotorised up and down platformHoneycomb TableLightworks Software
    Workshop (Site) Info
    Other Requirements
    Power: 240V 10Amp 50Hz Odour & Fume Extractor Computer / Laptop Delivery, Install, Commissioning
    Warranty
    Warranty
    Warranty
    All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
    1 Year
    Packaging + Shipping
    Shipping Length
    1700mm
    Shipping Width
    1000mm
    Shipping Height
    1200mm
    Shipping Weight (Gross)
    248kg
    Packaging
    Packaging
    Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
    Wooden Box / Crate with Skid
    Requires a Forklift / Tail Lift to Unload
    Requires a Forklift / Tail Lift to Unload
    If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
