Description
- Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
- Welded frame prevents flexing under maximum load
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint finish is oil, grease and dirt-resistant for easy cleanup
- High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
- Dependable double spring return for fast ram retraction
- Piston-ram is treated and polished for extended life
- Reinforced head bolster for added strength

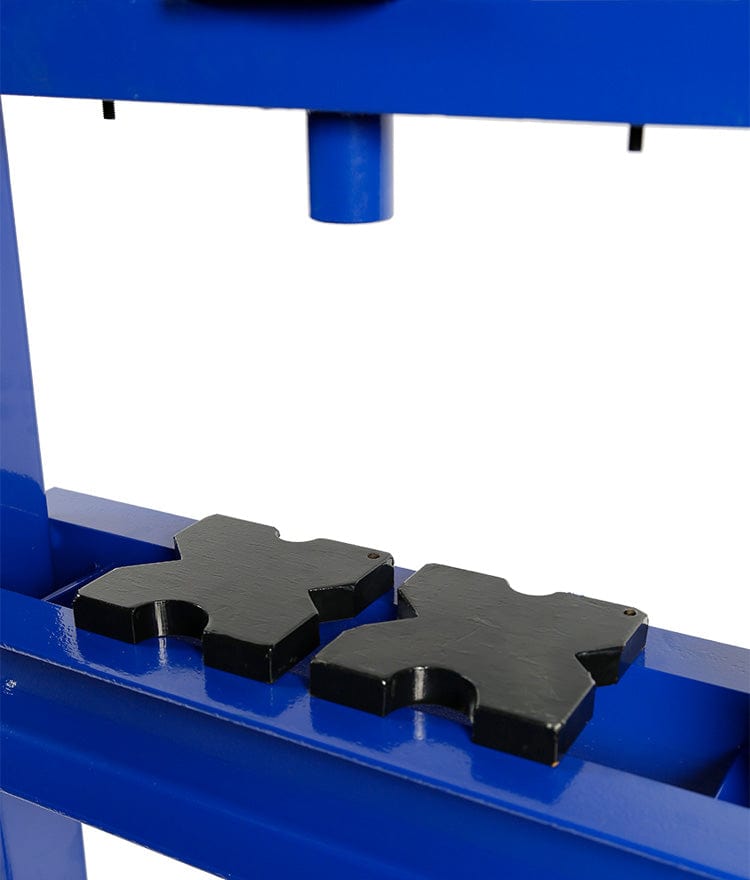

- Pair of bed plates included
- Safe Working Capacity: 20,000kg
- Working Range: 130 - 705mm
- Overall Height: 1510mm
- Overall Width: 665mm
- Overall Depth: 700mm
- Bed Outside: 210mm
- Bed Inside: 106mm
- Bed Width: 570mm
- Ram Stroke: 150mm
- Ram Diameter: 105mm
- Nett Weight: 88kg
- Carton: 1530 x 710 x 230mm
- Gross Weight: 90kg
- Ideal for straightening, stamping, bending and pressing any component that is difficult to handle.
