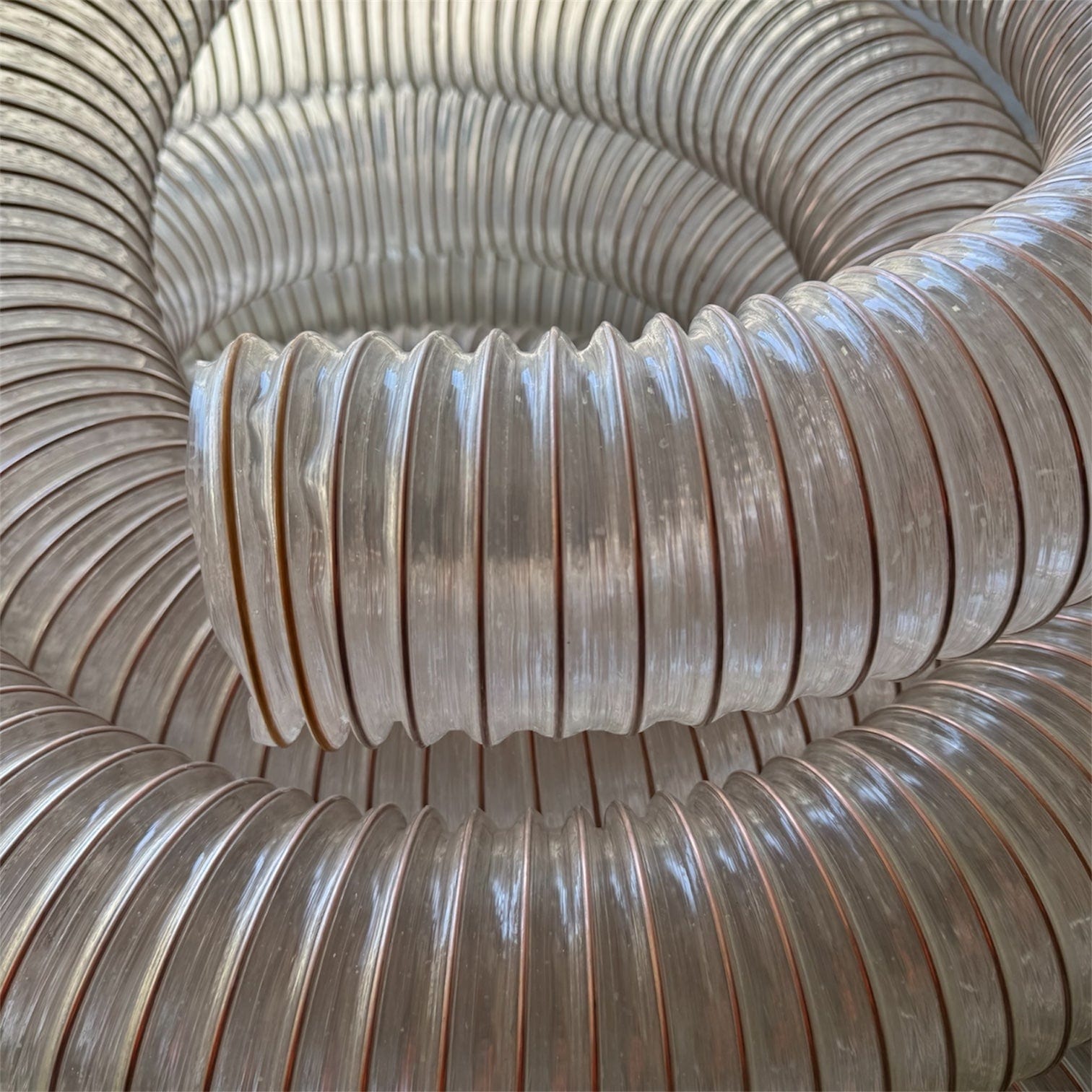

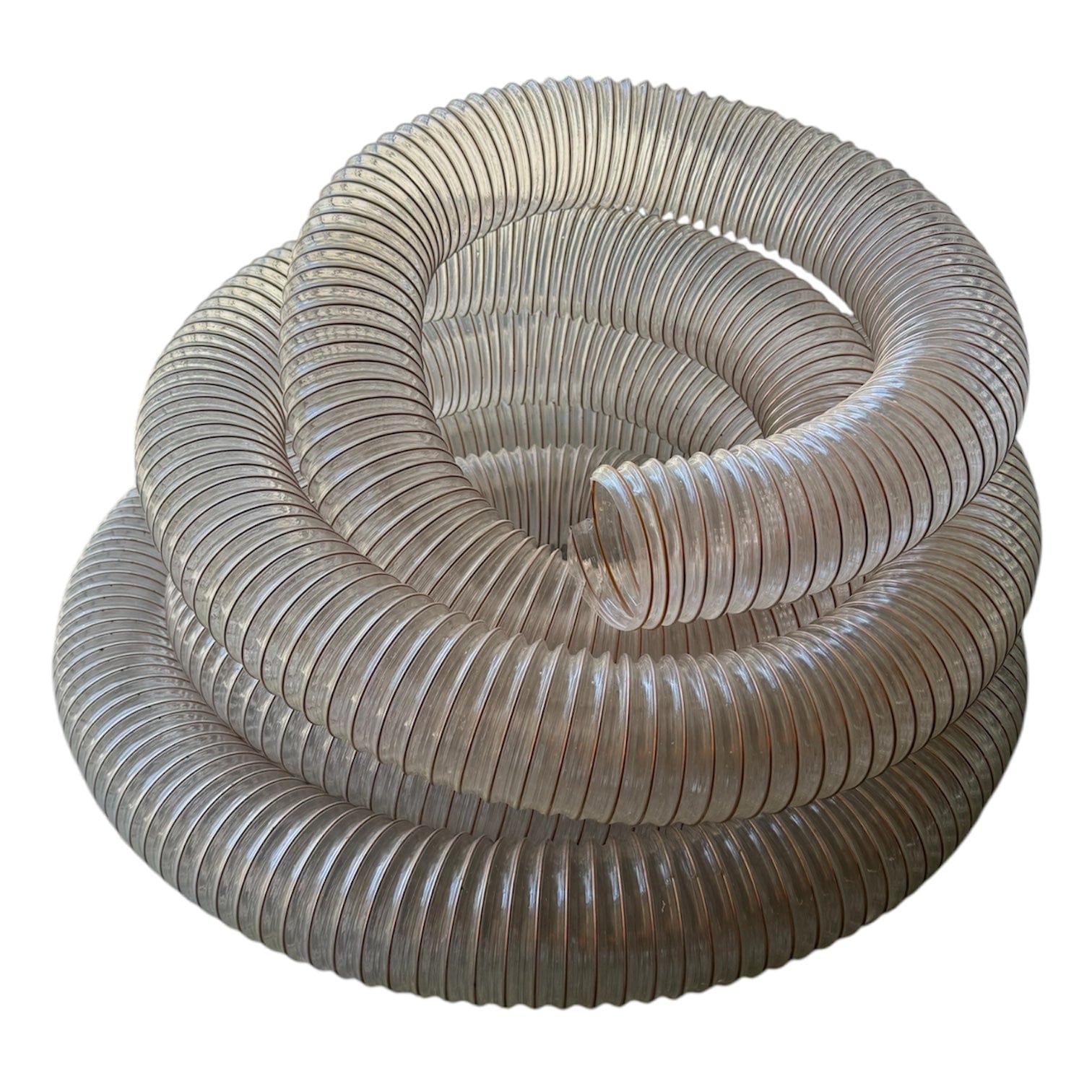

Description
Available in various diameters. Sold per 5m increments off a continuous 10m Roll.
Applications
- for abrasive solids such as dust, powder, fibres and chips
- for industrial air movement and fume control
- for extraction arms and dust collection equipment
- for CNC machining areas

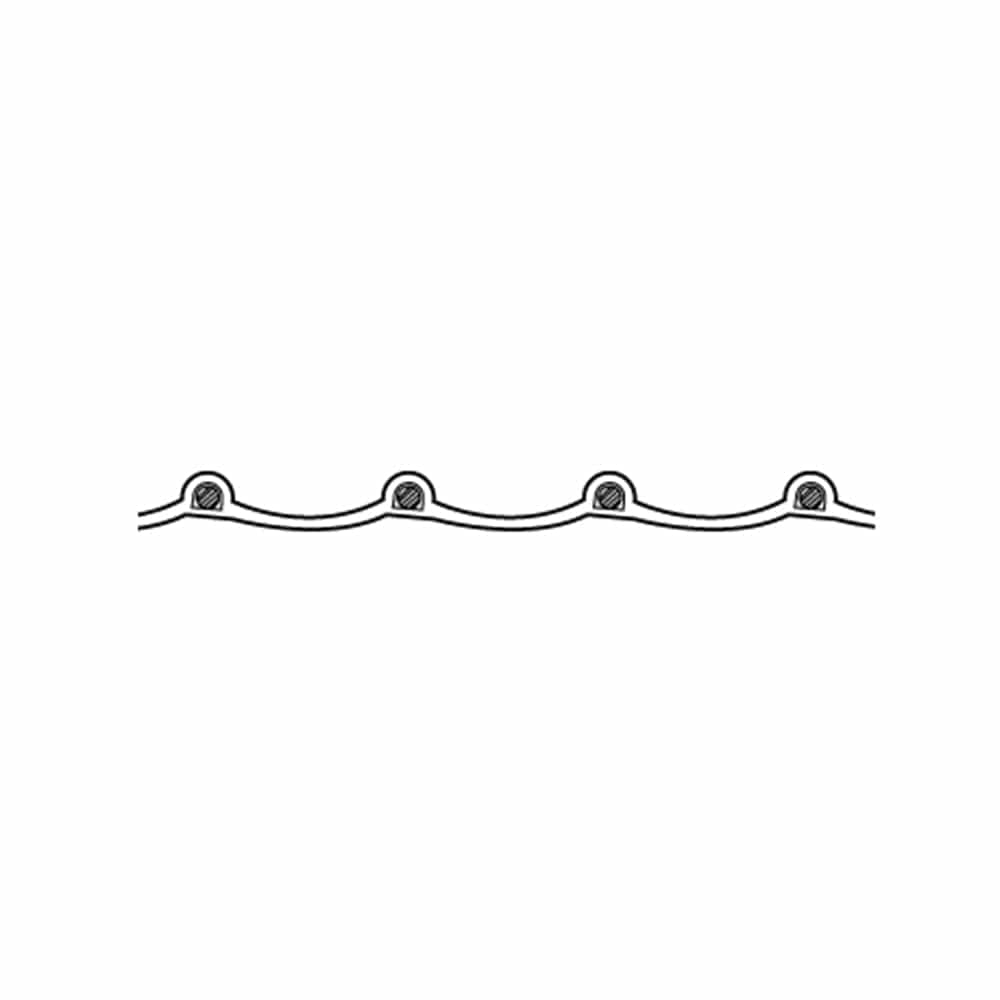

- Construction
- spring steel wire integrated in wall
- wall thickness 0.4 mm approx.
- Material
- Wall - Ester-polyurethane
- Spiral - Spring steel wire
- Standard Colour
- Transparent
- Other Properties
- optimised flow properties
- microbe and hydrolysis resistant
- chemical resistant
- good resistance to UV and ozone
- very good low temperature flexibility
- small bending radius
- kink-proof
- gas and liquid tight
- good resistance to abrasion excellent compressibility 3:1 • can be made anti-static by grounding the spiral • good tensile strength
- Temperature Range
- -40 °C approx. to +90 °C approx.
- short time to +125 °C approx.
- 2-1/2 (63mm) PU Hose
- 76mm (3") PU Hose
- 4" (100mm) PU Hose
- 5" (125mm) PU Hose
- 6" (150mm) PU Hose
- 7" (180mm) PU Hose
- 8" (200mm) PU Hose
- 12" (300mm) PU Hose
| ID | OD | Overpressure | Vacuum | Bending Radius | Weight |
| mm | mm | bar | bar | mm | kg/m |
| 25 | 32 | 1.300 | 0.340 | 32 | 0.14 |
| 32 | 39 | 1.100 | 0.320 | 39 | 0.17 |
| 38 | 46 | 0.900 | 0.300 | 46 | 0.19 |
| 50 | 58 | 0.700 | 0.240 | 58 | 0.27 |
| 60 | 68 | 0.560 | 0.210 | 68 | 0.31 |
| 63 | 71 | 0.550 | 0.180 | 71 | 0.34 |
| 76 | 84 | 0.470 | 0.130 | 84 | 0.44 |
| 80 | 88 | 0.430 | 0.120 | 88 | 0.47 |
| 90 | 98 | 0.390 | 0.100 | 98 | 0.49 |
| 100 | 108 | 0.350 | 0.080 | 108 | 0.52 |
| 114 | 122 | 0.300 | 0.070 | 122 | 0.59 |
| 120 | 128 | 0.290 | 0.070 | 128 | 0.62 |
| 125 | 133 | 0.280 | 0.060 | 133 | 0.64 |
| 140 | 148 | 0.250 | 0.050 | 148 | 0.72 |
| 150 | 158 | 0.170 | 0.050 | 158 | 0.76 |
| 160 | 168 | 0.160 | 0.040 | 168 | 0.81 |
| 178 | 186 | 0.140 | 0.040 | 186 | 0.89 |
| 180 | 188 | 0.140 | 0.040 | 188 | 0.90 |
| 200 | 208 | 0.130 | 0.030 | 208 | 1.10 |
| 203 | 211 | 0.130 | 0.030 | 211 | 1.10 |
| 254 | 262 | 0.100 | 0.015 | 262 | 1.30 |
| 305 | 313 | 0.090 | 0.015 | 313 | 1.70 |
