Description

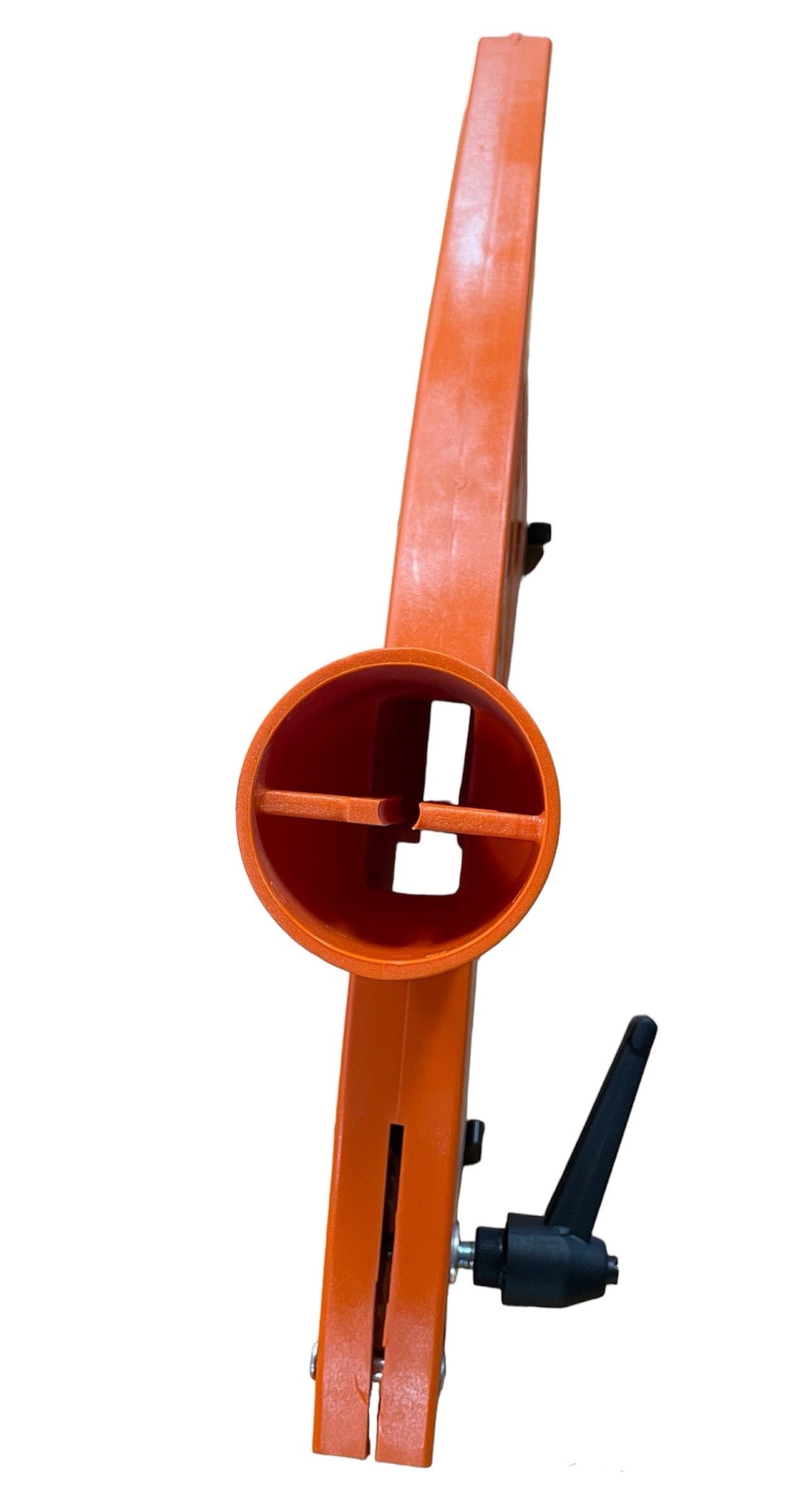

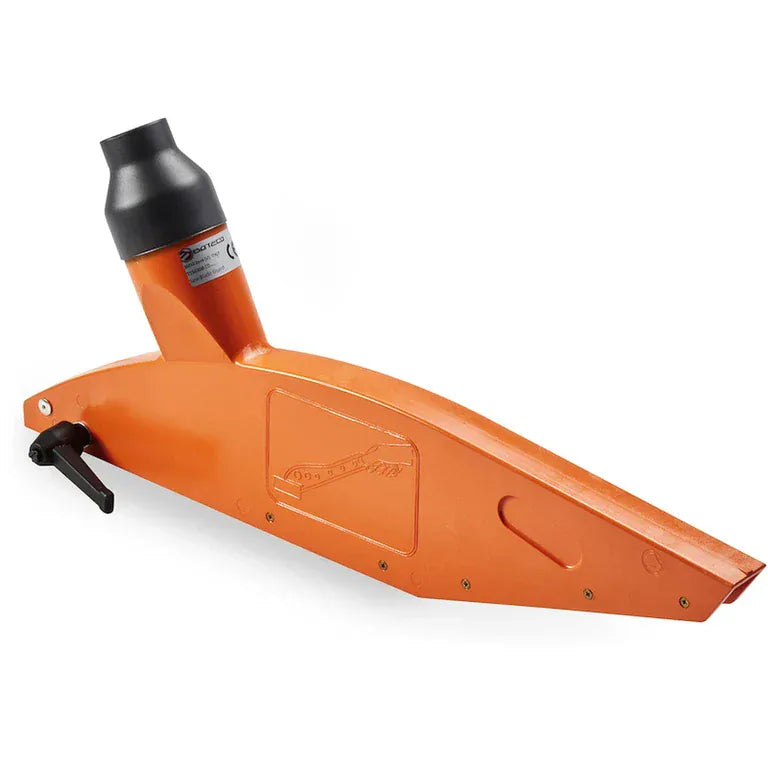

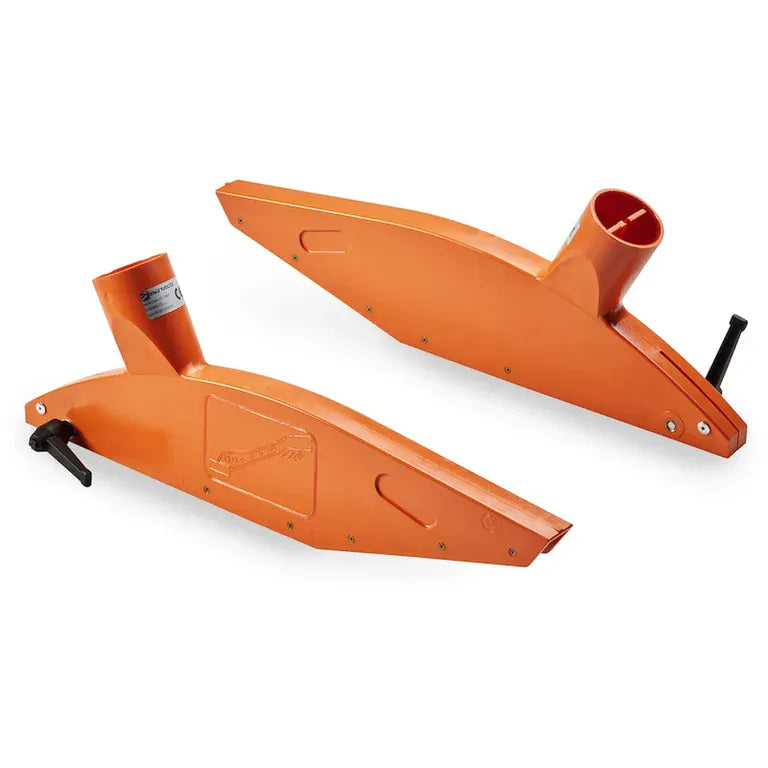

The Boteco T556 Saw Safety Blade Guard delivers professional-grade protection across circular, table, and panel saws. This versatile guard accommodates most standard blade sizes with two options—250mm and 300mm—to match your equipment. Built from durable polycarbonate with a satin finish in distinctive orange, it features a precision 8mm x 1.25 kip lever for secure positioning and a 4mm riving knife gap for optimal blade clearance. The 60mm hose outlet integrates seamlessly with dust extraction systems. Engineered with quality components including galvanised steel hardware, aluminium rivets, and brass inserts, this guard prioritises both safety and longevity on the workshop floor.
Specification
- 8mm x 1.25 Kip Lever
- 4 mm Riving Knife Gap
- 60mm Hose Outlet

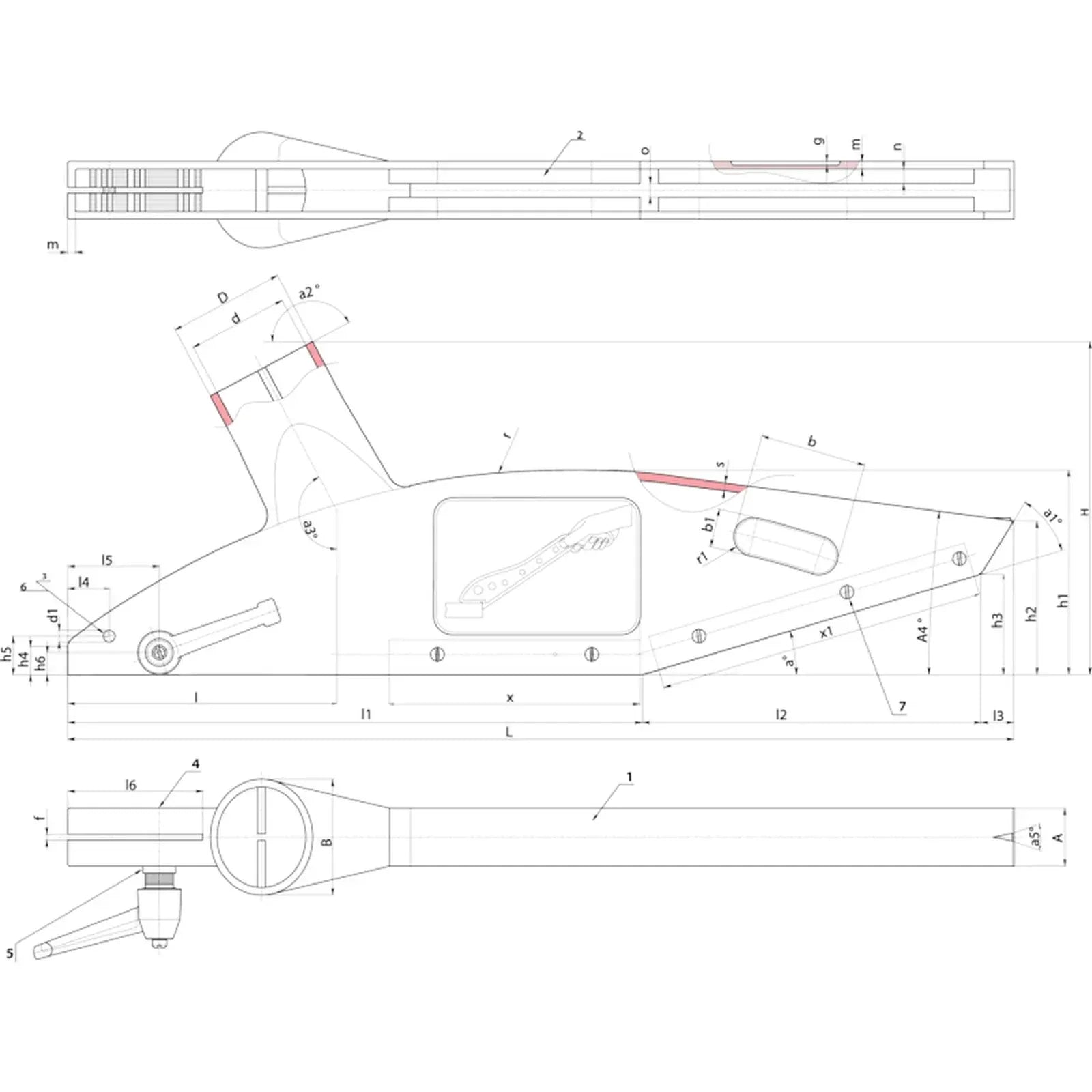

Materials
(1-2) Polycarbonate.
Surface finish
Satin.
Colour
Orange (RAL 2004 code 02).
Inserts
(3) Aluminium rivet AL4.010 4.0x10.
(4) Brass threaded through-hole insert.
(5) Galvanised steel washer.
(6) Turned galvanised steel pin with stop d.6x30.
(7) Brass self-tapping screw M3x10 DIN 97.
Clamping lever
Indexed clamping lever art. A523065.TM08X3001.
Optional Accessories

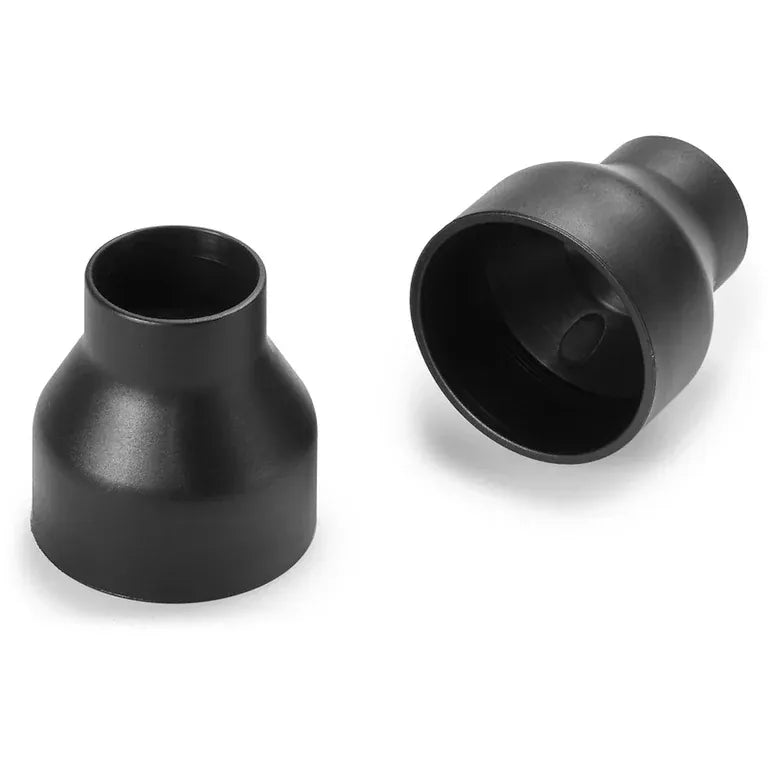

Suction tube adapter (shown in black) D. 40 to be ordered separately - Art. T556040.T01
Options
| Size | |
| 250mm |
T556300.0001 (Art. T556300.C02) |
| 300mm |
T556250.0001 (Art. T556250.C02) |
